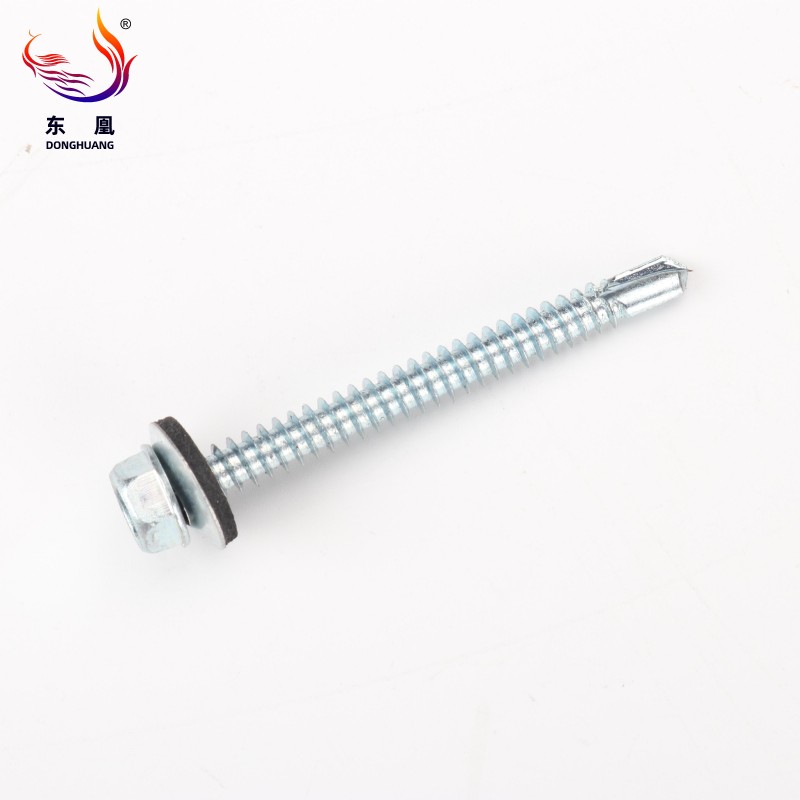

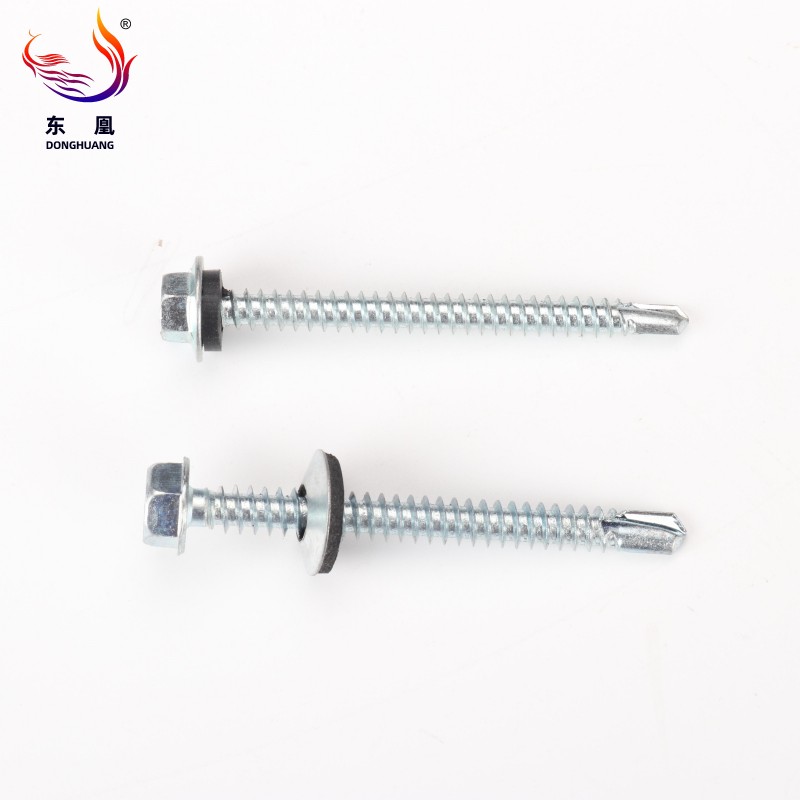

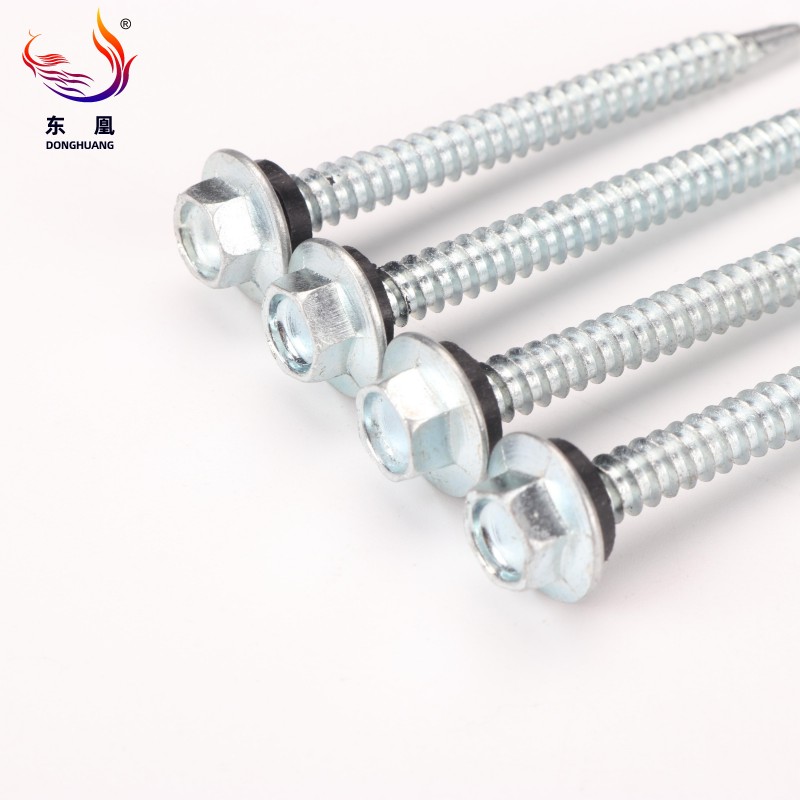

Engineered for precise fastening and superior weatherproofing, the hex washer head self-drilling screw with a bonded EPDM washer is a specialized solution for rigorous roofing and cladding applications. This fastener seamlessly combines a robust drilling point, thread-forming capability, and an integrated sealing mechanism into a single operation, entirely eliminating the labor-intensive need for pre-drilled pilot holes. The structural design features an optimized flange head paired with a meticulously engineered concave bottom surface. This specific geometry perfectly accommodates the EPDM (Ethylene Propylene Diene Monomer) rubber washer, preventing over-compression while ensuring a flawless, watertight seal.

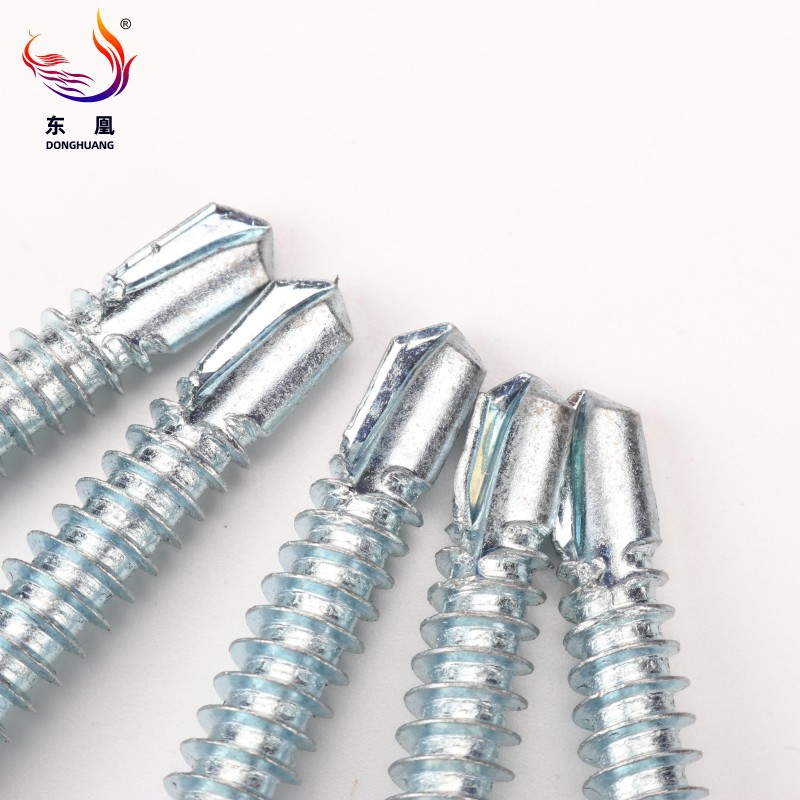

When driven into metal panels, the sharp, self-drilling point acts as a miniature drill bit, cleanly penetrating substrates before the threads engage. The resulting fastening joint not only provides exceptional pull-out resistance but also delivers high-torque anti-slip performance, crucial for maintaining structural integrity under heavy wind loads or thermal expansion. The solid metallic grip of the hex head combined with the resilient compression of the rubber provides a tactile confirmation of a secure, permanent hold.
| Item | Hex Washer Head Self Drilling Screw With Epdm Washer |
| Size | ST 2.9/3.5/3.9/4.2/4.8/5.5/6.3 |
| Length | 6-100mm |
| Material | Stainless Steel 304/316/410, Carbon Steel, Alloy Steel |
| Surface | Passivation, Plain,Galvanized, Nickel Plated, Black Oxide |
| Packaging | Carton Box / Bag +Pallet |
| Standard | DIN, GB, ATSM/ANSI, JIS, BSW, ISO |
| Delivery Time | 15-30 days |
| OEM | Available |
Metal Roofing and Cladding Siding: The primary application involves securing corrugated metal sheets and siding panels to structural steel or timber frameworks. The bonded EPDM washer is indispensable here, forming an impenetrable barrier against rain and snow, protecting the building envelope from moisture damage.
Exterior Construction and Carports: Perfect for outdoor structures requiring resilient, weather-defying connections. Whether assembling sheds, carports, or mounting exterior fixtures, the anti-corrosion plating ensures the joints remain secure despite constant exposure to the elements.
HVAC Systems and Ductwork: Excellent for assembling ventilation ducts and air conditioning units. The tight seal prevents air leakage, thereby improving the overall energy efficiency of the climate control system.
Automotive and Mechanical Assembly: Utilized in vehicle manufacturing and heavy machinery where components face continuous vibration. The integrated washer acts as a dampener, preventing the screw from backing out.
Electrical Enclosures: Provides a secure mounting solution for electrical boxes and conduit straps to metal frameworks, ensuring a firm hold without compromising the enclosure's weather rating.
Steel Frame Construction: Essential for fastening heavy-duty brackets, cladding materials, and secondary steel sections directly to primary steel components without the need for pre-drilling.
Evaluate the total thickness of the materials being joined to ensure the drill point length is adequate. The unthreaded drilling section must completely penetrate the metal before the first thread engages. Verify material compatibility to prevent galvanic corrosion. The bonded EPDM washer is critical for providing a watertight seal and protecting the mating surface, preventing leaks and loosening.
Equip a variable-speed power drill with a correctly sized magnetic hex socket or nut setter. The magnetic grip ensures the fastener remains stable during the initial drilling phase. Identify and mark the exact location where the screw will be installed to ensure structural alignment.
Place the pointed end of the screw on the marked spot and apply consistent, firm downward pressure. Start the drill at a moderate speed, allowing the cutting edges to create their own hole. The screw then taps its own threads, creating a strong fastening. As the threads engage and pull the fastener downward, prepare to reduce the driving speed.
Continue driving the screw until the EPDM washer creates a firm, reliable seal against the surface. Avoid over-compressing the washer, which can cause it to deform outward and reduce its sealing effectiveness. Finally, verify that the screw is straight and the washer is seated evenly to prevent any potential leaks.
Q: Are Self-Drilling Screws and Tek Screws exactly the same thing?
A: Yes, in the fastener industry, "Tek Screws" is a proprietary brand name that has become a widely accepted generic term for self-drilling fasteners. Both terms are used interchangeably to describe screws featuring a characteristic drill-bit tip designed to pierce metal without pre-drilling.
Q: What is the primary difference between self-drilling and self-tapping fasteners?
A: Self-drilling variants incorporate a distinct fluted drill point that cuts its own hole through the substrate, eliminating the need for a pilot hole. Conversely, self-tapping variants only form threads and strictly require a pre-drilled pilot hole, especially when working with hardened metals or thick alloys.
Q: How do I determine the correct length and size for my roofing project?
A: The optimal size depends on the combined thickness of the panels and the underlying purlin or substrate. The drill point must be long enough to clear the material entirely before the threads begin to bite. Additionally, consider wind load requirements when selecting the thread diameter.
Q: Is it advisable to reuse these fasteners after removal?
A: We strongly advise against reusing them. During the initial installation, the drilling point may dull, and the EPDM washer undergoes permanent compression. Reusing the fastener compromises its structural holding power and completely negates its waterproofing capabilities.
Q: How do they perform in extreme outdoor environments?
A: They are exceptionally well-suited for demanding outdoor conditions. By selecting options with our eco-friendly trivalent chromium galvanization or opting for 304/316 stainless steel materials, the fasteners provide outstanding long-term resistance against rust, UV degradation, and chemical exposure.
Operating a dedicated manufacturing facility equipped with multiple advanced production lines, we deliver exceptional scalability to meet diverse procurement demands. From flexible low Minimum Order Quantities (MOQ) for specialized projects to tiered pricing structures for large-volume continuous supply, our robust production capacity ensures a stable delivery window of 15 to 30 days.
