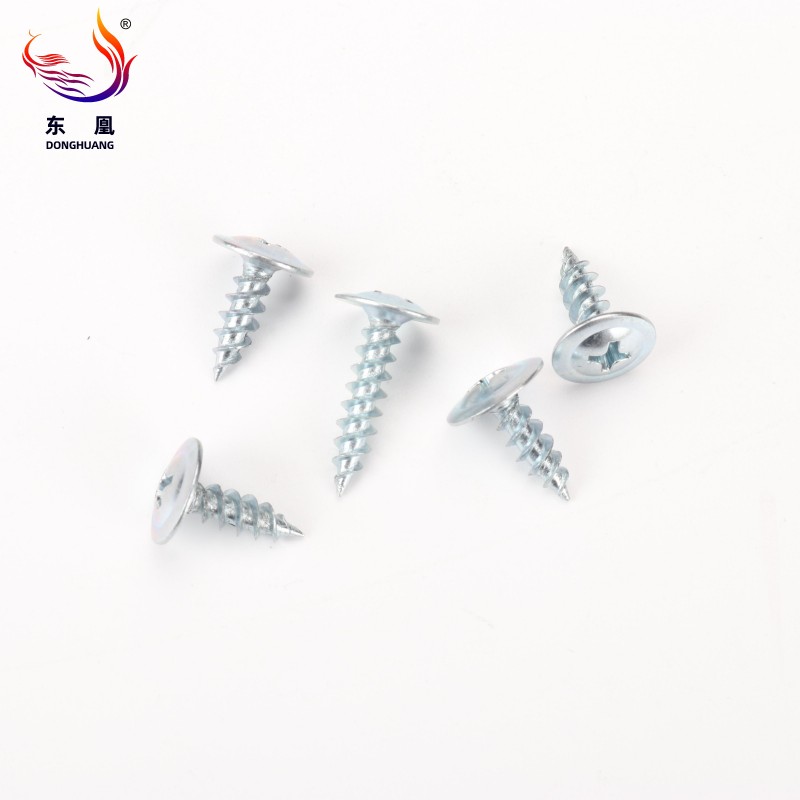

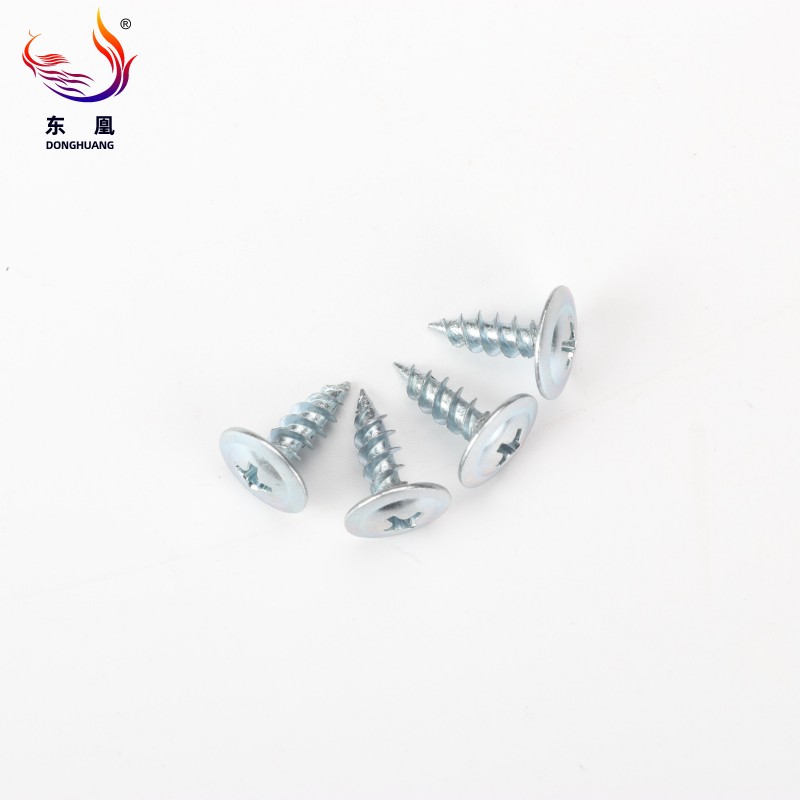

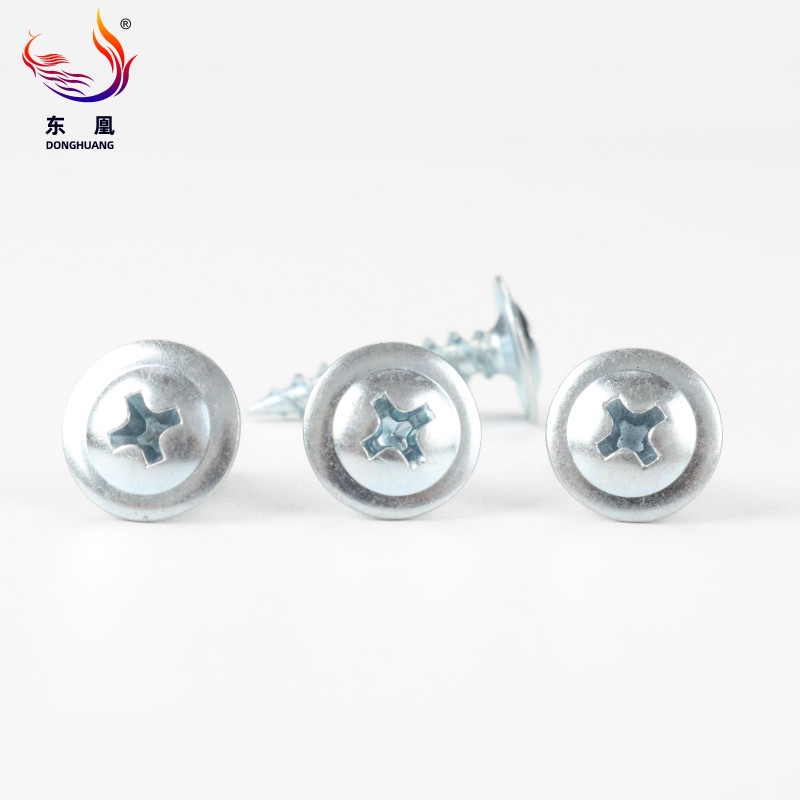

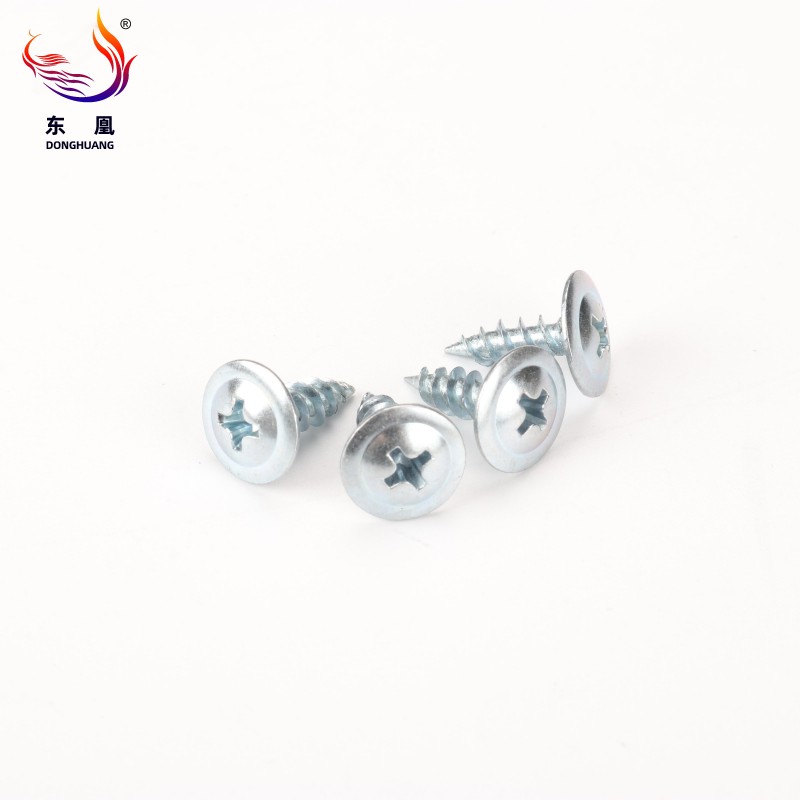

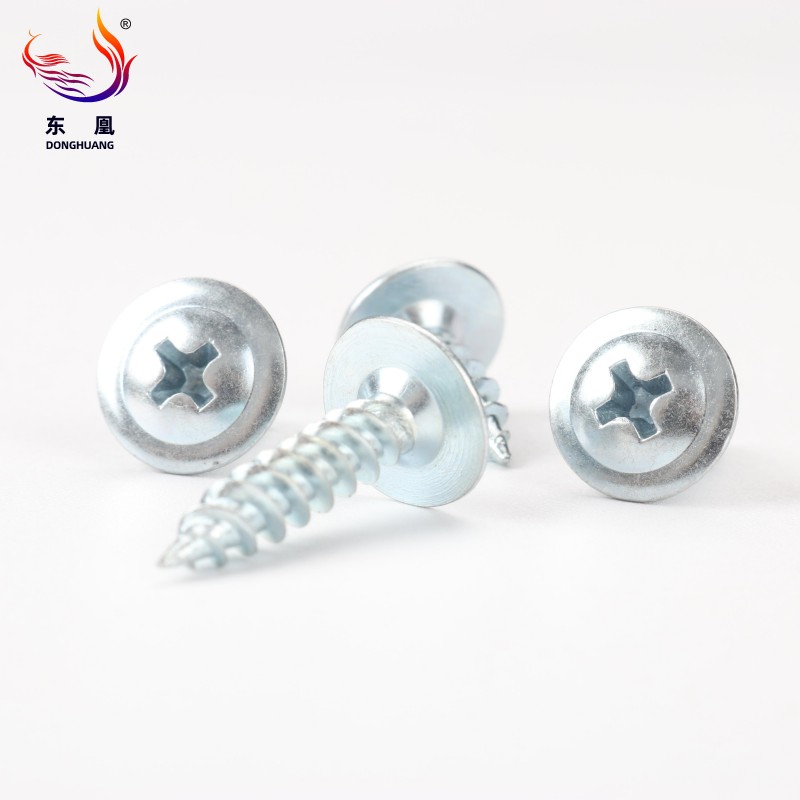

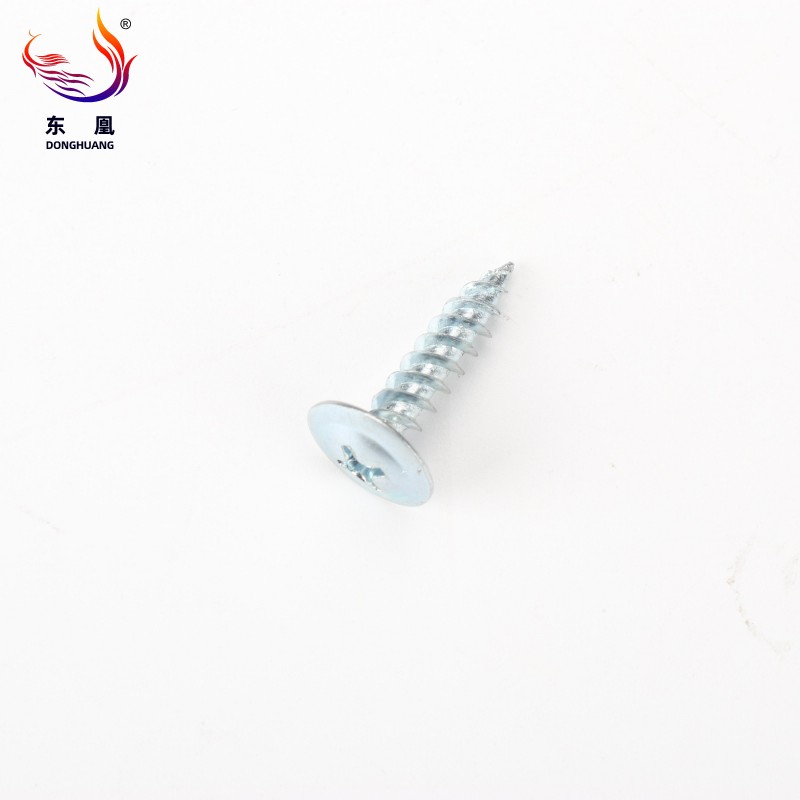

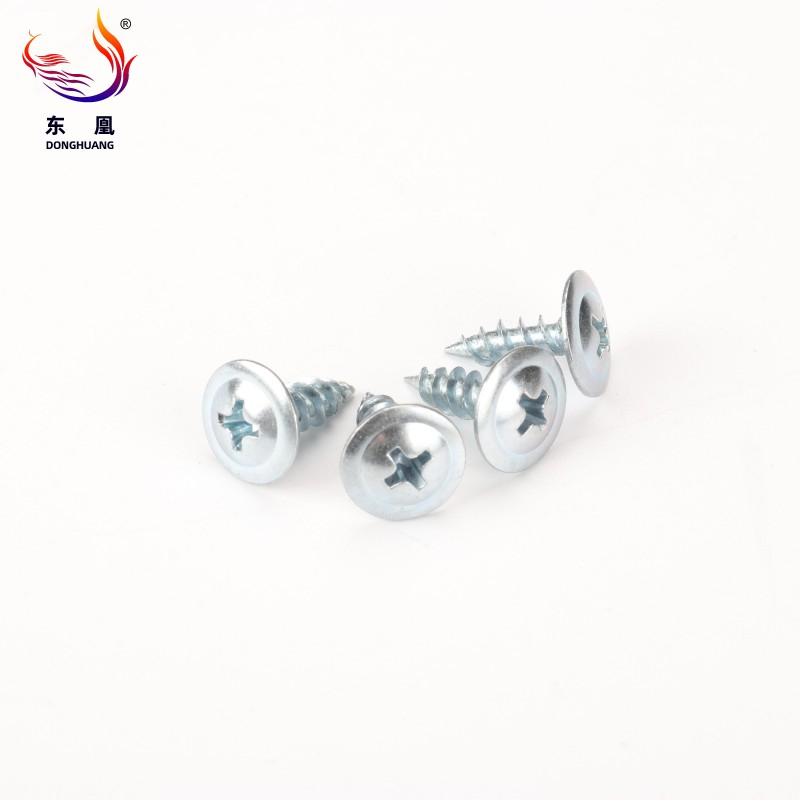

The Phillips Modified Truss Head Zinc Plated Self-Tapping Screw is engineered to deliver reliable fastening performance across diverse construction, HVAC, and manufacturing environments. Featuring a cold-forged low-profile, extra-wide head, this fastener provides an expansive bearing surface that effectively distributes downward clamping force. This unique structural geometry prevents pull-through when securing thin-gauge metals, pliable plastics, or delicate wood surfaces, ensuring a perfectly flush and aesthetically clean finish without distorting the base material.
The integrated self-tapping point aggressively bites into substrates, entirely eliminating the labor-intensive need for pre-drilling pilot holes. Coated with a uniform zinc-plated finish, the screw presents a bright metallic visual profile while offering a tactilely slick surface that significantly reduces driving friction. This combination of structural integrity, advanced surface treatment, and functional design ensures secure, long-lasting connections for critical structural assemblies.
The modified truss head boasts a significantly larger surface area compared to standard pan heads. This oversized bearing surface acts as an integrated washer, distributing pressure evenly to prevent material crushing, particularly in softer substrates. Backed by rigorous torsion and pull-out resistance testing, these fasteners provide a rock-solid structural connection for light steel framing and metal lath installations. The precision-milled Phillips drive recess ensures excellent self-centering, locking the bit firmly in place to prevent cam-out and stripping during high-torque applications.
Engineered with a razor-sharp, hardened tapping thread, these screws instantly form their own mating threads as they are driven into the base material. This eliminates the tedious requirement for pre-drilling, drastically accelerating project timelines and reducing labor overhead. The optimized thread pitch allows for rapid material engagement, ensuring a faster overall installation cycle compared to traditional drill-and-tap methods, especially in environments where drilling pilot holes would require specialized tools.
These modified truss head fasteners exhibit remarkable versatility, seamlessly piercing through wood, composite materials, and thin-gauge metals. Their aggressive self-tapping action makes them equally effective in soft metals and dense plastics, offering a universal fastening solution for multi-material assemblies and complex construction projects.
Every screw undergoes a highly controlled zinc electroplating process, depositing a uniform protective barrier over the carbon steel core. This advanced surface treatment is engineered to withstand extended salt spray testing, guaranteeing long-term rust prevention and structural reliability even in high-humidity or mildly corrosive environments. The slick zinc coating also minimizes driving friction, preventing heat buildup and galling during rapid insertion.
| Products Name | Modified Truss Head Phillips Self Tapping Screw |
| Thickness Size | 3.5, 3.9, 4.2, 4.8mm |
| Length | 12MM-100MM |
| Material | carbon steel C1022A, SS410 |
| Thread | Type A, Type B, Type C, |
| Head type | modified truss head |
| Drive type | cross drive, PH drive |
| Finish | zinc plated, ruspert, |
| Quality | High-quality raw material, strict quality control |
| Application | Used for roofinig connection |
| Minimum Order Quantity | 1 tons each size |
| Shipment Port: Tianjin, China | Shipment Port: Tianjin, China |
| Delivery Time | 20-30days,According to the volume to determine the delivery time. |
| Packing | Bulk package in bag, Bulk package in carton, or color print box and carton as the customized |
Ensure the selected screw length provides adequate thread engagement through the base material without excessive protrusion. Verify the maximum drill capacity matches your sheet metal thickness. For optimal results, we highly recommend pairing these screws with precision-machined Phillips insert bits and magnetic bit holders. This perfectly matched tooling significantly reduces the risk of bit slippage, head stripping, and operator fatigue.
Clearly mark the designated insertion point on the substrate. Align the sharp self-tapping point precisely with the mark, ensuring the screw is held perfectly perpendicular to the material surface to prevent off-angle threading and ensure the wide truss head seats uniformly.
Engage the driver using a professional-grade power drill. Apply firm, consistent initial pressure to allow the sharp tip to pierce the top layer. Maintain a recommended installation speed (RPM) appropriate for the material thickness—avoiding excessive RPMs that could burn out the tip or damage the substrate. Drive the screw steadily until the wide truss head sits flush against the surface.
Carefully monitor your drill's torque settings. While the modified truss head offers excellent pull-through resistance, overtightening can strip the newly formed threads in thin metals. In exceptionally dense materials, applying a specialized cutting lubricant can facilitate smoother insertion and extend the lifespan of the screw's tapping point.
To perfectly align with the diverse inventory and distribution requirements of our global procurement partners, we offer a highly flexible, multi-tiered packaging strategy. For large-scale industrial manufacturing and continuous assembly lines, our heavy-duty bulk cartons and reinforced palletized shipments ensure maximum cost-efficiency and uninterrupted supply. For regional distributors and retail-ready environments, we provide durable, transparent jar packaging and custom-printed color boxes. These retail-optimized options not only protect the zinc-plated finish during transit but also enhance shelf visibility and simplify inventory management for end-users.
Q: What exactly are self-tapping screws?
A: Self-tapping screws are specialized fasteners engineered to independently cut or form their own precise mating threads as they are driven into a substrate, entirely bypassing the need for pre-tapped holes.
Q: How do they work during installation?
A: The exceptionally sharp, pointed tip initiates the penetration process. As rotational torque is applied, the hardened threads carve into the base material, creating a tightly toleranced, vibration-resistant hold.
Q: What are their primary applications?
A: They are indispensable for joining materials in blind applications where access is restricted to a single side, or in field operations where drilling pilot holes is logistically impractical or overly time-consuming.
Q: Do you need a power drill to install them?
A: While a professional power drill equipped with a magnetic Phillips bit holder is recommended for maximum efficiency and driving into metals, these fasteners can also be manually installed with a standard screwdriver in softer woods or plastics.
Q: Can they be used effectively in aluminum?
A: Yes, the zinc-plated carbon steel construction is highly compatible with aluminum extrusions and sheet metals. Their aggressive thread profile is particularly advantageous in environments subject to vibration, actively preventing the joint from backing out.
Q: Can they be removed and reused later?
A: These fasteners can be safely extracted and reinstalled into their originally tapped threads. However, caution is advised during repeated cycles, as over-torquing can eventually degrade the internal threads of softer host materials.
Q: What are the main advantages of this design?
A: Key benefits include exceptional versatility across varied substrates, the complete elimination of pilot hole preparation, highly secure structural clamping due to the wide truss head, and the ability to execute rapid installations in confined spaces.
Q: What are the potential disadvantages?
A: They may require higher initial driving force when penetrating thicker, high-tensile metals. Additionally, excessive removal cycles can compromise the joint integrity, and they may not be the optimal choice for extreme load-bearing structural steel connections where heavy bolts are mandated.
