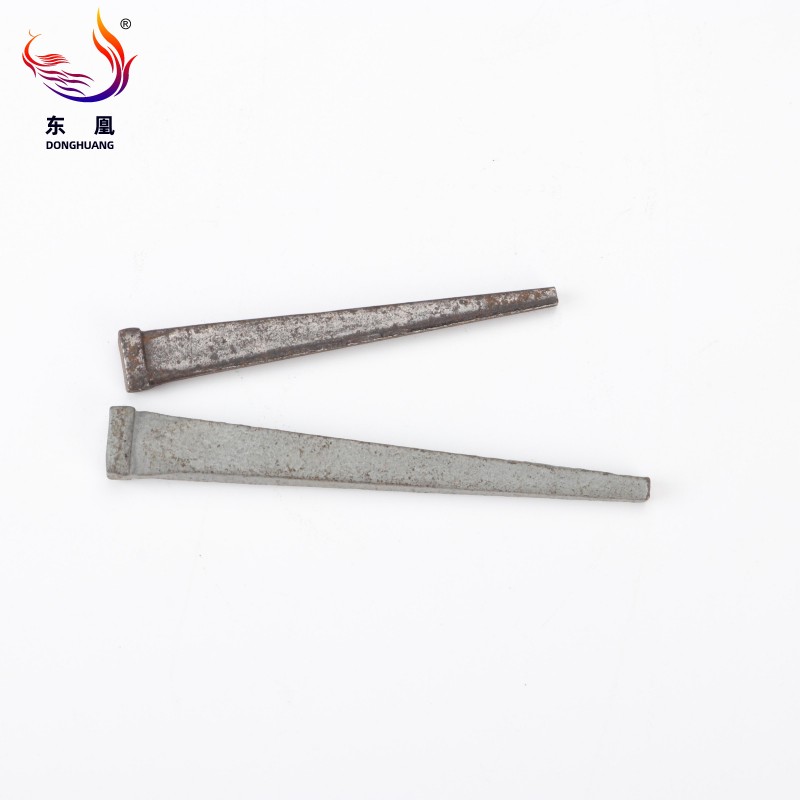

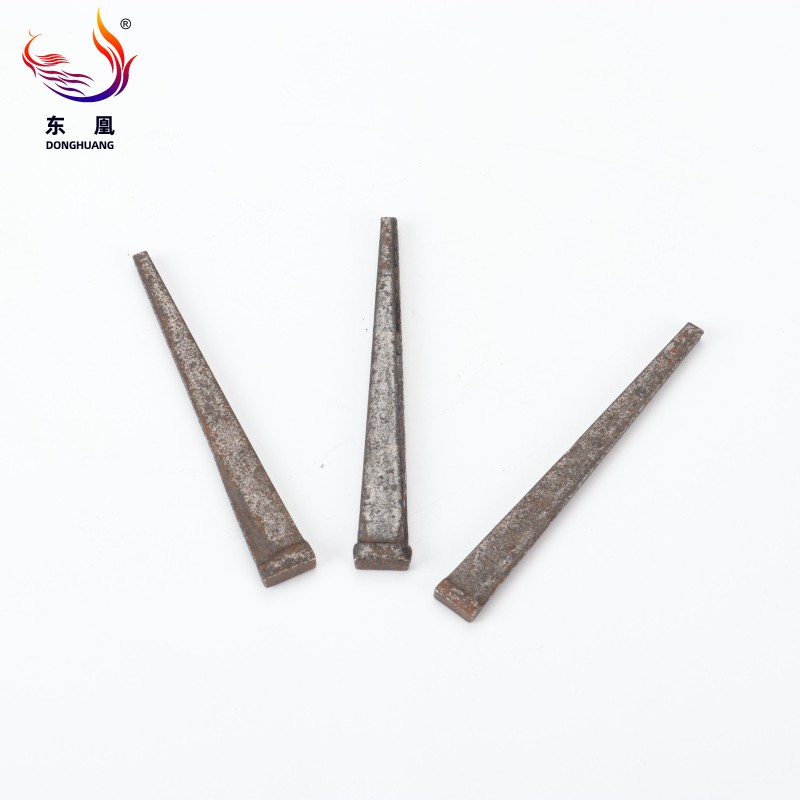

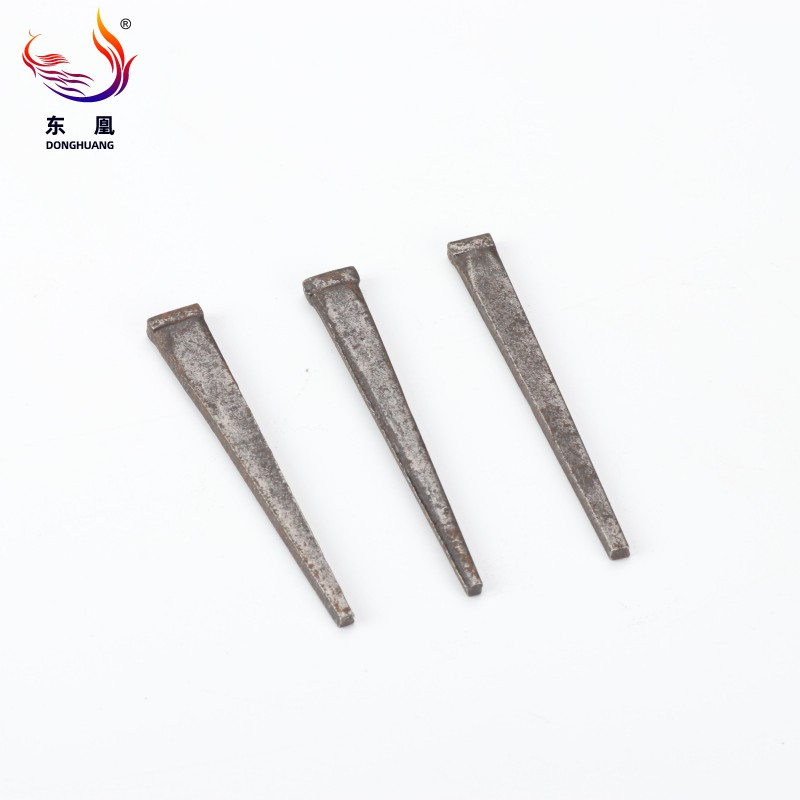

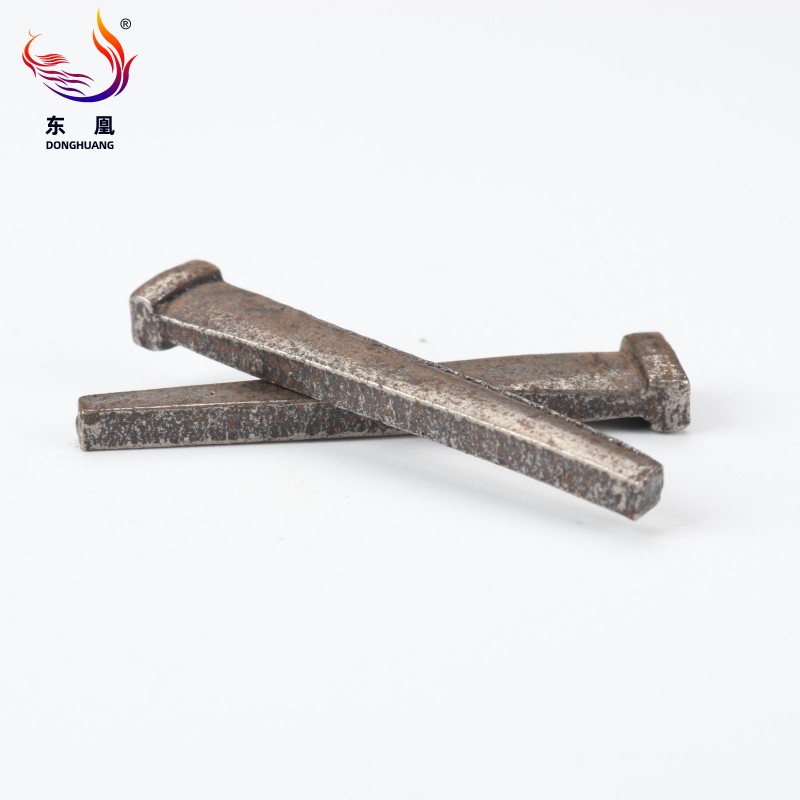

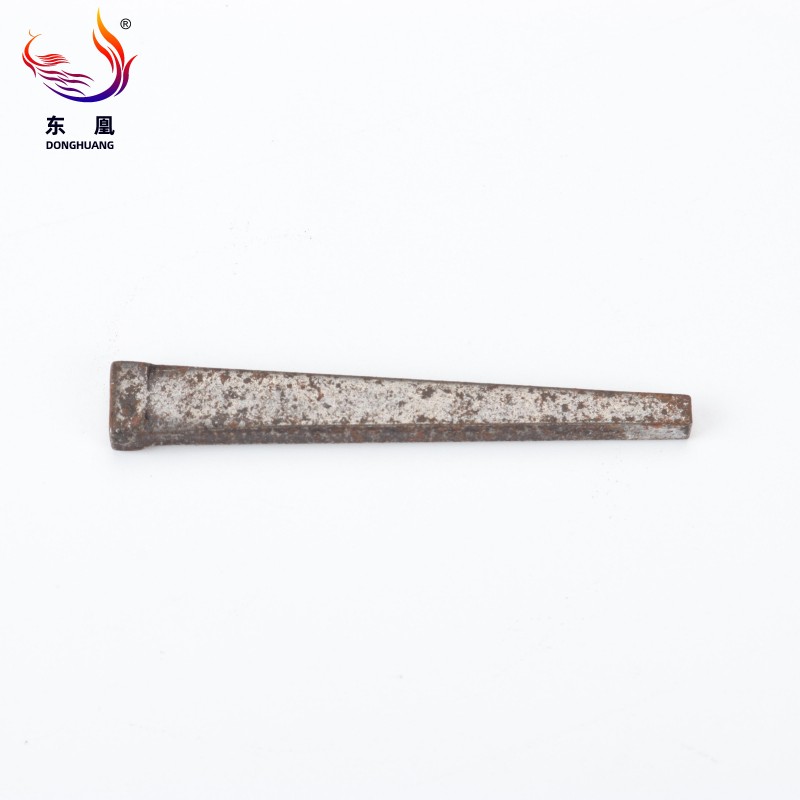

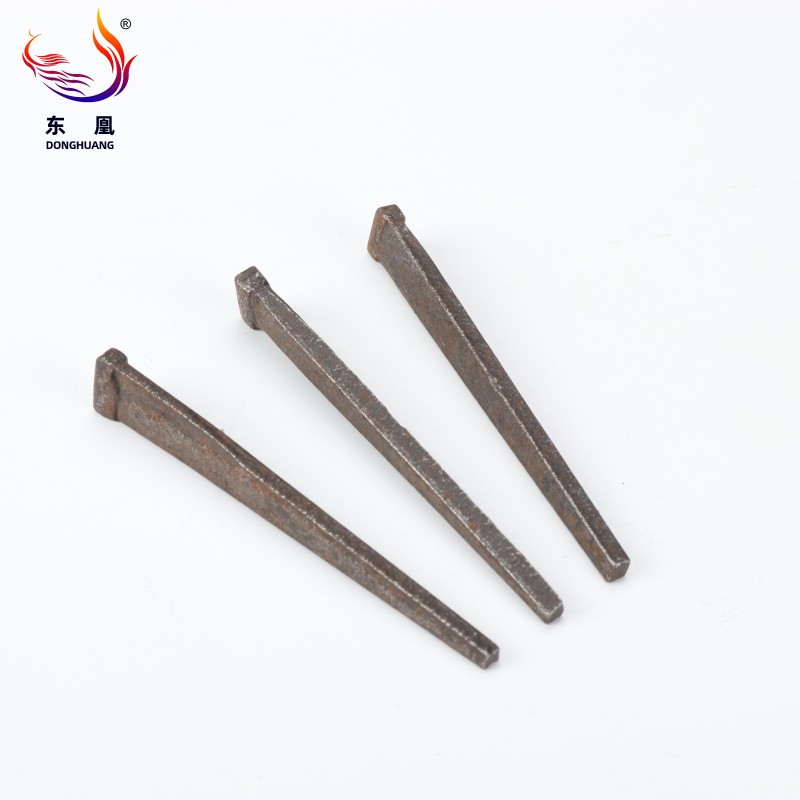

A square cut nail is a type of historical fastener that is stamped or cut from sheet metal, featuring a rectangular cross-section with tapered sides, and a flat or square-shaped tip rather than a pointed one. These "cut nails" provide superior holding power to modern wire nails because their tapered, non-round shaft compresses and wedges the wood fibers as it's driven, rather than spreading them apart, creating a barb-like effect that resists withdrawal.
Product Name | Cut Steel Nail |
Material | Carbon Steel |
Hardness | >HRC 50° |
Type of Shank | Smooth, Straight Grooved, Spiral, Angular Spiral |
Type of Point | Diamond Point, Needle Point |
Type of Head | Flat Head, Oval Head, Diamond Head, T Head |
Surface Treatment | Galvanized, Colored Zinc Plating, Black, Bluing, Copperized |
Shank Diameter | 1.5mm--4.8mm |
Overall Length | 15mm--120mm |
Package Description | 1kg/box, 0.5kg/box, 100pcs/box, 25boxes/carton Can Pallet. Or according to customers'requests |
The Square Galvanized Long Masonry Steel Nail represents a masterclass in combining 18th-century traditional craftsmanship with modern metallurgical advancements. Designed specifically for demanding structural applications and heritage restoration projects, these fasteners offer an authentic visual footprint while delivering uncompromising holding power. Running your fingers along the rectangular cross-section reveals the precision-tapered sides, a deliberate geometric profile that actively wedges and compresses wood fibers rather than tearing them. This unique mechanical action creates a formidable barb-like grip, effectively locking the fastener into dense materials. Crafted from premium high-carbon steel (1010-1045), each piece undergoes a rigorous heat treatment process, resulting in a distinct metallic resonance when struck. The flat and square tip design significantly reduces the risk of splitting aged or brittle lumber, making it an indispensable component for sensitive architectural preservation. Whether securing heavy timber frames or anchoring baseboards to cinder block walls, these fasteners provide a dependable, historically accurate solution that visually and structurally stands the test of time.
Restoring centuries-old homes, barns, or historically significant structures requires a delicate balance between preserving the original aesthetic and ensuring long-lasting structural integrity. These square-cut fasteners are meticulously engineered to replicate the classic, hand-forged appearance of 18th and 19th-century hardware. Featuring authentic details like rose-head or three-sided forged head designs, they satisfy the strict visual requirements of heritage conservation boards and architectural historians. Beyond their period-accurate appearance, the advanced galvanized coating provides superior defense against moisture degradation. When driven into antique oak or pine beams, the blunt tip shears the wood fibers cleanly, preventing devastating splits in irreplaceable aged timber. This ensures that historic siding, authentic lath, and original floorboards remain securely fastened, allowing restoration projects to maintain their era-specific charm without sacrificing modern durability.
Anchoring structural wooden elements to unyielding cinder blocks, poured concrete, or traditional brick walls demands a fastener capable of enduring extreme impact without buckling. Engineered for heavy-duty applications, these masonry steel fasteners excel in challenging environments, including fastening into uncured or "green" concrete. The hardened carbon steel construction easily penetrates dense, abrasive surfaces, establishing a rock-solid connection for deck ledgers, retaining wall frameworks, and heavy exterior cladding. To maximize installation efficiency on large-scale sites, we highly recommend utilizing professional-grade rotary hammers or specialized driving tools. The robust shank maintains its structural integrity under intense driving force, while the heavy-duty surface treatment acts as an impenetrable barrier against the alkaline moisture typically found in mortar and concrete, preventing premature oxidation and structural failure.
In premium flooring and exterior siding projects, fastener withdrawal is the primary cause of squeaking boards, shifting planks, and compromised weather barriers. The distinct rectangular profile of these fasteners provides a permanent solution by aggressively gripping the surrounding cellular structure of the wood. As the fastener is driven, it forces the fibers downward and lateral, creating a wedge effect that delivers exceptionally high pull-out resistance. The meticulously formed flat or oval heads sit perfectly flush with the substrate, creating a smooth, unblemished surface ready for final finishing or immediate exposure. This flush seating distributes the clamping load evenly, preventing the fastener from pulling through softwoods during extreme weather fluctuations. The result is a quiet, stable floor and a resilient exterior envelope that withstands decades of heavy foot traffic and severe environmental exposure.
• Advanced Heat Treatment & Mechanical Resilience: Through a proprietary tempering and quenching process, the carbon steel core achieves a formidable hardness exceeding HRC 50°. This ensures effortless penetration into solid masonry while retaining the essential ductility required to support bending or clinching in specialized framing scenarios without snapping.
• Exceptional Withdrawal Resistance: The geometrically precise rectangular tapered shaft physically alters the wood matrix upon entry. By compressing rather than splitting the fibers, it delivers significantly higher holding power compared to conventional round wire alternatives, ensuring structural stability under dynamic loads.
• Premium Anti-Corrosion Coatings: Available in double hot-dipped galvanized, black oxide matte, or colored zinc-plated finishes. These heavy-duty protective layers provide an exceptional barrier against oxidation, making them highly reliable for prolonged exposure in harsh, moisture-rich outdoor environments.
• Eco-Friendly Wood Compatibility: The advanced surface treatments are chemically inert and fully compatible with ACQ (Alkaline Copper Quaternary) and other environmentally friendly pressure-treated lumbers. They prevent galvanic corrosion and toxic leaching, perfectly aligning with modern green building standards.
• Versatile Configuration Options: Designed to accommodate diverse architectural requirements, the product line offers multiple head profiles (flat, oval, diamond, T-head) and shank variations (smooth, straight grooved, spiral, angular spiral) to optimize grip and aesthetic integration for any specific substrate.
We recognize that large-scale architectural projects and specialized historical restorations demand precise specifications that off-the-shelf fasteners simply cannot fulfill. Our comprehensive customization program is designed to adapt every physical attribute of the fastener to your exact engineering requirements. You can specify overall lengths ranging from 15mm to 120mm and shank diameters between 1.5mm and 4.8mm, ensuring optimal penetration depth and shear strength for your specific substrate.
Beyond dimensional adjustments, we offer bespoke aesthetic and functional modifications. For heritage projects, our tooling department can accurately reproduce vintage 18th-century head designs, authentic tapers, and period-correct finishes like copperized or traditional bluing. From a logistical standpoint, our OEM capabilities include tailored packaging solutions—ranging from 1kg boxes for retail distribution to bulk palletized cartons for major construction sites. Every custom order undergoes strict pre-shipment metallurgical and dimensional inspections, ensuring absolute compliance with ANSI, DIN, and JIS manufacturing standards.
Navigating the complex landscape of modern building codes requires construction materials that guarantee absolute reliability and verifiable performance. Our masonry steel fasteners are rigorously tested to meet and exceed stringent international building regulations, including ASTM A-153 standards for zinc coating on iron and steel hardware. This level of compliance ensures smooth project approvals and high acceptance rates during structural inspections, particularly in zones requiring enhanced wind-load resistance and hurricane-rated construction.
To maximize the performance of these specialized fasteners, proper installation techniques are crucial. When fastening into dense masonry or uncured concrete, we advise pre-drilling pilot holes using professional-grade hammer drills to prevent substrate fracturing and ensure a secure anchor point. The blunt, wedge-shaped tip is intentionally designed to be driven perpendicular to the wood grain, which actively prevents splitting in delicate or antique lumber. By pairing our compliant fasteners with recommended installation protocols, procurement teams can significantly reduce on-site waste, accelerate construction timelines, and deliver structurally superior results.
