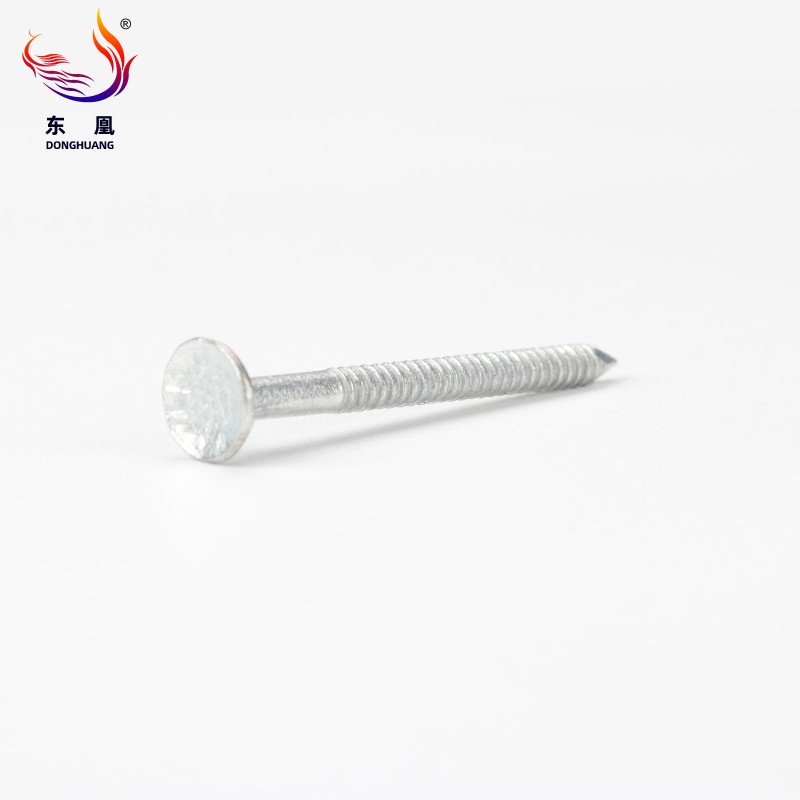

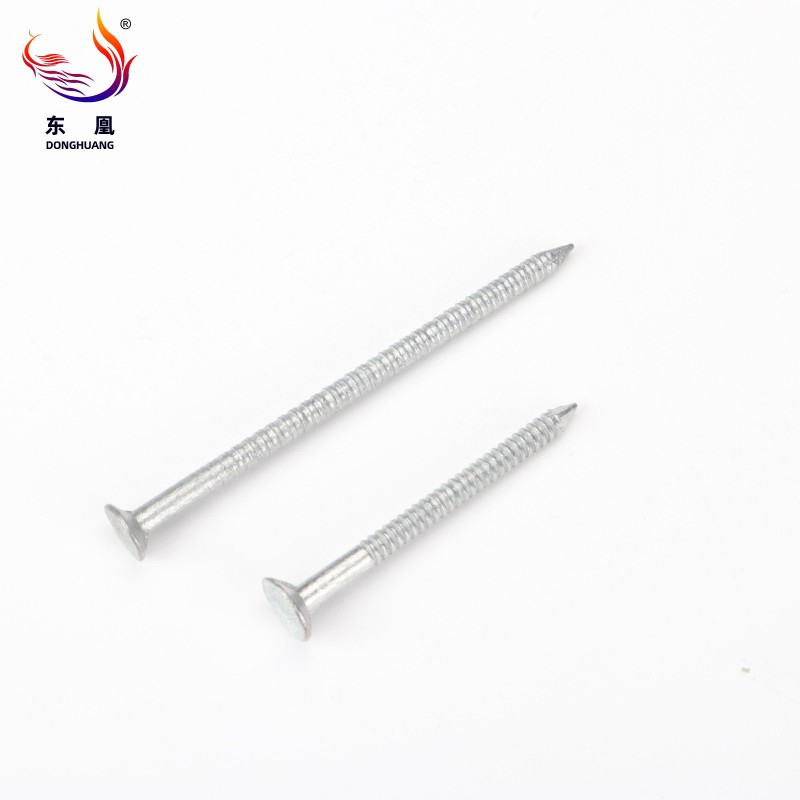

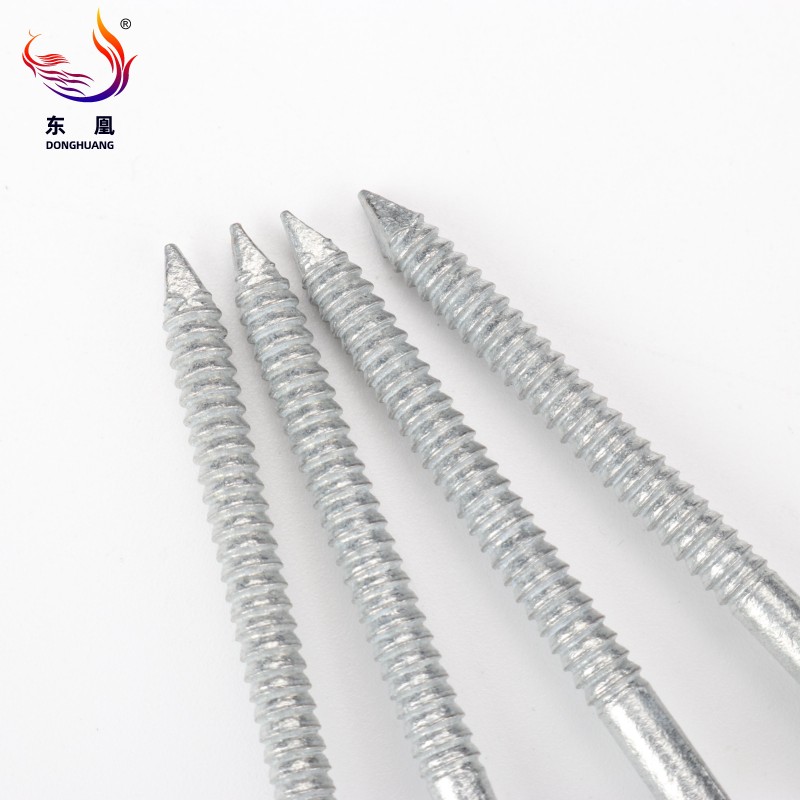

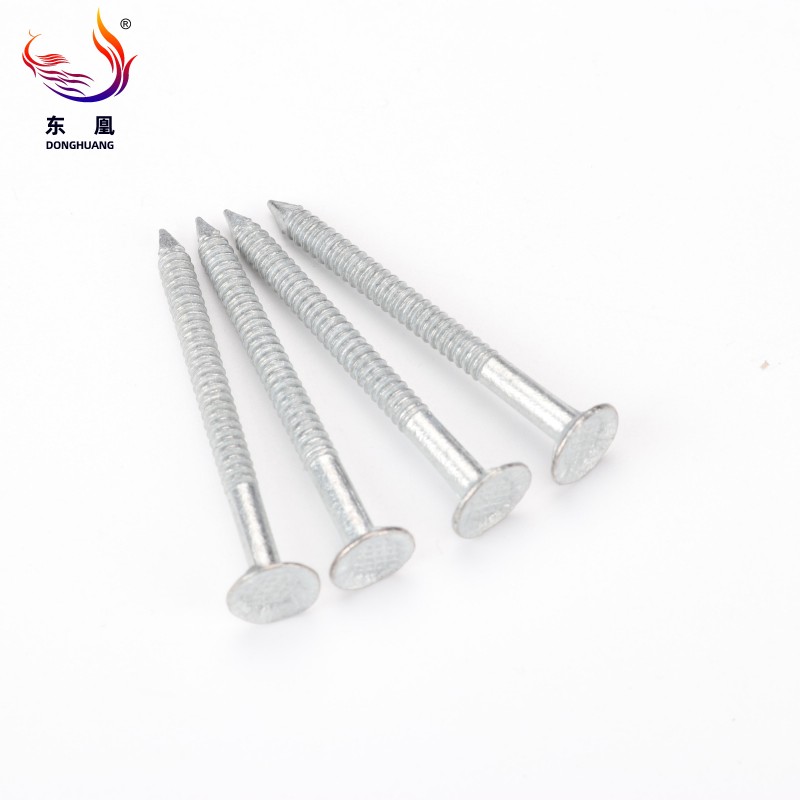

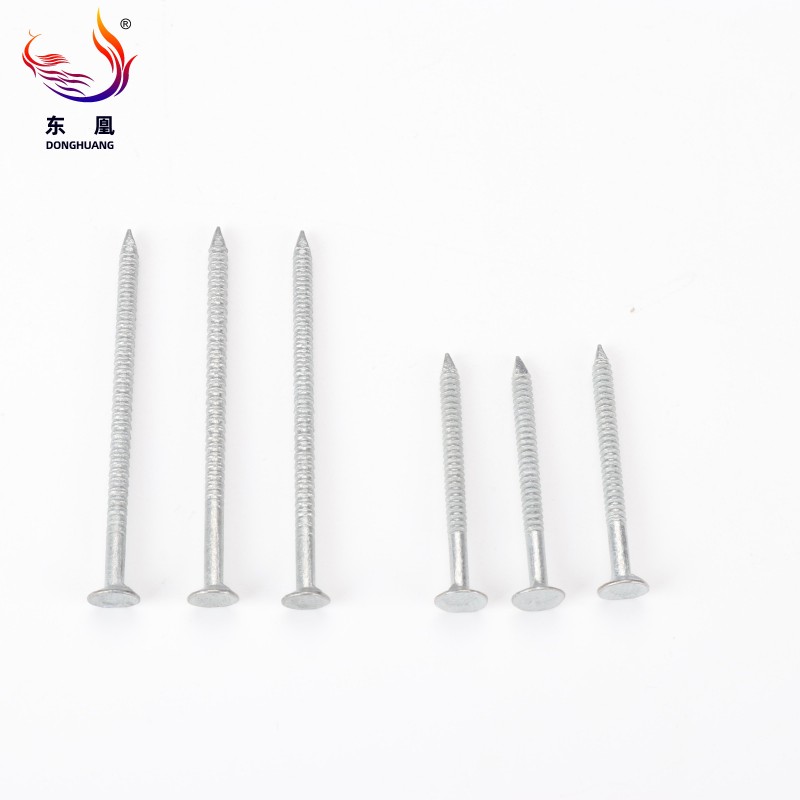

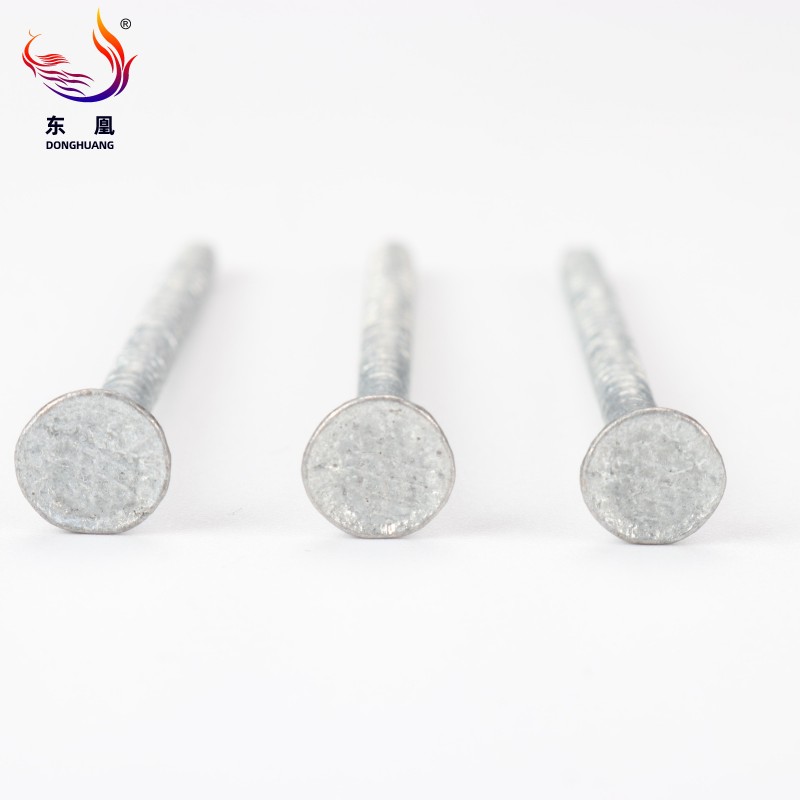

The Galvanized Flat Head Annular Ring Shank Diamond Point Clout Common Nail is meticulously engineered to resolve the persistent issue of fastener pull-out in demanding structural environments. Unlike conventional smooth alternatives, this specialized hand-driven fastener features a distinctively textured shank, characterized by a series of precise, deep-cut rings. When driven into timber, you can physically feel the immediate, aggressive bite as the wood fibers are forced apart and then securely lock into the grooves, creating an exceptionally tight mechanical bond.
Designed specifically for heavy-duty procurement needs in the construction, fencing, and woodworking sectors, these nails deliver unparalleled holding power. The prominent flat head provides a broad bearing surface to prevent material pull-through, while the sharp diamond point ensures rapid, splinter-free penetration. Available with premium surface treatments—including Hot-Dipped Galvanization (HDG), electro-galvanizing, and stainless steel options—they offer formidable resistance against environmental moisture, salt, and temperature fluctuations, ensuring long-lasting structural integrity for outdoor and marine applications.
The defining characteristic of the annular ring design is its ability to generate profound friction against wood fibers. Rigorous laboratory testing indicates that this unique ringed shank configuration increases withdrawal resistance by approximately 40% compared to standard smooth shanks. This aggressive grip acts much like a screw, actively resisting the natural tendency of timber to push fasteners out during expansion and contraction cycles.
For large-scale structural projects such as commercial roofing, pole barns, and expansive decking, long-term security is non-negotiable. The enhanced holding power ensures that the attachment remains rigid and secure, even when subjected to continuous wind loads, heavy foot traffic, or mechanical vibrations.
A frequent challenge in exterior siding and decking installations is the unsightly and hazardous phenomenon of nail head popping or wood cupping. The locking mechanism of the annular rings tightly anchors the substrate to the joists, effectively neutralizing the outward forces exerted by warping wood and maintaining a perfectly flush surface over decades of exposure.
Engineered for the harshest outdoor environments, the comprehensive selection of surface coatings acts as a formidable barrier against oxidation. Whether utilizing the bright polished finish for interior structural work or the heavy-duty zinc-plated and HDG layers for exterior exposure, these treatments significantly extend the lifecycle of the fastener, reducing maintenance costs and preserving the visual appeal of the finished structure.
Our manufacturing process strictly adheres to precise dimensional tolerances and metallurgical standards. By utilizing premium Q195 and Q235 steel wire rods, we ensure each nail possesses the optimal balance of tensile strength and ductility, preventing snapping under heavy hammer blows while maintaining a flawless structural hold.
Products Name | Annular Ring Shank Common Nail |
Shank Size | 1.5-6.0 mm |
Lenght | 19 to 200mm |
Material | Q195/ Q235 |
Point | Diamond, Chisel Point |
Head Diameter | 3-10 mm |
Finish | Polished, bright, zinc plated, HDG |
Quality | High-quality raw material, strict quality control |
Minimum Order Quantity | 1 tons each size |
Shipment Port | Tianjin, China |
| Delivery Time | 20-30days,According to the volume to determine the delivery time. |
Packing | Bulk package in bag, Bulk package in carton, or color print box and carton as the customize |
The superior mechanical grip of the annular ring shank makes it the fastener of choice for applications demanding absolute reliability. Below are the primary sectors where these nails excel:
Always equip yourself with impact-resistant safety goggles to shield your eyes from potential flying debris. Utilizing heavy-duty work gloves will enhance your grip on the hammer and prevent accidental abrasions. When operating pneumatic equipment, certified hearing protection is essential to mitigate the sharp, repetitive noise of installation.
For manual applications, a well-balanced, forged steel claw hammer is recommended, delivering a satisfying, solid impact while allowing for leverage if adjustments are needed. For large-scale framing or pallet assembly, a calibrated pneumatic nail gun drastically accelerates the workflow while ensuring consistent driving force.
Thoroughly inspect the timber surface before driving. Ensure the path is entirely clear of hidden obstructions such as embedded screws, old fasteners, or electrical conduits, which could deflect the diamond point and compromise the structural hold or cause workplace injuries.
Position the flat head squarely and drive the fastener at a precise perpendicular angle. You will notice the conical shape of the rings allowing for a relatively smooth initial insertion. Drive the head perfectly flush with the substrate to ensure the rings fully engage and lock into the surrounding wood fibers, maximizing the mechanical grip.
When working with softwoods, the sharp rings will cleanly slice and separate the fibers, which then aggressively rebound and close around the shank grooves. For dense hardwoods, the robust steel construction prevents bending, allowing the nail to penetrate deeply and establish an unyielding permanent bond.
We are a primary source manufacturer with our own dedicated international sales department. By controlling the entire production process from raw wire drawing to final packaging, we eliminate intermediary markups, significantly reducing procurement costs for our partners. We also provide free samples for your rigorous on-site testing and validation before you commit to bulk inventory orders.
Our core manufacturing expertise centers on industrial-grade fasteners, including annular ring shank nails, expansion screws, specialized hardware, precision plastic parts, stamping parts, zinc die castings, and custom-engineered non-standard components tailored to specific structural requirements.
Our fastening solutions are heavily utilized across the global construction and logistics sectors. Primary applications include outdoor large-scale mechanical equipment anchoring, commercial framing, home decoration, heavy-duty pallet manufacturing, and the secure, fixed installation of heavy transit goods.
Absolutely. We offer comprehensive deep-customization services to meet the distinct needs of brand owners. This includes manufacturing to non-standard dimensional specifications, applying specific metallurgical coatings, and providing exclusive logo engraving. Furthermore, we design customized exterior packaging to align perfectly with your corporate branding strategy.
Quality is engineered into every step. We have implemented a stringent 100% full-process quality control system, beginning with the rigorous metallurgical testing of incoming Q195 and Q235 raw materials. Throughout the forming, threading, and coating stages, dedicated inspectors monitor tolerances. Final finished products undergo comprehensive inspection according to your exact requirements and international standards, ensuring high yield rates and absolute reliability.
To ensure secure cross-border logistics and efficient warehouse management, we offer industrial-grade packaging solutions, including 25kg reinforced cartons, bulk wooden crates, and fully palletized loads secured with heavy-duty PVC strapping. Regarding transactions, we support FOB, CIF, CNF, and other standard incoterms. For mass production, our standard term is a 30% T/T deposit prior to manufacturing, with the remaining 70% balance settled against the copy of the shipping documents. Irrevocable L/C at sight is also highly acceptable.
