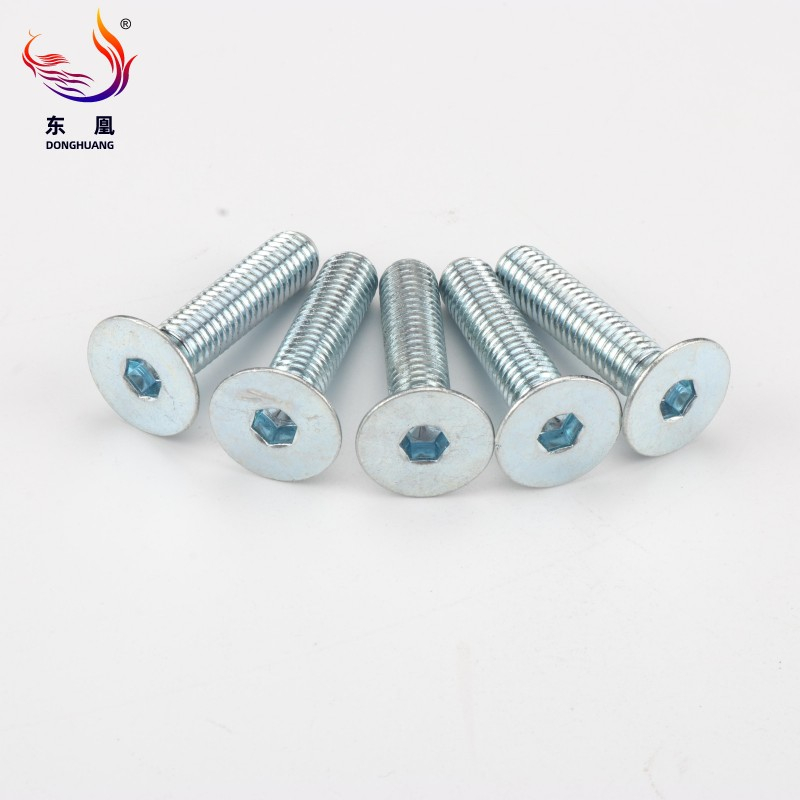

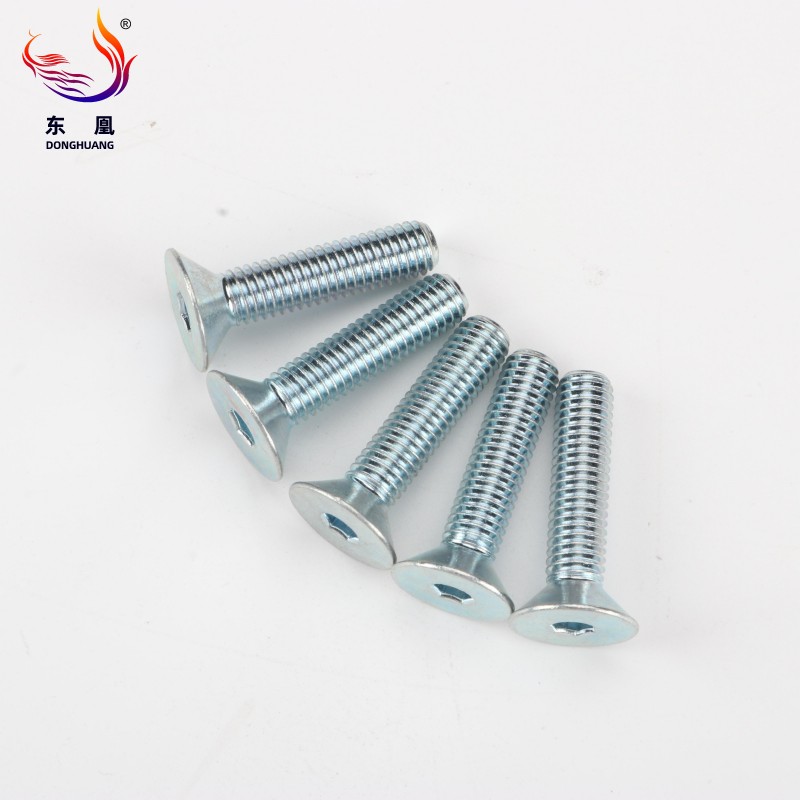

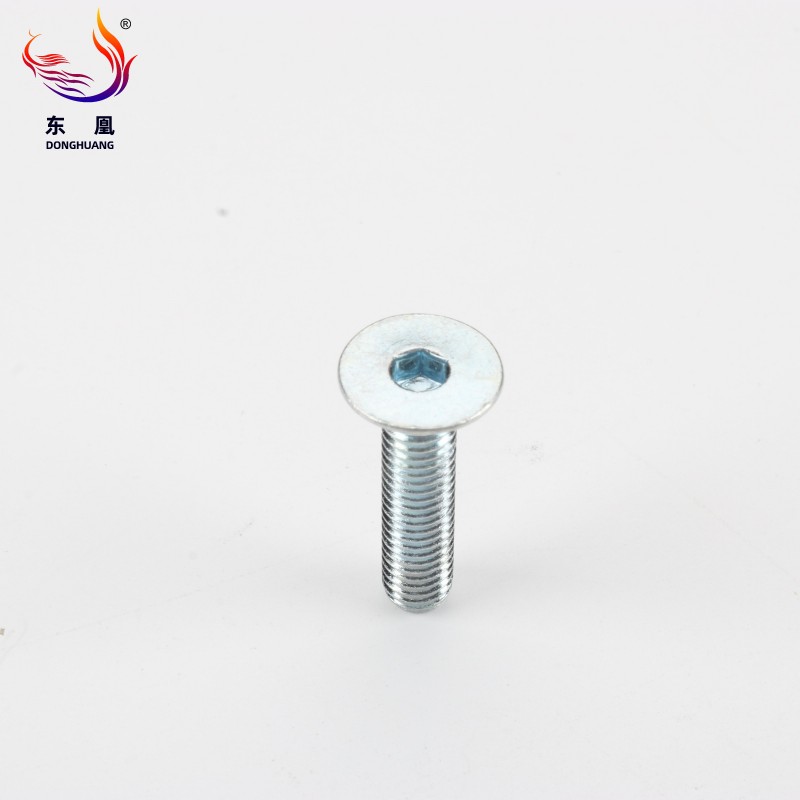

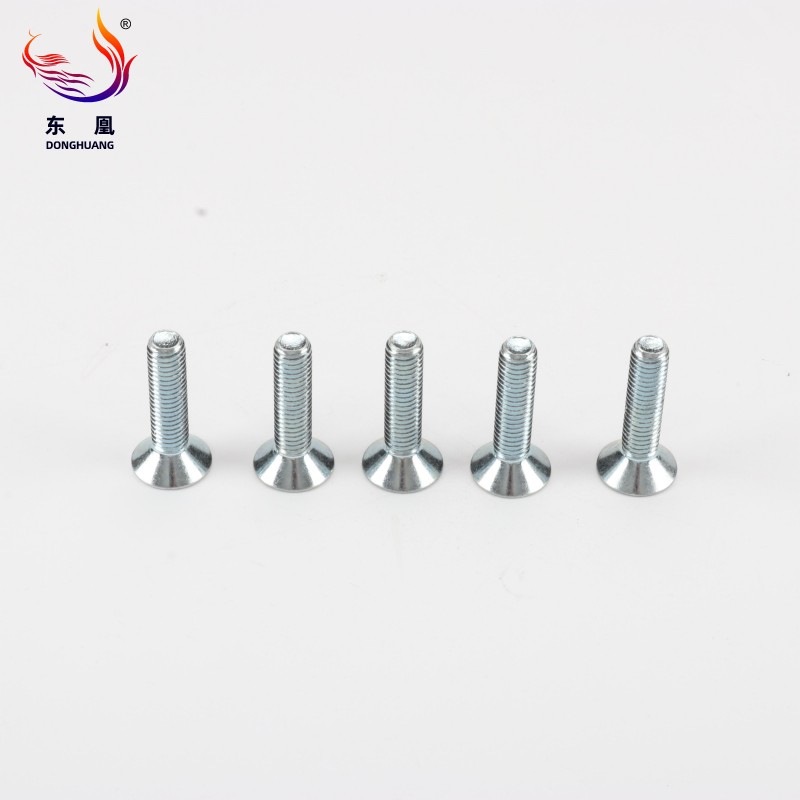

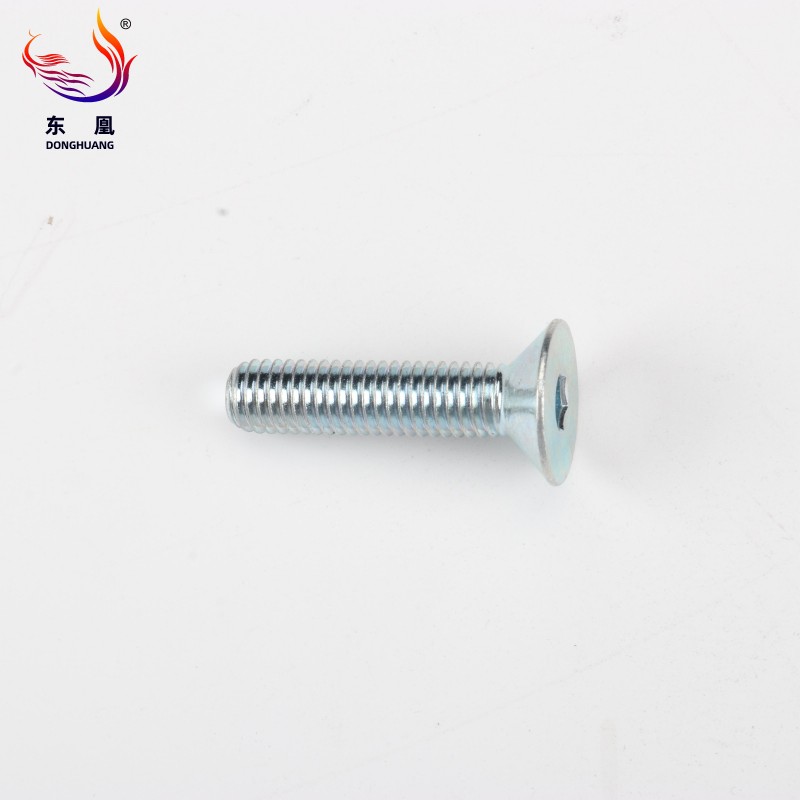

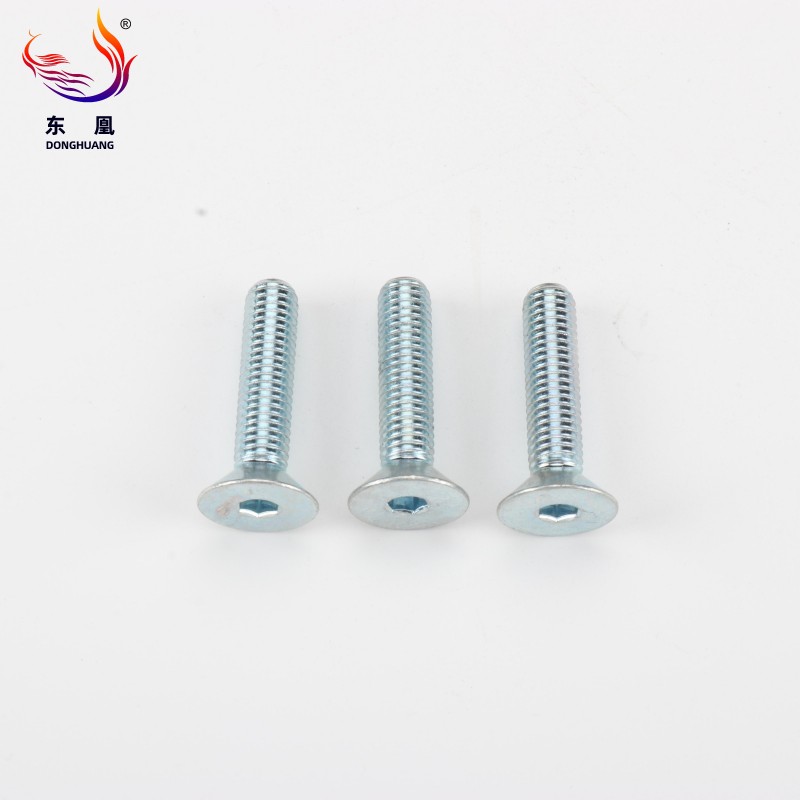

The Zinc Plated Hex Socket Countersunk Flat Head Machine Screw, manufactured to exact DIN 7991 specifications, serves as a foundational fastening component for industrial assemblies requiring a flush, unobtrusive surface profile. Engineered through advanced cold-forging techniques, these fasteners exhibit a consistently smooth, reflective zinc-plated finish that not only provides a tactile sense of precision but also acts as a robust barrier against environmental degradation and oxidation. The hex socket drive is deeply and accurately recessed, ensuring optimal torque transmission without the risk of cam-out during intensive fastening cycles. Designed to sit perfectly flush with the mating material, this flat head screw eliminates surface protrusions, thereby reducing friction and mechanical interference in moving parts. By conforming to stringent manufacturing tolerances, the uniform metric threading ensures a bind-free engagement into pre-tapped holes or corresponding internally threaded receptacles. This level of dimensional consistency makes the DIN7991 machine screw an indispensable asset for engineers and procurement specialists seeking reliable, flush-mount fastening solutions across complex mechanical structures.
Every DIN 7991 countersunk screw is engineered with uncompromising dimensional accuracy, ensuring a tight, vibration-resistant fit within pre-drilled or tapped holes. To guarantee this precision meets global industrial demands, our manufacturing facilities operate under a certified ISO 9001 quality management system. Furthermore, each production batch is accompanied by a Certificate of Conformity (CoC) and strict adherence to RoHS and REACH environmental compliance directives. This rigorous validation process ensures that procurement teams receive fasteners that consistently pass the most demanding safety and operational audits.
Beyond the standard zinc-plated carbon steel, these hex socket screws are available in an extensive array of material grades tailored for extreme operational environments. Buyers can specify high-tensile alloy steels in grades 8.8, 10.9, and 12.9 for heavy-load bearing applications, or opt for A2 and A4 marine-grade stainless steel, brass, and industrial nylon for specialized non-magnetic or highly corrosive settings. To further enhance longevity, we offer advanced surface treatments including black oxide (blackening) and Dacromet (zinc-aluminum flake coatings), providing superior rust resistance and a durable, wear-resistant exterior.
The fundamental design of the countersunk machine screw allows it to integrate flawlessly into countless assemblies, but our value-added processing capabilities expand this versatility significantly. We provide comprehensive customization services, including the pre-application of thread-locking adhesives (nylon patches) to prevent loosening under dynamic mechanical loads. Additionally, we can manufacture non-standard lengths based on proprietary client blueprints, incorporate specialized anti-theft drive profiles, and supply pre-sorted fastener kits tailored for specific production lines, thereby simplifying your internal inventory management.
The precision-formed hex socket drive greatly accelerates assembly line operations by allowing rapid, secure tool engagement. To further streamline your product development cycle, our dedicated engineering team provides comprehensive technical support long before the physical installation begins. We offer free, downloadable 3D CAD models in industry-standard formats (STP, IGS, STL), enabling your design engineers to virtually integrate and test the fasteners within their digital prototypes, ensuring perfect alignment and accelerating the transition from concept to production.
Optimizing procurement costs goes beyond the unit price of the fastener; it involves minimizing downtime and inventory holding costs. By leveraging our massive on-hand inventory and sophisticated Kanban logistics management system, we ensure a continuous, uninterrupted flow of components to your manufacturing facilities. We support highly flexible order quantities without restrictive minimum order quantities (MOQ), facilitating lean manufacturing principles. Coupled with our rapid global delivery network, we protect your production schedules against unexpected supply chain disruptions.
| Model NO. | DIN7991 |
| Groove | Hex Socket |
| Connection | Common Bolt |
| Head Style | Counter Sunk Bolt |
| Standard | DIN, ANSI, BSW, JIS |
| Name | Hex Socket Countersunk Machine Screw |
| Size | M3-M24 |
| Surface | Zinc |
| Length | 3~150mm |
| Brand Name | Sardis |
| Delivery | 7~30days |
| Transport Package | Carton + Pallet |
| Specification | M3-M24 |
| Trademark | Donghuang |
| Origin | Zhejiang, China |
| HS Code | 7318151001 |
| Production Capacity | 100ton/Week |
The DIN 7991 countersunk screws are heavily utilized in the fabrication of automated conveyor systems, CNC machining centers, and heavy-duty hydraulic presses. Their flush-mount profile prevents snagging on moving belts or robotic arms, while the robust hex socket drive withstands the intense torque required to secure heavy structural plates against continuous mechanical vibration.
Within server racks, telecommunication enclosures, and industrial control panels, these fasteners provide essential structural integrity without compromising internal spatial constraints. The zinc plating ensures a clean, conductive-neutral fastening point, essential for mounting delicate printed circuit boards (PCBs) and power supply units securely.
Automotive assembly lines rely on these precision machine screws for interior dashboard framing, transmission housing covers, and specialized sensor mounting. The uniform threading ensures rapid insertion via pneumatic drivers, significantly reducing assembly cycle times while maintaining strict torque specifications necessary for vehicular safety.
For architectural metalwork, glass facade clamping systems, and commercial HVAC installations, these screws deliver both aesthetic appeal and structural reliability. The countersunk design allows for smooth architectural finishes, essential in modern building designs where exposed hardware must remain visually unobtrusive.
Industrial and commercial-grade furniture, as well as heavy white goods, utilize these fasteners to achieve rigid, wobble-free joints. The flat head design ensures that exterior panels remain perfectly flat, enhancing both the safety and the premium tactile feel of the finished consumer product.
In the manufacturing of MRI machine housings, surgical lighting rigs, and adjustable hospital beds, the precise tolerances of these screws ensure that moving joints operate smoothly. Their ability to sit flush eliminates crevices where contaminants might accumulate, aiding in stringent sterilization protocols.
Used extensively in non-critical cabin interior assemblies, seating track installations, and overhead compartment framing, these fasteners provide an optimal strength-to-weight ratio. The precise hex drive prevents tool slippage, protecting expensive surrounding aerospace materials from accidental damage during routine maintenance.
Drilling/Tapping: Before introducing the DIN 7991 machine screw, the receiving material must be precisely prepared. Engineers must drill a pilot hole corresponding to the specific metric size (ranging from M3 to M24) and utilize a matching tap to create internal threads. For a perfect flush finish, a specialized countersink bit angled at exactly 90 degrees must be used to chamfer the opening, allowing the flat head to seat perfectly level with the surrounding surface.
Thread-locking Compound: In environments subjected to heavy mechanical resonance or thermal cycling, the application of a liquid thread-locking adhesive prior to insertion is strongly advised to prevent microscopic backing-out over time.
Tightening: Engage the hex socket using a calibrated torque wrench equipped with the correct hex bit. Apply steady, controlled rotational force to reach the specified torque rating, avoiding abrupt impacts that could strip the socket or fracture the screw shank.
Nut and Washer: When utilized in a through-hole configuration rather than a tapped blind hole, pair the screw with a compatible metric hex nut. While flat washers are typically not used under a countersunk head, they may be applied on the nut side to distribute the clamping load evenly.
Head: The countersunk (flat) head features a precisely broached hexagonal recess. This geometry maximizes the contact area between the tool and the fastener, translating to superior torque delivery compared to slotted or Phillips drives.
Shank: The fully or partially threaded cylindrical body is manufactured to strict tolerance classes, ensuring smooth, bind-free rotation into the mating threads.
Chamfer: The distal end of the threaded shank features a slight chamfer or bevel. This critical design element acts as a guide, facilitating immediate and correct thread engagement while preventing cross-threading during the initial turns.
Length: Calculate the required length by measuring from the top of the flat head (as it sits flush) to the end of the threads. Ensure that at least three full threads extend beyond the receiving nut or deeply into the tapped blind hole to achieve maximum tensile strength.
Head Style & Drive Type: Ensure the 90-degree countersunk angle matches your tooling. The hex socket drive is specifically chosen for applications requiring higher torque without cam-out.
Cross-Standard Compatibility Guide: When procuring for multinational engineering projects, it is vital to understand standard equivalencies. The DIN 7991 specification is closely related to ISO 10642 and UNI 5933. However, procurement specialists should note minor dimensional variances in head diameter and height between DIN and ISO standards. We provide comprehensive cross-reference documentation and dimensional equivalent charts to guarantee seamless component replacement and integration across different regional engineering frameworks.
A: In specialized assembly scenarios, technicians may encounter the need to modify the length of a standard Zinc Plated Hex Socket Countersunk Screw to prevent rear overhang or interference with internal mechanisms. To execute this without compromising the thread integrity, utilizing a dedicated heavy-duty crimping tool with metric shearing holes is highly recommended. By threading the screw into the correct sizing hole and shearing it, the tool cleans the thread upon removal.
Alternatively, securing the fastener in a protective vise and using a fine-toothed hacksaw or rotary cutting disc is permissible. It is absolutely critical to thread a matching nut onto the shank prior to cutting; unthreading the nut afterward acts as a die, realigning any burred or distorted threads at the cut tip.
Finish with a deburring file to ensure smooth initial engagement, preventing cross-threading when inserted into the tapped hole.
A: While the terminology is frequently interchanged in industrial procurement, there is a distinct mechanical difference between a machine screw and a traditional bolt, primarily defined by their application and installation method. A machine screw, such as the DIN 7991, is predominantly designed to be driven directly into a precision-tapped hole within a component. The rotational torque is applied entirely to the head of the fastener via a hex key.
Conversely, a bolt is typically passed through an unthreaded clearance hole and secured by tightening a nut on the opposite side, with the torque often applied to the nut rather than the bolt head.
However, due to their robust construction and uniform metric threading, our hex socket machine screws possess the versatility to function effectively in a bolt-and-nut configuration, offering exceptional adaptability for complex structural joints where traditional bolts might present an unwanted surface protrusion.
