Product Introduction

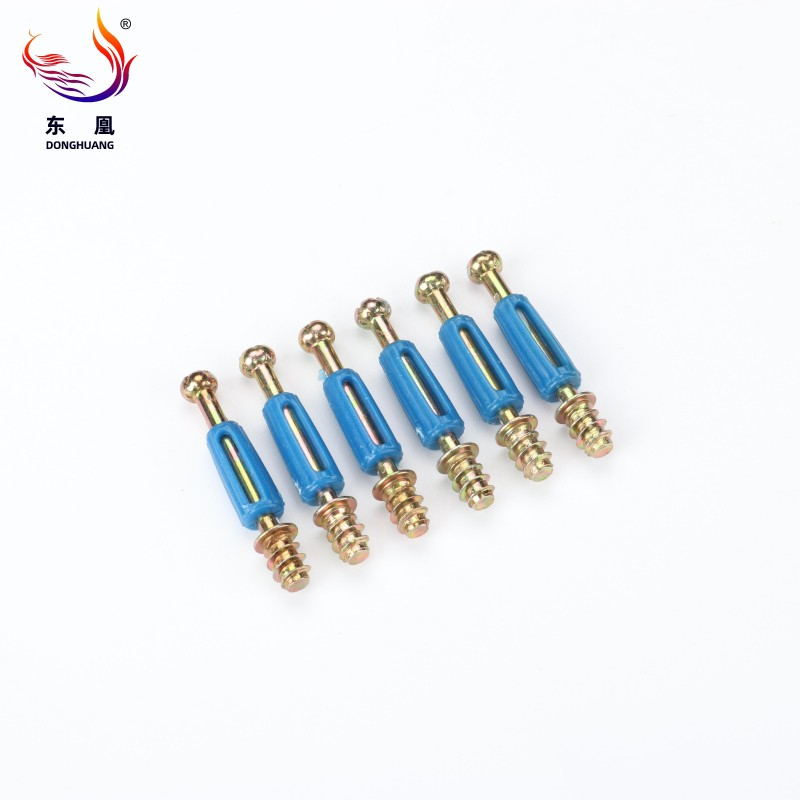

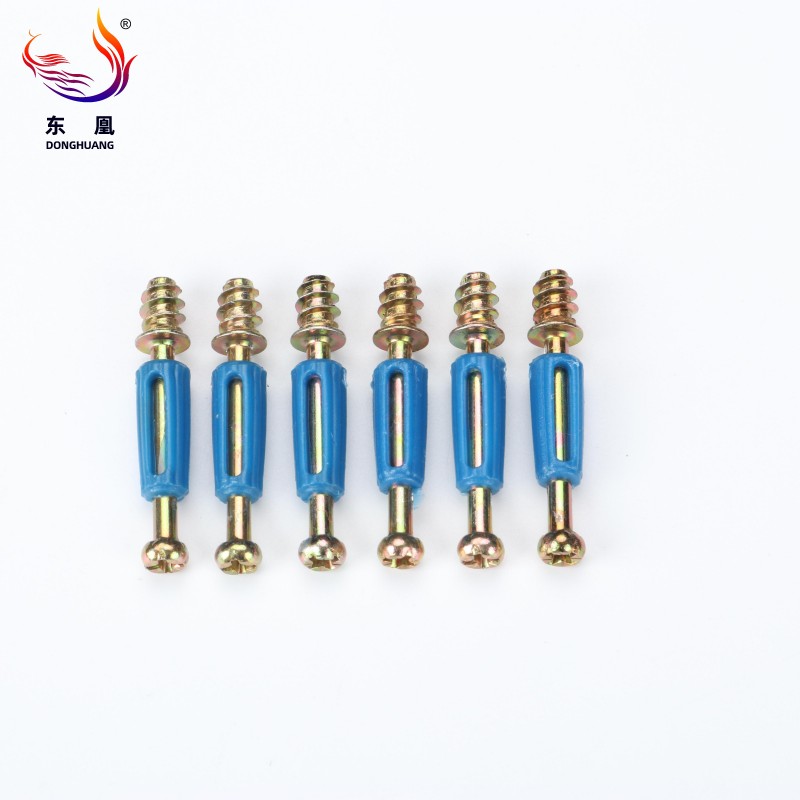

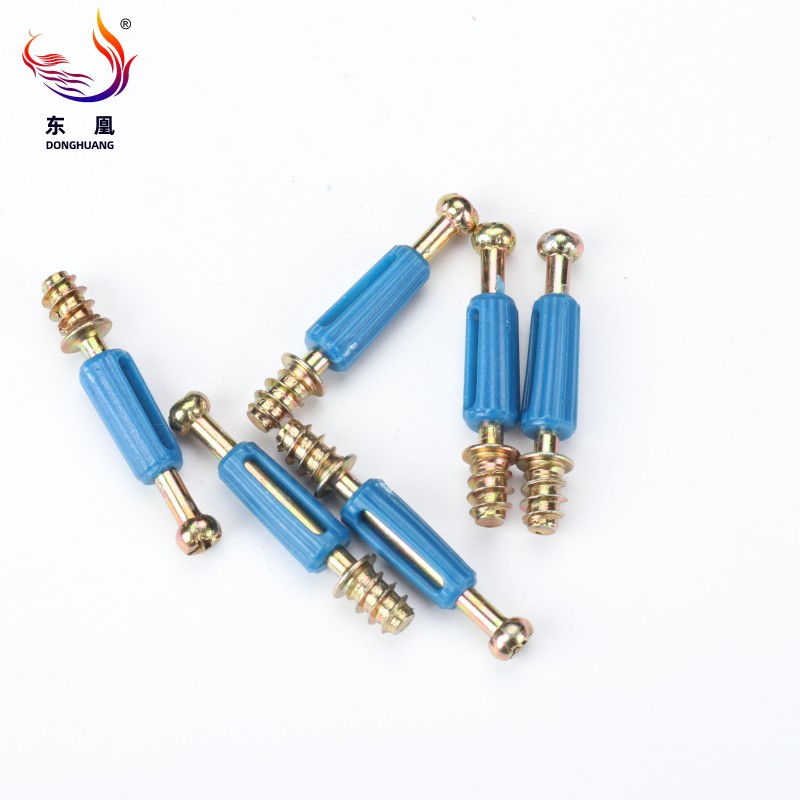

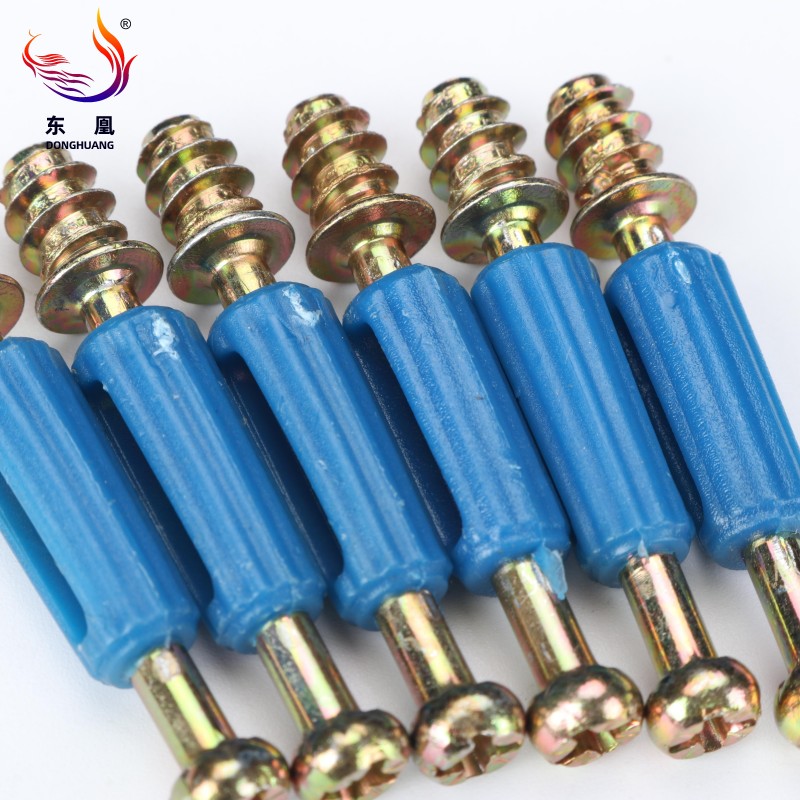

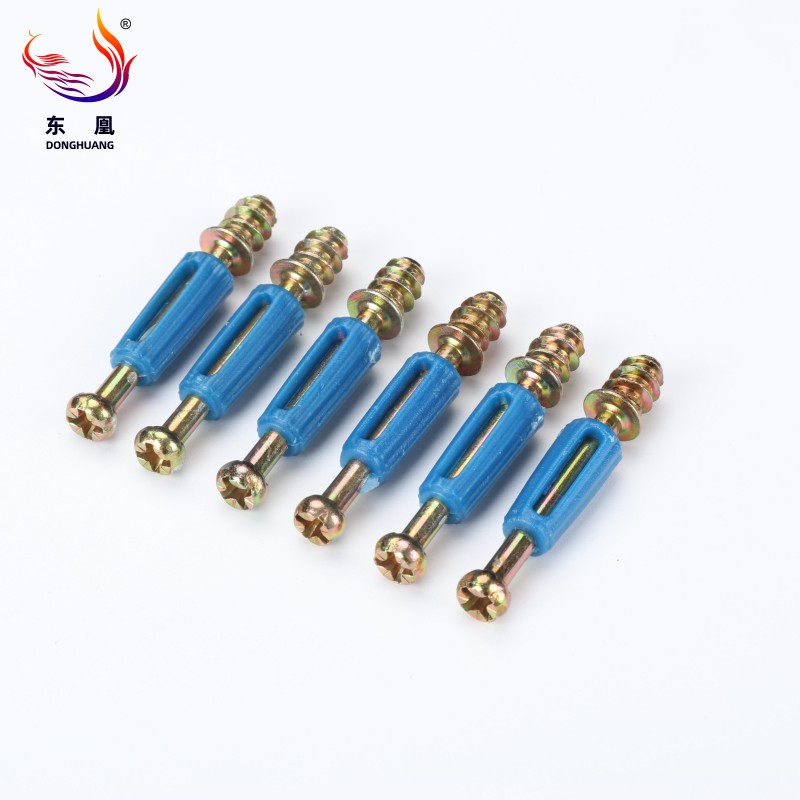

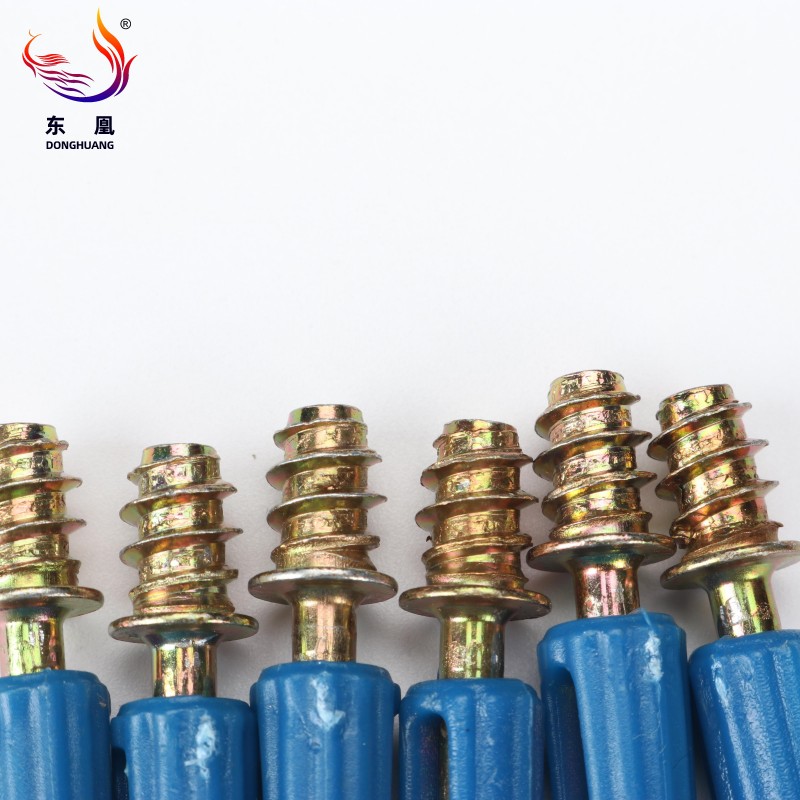

Mini Fix Furniture Connecting Connector Screw Cabinet Cam Lock Dowel Bolts represent a foundational two-part fastening system engineered for precision panel joining. This system consists of a threaded dowel bolt anchored into the primary panel and a circular metal cam lock positioned within a pre-drilled cavity of the secondary panel. As the installer rotates the cam lock, the internal contoured slot firmly engages the head of the dowel bolt, drawing the two panels together to form a rigid, unyielding joint. The tactile feedback of the metal components locking into place assures structural integrity. Widely utilized in flat-pack furniture manufacturing, this mechanism allows for straightforward assembly and disassembly, significantly optimizing packaging volume and transport efficiency while maintaining the solid feel of traditional, permanent joinery.

Product Advantage

Machining & Assembly Compatibility

These connectors are precisely calibrated to match industry-standard dimensions, such as 15mm cam cavities and 8mm dowel insertions. This exact sizing ensures perfect alignment with automated drilling machinery, allowing furniture manufacturers to integrate them into modern, high-speed production lines without modifying existing equipment.

Structural Design & Aesthetics

Utilizing a concealed fastening approach, the cam and dowel system leaves the exterior surfaces of cabinetry and furniture entirely free of exposed screw heads. This hidden structural design preserves the clean, minimalist aesthetic demanded by contemporary interior spaces while providing exceptional load-bearing support.

Advanced Surface Treatment & Anti-Corrosion

To resist environmental degradation, the metal components undergo rigorous surface treatments including oxidized blackening, phosphating, electrogalvanizing, or dacromet zinc-aluminum coating. These protective layers provide a smooth, tactile finish while significantly enhancing resistance to rust and oxidation, ensuring long-term performance in diverse climates.

Tool-Free & Rapid Operation

The intuitive cam and groove design eliminates the need for specialized industrial tools during final assembly. A standard screwdriver is sufficient to engage the locking mechanism, drastically reducing installation time and lowering labor expenditures for both factory-level pre-assembly and end-user setup.

Comprehensive Customization & OEM/ODM

We provide extensive OEM and ODM customization services tailored to specific manufacturing requirements. From modifying thread lengths and alloy compositions to applying custom finishes and integrating proprietary branding into the packaging, every aspect can be adapted to align with distinct brand specifications.

Consistent Production Capacity

Supported by advanced in-house machining facilities and strategic proximity to major shipping ports, we guarantee stable production volumes. This infrastructure enables rapid prototyping for new designs and ensures dependable, on-time delivery for large-scale, continuous procurement schedules.

Product Uses

• Ready-to-Assemble (RTA) Furniture

  Cam lock dowels serve as the primary structural connector in RTA furniture. They facilitate the flat-packing of bulky items like wardrobes, bookshelves, and large desks, allowing for compact shipping and straightforward, secure assembly at the final destination without compromising structural stability.

• Professional Cabinetry

  In the construction of kitchen and bathroom cabinets, these fasteners create rigid, hidden joints. The secure interlocking mechanism ensures the cabinetry framework can withstand the constant vibration and heavy load cycles associated with daily drawer and door operation.

• Commercial Desks and Workstations

  These hardware components establish unyielding connections between heavy desktops, lateral drawer banks, and structural leg frames. The resulting stability prevents lateral sway, providing a solid, professional feel for demanding office environments.

• Entertainment Centers and TV Stands

  Used extensively to construct complex shelving configurations and storage compartments, the cam lock system supports the substantial weight of modern media equipment while keeping all structural hardware entirely out of sight.

Product Operate Guide

1. Prepare the Components: Organize the required cam bolts, cam locks, and the pre-drilled wooden panels. A standard Phillips or flathead screwdriver is the only hand tool necessary for this procedure.
2. Install the Dowel Bolt: Thread the cam bolt into the designated pre-drilled hole on the primary panel. Drive it straight until the collar rests flush against the wood surface; avoiding over-tightening prevents stripping the composite material.
3. Align the Panels: Position the secondary panel (containing the larger cam lock cavity) so that the exposed head of the dowel bolt slides smoothly into the corresponding edge hole.
4. Insert the Cam Lock: Drop the circular cam lock into its cavity. Ensure the small directional arrow cast into the face of the cam points directly toward the incoming dowel bolt head for proper engagement.
5. Engage and Lock: Insert the screwdriver and rotate the cam lock clockwise. You will feel a distinct mechanical resistance as the internal claw pulls the bolt head inward. Stop turning when it reaches a firm halt, indicating a fully secured and tight joint.

1. Are you a direct manufacturer or a trading company?

We operate as a direct manufacturer with complete in-house production facilities. Our dedicated international sales department manages all global transactions, allowing us to maintain strict oversight from raw material sourcing to final export, eliminating third-party markups.

2. What specific product categories do you offer?

Our comprehensive manufacturing portfolio includes expansion screws, furniture fasteners, custom hardware, plastic components, precision stamping parts, and zinc die-casting products. We also specialize in engineering non-standard parts based on specific client blueprints.

3. Which industries utilize your hardware solutions?

Our fastening systems are integral to the commercial construction sector, mechanical equipment assembly, and professional interior decoration. They are frequently specified for securing large-scale outdoor machinery and anchoring heavy goods during fixed installations.

4. Do you support customized product requests?

Absolutely. We provide full-scale OEM and ODM services. Our engineering team can develop custom molds and manufacture specialized fasteners based on your technical drawings, CAD files, or physical samples to meet exact project specifications.

5. How do you maintain consistent quality control across large orders?

We adhere strictly to ISO international quality management protocols. Our process involves rigorous internal inspections at every production stage. Finished batches undergo 100% functional testing, and we fully support third-party verification to guarantee absolute reliability.

6. What are your standard payment terms for international transactions?

During the initial quotation, we establish clear logistical terms such as FOB, CIF, or CNF. For volume manufacturing, our standard structure requires a 30% deposit prior to production, with the remaining 70% balance settled against the copy of the shipping documents. We primarily process payments via T/T, though L/C arrangements are also accommodated.
