A barrel nut is a type of fastener used to join two or more parts together, often providing a cleaner look or a stronger connection than traditional nuts. It is a cylindrical, internally threaded component that works with a male-threaded screw or bolt. Depending on the application, a barrel nut can be used for general assembly in furniture or signage, or in more specialized roles, such as a self-locking fastener in aircraft structures or securing a firearm's barrel to its receiver.

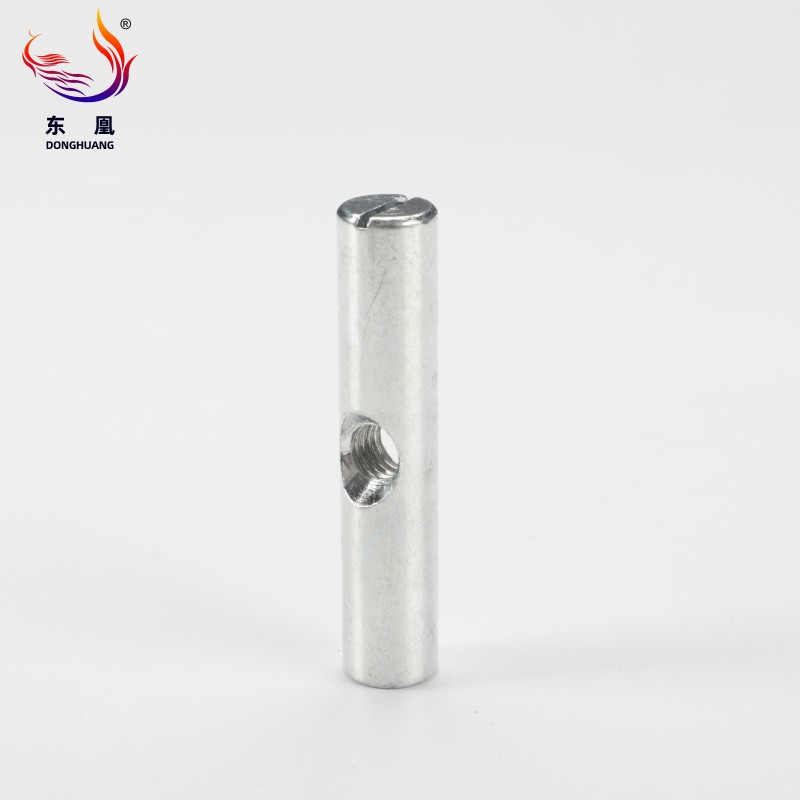

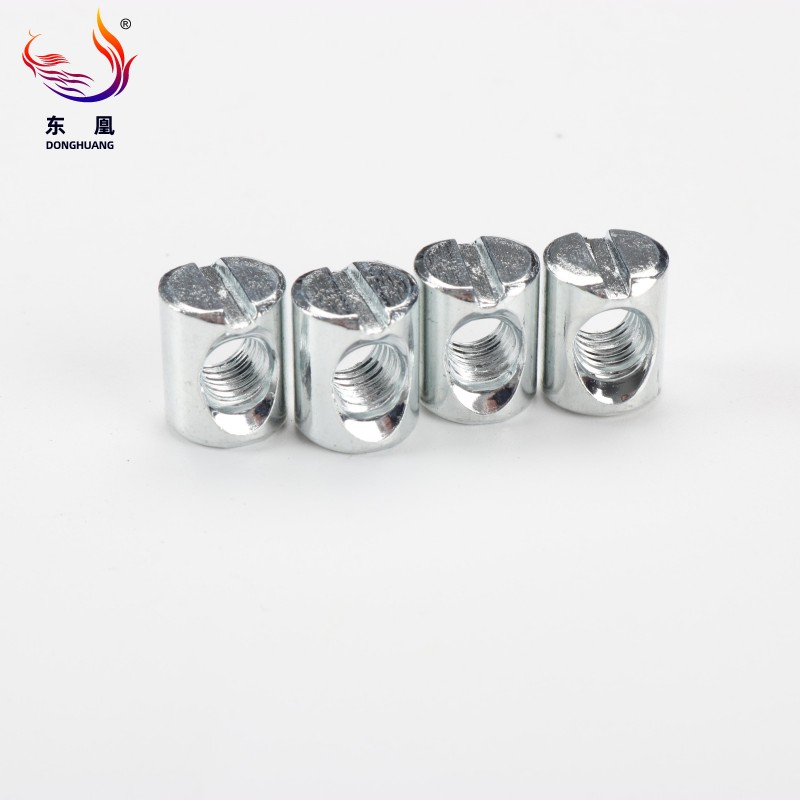

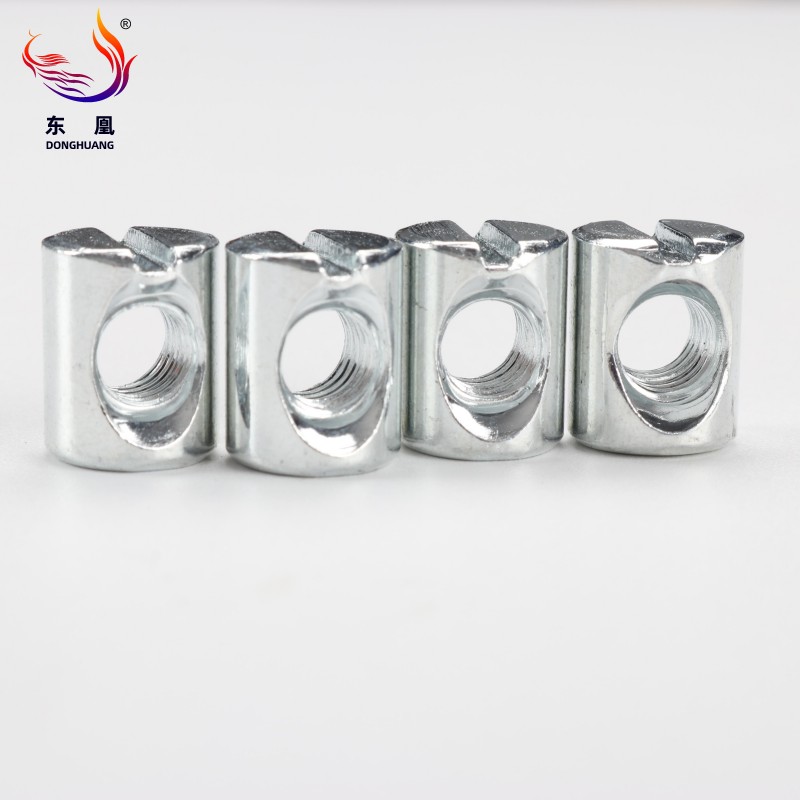

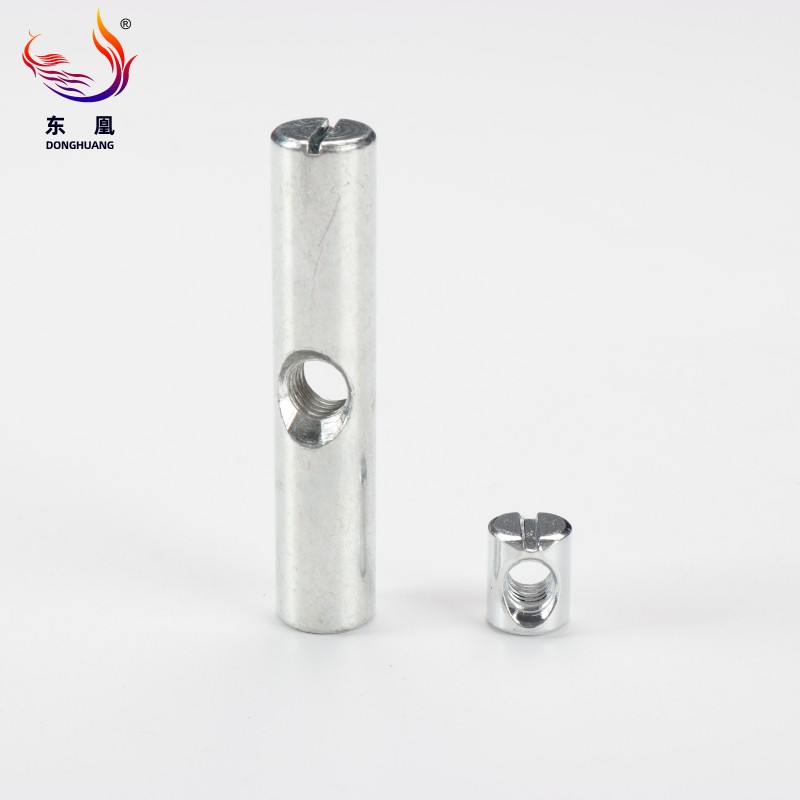

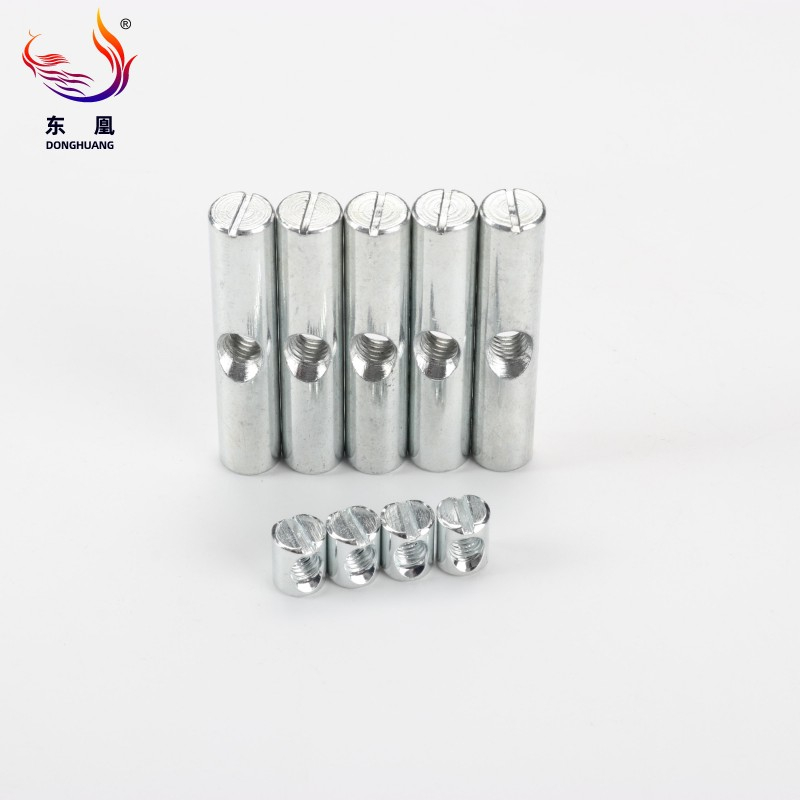

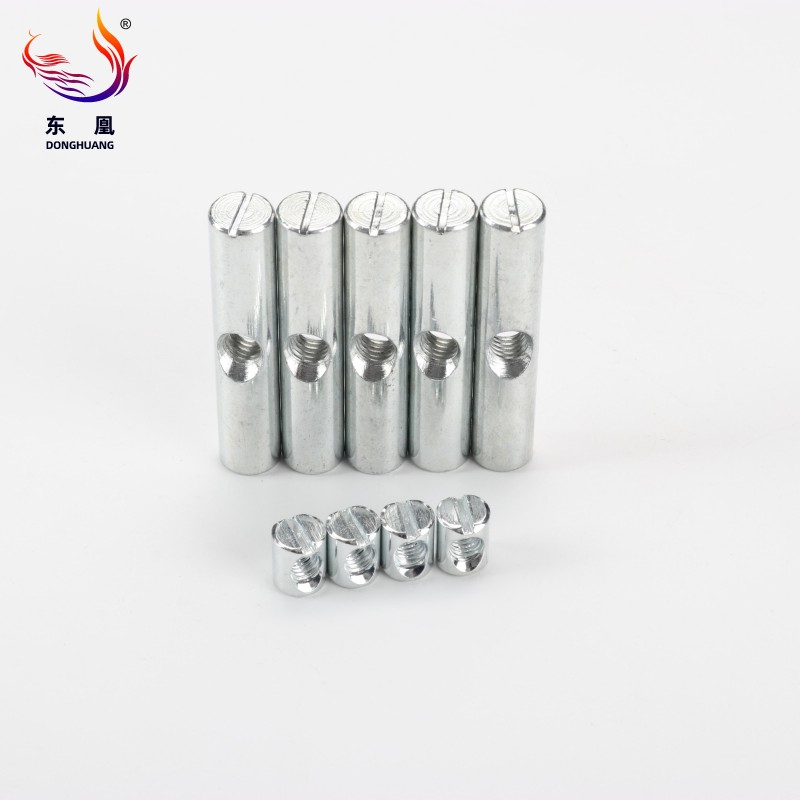

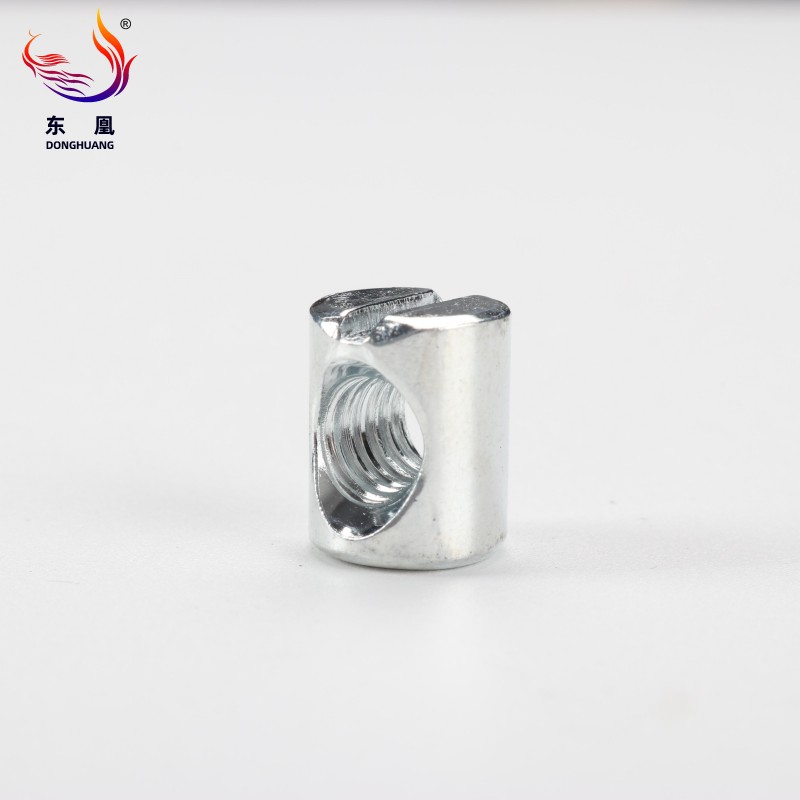

The Cross Dowel Centre Thread Furniture Barrel Nut serves as an essential cylindrical fastening mechanism engineered for creating highly secure, strictly concealed joints across multiple intersecting structural components. Characterized by its precisely machined internal threading and space-efficient profile, this specialized barrel nut engages with male-threaded machine screws or connector bolts to establish a tension-resistant hold that significantly outperforms conventional nut-and-bolt configurations. It is particularly valuable for commercial assemblies where maintaining a clean, flush exterior surface is just as critical as long-term structural integrity. Manufactured from carefully selected raw materials including distinct grades of stainless steel, carbon steel, and solid brass, the fastener meets rigorous ISO, GB, DIN, and ANSI dimensional and tolerance standards. When running a finger over the finished surface, the absence of burrs and the smooth, cold touch of the treated metal reflect the exacting machining process. Whether utilized in the mass production of ready-to-assemble wooden furnishings or specified for load-bearing aerospace paneling, this connecting hardware delivers consistent alignment, prevents joint separation under dynamic stress, and ensures a visually unobtrusive final appearance.
Engineered specifically for joining thick, dense materials, the cross dowel barrel nut establishes a self-wrenching, self-locking anchor point that thrives in high-tensile environments. By distributing the clamping force across a wider internal surface area of the host material, it prevents localized crushing and resists gradual loosening caused by ongoing vibration or heavy dynamic loads. This makes it an indispensable component for demanding assemblies ranging from commercial aircraft wing internal structures to solid hardwood bed frames.
Utilizing this transverse fastening method eliminates the necessity for excessively long, through-drilled carriage bolts that must penetrate the entire thickness of an assembly. This targeted approach reduces the total volume of metal required per joint, decreases the overall weight of the finished product, and lowers procurement expenses. Furthermore, it preserves the structural integrity of the primary components by requiring smaller, localized boreholes rather than full-length channels.
The internal threading is calibrated to accept standard high-tensile connector bolts, allowing the furniture barrel nut to adapt to a vast spectrum of base materials. It performs with equal reliability when embedded in engineered composite plastics, extruded aluminum profiles, or dense natural hardwoods. This adaptability simplifies inventory management for manufacturers dealing with mixed-material product lines.
Unlike traditional exposed hex nuts that disrupt the visual flow of a product, this barrel nut sits entirely flush or sub-flush within the component body, offering a clean, uninterrupted exterior surface. Beyond the visual appeal, these fasteners undergo advanced surface treatments—including eco-friendly zinc plating, nickel coating, and Dacromet finishes. These treatments provide exceptional rust prevention, easily passing prolonged salt-spray testing to ensure longevity even in humid or maritime environments.
Parameter | Details |
Product Name | M4 M5 M6 M8 M10 5/16 Stainless Steel Cross Dowel Centre Thread Furniture Barrel Nut |
Material | Stainless Steel (SS201, SS303, SS304, SS316, SS410, SS420), Carbon Steel (4.8, 6.8, 8.8, 10.9, 12.9), Titanium (GR1-GR5), Aluminum, Brass, etc. |
Size | M4-M10, 5/16", 4.8/8.8/10.9/12.9 (grade-related dimensions) |
Standard | ISO, GB, DIN, JIS, ANSI, BSW, ASME |
Certificate | ISO9001:2008, SGS Testing Report, RoHS |
Finish | Zn-Plated, Ni-Plated, Tin-Plated, Radiant Plated, Passivated, Brass Plated, Cd-Plated, Phosphate Anodize, Cr-Plated, Black Oxide |
Heat Treatment | Tempering, Hardening, Spheroidizing, Stress Relieving |
Packing | General export package, or custom packaging per customer request |
Delivery Time | 15-35 days after order confirmation; fast delivery for urgent orders |
MOQ | Negotiable based on specification and order volume |
Within the demanding field of aviation manufacturing, these fasteners are specified to connect critical load-carrying internal structures. They are frequently deployed in securing landing gear housing assemblies to main fuselage frames, attaching engine pod mounts, and stabilizing internal control surface linkages. The strict dimensional tolerances ensure zero-play connections that withstand extreme atmospheric pressure changes and constant engine vibration.
In the commercial furniture manufacturing sector, this hardware is the backbone of ready-to-assemble consumer goods. It provides the hidden clamping force required for heavy-duty beds, modular cabinetry, ergonomic office chairs, and nursery cribs. The design allows end-users to achieve factory-level joint tightness with simple hand tools, resulting in a rigid frame that emits no creaking sounds under weight, while preserving the natural grain aesthetics of the wood.
For architectural installations and commercial fit-outs, these cross dowels are utilized to join thick structural acrylic panels, heavy-duty retail display fixtures, and custom architectural signage. They provide a tamper-resistant, durable connection that remains entirely hidden from the public eye, maintaining the architect's intended clean lines while delivering the necessary structural support for high-traffic environments.
Test Bolt-Nut Fit: Begin by verifying the dimensional compatibility between your chosen connector bolt and the barrel nut. Manually thread the bolt into the nut; you should feel a smooth, consistent rotation without any binding or excessive play. If utilizing a heavily zinc-plated variant, a micro-layer of thread buildup might be present—applying a single drop of light machine oil will facilitate a frictionless drive.
Gather Tools: Ensure your workstation is equipped with a precision drill press or a guided hand drill, the exact diameter drill bits for both the bolt and the dowel, a manual screwdriver for alignment, and the corresponding furniture connector bolt.
Drill Bolt Hole: Precision is critical for a flush joint. First, align the two primary components (such as a vertical table leg and a horizontal apron) and securely clamp them. Bore the primary bolt hole through the first component and extend it precisely into the end-grain or edge of the second component.
Drill Crosswise Dowel Hole: Measure the exact intersection point and bore a crosswise hole (perpendicular to the main bolt channel) to fit the barrel nut’s diameter. The depth of this transverse hole must precisely accommodate the full length of the nut to ensure it does not protrude.
Drive Barrel Nut into Place: Insert the cross dowel barrel nut into the transverse hole. Use a flathead screwdriver in the slotted end of the nut to rotate and precisely align its internal threaded bore with the primary bolt channel.
Tighten Connector Bolt: Introduce the furniture connector bolt through the main hole until it makes contact with the nut. Drive the bolt inward; you will feel the threads engage and pull the two components tightly together. Apply firm torque to achieve a rigid, immovable joint, being careful to stop once the materials are fully compressed to avoid thread stripping.
Our comprehensive hardware catalog extends far beyond cross dowels. We manufacture a diverse portfolio of industrial fasteners, including heavy-duty expansion screws, precision-machined plastic components, custom stamping parts, and complex zinc die castings. Furthermore, we provide mating hardware and one-stop sourcing solutions, supplying perfectly matched furniture connector bolts and complete fastening kits to streamline your supply chain and accelerate your assembly line operations.
Absolutely. We operate a highly flexible OEM/ODM manufacturing facility capable of producing entirely non-standard fasteners. Whether your assembly requires a specific thread pitch, an unusual dimension like M6×15mm, or a proprietary alloy blend, our engineering team will work directly from your technical drawings or physical samples to deliver exact-match tailored solutions that integrate flawlessly into your production workflow.
We stand entirely behind the precision of our machining. In the rare event that any delivered batch deviates from the agreed-upon purchase order specifications, technical drawings, or established tolerance standards, we initiate an immediate, no-questions-asked replacement protocol. All associated costs, including expedited remanufacturing and priority shipping, are fully absorbed by our facility to ensure your production schedule experiences minimal disruption.
We structure our financial transactions to accommodate the realities of large-scale commercial procurement. Our standard protocol utilizes T/T (a 30% initial deposit to commence production, followed by the 70% remaining balance upon presentation of the document copy). We also accept L/C for qualified volume orders and are open to discussing alternative, mutually beneficial arrangements. Specific trade terms (such as FOB, CIF, or CNF) are meticulously calculated and confirmed during the initial quotation phase.
MOQ: Negotiable and highly flexible, designed to accommodate both specialized custom prototype runs and massive, continuous volume orders for global manufacturing facilities.
Delivery Time & Production Capacity: Standard production cycles require 15 to 35 days following formal order confirmation. Backed by an extensive array of automated cold heading and CNC turning equipment, our facility maintains a monthly output capacity in the tens of millions. This immense scale guarantees that even the largest bulk orders or critical, expedited requests are fulfilled strictly on schedule.
Trade Terms: We offer comprehensive shipping terms including FOB, CIF, CFR, CNF, EXW, DDU, and DDP, fully customizable to align with your specific logistical frameworks and warehousing requirements.
Customization: We accept full-scale requests for non-standard dimensional profiles, specialized metallic alloys, unique thread pitches, and proprietary head designs based on your exact engineering schematics.
Packaging & Logistics: To guarantee that every fastener arrives in pristine, installation-ready condition, we employ rigorous industrial-grade packaging protocols. Components are treated with a protective anti-rust oil film, sealed in moisture-resistant barriers, and packed into reinforced, thickened corrugated cartons. These are then secured onto fumigation-free wooden pallets, providing multi-layered protection against impact, humidity, and transit damage during extended cross-border ocean or air freight.
Operating as a primary, direct-to-market manufacturing facility, we bypass all intermediary trading companies to provide highly competitive, factory-floor pricing while retaining absolute authority over every phase of production. This direct relationship also empowers our end-to-end OEM/ODM custom machining capabilities, allowing us to pivot quickly and produce specialized fastening solutions tailored perfectly to your proprietary designs.
Precision is non-negotiable. Our quality control infrastructure utilizes fully automated optical sorting machines, calibrated go/no-go thread gauges, and digital torque testing equipment. Every single production batch is subjected to a rigorous 100% outgoing inspection process, ensuring absolute dimensional accuracy, flawless thread engagement, and a zero-defect rate before any product leaves our loading docks.
We adhere strictly to global manufacturing standards, maintaining ISO9001:2008 certification across all operations. We meticulously source premium metallic raw materials that comply with international RoHS and REACH environmental directives. For complete procurement transparency, every shipment is accompanied by comprehensive SGS testing reports, verifiable material traceability certificates, and detailed metallurgical breakdowns.
Our dedicated technical support team provides continuous, responsive guidance from the initial blueprint consultation through to post-delivery assembly troubleshooting. We supply complimentary physical samples for your internal stress testing and quality validation, ensuring complete confidence in the hardware before you commit to large-scale procurement.
