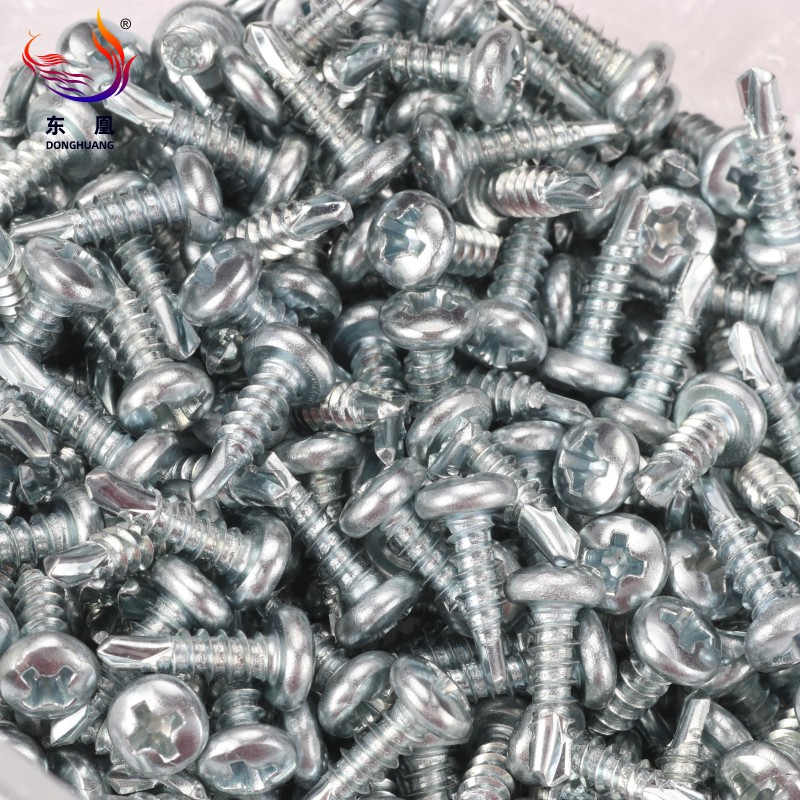

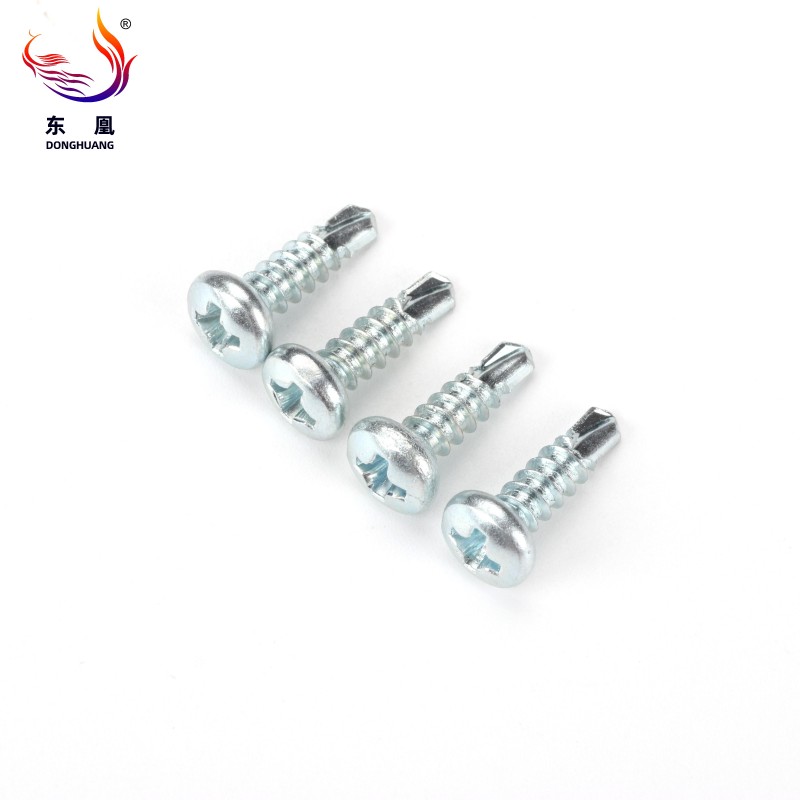

The Phillips Drive Pan Head Zinc Plated Steel Sheet Metal Tek Screw is engineered to streamline your fastening operations by merging drilling and tapping into a single, highly efficient process. Designed specifically for demanding metalworking environments, this self-drilling screw eliminates the tedious requirement for pre-drilling pilot holes, significantly accelerating project timelines.

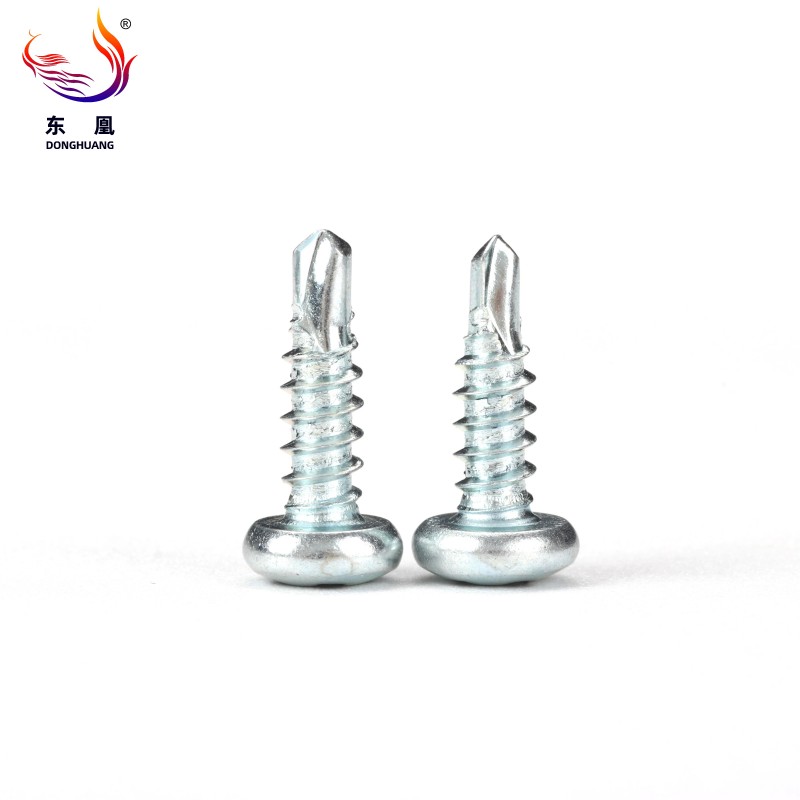

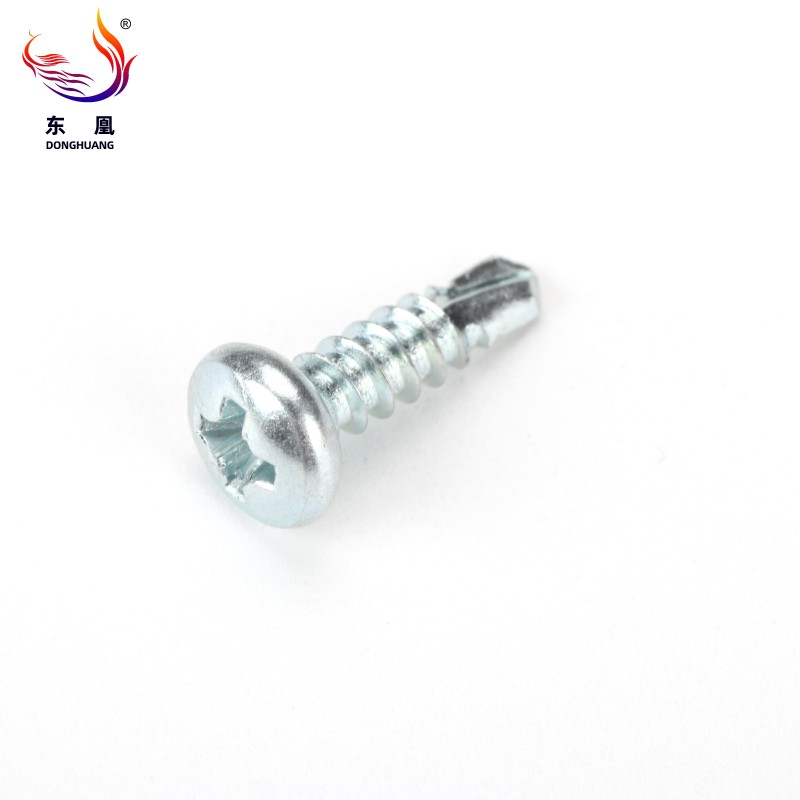

The fastener features a precision-formed pan head—a rounded profile with a flat bearing surface—that ensures optimal load distribution and a clean, snag-free finish. Coupled with a deep, precisely milled Phillips drive, it guarantees excellent torque transfer and minimizes the risk of driver slippage. The core of its performance lies in the hardened drill-shaped point, which bites instantly into sheet metal, carving its own precise mating threads as it advances. Finished with a uniform zinc plating, the surface offers a distinct, smooth metallic tactile feel while providing an essential barrier against environmental oxidation.
The specialized drill-bit point aggressively bites into hard materials, carving its own precise hole and tapping mating threads in one seamless operation. This dual-action capability drastically reduces labor hours and eliminates the need for extra drill bits on the job site.

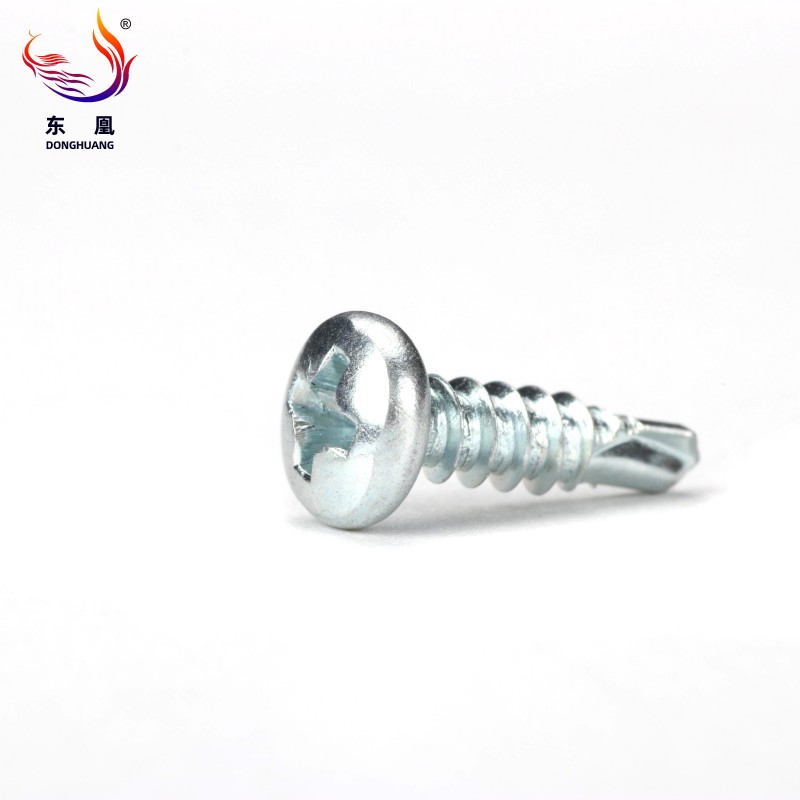

Featuring a flat, rounded head with elevated edges, this profile delivers a remarkably large bearing surface. This ensures a firm, flush hold against the substrate while leaving a smooth, professional appearance that resists snagging or catching on external elements.
By combining the drilling and tapping phases, these Tek screws allow for rapid application. Assembly lines and construction crews experience fewer interruptions, translating to higher daily output compared to utilizing traditional two-step fastening methods.
The meticulously engineered self-drilling threads draw the joined materials tightly together. This creates a highly secure, vibration-resistant connection that maintains its structural integrity even under continuous mechanical stress.
Engineered for adaptability, these self-drilling fasteners excel across a diverse range of tough materials. While optimized for sheet metal, they provide equally reliable performance when penetrating wood, fiberglass, and dense plastics.

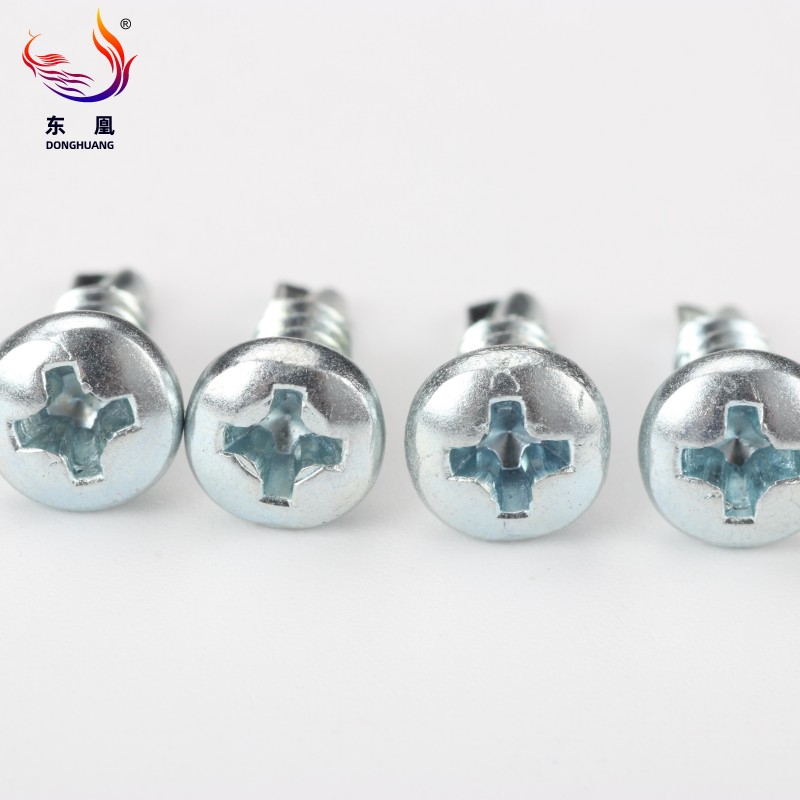

The deep, cross-shaped Phillips drive slot ensures the driver bit sits snugly within the recess. This precision fit minimizes cam-out risks, protecting both the screw head and the surrounding material surface from accidental marring when driven by high-torque power tools.
Understanding the exact specifications of your fasteners is crucial for ensuring structural reliability and project success. Our Phillips Drive Pan Head Zinc Plated Steel Sheet Metal Tek Screws are manufactured to strict physical tolerances, providing consistent performance across every batch. The robust carbon steel and stainless steel material options ensure excellent tensile strength, while the available finishes—ranging from standard zinc plating to advanced Dacromet—offer tailored defense against varying levels of corrosive exposure. Below is the comprehensive data sheet detailing the exact sizing, material composition, and packaging configurations available for your procurement needs.
| STANDARD | metric and inch |
| MATERIAl | carbon steel, stainless steel |
| SIZE | 3.5X6.5-6.3X200 MM |
| FINISH | zinc plated, nickle, H.D.G., dacromet, painting etc... |
| PACKING | bulk, samll box or according to your requirement |
| Others | support non-standard |
These highly durable screws are the ultimate solution for joining heavy-duty metal components. They are extensively utilized in assembling complex HVAC ductwork systems, erecting rigid metal framing, and executing general commercial construction tasks where structural stability is paramount.
Thanks to their aggressive self-drilling and precise thread-tapping capabilities, these fasteners are perfectly suited for manipulating thin to medium-gauge sheet metal. They effortlessly attach structural brackets, mounting fixtures, and protective cladding without warping the metal surface.
While primarily engineered for metal substrates, the sharp drilling point and deep threads allow these screws to effectively fasten wooden panels or boards to underlying metal frameworks. This is particularly valuable in hybrid construction scenarios where a flush, unobtrusive finish is required on the wooden surface.
Select a pan head Phillips self-drilling screw with the appropriate length and diameter tailored to your specific application. Carefully evaluate the total material thickness—these screws are optimally designed to penetrate up to 12-gauge steel—and identify the substrate types (e.g., metal-to-metal, wood-to-metal) to ensure maximum holding power.
Ensure the surfaces intended for joining are clean, aligned, and free of obstructive debris. While these are self-drilling fasteners, if you are working with exceptionally hardened alloys near the maximum thickness limit, creating a minor indentation with a center punch can help prevent the screw point from walking before it bites.
Place the drill point of the screw exactly at the desired fastening location. Firmly align the pan head Phillips recess with a matching, correctly sized driver bit to ensure complete engagement and prevent premature wear on the drive slot.
Utilize a professional-grade power drill equipped with a torque-control clutch. For optimal drilling efficiency and to prevent burning out the drill point, operate the tool at a recommended speed of approximately 2500 RPM. Apply steady, perpendicular pressure, maintaining a consistent speed to protect both the screw's structural integrity and the base material.
Allow the screw to naturally drill through the substrate and form its own exact-mating threads. Drive the fastener until the flat bearing surface of the pan head sits firmly against the material, securely locking the two pieces together without over-torquing.
Q: Are Self-Drilling Screws and Tek Screws the Same?
A: Yes, Self-Drilling Screws and Tek Screws are terms that are widely used interchangeably in the hardware industry. "Tek" was originally a brand name that became synonymous with the self-drilling point technology, which eliminates the need for pre-drilled pilot holes in metal framing.
Q: How Do Self-Drilling Screws Differ from Self-Tapping Screws?
A: The primary distinction lies in the tip design. Self-drilling screws feature a specialized drill-bit point that bores its own hole through metal, entirely bypassing the need for a pilot hole. Conversely, standard self-tapping screws possess a pointed or blunt tip and strictly require a pre-drilled hole in hard materials before they can tap their threads.
Q: How Do I Select the Right Screw Size?
A: Proper sizing is dictated by the total combined thickness of the materials being joined and the specific load-bearing requirements of your project. Ensure the unthreaded drill point is long enough to completely pierce the material before the threading engages to prevent binding.
Q: Can a Self-Drilling Screw Be Reused?
A: While it is physically possible to reverse and remove them, reusing a self-drilling screw is highly discouraged. The initial installation dulls the precision drill point and stresses the threads, meaning subsequent uses will yield compromised drilling performance and a significantly weaker hold.
Q: Are Self-Drilling Screws Suitable for Outdoor Use?
A: Yes, they perform exceptionally well outdoors, provided you select the correct material and coating. For exterior environments exposed to moisture, opt for stainless steel variants or those with heavy-duty corrosion-resistant finishes like Hot Dip Galvanized (H.D.G.) or Dacromet to ensure long-term durability and prevent rust degradation.
To guarantee exceptional anti-corrosion properties and high-strength fastening performance, every batch undergoes stringent laboratory evaluations. Our quality assurance protocols include comprehensive salt spray testing, Rockwell hardness evaluations, and strict torque resistance assessments before any product leaves the facility.
We strictly adhere to global manufacturing standards. Our facilities and products are fully certified under ISO9001, RoHS, and REACH, ensuring our fasteners meet the rigorous environmental and structural entry requirements of high-end engineering markets worldwide.
Understanding that standard specifications may not fit every specialized project, we offer deep customization capabilities. From unique head dimensions and specific thread pitches to specialized surface treatments like black zinc or Dacromet coatings, our OEM/ODM services are designed to precisely match your non-standard procurement demands.
Supported by dozens of fully automated cold heading and threading production lines, our facility boasts a massive daily output capacity. This scale ensures that large-volume buyers receive a stable, uninterrupted supply chain and rapid delivery turnarounds, even during peak market seasons.
To mitigate transit damage and streamline your inventory management, we employ a robust multi-layer packaging strategy—utilizing heavy-duty inner plastic moisture barriers, reinforced outer corrugated cartons, and stabilized wooden pallets. Furthermore, we support flexible international trade terms, including FOB and CIF, to optimize your shipping routes and reduce comprehensive procurement costs.
