A drop-in anchor is a type of internally threaded anchor used for fastening into solid concrete or masonry. It's designed for applications like overhead anchoring, pipe hanging, and securing fixtures where a threaded rod or bolt is needed. The anchor is set using a setting tool and hammer, which expands a cone inside the anchor to grip the surrounding material.

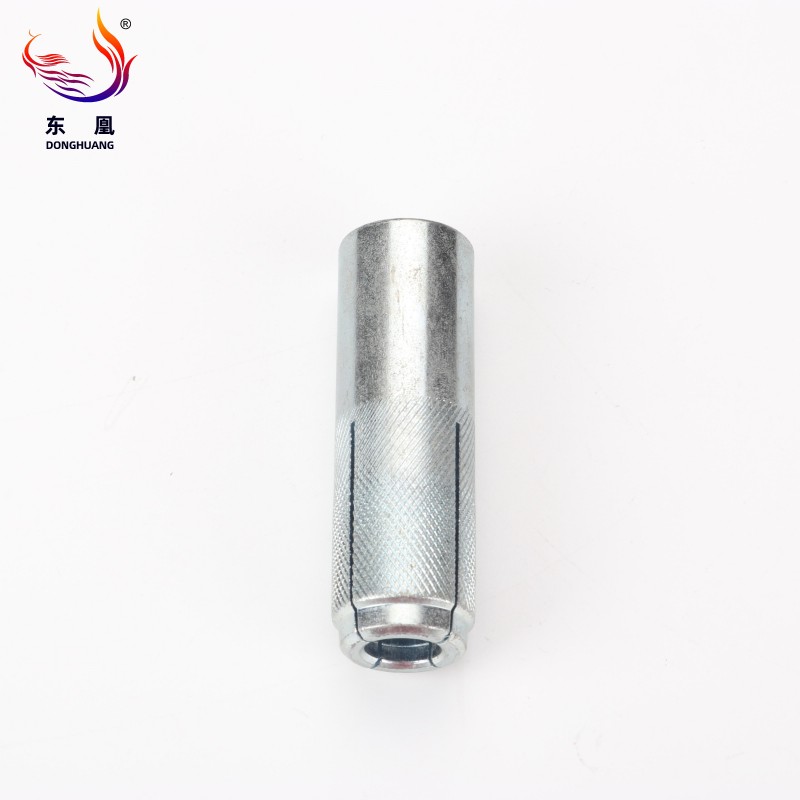

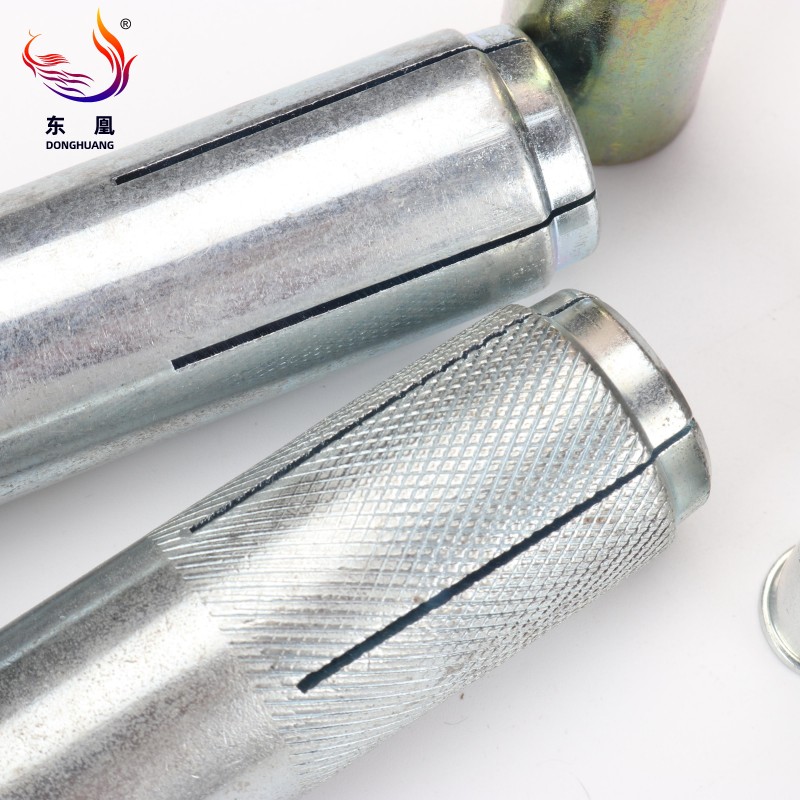

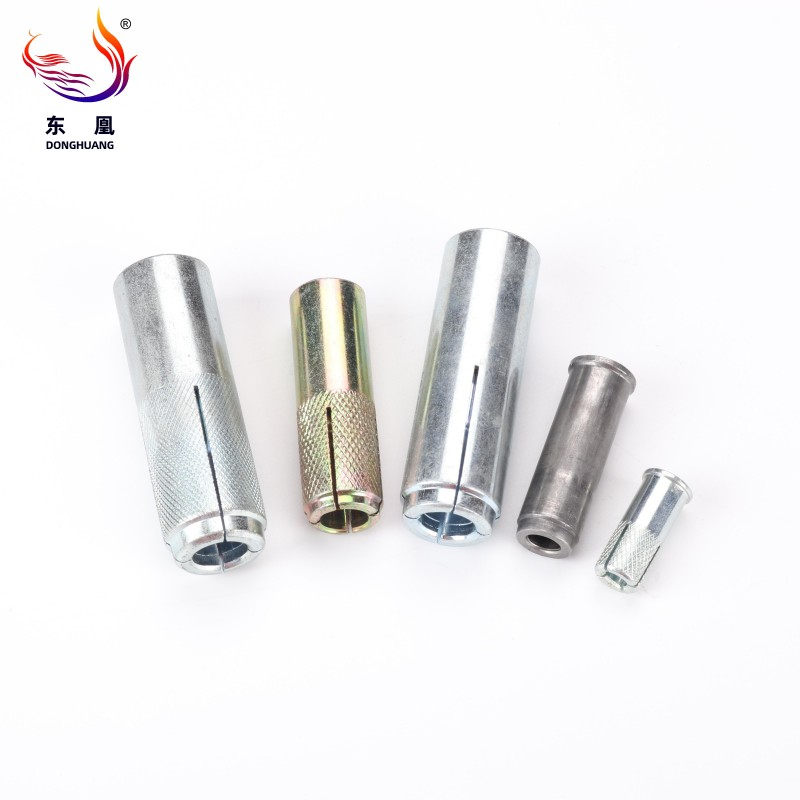

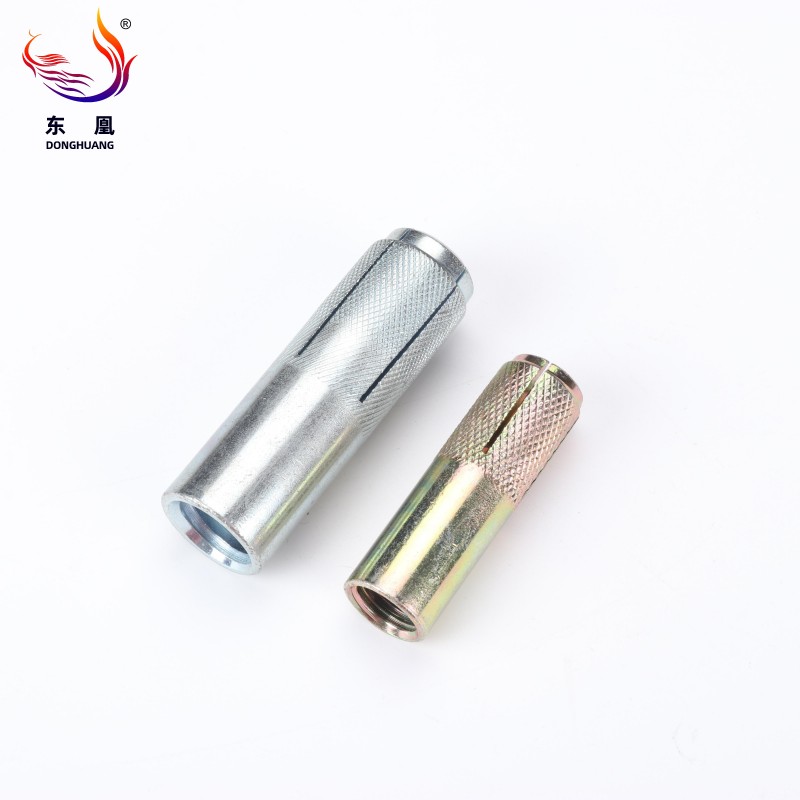

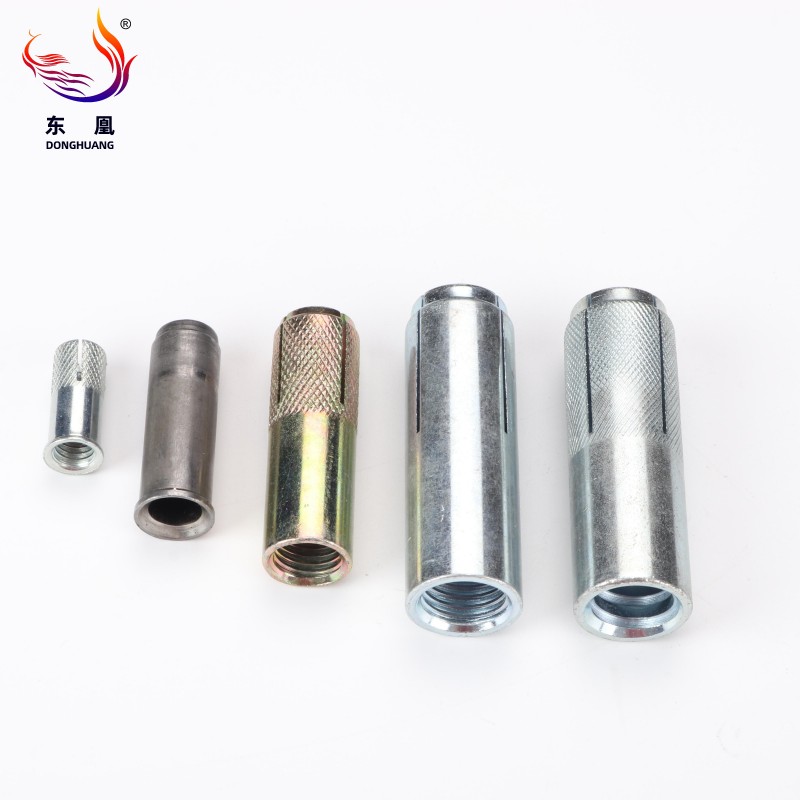

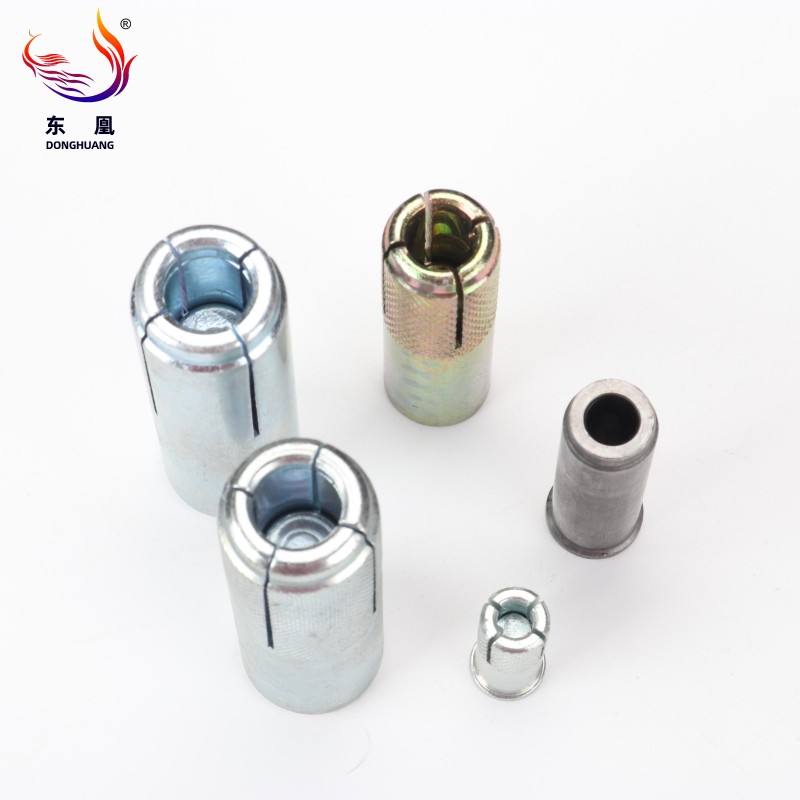

Engineered for absolute reliability in solid concrete and masonry, this internally threaded fastening solution delivers exceptional holding power for both structural and non-structural applications. Manufactured from premium-grade carbon steel, the anchor features a precision-slotted tubular body that perfectly matches its internal tapered plug. When set, the smooth outer wall expands uniformly against the concrete base, ensuring a consistent and powerful grip that resists vibration and dynamic loads. The surface is treated with a uniform zinc-plated (Zn-Plated) coating, giving it a bright, metallic sheen that feels cool and solid to the touch while offering a formidable barrier against oxidation. Adhering strictly to DIN standards, this galvanized expansion anchor serves as the definitive choice for overhead installations, heavy pipe hanging, and securing critical fixtures that demand unwavering threaded rod or bolt connections across complex commercial and industrial environments.
Designed to sit entirely flush with concrete surfaces or slightly recessed, this drop-in anchor eliminates hazardous protrusions. This clean, unobtrusive finish is essential for applications requiring a flawless aesthetic, such as decorative architectural fixtures, or for high-traffic areas where exposed hardware could pose a safety risk.
While requiring a dedicated setting tool, the installation of this zinc-plated drop-in anchor provides clear tactile and auditory feedback. When struck with a hammer, the setting tool produces a distinct, solid metallic ring once the internal plug is fully seated, assuring contractors that maximum expansion has been achieved without complex machinery.
This galvanized expansion anchor excels in diverse scenarios, adapting instantly to varying project demands. From suspending heavy ceiling fixtures and HVAC ductwork to attaching rigid structural supports, its predictable expansion behavior makes it an indispensable component for procurement managers outfitting large-scale residential, commercial, and industrial developments.
The meticulous zinc-plated surface treatment enhances resistance to rust and environmental degradation. This protective layer shields the carbon steel core from moisture and atmospheric chemicals, protecting the anchor’s integrity over decades of use in indoor facilities or sheltered outdoor environments.
Engineered for extreme performance, this anchor delivers exceptional load-bearing capabilities. Backed by rigorous testing, we provide precise pull-out and shear data for various concrete grades (such as standard 2000 PSI concrete). Its cone-expansion design creates a tight, mechanical interlock within the substrate, giving structural engineers the reliable safety margins needed for heavy appliances and industrial equipment.
Unlike permanent wedge fasteners, this carbon steel drop-in anchor features precision-cut internal threads that allow for repeated bolting and unbolting. This offers unparalleled flexibility for temporary fixtures, seasonal event setups, or future facility modifications, all without compromising the original holding values.
Specification Category | Details |
System of Measurement | Metric |
Place of Origin | China |
Brand Name | Donghuang |
Standard Compliance | DIN |
Product Name | Drop-in Anchor |
Surface Treatment | Zn-Plated (Zinc-Plated) |
Customizable Size | Available per Customer×s Request |
Length Range | 40×300MM |
Material | High-Quality Carbon Steel |
Grade Options | 4.8 / 6.8 / 8.8 / 10.9 / 12.9 |
Sample Availability | Yes |
Delivery Time | 15×30 Days |
Our drop-in anchor serves as a foundational fastening solution for countless demanding projects, providing secure anchorage in the following areas:
Electrical & HVAC: Safely suspending heavy cable trays, extensive ductwork systems, transformers, and utility meters from solid concrete ceilings, enduring constant operational vibrations.
Construction & Structural: Firmly attaching safety handrails, grab bars, and primary structural steel supports to concrete walls, ensuring compliance with strict building safety codes.
Residential & Commercial: Hanging heavy suspended lighting grids, industrial ceiling fans, large wall-mounted displays, and commercial-grade shelving units with absolute confidence.
Outdoor Installations: Fixing protected outdoor lighting fixtures, directional signs, and perimeter fence posts to solid concrete bases where exposure to the elements is mitigated.
Industrial & Mechanical: Mounting heavy-duty garage door openers, extensive pipe support networks, and anchoring heavy manufacturing machinery to factory floors to prevent shifting.
Temporary & Removable Fixtures: Creating reusable, high-strength anchor points for large-scale event setups, scaffolding ties, or temporary architectural structures that require frequent dismantling.
Ensure the concrete or masonry surface is fully cured, clean, dry, and free of dust, debris, or loose particles. Any contaminants in the immediate area can compromise the drilling process and reduce the anchor’s ultimate holding power.
Use a carbide-tipped masonry bit that perfectly matches the drop-in anchor×s outside diameter. The hole depth must be at least equal to the anchor’s length. Crucially, maintain critical installation parameters: ensure a minimum edge distance and proper anchor center spacing to prevent the concrete substrate from cracking under expansion stress.
Thoroughly remove dust and concrete powder from the hole using compressed air and a wire brush. This step is mandatory for maximizing the grip of the metal against the concrete wall and preventing premature installation failures.
Place the zinc-plated drop-in anchor into the pre-drilled hole. Tap it lightly until it sits perfectly flush with the concrete surface (or below the surface if your specific application requires a recessed finish and you are using an extended setting tool).
Insert a drop-in anchor-specific setting tool into the threaded body and strike it firmly with a hammer until the tool’s shoulder contacts the anchor lip. This mechanical action forces the internal cone downward, uniformly expanding the slotted body to create a tight, permanent grip. Adhere to maximum installation torque values when tightening your fixtures later to ensure safety compliance.
Once the anchor is fully set, remove the setting tool. To ensure proper bolt sizing and compatibility, calculate your required threaded rod or bolt length by adding the thickness of your fixture to the anchor's internal thread embedment depth. This prevents bottoming out and guarantees maximum thread engagement.
You must use a masonry drill bit that exactly matches the drop-in anchor×s outside diameter, not the internal thread size. This precise matching ensures a snug initial fit and allows the anchor to achieve its optimal holding power upon expansion.
The hole depth should be at least as deep as the anchor’s total length to allow for flush mounting. For structural safety, always avoid drilling closer than two anchor diameters to the bottom edge of the concrete slab to prevent blowout.
Absolutely. Cleaning the hole with compressed air and a stiff nylon or wire brush removes compacted dust that acts as a lubricant. Eliminating this debris ensures the metal sleeves grip the concrete directly, which is vital for proper expansion and load-bearing integrity.
Yes, recessed installations are fully supported. You will simply need a longer, specialized setting tool to reach the internal plug and expand the anchor properly. This is common for applications requiring a thick layer of grout or protective coating over the anchor point.
When installed correctly in solid concrete, our carbon steel drop-in anchors handle significant tension and shear forces, making them ideal for heavy-duty structural applications. Available in multiple strength grades (4.8 through 12.9), they offer tailored performance. Contact our engineering support team for detailed, grade-specific load ratings and shear test data.
We offer highly flexible ordering options designed to accommodate projects of all scales. Beyond standard orders, we provide deep customization and OEM services. Procurement teams can specify material grades (from 4.8 up to high-tensile 12.9), request specialized anti-corrosion surface treatments, and design exclusive branded packaging for non-standard engineering requirements.
Free samples are readily available for physical quality testing and engineering approval. Simply inquire with our technical sales team to request a sample batch of the zinc-plated drop-in anchor, allowing you to verify thread tolerance and expansion performance firsthand before committing to volume.
Standard production and delivery take 15×30 days after formal order confirmation. To guarantee that large-scale orders arrive safely and on schedule, we utilize industrial-grade, anti-rust standard packaging (such as secure 50-piece/box standardized cartons). For urgent project timelines, expedited shipping and flexible international trade terms (including FOB, CIF, and DDP) are fully supported.
We require a 30% deposit prior to initiating production, with the remaining 70% balance due against the copy of the shipping documents.
Accepted secure payment methods include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Trade terms: FOB, CIF, CNF (fully customizable per your procurement department's specific requirements).
As a premier direct manufacturer, Donghuang places unwavering priority on precision, quality, and structural reliability. Our drop-in anchors undergo a rigorous, multi-stage quality control and testing process to guarantee flawless performance in the field:
Utilizing advanced metrology instruments—including digital calipers, micrometers, and precision hardness testers—we conduct comprehensive inspections on every batch, ensuring exact dimensional accuracy and material strength.
Full-process quality checks are implemented at every stage: from raw carbon steel sourcing and heat treatment to the final electroplating process and standardized packaging.
Strict compliance with DIN standards guarantees seamless compatibility with external threaded fasteners and consistent performance across demanding global construction markets.
By maintaining a direct-to-buyer manufacturing model, we eliminate intermediary markups, offering highly competitive pricing structures without ever compromising on the critical safety and durability of our fastening solutions.
