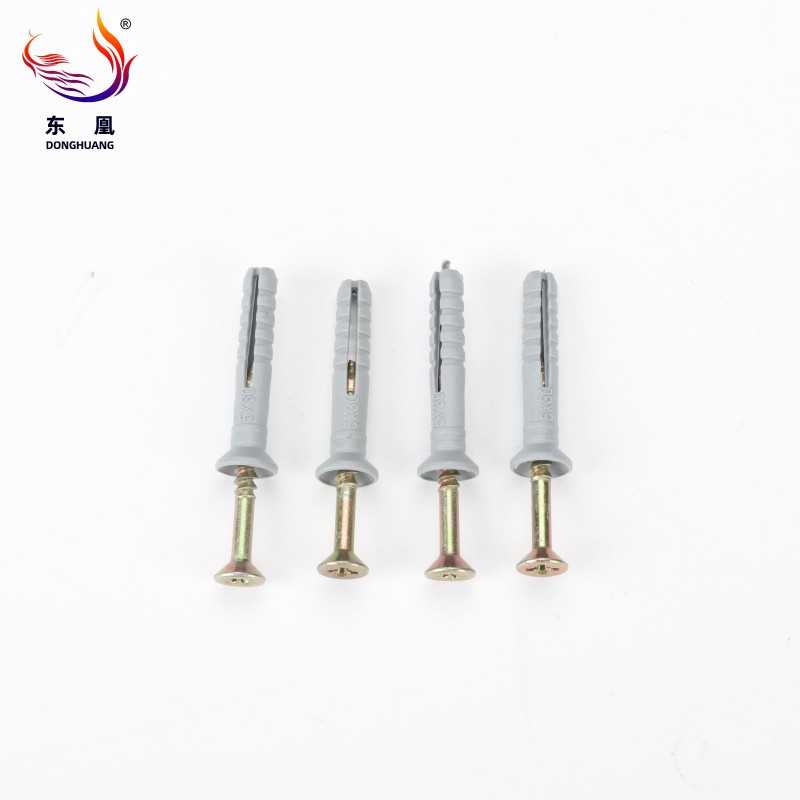

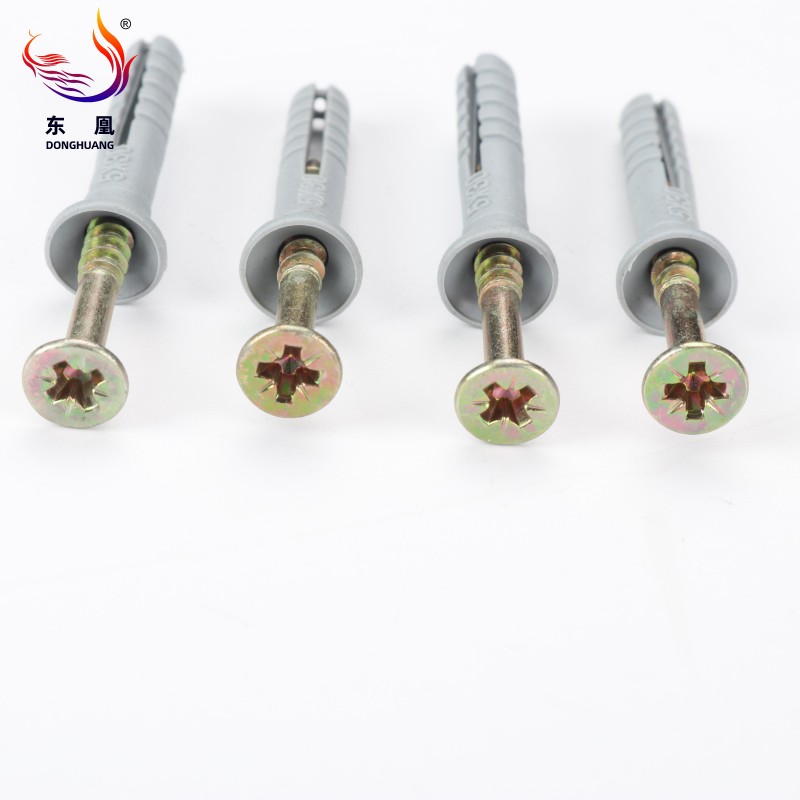

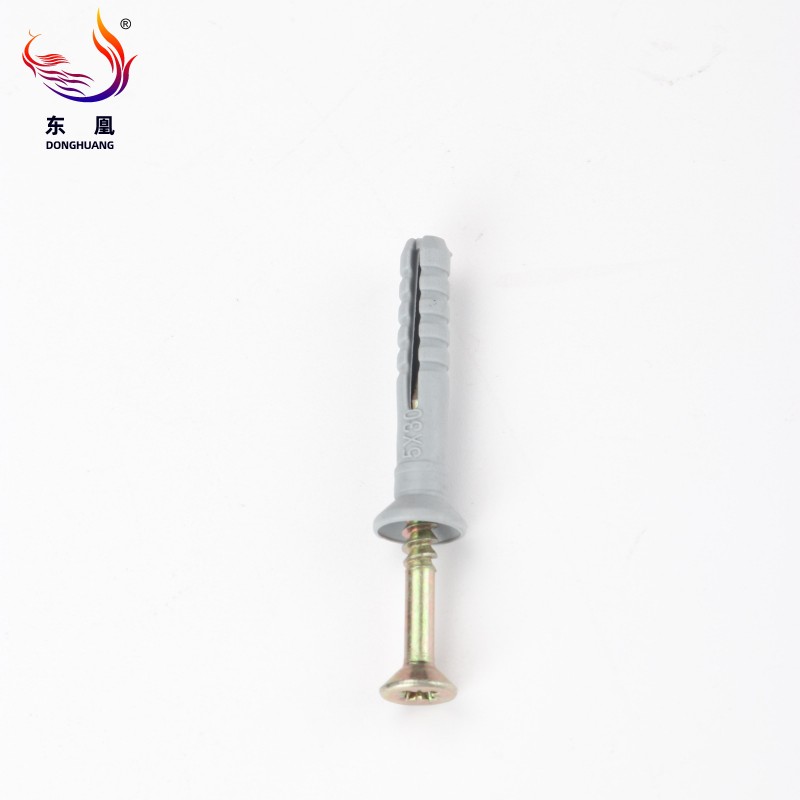

The Nylon Hammer Drive Anchor with Nail Screw serves as a highly dependable fastening solution engineered specifically for solid substrates such as poured concrete, solid masonry brick, and natural stone, while also adapting effectively to hollow wall environments like plasterboard. The physical construction features a precision-molded nylon sleeve paired with a pre-installed, threaded steel pin. Upon striking the nail head, the nylon body undergoes immediate lateral expansion.

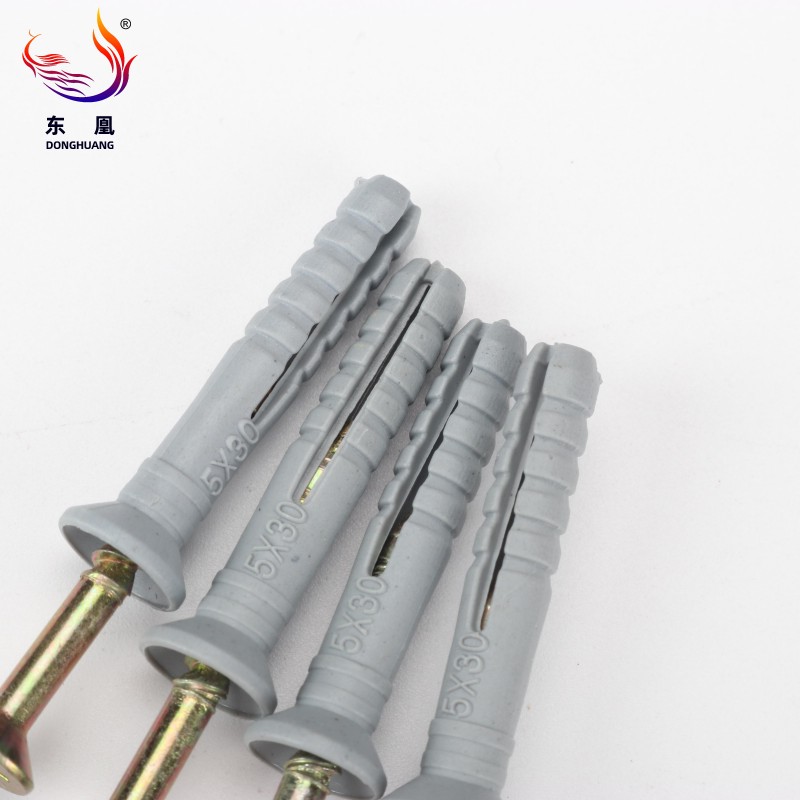

We designed the sleeve with a specialized split-shank configuration and external anti-slip ribs. As the steel pin drives downward, these ribs bite firmly into the surrounding substrate, creating an exceptional mechanical interlock that resists rotational slipping. The tactile feel of the dense nylon ensures it will not shatter or deform under the sudden impact of a heavy hammer blow. This mechanical expansion mechanism delivers immediate load-bearing capabilities without the need to wait for chemical curing times, streamlining project timelines significantly.
Engineered for secure structural holds, these anchors consistently deliver formidable pull-out resistance, reaching up to 450+ lbf in dense concrete substrates. This quantifiable strength provides structural engineers and project managers with reliable mechanical data for critical safety assessments.
The industrial-grade nylon matrix maintains its structural integrity across severe temperature fluctuations, remaining fully operational from a freezing -40°F up to a scorching 170°F. Combined with the corrosion-resistant steel pin, the entire assembly resists rust and degradation in highly humid, coastal, or outdoor industrial environments.
Available in multiple configurations including mushroom, flat, and pan heads. The oversized mushroom head variant is particularly valuable when securing compressible materials like thermal insulation boards or delicate moisture barriers. The wide flange distributes clamping pressure evenly, preventing the fastener from punching through the thin membrane.
The pre-assembled drive-pin mechanism requires only a standard hammer and a pre-drilled hole, making it exceptionally convenient for rapid deployment. Unlike heavy wedge anchors, the controlled expansion of the nylon sleeve minimizes radial stress on the base material, preventing fragile masonry or aging brickwork from cracking during the fastening process.
When specifying fastening hardware for large-scale engineering projects, precise dimensional and material data is crucial for ensuring compatibility and structural safety. The following technical specifications detail the exact manufacturing parameters of our PE/Nylon hammer drive anchors. These fasteners are manufactured under strict dimensional tolerances, accommodating standard metric and imperial sizing requirements. The combination of durable plastic sleeves and resilient carbon or stainless steel pins ensures reliable performance across diverse structural applications. Review the table below for exact sizing, standard compliance, and packaging details to facilitate your procurement planning.
| Product name | PE/NYLON hammer drive anchor |
| Brand Name | Donghuang |
| Diameter | M5-M10 |
| Standard | DIN & ANSI & JIS & IFI & ASTM |
| Material | Plastic/carbon steel/stainless steel |
| Surface treatment | PE/ Plastic/ Nylon |
| Size | Metric, INCH |
| Packing | Inner Box Then Carton and Palletized |
| Production time | 25-30days for One Container |
| Customized | Yes |
| Sample | Availabe |
In commercial roof construction, these anchors excel at fastening waterproof membranes and flashing to concrete parapet walls. The broad head design secures the synthetic rubber or PVC sheets tightly without tearing the material during severe wind uplift events.
Mechanical contractors frequently utilize these fasteners to attach heavy fiberglass insulation panels and ductwork cladding to solid concrete ceilings and block walls. The nylon material provides an excellent thermal break, preventing cold bridging through the fastener assembly.
For interior commercial build-outs, the anchors provide a secure, vibration-dampening hold for soundproofing panels and wooden sub-framing (furring strips) against structural concrete walls, ensuring a flush and stable architectural finish without chipping the base material.
The non-conductive nature of the nylon collar makes it an optimal choice for securing electrical conduit saddles, cable trays, and junction boxes in industrial facilities, effectively eliminating the risk of electrical grounding through the anchor body.
Proper installation is critical for maximizing the holding power and safety of the fastening system. Follow these standardized engineering guidelines for optimal results.
Utilize an industrial rotary hammer drill equipped with a carbide-tipped masonry bit. Drill the hole to a depth slightly exceeding the anchor length to accommodate any residual dust. The hole diameter must precisely match the specified anchor diameter to ensure a tight friction fit.
Thoroughly evacuate the drilled hole using a blowout bulb or compressed air, followed by a wire brush. Removing abrasive dust, debris, and loose concrete particles is essential for the nylon ribs to grip the solid base material effectively.
Position the fixture over the mounting hole. For optimal wind uplift resistance in continuous material installations, adhere to a recommended fastener spacing of 12 inches along joints and seams, and 18 inches across the center field areas. Insert the anchor through the fixture until the collar rests flush against the surface.
Using a standard framing hammer, strike the pre-installed steel pin with firm, direct blows. Drive the pin until its head sits perfectly flush with the nylon anchor head. This visual cue indicates full lateral expansion and maximum grip within the substrate.
Visualizing the installation process provides a clearer understanding of the fastener's mechanical efficiency. The following demonstration video illustrates the rapid deployment of our nylon hammer drive anchors in a real-world structural setting. Observe the smooth insertion of the nylon sleeve and the immediate, secure expansion triggered by the hammer strikes. This visual guide highlights the tactile feedback and auditory cues—the solid impact indicating a fully seated pin—that installers experience on the job site. Watching this brief operational overview will help technical teams verify the ease of use and structural reliability of the fastening system before specifying it for upcoming construction projects.
1. Are you a direct manufacturer or trading company?
We operate as a direct manufacturing facility with an integrated international export division. This vertical integration allows us to oversee every stage from raw material processing to final global distribution, ensuring consistent supply chain reliability and direct communication for our clients.
2. What products can you offer?
Our comprehensive manufacturing portfolio centers on industrial fastening solutions. This includes precision expansion screws, nylon hammer drive anchors, specialized hardware components, custom plastic injection parts, metal stamping components, and zinc die-casting products tailored to specific project specifications.
3. What applications do your products relate to?
Our fastening systems are engineered for heavy-duty and commercial applications. They are extensively utilized across the commercial construction sector, large-scale outdoor mechanical equipment anchoring, HVAC installations, structural framework securing, and professional interior fit-outs.
4. Can you do customized products?
Yes, our engineering department fully supports custom manufacturing. We can modify dimensions, head profiles, and material compositions to meet exact structural blueprints and specialized project requirements.
5. How to guarantee the quality of your goods?
Quality assurance is embedded in our production cycle. We strictly adhere to ANSI, ASME, and DIN international manufacturing standards. Every batch undergoes rigorous in-process inspections, culminating in a 100% final quality control check for dimensional accuracy, pull-out strength, and material integrity before packaging.
6. What's the payment term?
We offer flexible financial terms tailored to international trade, including FOB, CIF, and CNF arrangements. Standard mass production orders require a 30% initial deposit via Telegraphic Transfer (T/T), with the remaining 70% balance cleared against the copy of shipping documents. We also accommodate Letters of Credit (L/C) for specific procurement protocols.
