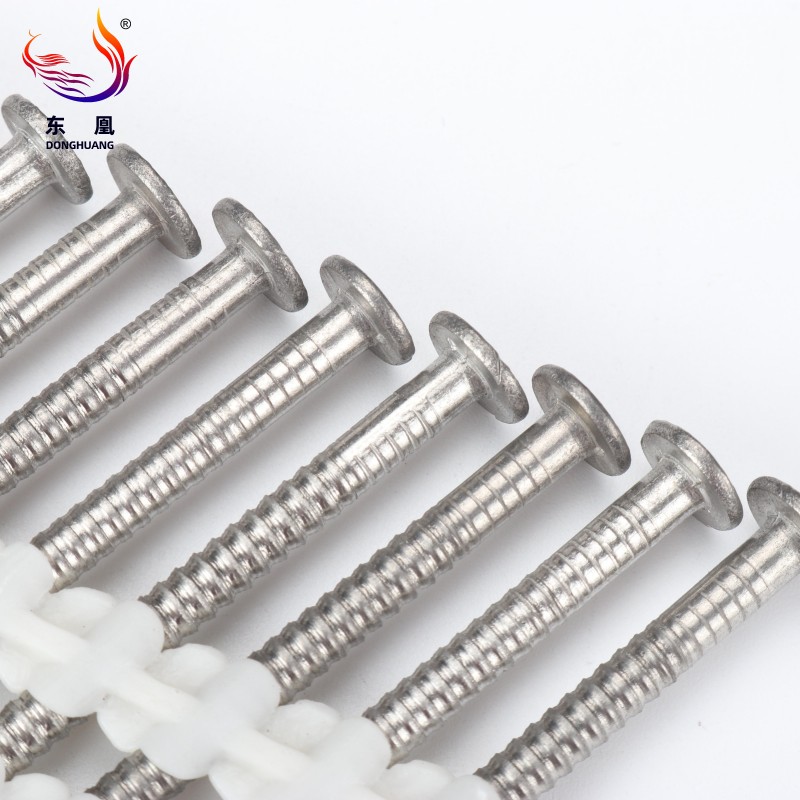

The Ring 304 Stainless Plastic Strip Framing Nail is engineered to structurally fasten lumber in demanding construction environments, forming the resilient framework of walls, floors, and roofs. Crafted from industrial-grade 304 stainless steel, these fasteners deliver exceptional corrosion resistance, making them the definitive choice for marine, coastal, and heavy industrial applications where moisture and salt exposure are constant.

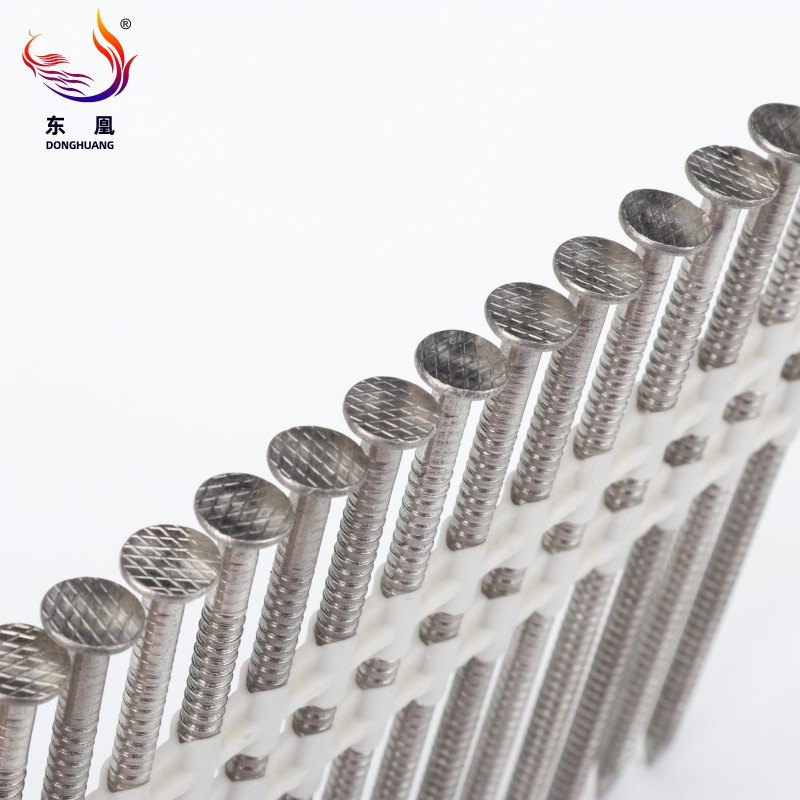

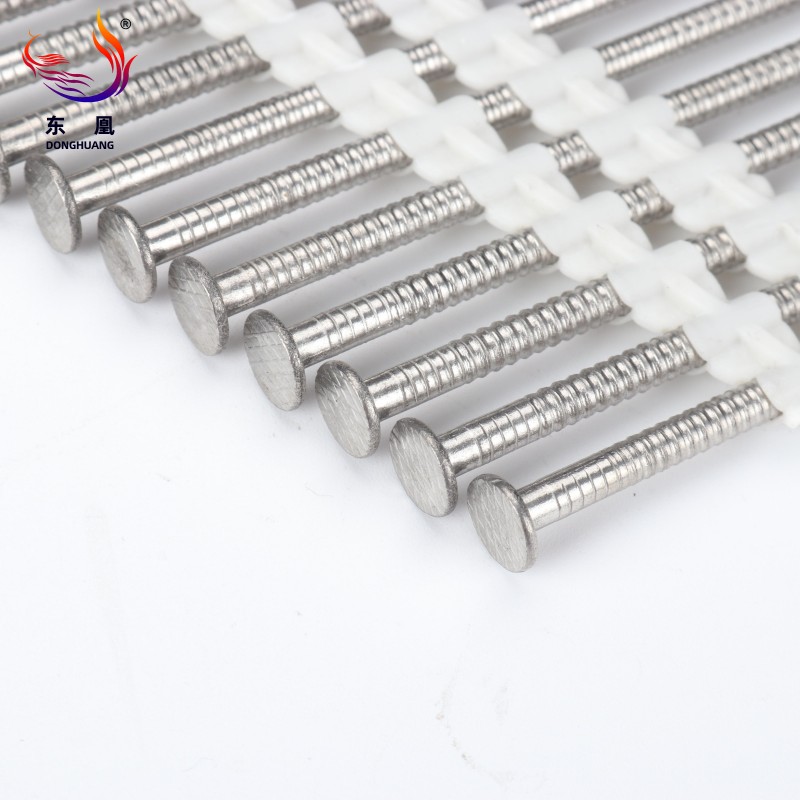

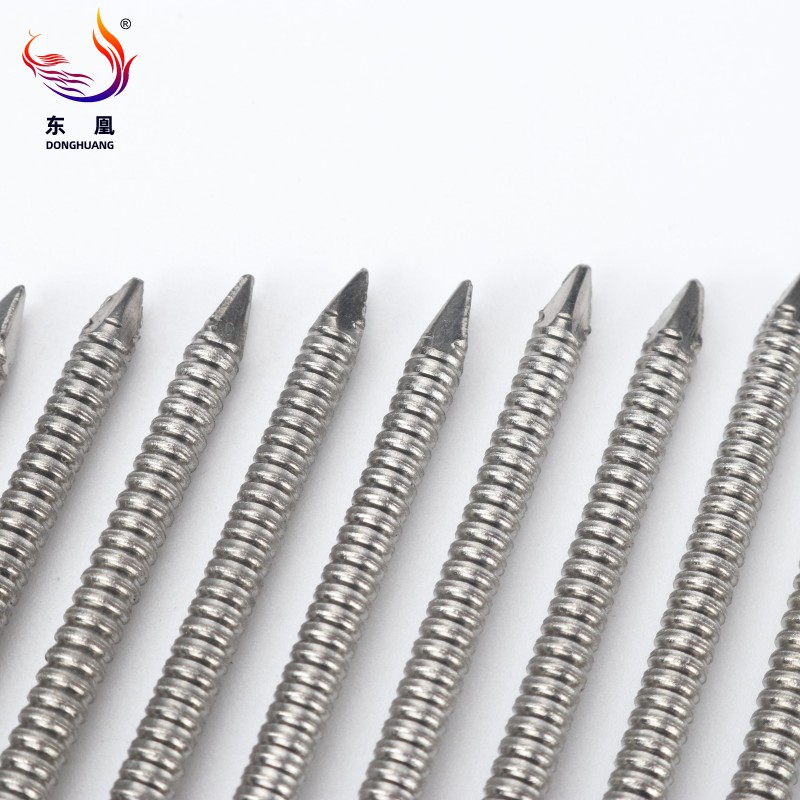

Each fastener features a distinctively textured, checkered full round head that minimizes glare on the job site while maximizing surface grip during impact. The sharp diamond point allows for immediate, deep penetration into dense wood, effectively preventing material splitting. By combining a specialized ring-shank profile with a solid stainless composition, these fasteners ensure unparalleled withdrawal resistance and a permanent hold, even when subjected to severe environmental stressors.
Designed for continuous, high-volume operation, these fasteners are precisely calibrated to fit mainstream 20°-22° pneumatic framing nailers, including industry-standard models from Bostitch, Senco, and Metabo. This exact engineering guarantees smooth firing sequences and eliminates frustrating jams during critical structural work.

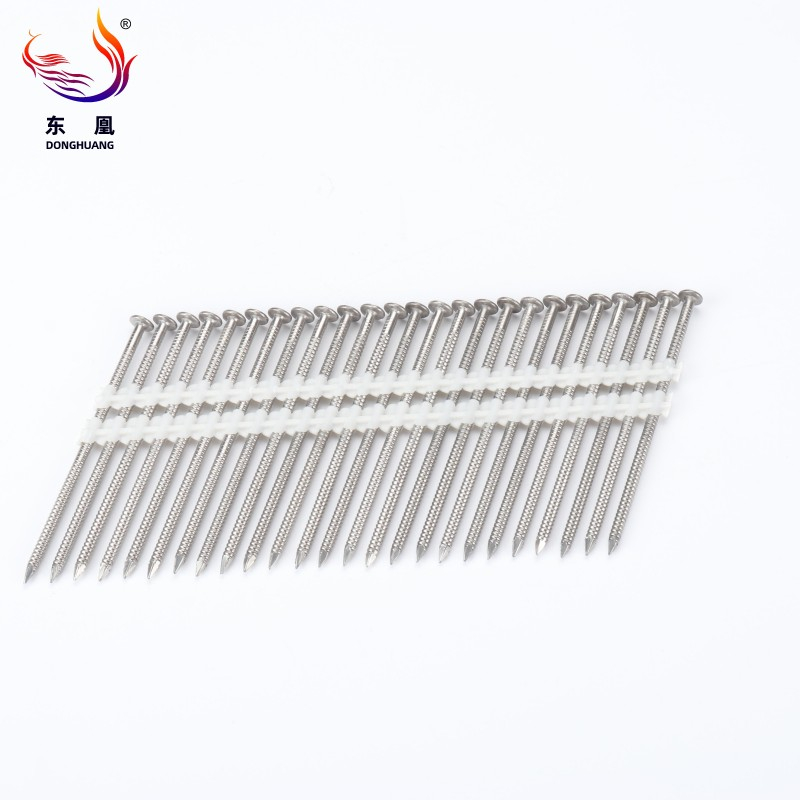

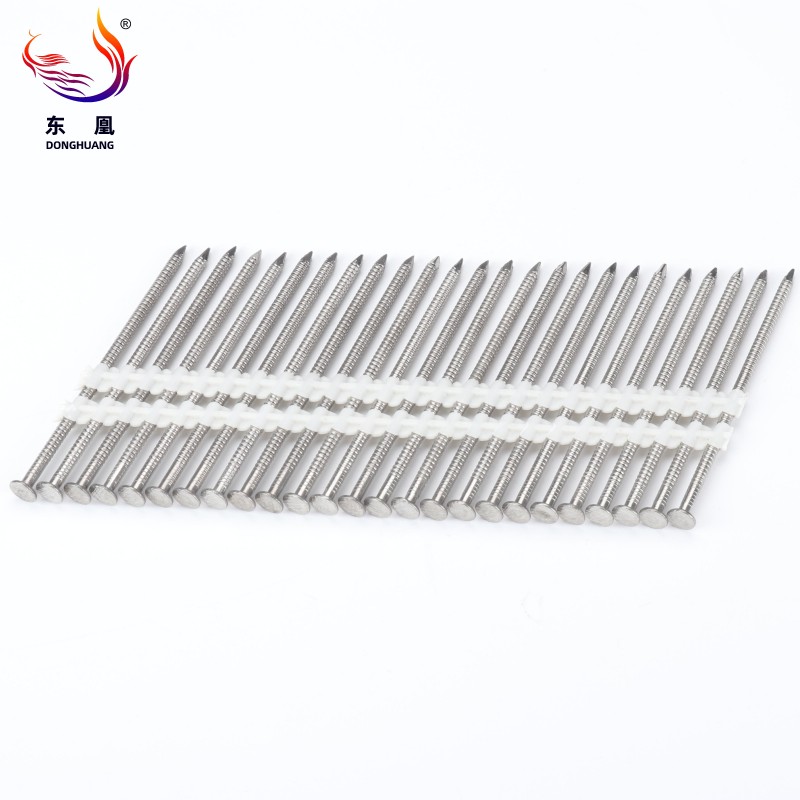

The fasteners are securely bound using a high-strength plastic strip set at a 20°-22° angle. This weather-resistant collation method withstands extreme temperature fluctuations on site. Upon firing, the plastic material shears cleanly, producing minimal debris, which keeps the tool mechanism clear and maintains a clean working environment.
The specialized ring-shank design penetrates deeply into the wood fibers, locking the fastener in place to provide the holding power crucial for structural integrity. Unlike rigid screws, these fasteners possess the inherent metallic flexibility to bend slightly under extreme stress without fracturing, a vital characteristic for structures exposed to hurricane-force winds or seismic vibrations.
Produced in facilities strictly adhering to ISO 9001 and BSCI certifications, every batch undergoes a rigorous 100% factory inspection. Their proven capacity to handle shear forces ensures they meet and exceed international building codes for structural framing applications.
Material | Steel |
Surface Treatment | Electric Galvanized |
Packing | Carton Box |
Etd | 20-30 Days |
Payment Terms | T/T |
Shank Style | Smooth/Ring/Spirl |
Head Style | Flat |
Transport Package | Customer Oriented |
Specification Material | Steel Diameter: 2.8mm - 4.20mm |
Trademark | Donghuang |
Origin | Zhejiang |
HS Code | 7317000000 |
Production Capacity | 8000 Tons/Year |
Beyond standard framing, the 304 stainless steel composition makes these fasteners the primary choice for treated lumber construction, outdoor decking, pallet assembly, and load-bearing structures in high-humidity or coastal environments where standard carbon steel would rapidly degrade.
Used to construct the skeletal structure of both interior and exterior walls. They provide the necessary shear strength to securely connect vertical studs to horizontal top and bottom plates, ensuring the core stability of the building.
Employed to assemble rafters, trusses, and other essential components that form the roof structure. Their exceptional withdrawal resistance keeps roof assemblies intact against severe updrafts and heavy snow loads.
Crucial for attaching floor joists and rim boards that create the supporting framework for structural flooring. The tight grip prevents long-term squeaking and shifting of the floor assembly.
Applied to securely fasten plywood or OSB (Oriented Strand Board) sheathing to the exterior framing, as well as attaching heavy decking boards to the foundational frame, creating a rigid structural envelope.
Always utilize a controlled two-handed technique during assembly. Securely hold the lumber stud in position with your non-dominant hand, keeping it well clear of the firing zone, while operating the pneumatic tool with your dominant hand to ensure precise alignment.
Firmly press the tool's safety contact tip against the exact target on the work surface. Ensure the tool is perpendicular to the material before squeezing the trigger. The plastic collation strip will shear cleanly, driving the fastener flush into the wood.
For maximum site safety and to prevent double-firing, equip the tool with a restrictive, single-shot sequential trigger mechanism. This configuration requires the safety tip to be depressed before the trigger can be engaged, effectively preventing accidental misfires.
When securing a vertical stud to a horizontal plate, establish a safe sequence: consistently drive the bottom connection first. Once secured, physically move your stabilizing hand entirely out of the operational path before driving the top connection to eliminate injury risks.
Anticipate the natural mechanical recoil generated after each discharge. Maintain a firm, unyielding grip on the handle, allowing the tool to naturally bounce back rather than forcing it down, which is especially critical during rapid-fire framing tasks.
We operate as a fully integrated manufacturer with our own dedicated international sales division. This structure allows us to oversee the entire production cycle—from raw material sourcing to final packaging—ensuring direct communication and consistent product reliability for our global partners.
Our primary manufacturing portfolio encompasses a comprehensive range of structural fasteners, expansion screws, specialized hardware, precision plastic components, stamping parts, and zinc die-casting elements. We also possess the engineering capability to produce non-standard parts tailored to specific project demands.
Our fastening solutions serve the broader construction sector and mechanical infrastructure fields. Key applications include the secure installation of large-scale outdoor mechanical equipment, commercial and residential structural framing, interior decoration, and the heavy-duty fixation of industrial goods.
Yes, we maintain a dedicated engineering team capable of developing customized fastening solutions. Whether you require specific dimensions, unique surface treatments, or specialized collation angles, we can adapt our production lines to meet your exact technical specifications.
Quality control is embedded at every manufacturing stage. We conduct rigorous inspections following each production process. For finished batches, we execute a 100% final inspection protocol aligned with international building codes and specific client requirements, ensuring zero defects prior to shipment.
During the quotation phase, we will establish the most efficient transaction terms (FOB, CIF, CNF, etc.) for your logistical needs.
For mass production orders, our standard structure requires a 30% deposit prior to manufacturing, with the remaining 70% balance settled against the copy of shipping documents. Transactions are typically processed via T/T, though L/C arrangements are also fully supported.
