A self-clinching nut is a type of threaded fastener that becomes a permanent part of a thin metal sheet when pressed into a properly sized hole, permanently interlocking with the host material through cold flow of the metal into the fastener's undercut. It provides load-bearing threads with high pull-out and twist resistance and offers a cleaner alternative to welded fasteners, making it suitable for many thin-gauge materials where traditional welding or separate nuts and bolts are not ideal.

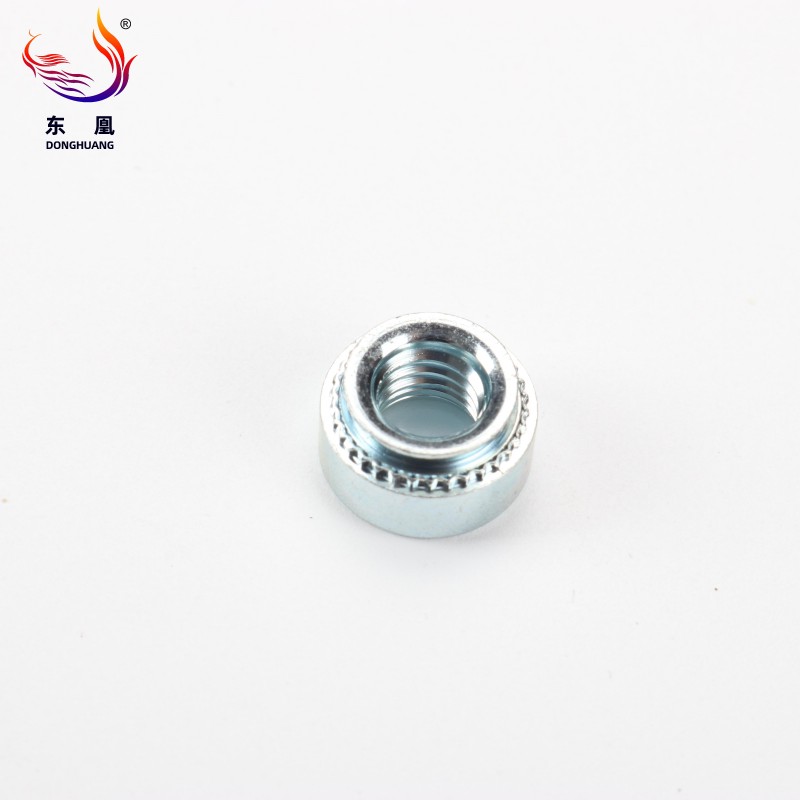

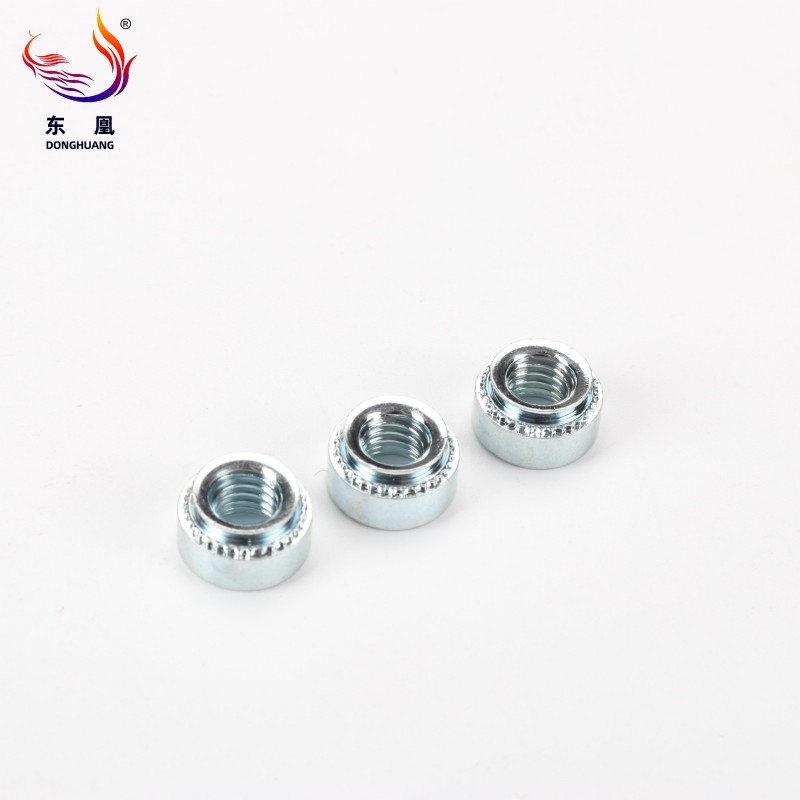

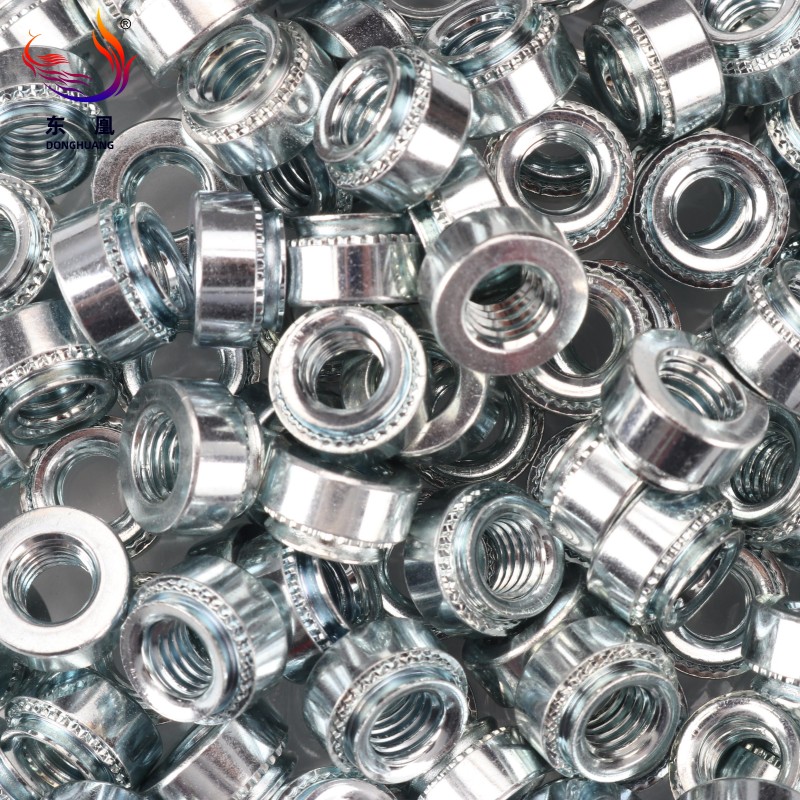

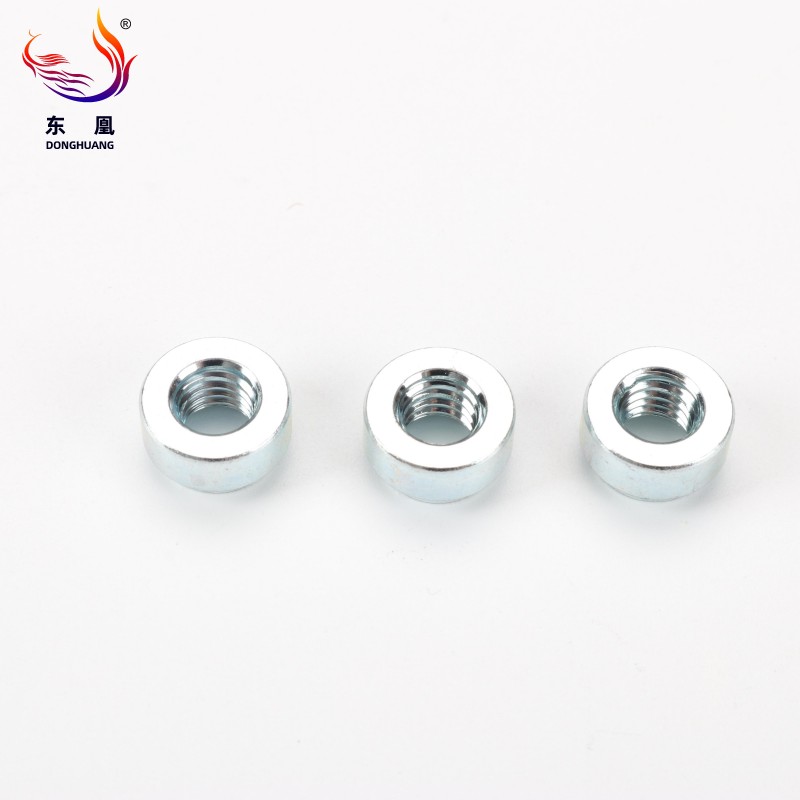

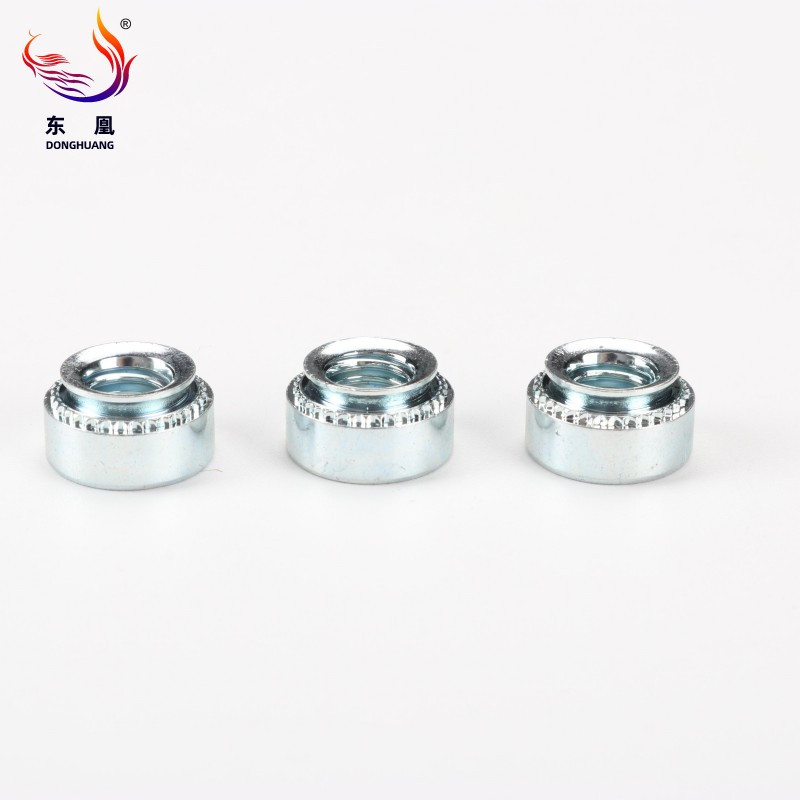

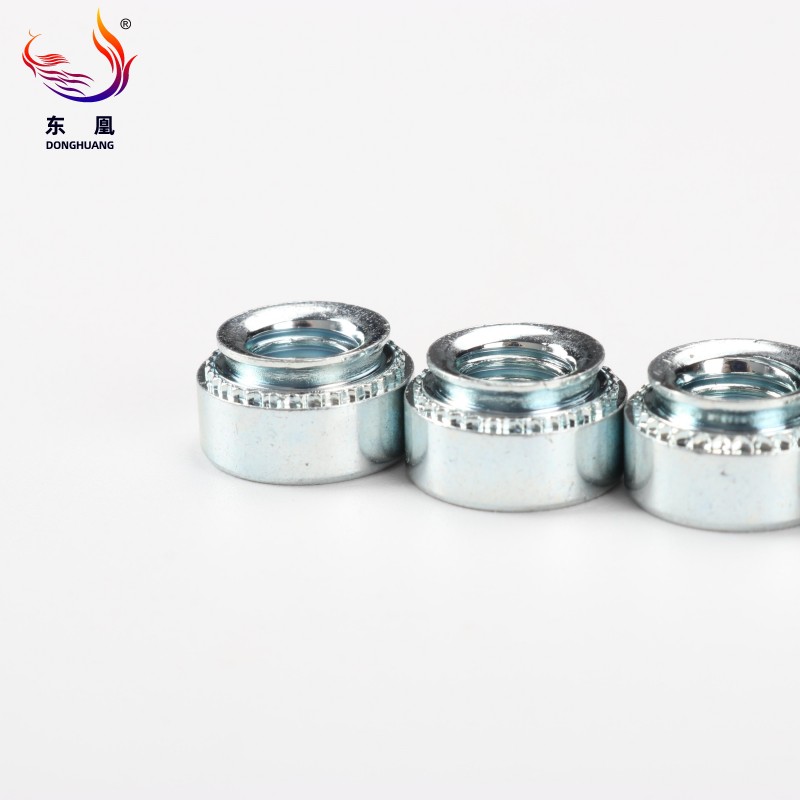

The Zinc-Plated Carbon Steel Flush Self-Clinching Nut serves as a permanent, precision-engineered threaded insert designed specifically for thin-gauge metal panels. Operating on the principle of cold flow, this fastener embeds itself securely when pressed into a properly sized, deburred hole. As the host metal displaces, it flows smoothly into the nut's specially designed undercut and knurled clinching ring, creating an immovable mechanical interlock. Crafted from rigid carbon steel and finished with a uniform zinc-plated layer, this component feels solid to the touch and displays a distinct, clean metallic sheen. It eliminates the need for complex thermal joining or loose hardware, offering a streamlined approach for assemblies in new energy battery boxes, automotive enclosures, aerospace components, and sensitive medical devices. Its capacity to deliver exceptional pull-out resistance while maintaining an entirely flat surface profile makes it a highly efficient solution for long-term structural integrity.
Base Material & Coating: The core of this fastener utilizes carefully selected carbon steel, optimized for structural strength and tension distribution. The surface is treated with a precise zinc-plated finish, providing a smooth, tactile feel and a bright, reflective visual profile. This coating acts as a durable barrier against oxidation, passing rigorous salt spray tests to ensure longevity in humid environments. For specialized demands, derivatives in 300/400 series stainless steel or specific aluminum alloys are available to combat severe chemical exposure or marine conditions.
Structural Variations: We engineer these nuts to strictly adhere to international fastener standards, including ANSI, DIN, and ISO specifications. The metric (M2-M12) and unified (such as 1/4-20) threads are cut with exacting precision to ensure smooth thread engagement. Depending on the application, the structural profile includes Countersunk Head, Flat Head, and Reduced Countersunk Head designs. The outer body variations—spanning Knurling, Full Hex, Semi Hex, and Plain Body—provide specific torque-out resistances. Furthermore, functional derivatives like blind, floating, miniature, and self-locking configurations accommodate complex mechanical assemblies.
Finish Detail: Upon proper pressing, the reverse side of the host metal remains completely flush, creating an uninterrupted, perfectly flat surface. Running a hand across the installed area reveals no protrusions or sharp edges. This flush finish is critical for consumer electronics and medical housings, preventing internal wire chafing and maintaining a sleek exterior profile.
| Material available | Carbon Steel/Stainless Steel/Galvanized/Zinc-nickel Alloy |
| Head Type | Countersunk Head, Flat head, Reduced Countersunk Head |
| Available Size | Can Be Customized According To Needs |
| Surface treatment | Zinc Plated, Nickel Plated, Polish |
| Body Type | Knurling, Full Hex, Semi Hex, Plain Body |
| Transport Package | Bag, Box |
| Delivery Time | One Month, Seven Working Days For Spot |
| Application | New Energy Battery Box/Car Valve Cover/Start Cover/Roof Luggage Rack/Convertibe Roof/Ongitudinal Beam/Shock Absorber |
Engineered for thin panels starting from a mere 0.5mm in thickness, this fastening component delivers exceptional pull-out and torque-out resistance. To achieve absolute interlocking security, the host panel must meet specific hardness criteria: a maximum of 80 HRB for carbon steel sheets and 50 HRB for aluminum components. When these parameters are met, the cold-flow mechanism guarantees that the thread integrity remains uncompromised, even under the severe vibration profiles found in automotive shock absorbers or aerospace structures.
The Flush Mounting capability removes unsightly surface bulges entirely. In applications like consumer electronics casings or medical device housings, a smooth exterior is not just an aesthetic preference but a functional necessity. This flush profile simplifies routine wipe-downs in hygiene-sensitive environments and eliminates the risk of operators snagging protective gear on protruding hardware.
Installation requires no complex thermal bonding or specialized threading tools. Operators simply use a standard double-sided parallel-acting press to push the fastener into a pre-punched or drilled round hole. By maintaining strict adherence to recommended hole size tolerances and minimum edge distance requirements, the press forces the sheet material into the annular groove evenly. This straightforward, clean pressing action significantly reduces assembly time and eliminates secondary operations like re-tapping or weld splatter removal.
By embedding permanently into the host chassis, this component eradicates the need for ongoing maintenance or replacement of stripped threads. The solid carbon steel core resists mechanical wear during repeated fastening cycles, while the uniform zinc plating prevents premature rust formation. This enduring structural reliability translates directly into optimized lifecycle costs for large-scale manufacturing operations.
Thermal joining methods often burn, discolor, or chip pre-applied surface treatments. In contrast, the ambient-temperature cold-flow installation process inherently protects existing paint, powder coats, or anodized layers. The surrounding finish remains pristine, making this solution exceptionally well-suited for visible exterior automotive panels and finished electronic enclosures where coating integrity is paramount.
To ensure absolute consistency and compliance with global procurement standards, our manufacturing process operates under a strict, verifiable control framework:
In-Process Inspections: Operating under the ISO 9001:2015 quality management system, every phase—from raw wire drawing and cold heading to thread rolling and surface plating—undergoes continuous monitoring. Our technicians verify dimensional tolerances at each critical juncture to prevent deviations before they propagate.
100% Finished Product Testing: Every production batch is subjected to rigorous mechanical evaluations. We utilize precision thread gauges to confirm pitch accuracy, while universal testing machines conduct destructive pull-out and torque-out force validations. Comprehensive factory test reports accompany these assessments, ensuring full traceability.
Eco-Friendly Certifications: The zinc-plated surface treatment is strictly formulated to comply with global environmental directives. It is fully RoHS and REACH compliant, completely free of hexavalent chromium and other restricted hazardous substances, supporting sustainable manufacturing goals.
Reliable Sourcing: We procure premium-grade raw materials exclusively from certified metallurgical partners. Advanced automated plating technology guarantees a consistent coating thickness, resulting in superior adhesion that withstands extensive salt spray corrosion testing without flaking or degrading.
Yes. We provide extensive customization options spanning head types, body designs, metric or unified thread sizes, and alternative surface treatments like nickel plating or polishing. To streamline the engineering and ordering process, we utilize a standardized SKU coding system: "Type - Thread Size - Minimum Panel Thickness - Material/Finish." Sharing your specific application requirements allows our technical team to match you with the exact configuration needed.
This component integrates perfectly with ductile, thin-gauge sheet metals, primarily carbon steel, stainless steel, and aluminum alloys. The fundamental requirement is that the host material must be softer than the fastener itself to allow for proper cold flow. This differential in hardness ensures the host metal deforms neatly into the nut's undercut without causing any structural damage or warping to the surrounding panel.
The standard zinc-plated carbon steel iteration is highly effective for resisting oxidation in indoor or mildly humid environments, such as internal electronic chassis. However, for continuous exposure to extreme elements like marine salt spray or chemical processing plants, we recommend our specialized 300 or 400 series stainless steel variants. These specific alloys provide enhanced, inherent anti-rust properties to maintain structural integrity under severe environmental stress.
