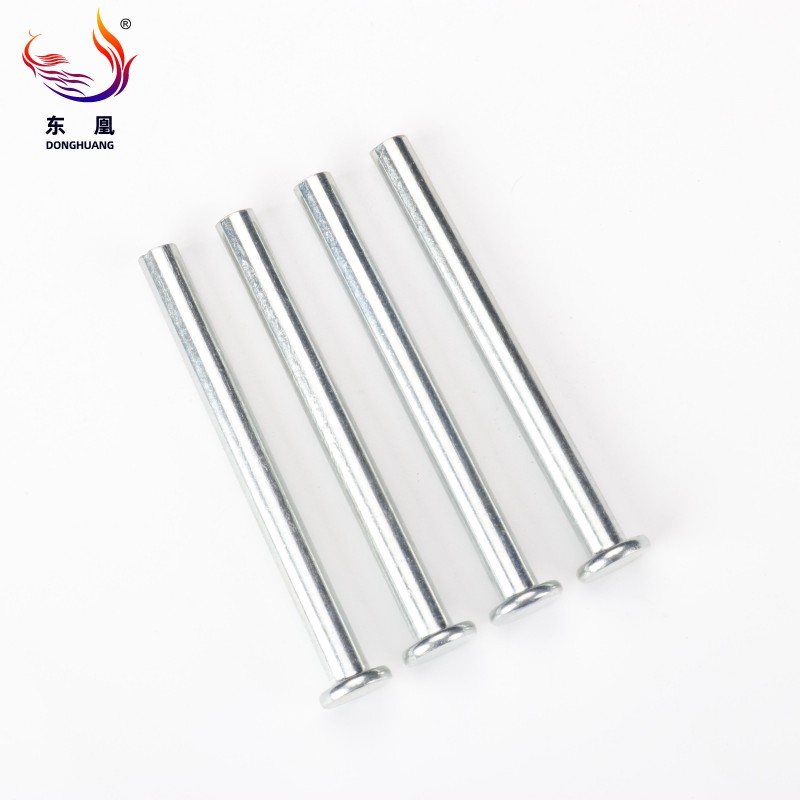

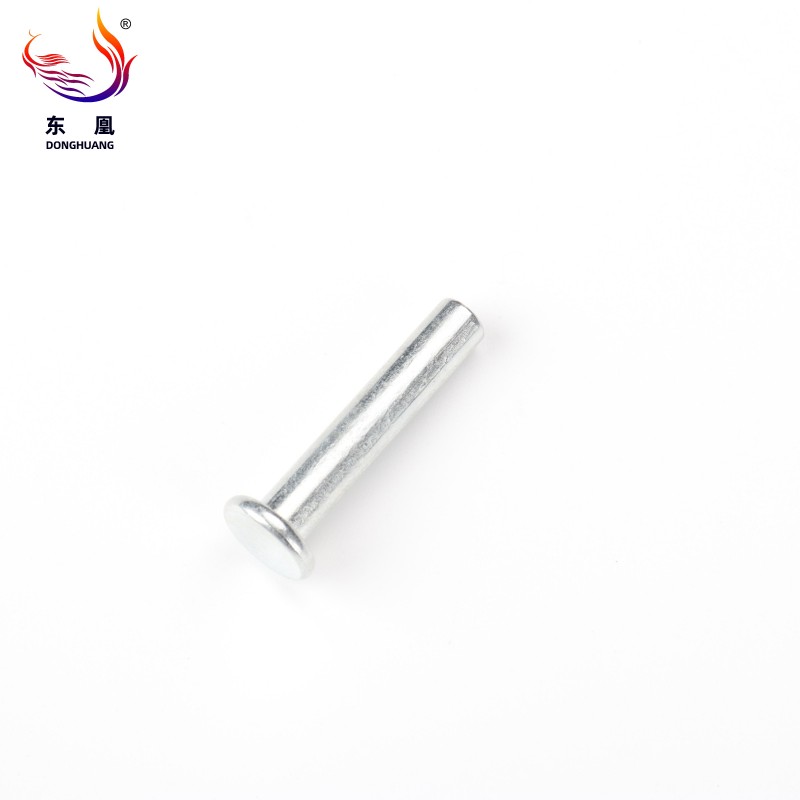

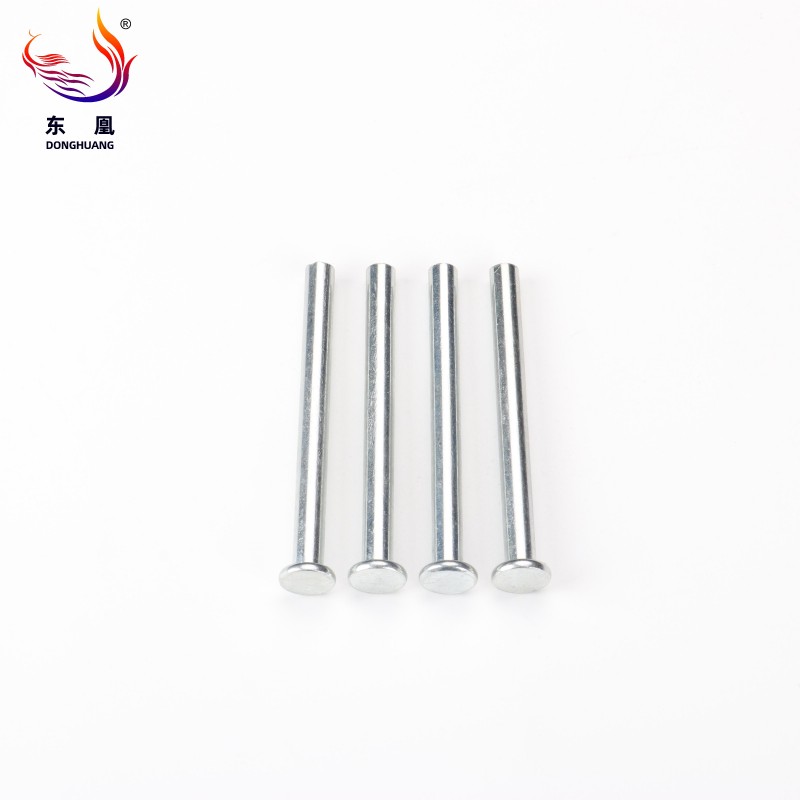

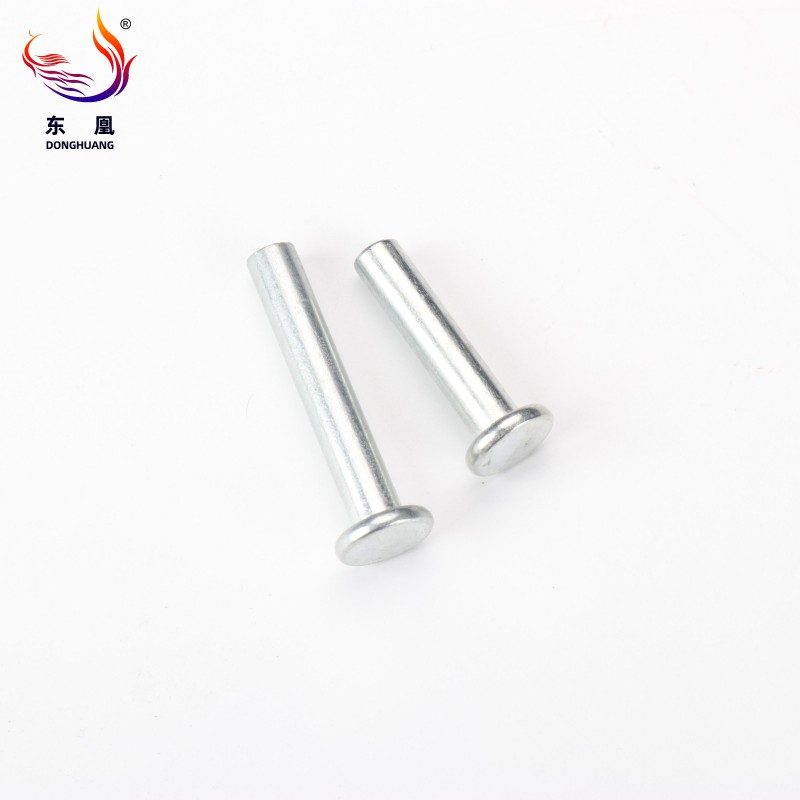

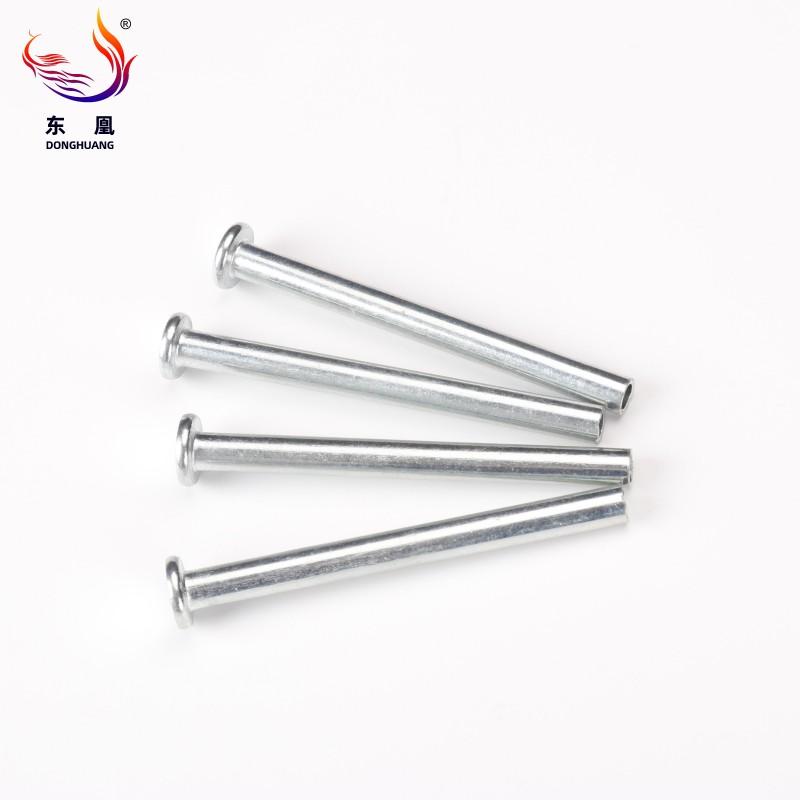

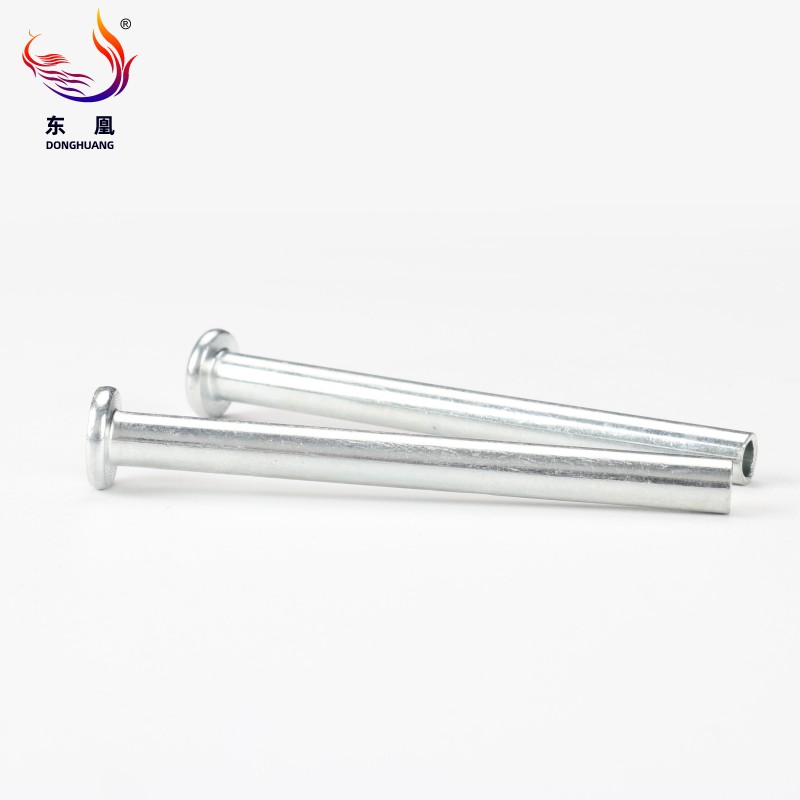

Aluminum Thin Flat Head Semi-Tubular Rivet

Technical Parameters

Product Overview

The Aluminum Thin Flat Head Semi-Tubular Rivet represents a sophisticated fastening solution designed for permanent, low-stress assembly. Engineered with a precision-machined partial hollow shaft and a low-profile flat head, this component significantly reduces the force required for clinching compared to traditional solid alternatives. The immediate benefit is a rapid, controlled deformation that secures materials without compromising the structural integrity of fragile or brittle substrates. Manufactured from premium-grade alloys—including Al5050, Al5052, and Al6061—it delivers an exceptional strength-to-weight ratio. As you run your fingers over the installed fastener, you will feel a perfectly flush, snag-free surface that enhances both the aesthetic appeal and the functional clearance of your assemblies. Whether deployed in weight-sensitive aerospace panels, precision electronic housings, or dynamic automotive frameworks, this rivet ensures a tight, vibration-resistant joint while keeping overall assembly weight to an absolute minimum.

Scenario-Based Solutions

Electronics Manufacturing

When assembling delicate circuit boards, sensor housings, and ultra-thin metallic or polymer casings, engineers face the constant challenge of securing components without inducing stress fractures. This aluminum semi-tubular rivet provides the perfect mechanical fastening solution. Because the tubular tail requires significantly less force to roll and clinch, it applies minimal compressive stress on fragile substrates during installation. The ultra-thin flat head design is specifically engineered to sit absolutely flush against the casing surface. This prevents any metallic protrusions from interfering with tightly packed internal wiring or adjacent circuit components. Furthermore, the non-magnetic nature of the aluminum alloy ensures zero electromagnetic interference (EMI) with sensitive microprocessors, while its natural thermal conductivity assists in localized heat dissipation across the joined panels.

Automotive Assembly

Modern vehicle production lines demand fastening components that can keep pace with rapid, automated assembly cycles while contributing to overall vehicle lightweighting initiatives. Engineered for flawless integration into robotic pneumatic feeding systems, these rivets feature strict dimensional tolerances that eliminate the risk of track jamming. Once installed in interior door panels, dashboard frameworks, or lightweight structural brackets, the rolled tubular tail creates a permanent, vibration-resistant joint that will not loosen under continuous road impacts. The inherent ductility of the aluminum alloy absorbs dynamic kinetic energy, preventing the work-hardening and eventual fatigue failure often seen in rigid steel fasteners. By replacing heavier solid pins or threaded bolts with these semi-tubular variants, engineering teams can shave critical ounces off the chassis without sacrificing mechanical shear strength.

Furniture & Home Decor

In the competitive landscape of modern furniture design and architectural hardware, the visible finishing details are just as critical as structural stability. These thin flat head rivets are heavily utilized in the assembly of folding chairs, metallic shelving units, and articulating lighting fixtures. When you run your hand across a joint secured by this fastener, you feel a completely smooth, uninterrupted surface that enhances the premium tactile experience of the furniture piece. Beyond static connections, the precisely calculated clinch allowance of the semi-tubular tail allows it to act as a highly reliable pivot point for hinges and moving linkages. The anodized or plated finishes not only protect the core aluminum from ambient moisture and oxidation but also provide a visually appealing metallic luster that complements contemporary interior aesthetics.

Key Product Features

• Optimized Clinch Allowance & Low-Stress Installation: The precisely extruded partial hollow shaft reduces the required application force by up to 50% compared to solid pins. We provide exact clinch allowance calculations to ensure the tubular tail flares symmetrically without cracking, making it ideal for creating both rigid locks and movable pivot joints in complex mechanical assemblies.
• Exceptional Dimensional Precision: Utilizing advanced CNC turning and automated cold heading techniques, the core dimensional tolerances are strictly controlled to within ±0.001mm. This microscopic accuracy guarantees jam-free operation in high-speed automated bowl feeders and pneumatic riveting equipment.
• Flush, Snag-Free Aesthetics: The ultra-thin flat head design is engineered to lie completely flush against the mating material. This eliminates surface protrusions, providing a smooth tactile feel and preventing interference with moving mechanical parts or external wiring harnesses.
• Superior Shear & Fatigue Resistance: Despite its hollowed tail, the solid upper shank delivers formidable shear strength. The inherent ductility of the premium aluminum alloys prevents work-hardening fractures under continuous vibration, ensuring long-term reliability in dynamic load-bearing environments.
• Verified Raw Material Traceability: Every production batch begins with certified, high-grade aluminum ingots. We maintain a completely transparent supply chain, offering authoritative material test reports (MTRs) so you have 100% traceability from the raw material source to the final installed fastener.

Customization, Manufacturing & Engineering Support

Our commitment to your engineering project extends far beyond off-the-shelf components. We operate a highly advanced modern manufacturing facility equipped with automated cold heading machinery and precision CNC processing centers. This comprehensive setup, paired with our in-house heat treatment and surface finishing lines, ensures rapid, high-volume production runs with unwavering batch-to-batch consistency.

To guarantee zero-defect deliveries, we implement a rigorous 100% final inspection protocol. Our quality assurance laboratory utilizes high-end 3D coordinate measuring machines (CMM), laser micrometers, and concentricity testers to verify every critical dimension before packaging. Choose from a range of aluminum alloys tailored to your application’s strength and corrosion-resistance needs, and customize dimensions or surface finishes (anodized, zinc-plated, black oxide) to match specific project blueprints.

Furthermore, our veteran engineering team provides end-to-end OEM and ODM technical support. From reviewing initial CAD/3D blueprints and conducting rapid prototyping to optimizing non-standard structural designs, we actively help you determine the exact bottom-hole matching required for your specific substrate thickness. Should any assembly anomalies arise on your production line, our 24-hour responsive technical support mechanism ensures immediate troubleshooting and comprehensive quality guarantees. With ISO9001 and SGS certifications backing our processes, we significantly reduce your procurement risks and accelerate your project’s time-to-market.
