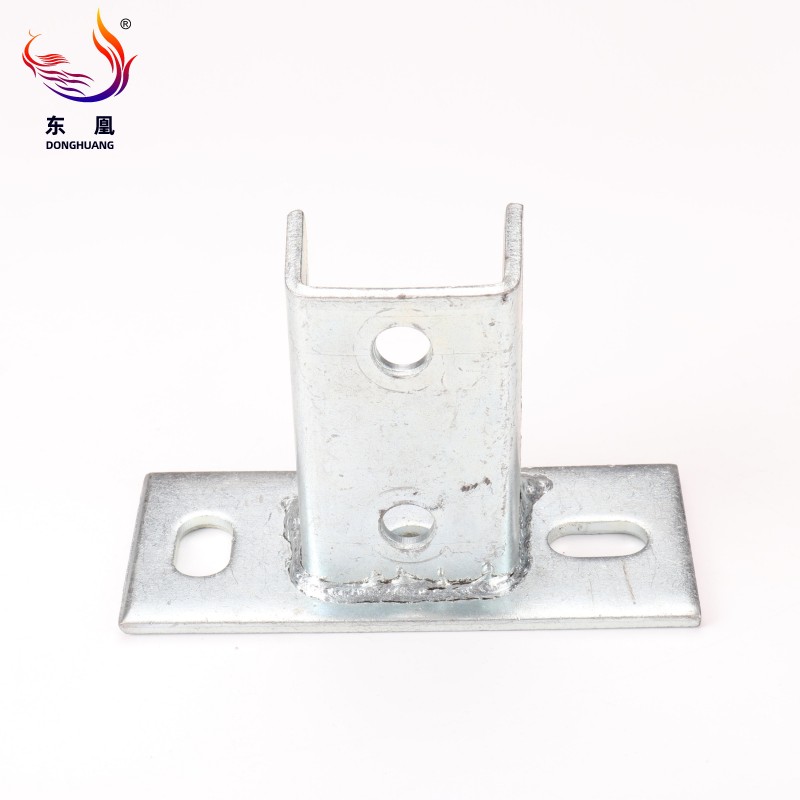

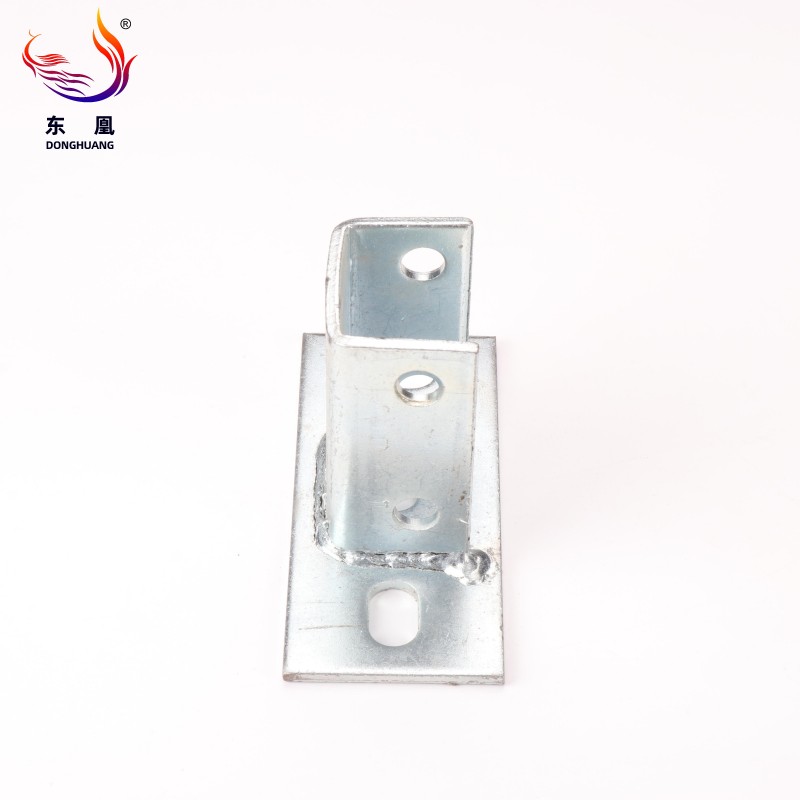

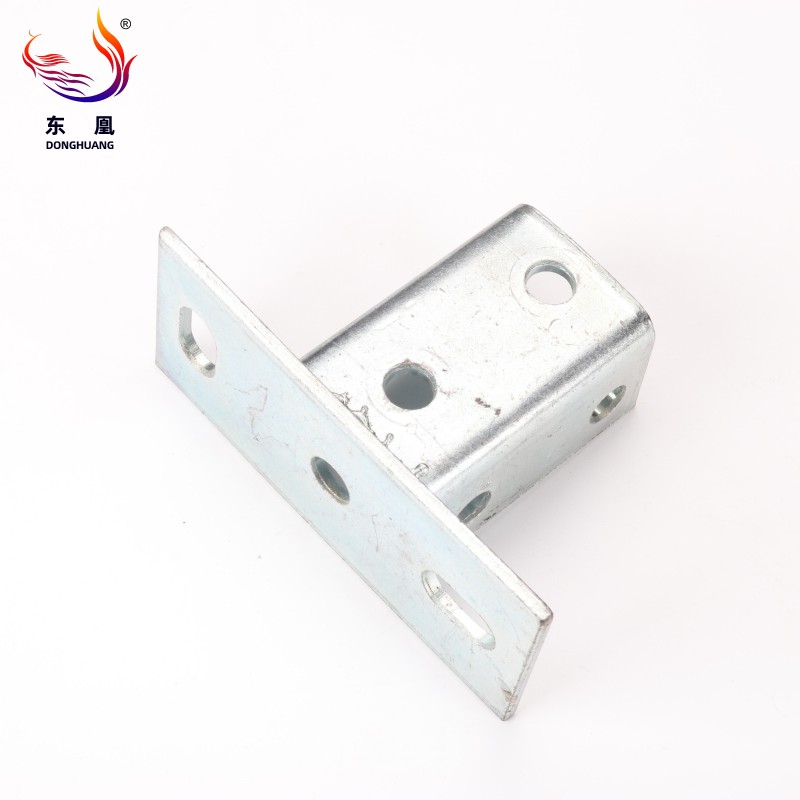

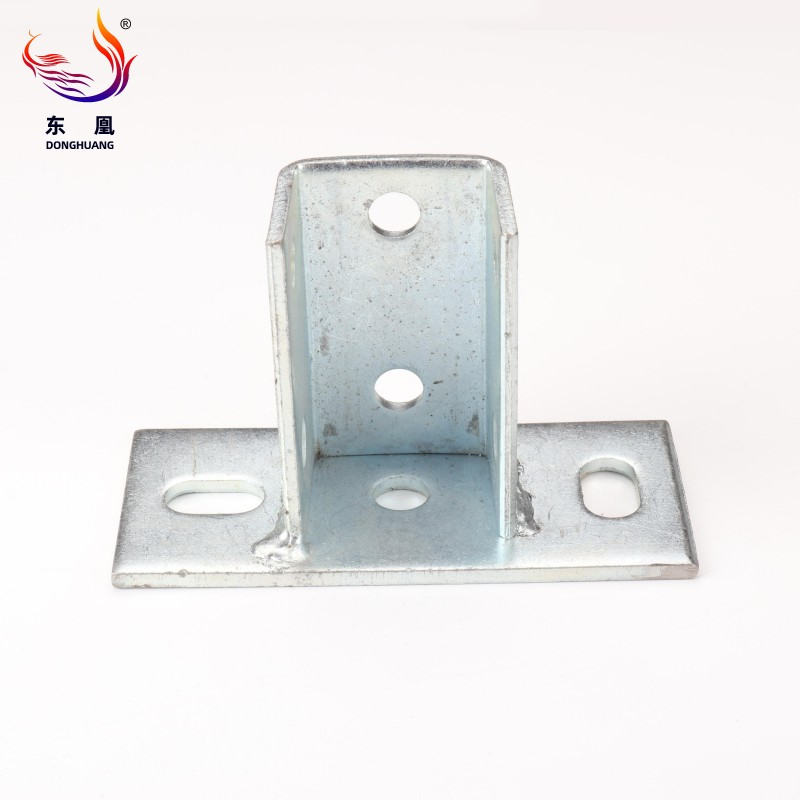

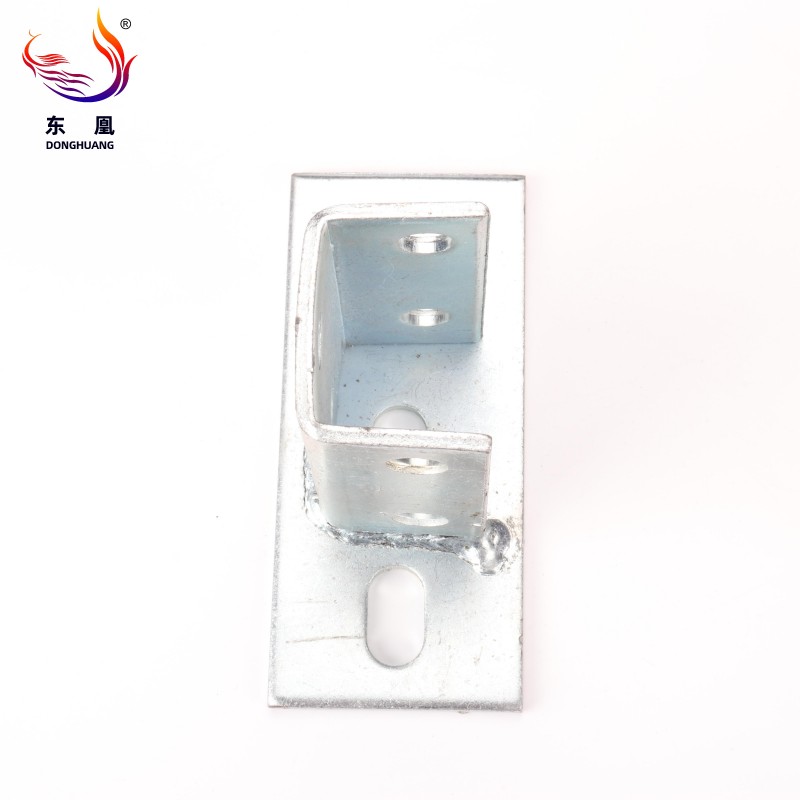

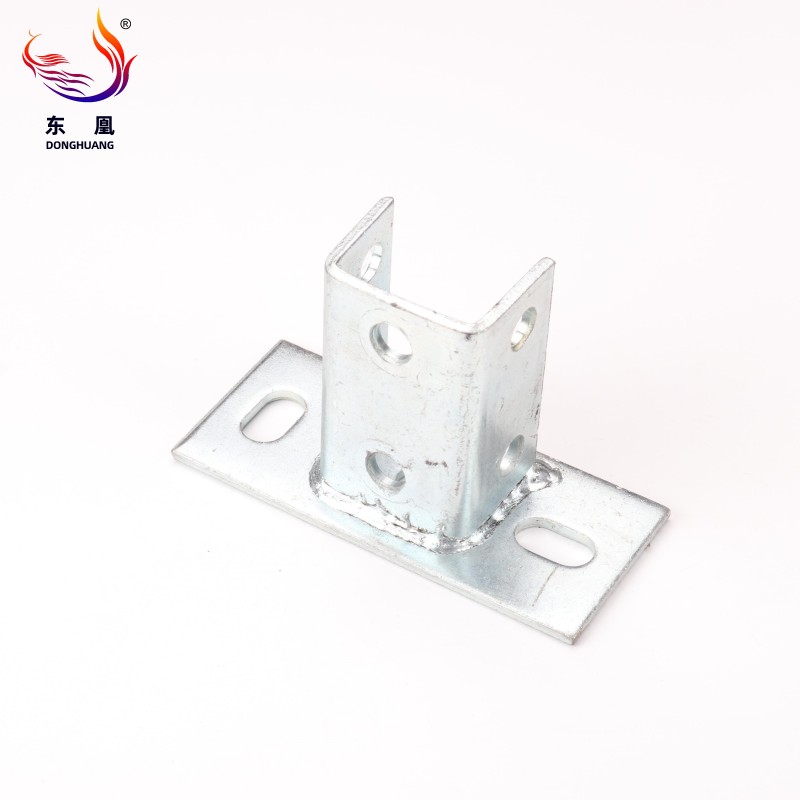

The slotted hole strut channel post bracket, commonly referred to as a post base, serves as the critical anchoring foundation for industrial metal framing systems. Engineered to securely fasten vertical strut channels to concrete floors, masonry walls, or overhead steel beams, this specialized component ensures absolute structural stability for heavy-duty installations. Each base plate features precision-punched slotted holes, allowing for micro-adjustments during the anchoring process to accommodate uneven surfaces and ensure perfect vertical alignment. By providing a perpendicular leg that precisely aligns with standard single or double strut channels, these brackets create a rigid, dependable framework essential for supporting electrical conduits, industrial piping, cable trays, and complex mechanical ventilation systems. Furthermore, this system is fully compatible with standard fastening accessories, and we provide a complete ecosystem of matching spring nuts and bolts to streamline your entire assembly process and elevate overall construction efficiency.
Engineered for maximum structural integrity, these post bases anchor vertical strut channels firmly to concrete slabs and structural steel. The heavy-gauge construction withstands immense downward pressure and lateral loads, providing a fail-safe support structure for critical commercial infrastructure and heavy mechanical equipment.
Designed for longevity in harsh conditions, our strut brackets are available in premium surface treatments including hot-dip galvanizing and 316 stainless steel. These industrial-grade finishes provide exceptional resistance against rust, chemical exposure, and saltwater corrosion, ensuring long-lasting reliability in demanding outdoor environments and highly corrosive industrial facilities.
Every post base is manufactured in strict accordance with international material and fabrication standards, including ASTM specifications. We support comprehensive third-party testing and certification, guaranteeing that your engineering projects meet all regulatory compliance guidelines and pass rigorous safety inspections without hesitation.
Beyond standard components, we offer custom fabrication based on your precise blueprints. Our value-added services include precision laser cutting, bespoke packaging for easy site distribution, and professional engineering consultation, significantly reducing on-site assembly time and labor costs for your installation crews.
Backed by extensive mass-production capabilities and a sophisticated warehousing network, we ensure stable, on-time delivery for large-scale engineering projects. We offer scalable pricing structures for high-volume procurement, safeguarding your project timelines against supply chain disruptions and keeping your construction schedule on track.
Evaluating the correct specifications is crucial for ensuring structural integrity and long-term safety in any construction project. Below is the comprehensive technical data sheet for our slotted hole strut channel post brackets. To further assist your planning and approval phases, we provide extensive technical documentation, including 2D and 3D CAD drawings (DWG, DXF, STEP) and detailed submittal data sheets complete with certified load-bearing test results. This engineering support empowers architects, structural engineers, and project managers to expedite site approvals and ensure exact integration into existing blueprints. The parameters detailed below outline the exact materials, steel thicknesses, and specialized surface finishes available to perfectly match your specific environmental and load requirements.
| Material | Carbon steel, Mild steel,Cold roll steel,Hot roll steel,Zinc plate,Stainless steel, Aluminum, iron,brass,Titanium,SECC, SGCC, SPCC, SPHC, Other metal |
| Thickness | 0.5mm~ 16.0mm ,Depends on your products |
| Specification | Customized According to your drawing |
| Surface finish | Zinc plating, Electroplating , Nickel plating, Anodic oxidation, Chrome plating, Yellow zinc plated, Electroless nickel plating, Chemical conversion coating, Powder Coating, Liquid painting Galvanized,Brushed, Sand blasting, Passivation , Heat treatment Silkscreen Custom as your special requirement |
| Manufacturing Service | Laser cutting / Shearing / Punching / Bending / Welding / Coating / Others |
| Drawing File | 2D: DWG,DXF, PDF 3D: ASM,DRW,DWG,DXF,IGS,STEP,so on |
These base plates serve as the primary anchoring mechanism for fastening strut channels directly to concrete floors, masonry walls, or overhead structural beams, establishing fixed, unyielding vertical supports essential for structural integrity.
They act as the foundational building blocks for routing essential utilities. This includes suspending heavy plumbing pipes, securing electrical wiring conduits, and supporting extensive cable tray networks across commercial, industrial, and residential complexes.
Integral to constructing heavy-duty metal frameworks, these post brackets are heavily utilized in building custom pipe racks, equipment skids, and critical seismic bracing systems designed to absorb and distribute kinetic energy during seismic events.
When paired with specialized rubber base pads, these brackets facilitate secure rooftop installations. They provide stable mounting points for HVAC ductwork, solar panel racking, and ventilation equipment without compromising the waterproof membrane of flat commercial roofs.
The brackets are frequently deployed to anchor and stabilize high-vibration machinery, ensuring that heavy air conditioning units, generators, and industrial mechanical systems remain securely in place during continuous operation.
Begin by accurately measuring and cutting the strut channels to the required vertical lengths using a cold saw or band saw. Ensure the cut edges are thoroughly deburred to prevent injury and ensure a flush, even fit within the post base.
Position the slotted hole strut channel post bracket onto the mounting surface (concrete floor, structural wall, or ceiling). Use the slotted holes to mark drilling points. Drill the holes and secure the base using heavy-duty concrete anchors, expansion bolts, or structural screws, ensuring the plate sits completely flat.
Insert the cut strut channel into the perpendicular leg of the post bracket. Use a magnetic torpedo level to verify that the vertical channel is perfectly plumb. The slotted design allows for minor directional adjustments before final tightening.
Insert compatible spring nuts into the open face of the strut channel at the required heights. Press and rotate them 90 degrees until the grooves lock securely against the channel's inturned lips, preparing them for additional attachments.
Attach the necessary brackets, pipe clamps, or fittings to the spring nuts using hex bolts. Apply the specified torque to all connections. Conduct a final visual and physical inspection to confirm the framework is rigid, level, and ready to bear the designated load capacity.
We are a fully integrated manufacturer with our own dedicated international sales and engineering support departments. We oversee the entire production lifecycle—from raw material sourcing to final quality control—ensuring direct-from-factory reliability, strict quality oversight, and highly competitive pricing for our global clients.
Our core manufacturing portfolio encompasses a wide array of structural fastening solutions. This includes strut channel accessories, expansion screws, heavy-duty fasteners, customized plastic parts, precision stamping parts, zinc die-casting components, and specialized non-standard hardware tailored to specific engineering blueprints.
Our structural components are heavily utilized across the global construction and industrial sectors. Primary applications include large-scale outdoor mechanical equipment installations, commercial HVAC and plumbing support systems, seismic bracing frameworks, interior structural decoration, and secure goods mounting for both industrial facilities and commercial infrastructure.
Absolutely. We possess advanced manufacturing capabilities to produce highly customized post brackets and hardware. By leveraging your 2D or 3D CAD drawings, our engineering team can modify dimensions, hole patterns, material thicknesses, and surface finishes to meet your exact project specifications and unique environmental demands.
Quality assurance is deeply embedded in our manufacturing process. We conduct rigorous in-process inspections at every fabrication stage. Furthermore, all finished products undergo a comprehensive 100% final inspection to verify dimensional accuracy, load-bearing capacity, and finish integrity, strictly adhering to international quality standards and your specific contractual requirements.
We offer flexible transaction terms tailored to international procurement, including FOB, CIF, and CNF. For standard mass production orders, our payment structure typically requires a 30% deposit prior to production, with the remaining 70% balance payable against the copy of shipping documents. Transactions are primarily conducted via T/T, though L/C arrangements are also fully supported for qualified large-scale projects.
