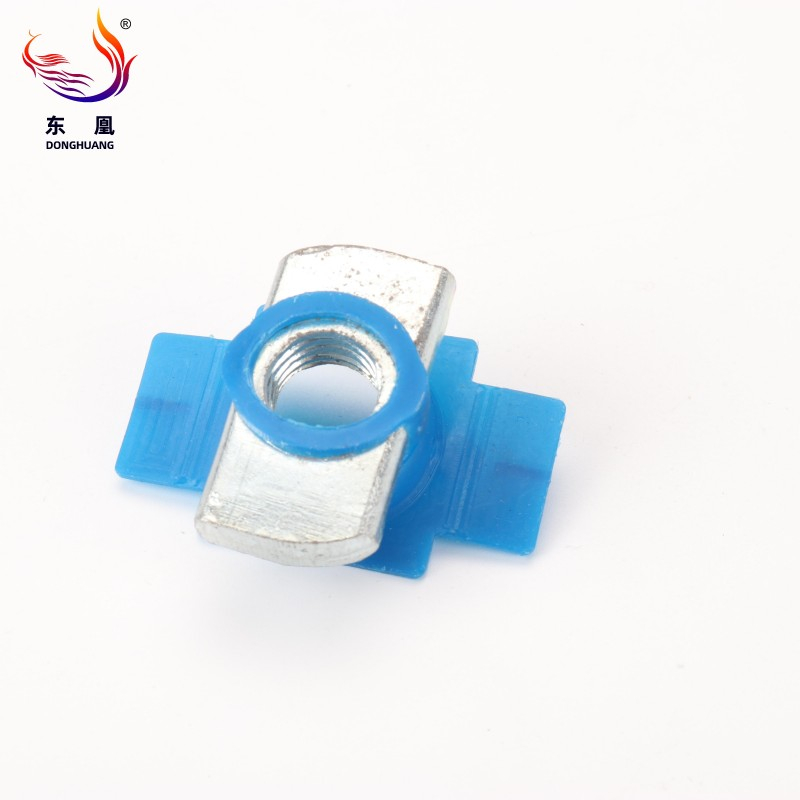

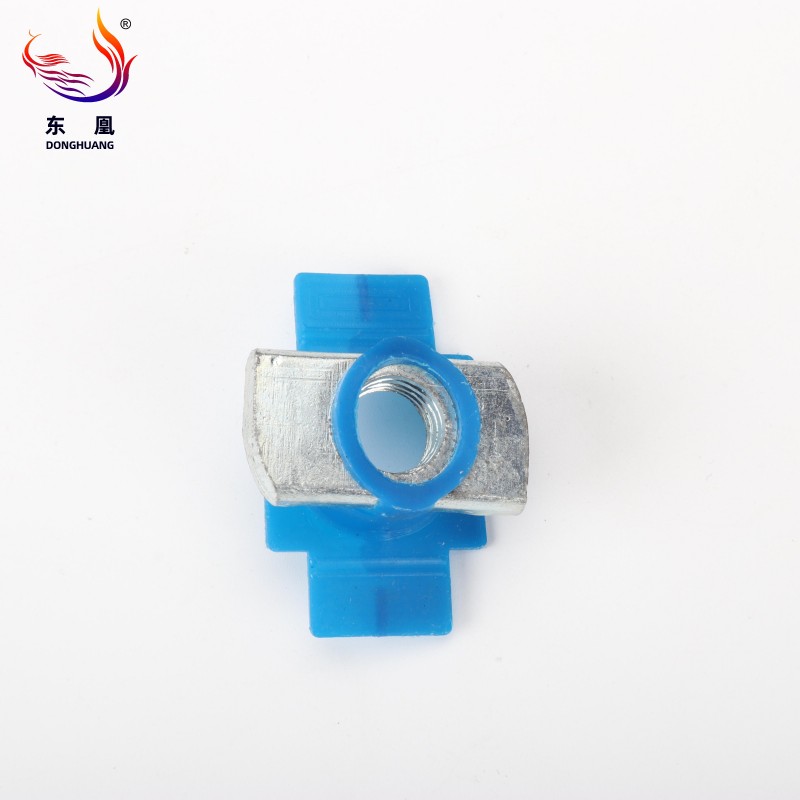

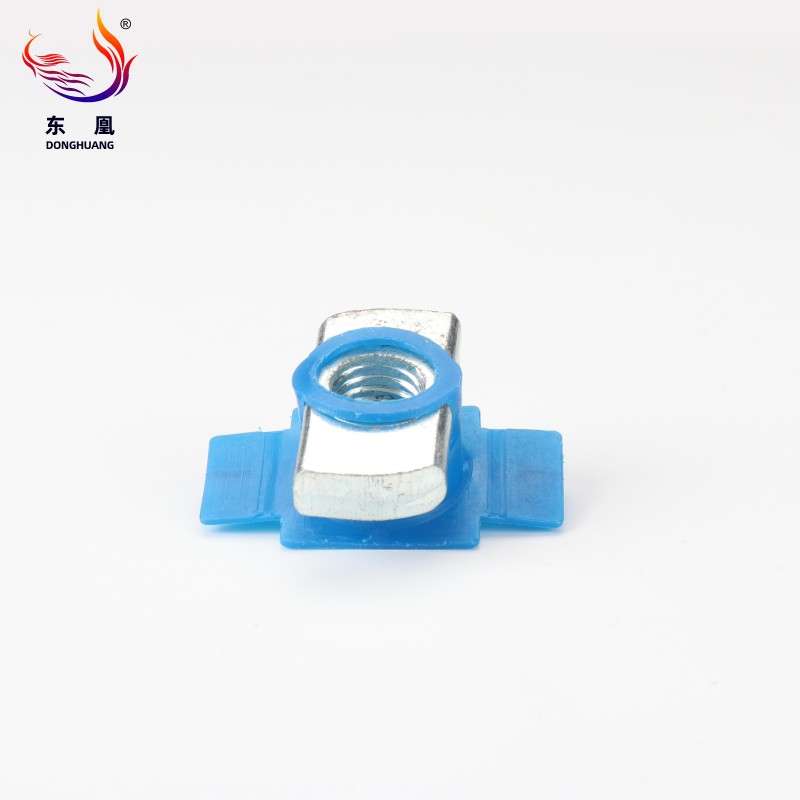

The Stainless Steel Strut Channel Spring Nut with Plastic Wing represents a critical fastening solution engineered for structural support systems. Manufactured utilizing advanced cold heading and hot forging techniques, the core nut undergoes surface carburizing and quenching to achieve exceptional structural strength and high-precision threading. When handled, operators will notice the ergonomic contour of the plastic wing, designed to provide a firm, tactile grip that facilitates rapid manual positioning without tools. This component seamlessly integrates into standard C-channel and U-channel framing networks, creating a robust physical bite against the channel lips. Certified under ISO9001 and ISO14001 quality management frameworks, every production batch supports full raw material traceability and SGS third-party verification, ensuring zero-defect reliability for large-scale procurement demands.
The intuitive design featuring an over-molded plastic wing eliminates the necessity for specialized tools during initial placement. Installers simply insert the nut into the open strut channel and execute a smooth 90-degree rotation. The tactile feedback confirms engagement, drastically reducing labor hours across expansive facility setups.
Engineered for dynamic environments, the integrated carbon steel spring maintains relentless continuous pressure. This elastic preload guarantees a formidable physical bite between the nut's serrated grooves and the channel framing, effectively neutralizing loosening risks induced by heavy vibrations, thermal expansion, or mechanical shocks.
Tailored for harsh outdoor and exposed environments, the metal core undergoes industrial-grade surface treatments including Hot-Dip Galvanizing (HDG), Dacromet, or Zinc-nickel plating. Strictly complying with EN1461 corrosion protection standards, these treatments, combined with the inert plastic wing, form a formidable barrier against moisture and chemical degradation.
Beyond mechanical superiority, the integration of a smooth plastic handle provides a refined, clean visual profile. This specific attribute is highly valued in controlled environments such as food processing facilities or medical equipment installations, where minimizing particulate accumulation and facilitating easy wipe-downs are critical operational requirements.
The dynamic tension of the spring mechanism allows for infinite lateral adjustments along the strut channel prior to final torque application. Furthermore, the robust material composition ensures the fastener can be fully uninstalled, repositioned, and reused across multiple project phases without any degradation in structural integrity or holding power.
| Standard | GB, ASTM, AISI |
| Place of Origin | Zhejiang, China |
| Material | Carbon Steel, Stainless Steel |
| Brand Name | Donghuang |
| Shape | C Channel, U channel |
| Application | Building Material, Construction |
| Surface treatment | Power Coated, GI, HDG |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Length | 3m/6m/customized |
| Delivery Time | 20~35 days |
| Thickness | 1.5mm-3.75mm |
| Payment terms | 30%T/T Advance + 70% Balance |
In the renewable energy sector, these spring nuts serve as indispensable anchoring components for photovoltaic (PV) arrays. Their precise threading and weather-resistant properties enable rapid, flexible mounting of solar panels onto roof tilting brackets and ground-based support structures. They withstand severe wind loads and temperature fluctuations inherent in outdoor solar farms.
Facility engineering relies heavily on these fasteners to suspend and secure complex overhead networks. They provide the necessary tensile strength to support heavy-duty pipe brackets, extensive electrical conduit runs, and HVAC ductwork. The sliding adjustability ensures precise alignment of electrical trays, reducing the complexity of intricate ceiling installations.
Acting as the fundamental locking mechanism within modular metal framing architectures, these nuts facilitate the assembly of robust cable management systems and structural grids. Their compatibility with both metric and imperial standard DIN/ANSI C-channels ensures universal application across diverse industrial construction projects, delivering consistent load-bearing performance.
Begin by orienting the spring nut parallel to the strut channel's longitudinal axis. Insert the component directly into the open face of the channel. The plastic wing provides an excellent ergonomic grip, making this initial insertion smooth and completely hands-free.

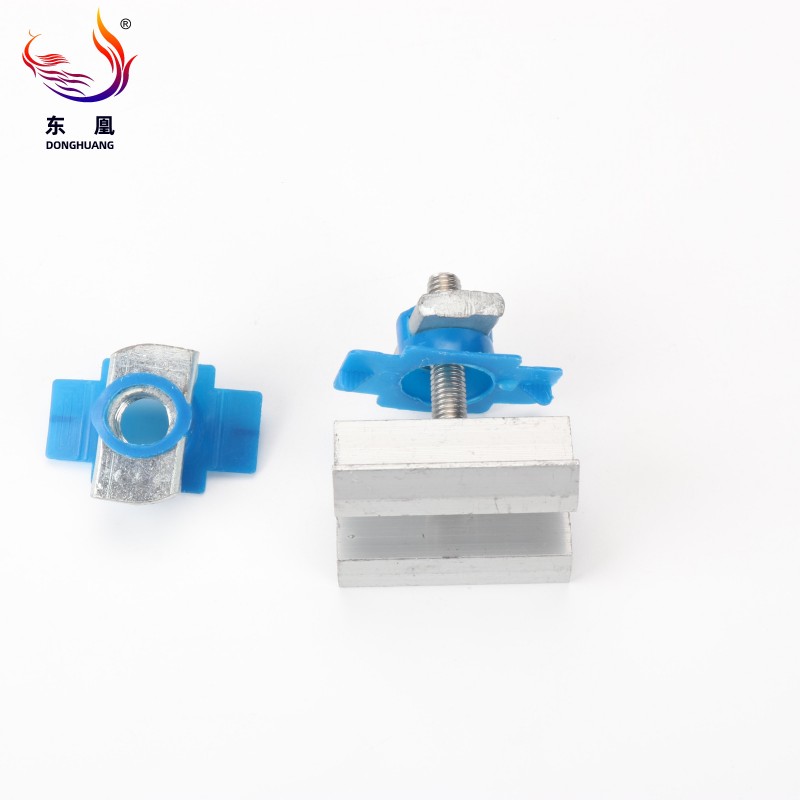

Once inside the channel, rotate the plastic wing 90 degrees. The built-in tension spring immediately compresses against the internal back wall of the channel, holding the nut suspended in place. This allows the operator to easily slide the nut laterally to align perfectly with the incoming bolt or threaded rod.

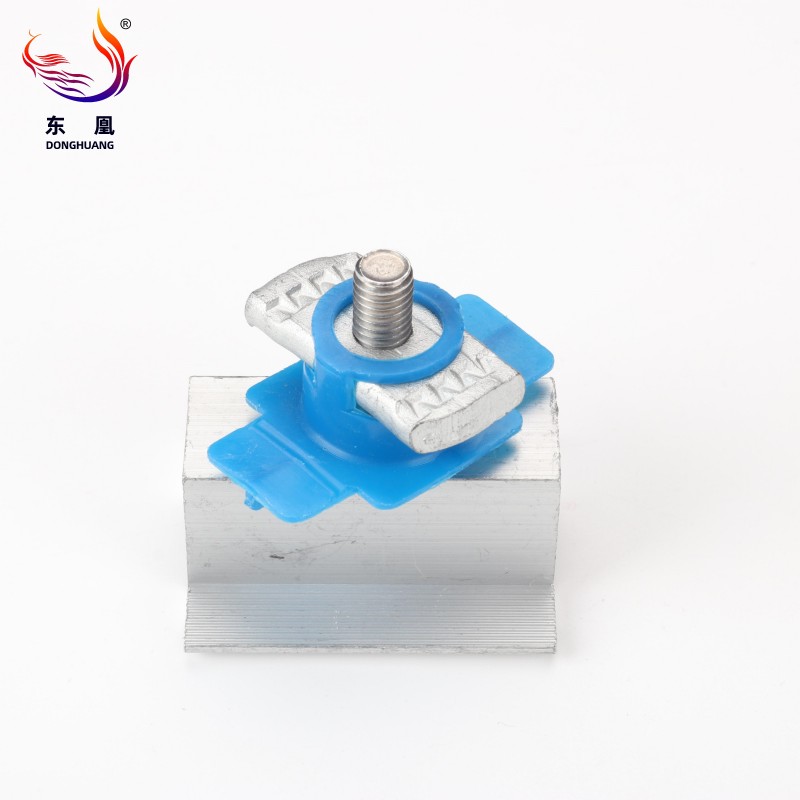

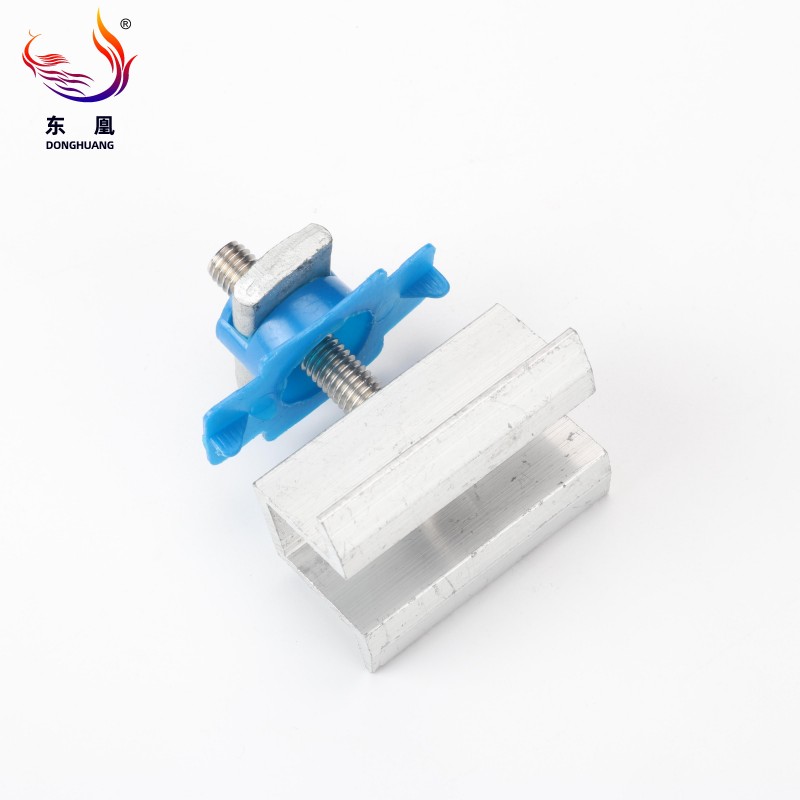

Introduce the bolt through your mounting hardware and into the nut's internal threads. As rotational torque is applied, the metallic body of the nut is drawn upward, causing its hardened teeth to firmly engage and bite into the inturned lips of the strut channel, creating a powerful wedging action.
Finalize the torque application to fully compress the mounting bracket against the channel. The compressed spring continues to exert an elastic preload, while the physical bite of the serrations ensures the connection is permanently locked, safeguarding against any operational vibrations or dynamic load shifts.
Experience the precision engineering and seamless functionality of our fastening solutions through this detailed visual demonstration. The footage highlights the solid metallic structure of the carbon steel core and the smooth, ergonomic rotation of the plastic wing during active engagement. As demonstrated, the component requires minimal manual effort to position, yet delivers an immediate, unyielding physical bite within the strut channel framework. Viewers can observe the dynamic tension of the integrated spring mechanism as it compresses and locks the nut firmly in place, neutralizing any potential lateral movement. This operational efficiency drastically reduces installation time on complex structural grids, proving essential for large-scale engineering projects where reliability and rapid assembly are critical.
We are a comprehensive manufacturing facility equipped with our own dedicated international sales department and independent testing laboratory. We manage the entire production lifecycle in-house—from raw material processing and CNC precision machining to final surface treatments—ensuring complete control over output consistency and technical specifications.
Our primary manufacturing portfolio focuses on industrial-grade fastening solutions, including expansion screws, specialized hardware, precision plastic components, and heavy-duty stamping parts. Furthermore, we excel in producing zinc die-casting components and highly customized non-standard parts tailored to specific structural engineering blueprints.
These structural components are integral to the broader construction and mechanical engineering sectors. They are predominantly utilized in the secure mounting of outdoor large-scale mechanical equipment, robust solar photovoltaic support structures, commercial HVAC ductwork suspension, and heavy-duty cable management systems, ensuring steadfast stability in demanding environments.
Absolutely. We provide comprehensive OEM and ODM flexible customization services. Backed by our advanced CNC machining capabilities, we can engineer non-standard dimensions, utilize specialized alloy materials, and even customize the color of the plastic wings to align with your corporate branding. We also offer rapid prototyping and provide free sample testing to validate performance before mass production.
Quality assurance is embedded at every stage of our manufacturing process. Operating strictly under ISO9001 and ISO14001 international quality management systems, we enforce rigorous inspections after every single production phase. Final finished components undergo 100% comprehensive testing to verify thread precision, tensile pull-out strength, and corrosion resistance. We also support full raw material batch traceability and accommodate SGS or other third-party authoritative inspections to guarantee zero-defect deliveries.
We offer flexible financial arrangements tailored to international procurement needs. Upon quotation, we will establish the most efficient transaction terms, including FOB, CIF, or CNF.
For standard mass production orders, our protocol requires a 30% T/T deposit prior to manufacturing, with the remaining 70% balance settled against the copy of the shipping documents. While T/T is the most prevalent method, we also accept L/C for qualified large-scale transactions.
To guarantee that your bulk procurement arrives in pristine condition, we implement a rigorous, multi-layered industrial packaging protocol. Each batch of spring nuts is carefully sealed within moisture-proof inner boxes to prevent any preliminary oxidation or environmental exposure. These boxes are subsequently packed into reinforced, thickened corrugated cartons designed to endure substantial stacking pressure. For long-distance ocean freight, the cartons are securely strapped and consolidated onto heavy-duty, fumigation-free wooden or plastic pallets. This systematic containment strategy not only shields the metallic and plastic components from transit vibrations and maritime humidity but also facilitates highly efficient forklift loading and unloading. The standardized pallet dimensions streamline your warehouse inventory management, ensuring that the structural hardware is immediately ready for deployment upon arrival at your facility.
