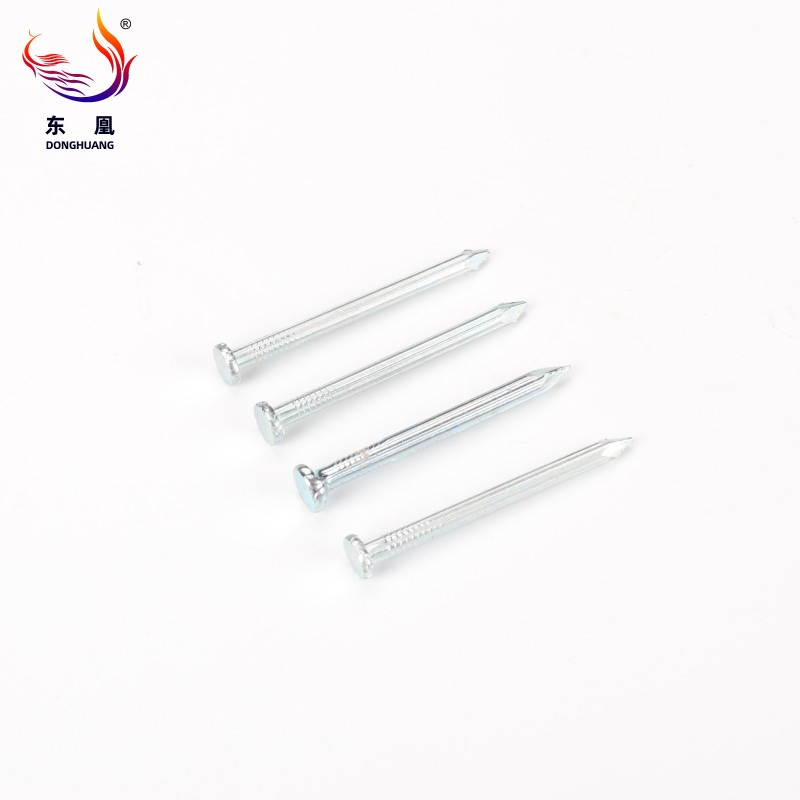

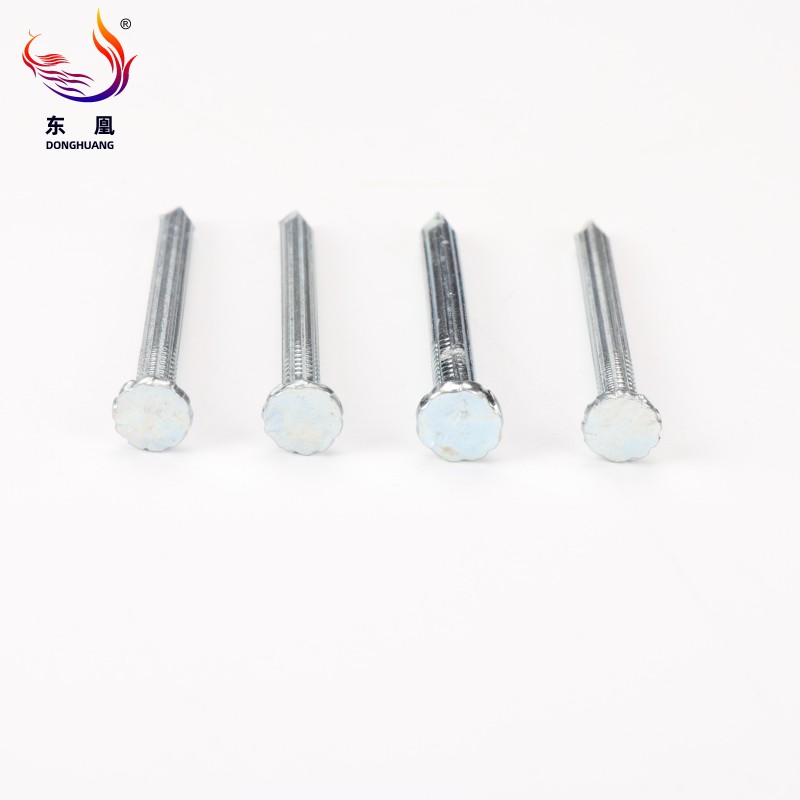

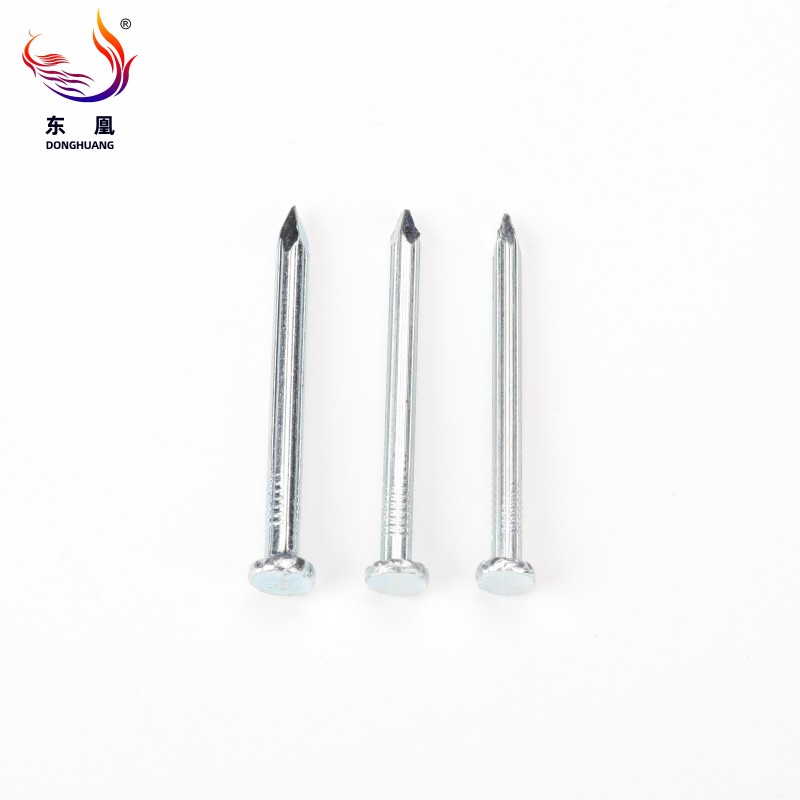

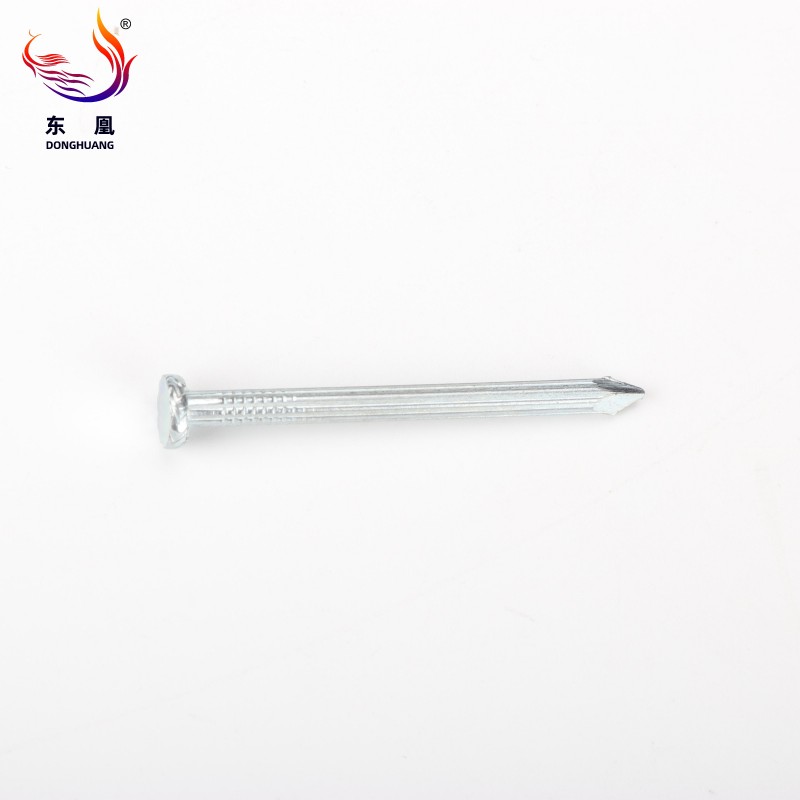

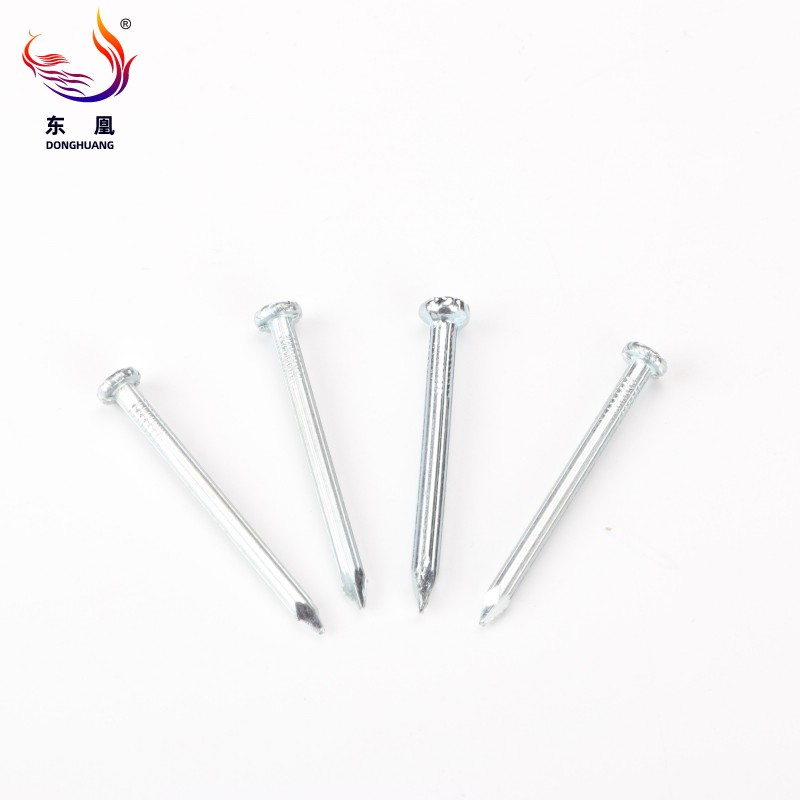

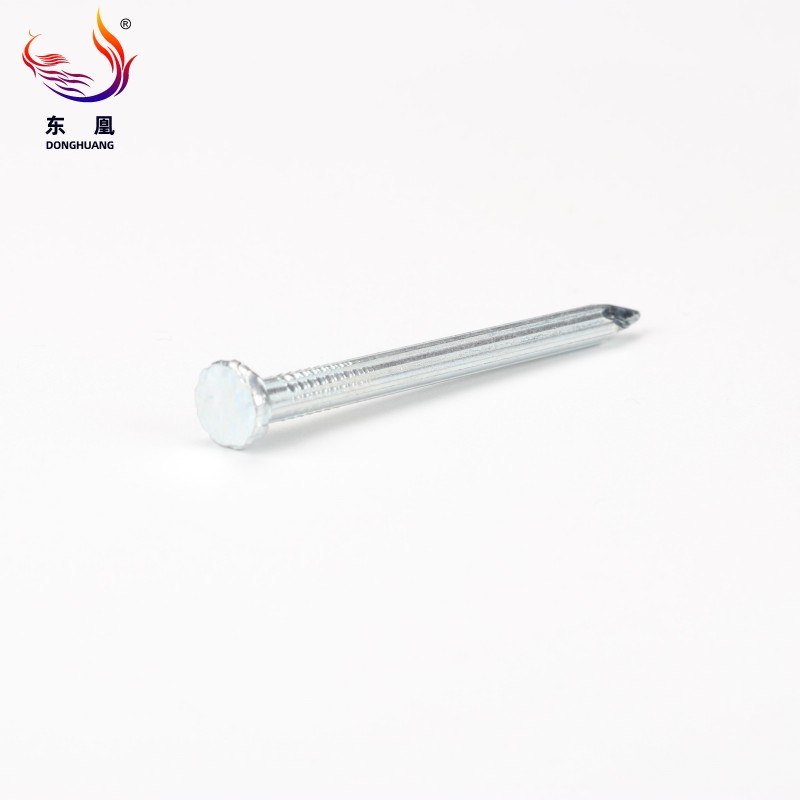

The concrete nail (frequently referred to as a masonry nail) serves as a heavy-duty anchoring solution engineered for securing fixtures to dense, unforgiving substrates such as poured concrete, solid brick, and natural stone. Forged from hardened 45# carbon steel, this fastener features a meticulously applied electro-galvanized zinc-plated finish that feels smooth to the touch while offering a resilient protective barrier against environmental moisture. The Donghuang concrete nail incorporates a specialized fluted or grooved shank, specifically designed to maximize friction and create a mechanical lock within the masonry dust upon impact.
By eliminating the necessity for complex drilling equipment in standard applications, this zinc-plated cement nail streamlines installation workflows. The sharp, precision-tapered point bites into hard surfaces instantly, reducing material spalling and ensuring a clean entry. Whether you are framing structural walls, attaching furring strips, or executing detailed woodworking attachments, this fastener provides the reliable holding power required for demanding commercial renovations and residential upgrades.
Manufactured from hardened 45# carbon steel, our concrete nail delivers exceptional structural integrity. Validated by rigorous testing, these fasteners achieve a hardness rating exceeding HRC 50°, a shear strength of ≥ 980 MPa, and a bending toughness of ≥ 75 degrees. This precise metallurgical balance ensures the nail can withstand the severe impact of a heavy framing hammer without buckling, easily penetrating concrete and masonry to securely attach wood, metal, and other foundational materials.
Unlike complex expansion anchors or masonry screws that demand rotary hammers and specific drill bits, this masonry nail can be driven directly into many substrates with a standard steel-faced hammer or a compatible pneumatic nail gun. This direct-drive capability simplifies the fastening process, reduces the heavy equipment footprint on the job site, and significantly lowers overall project expenditures.
In fast-paced construction environments, every second counts. Compared to the multi-step process of measuring, drilling, clearing dust, and inserting anchors, driving a concrete nail is immediate. This rapid deployment makes it the optimal choice for high-volume repetitive tasks, such as framing basement walls, attaching extensive runs of furring strips, or securing temporary formwork before a concrete pour.
For light to medium-duty fastening tasks, our zinc-plated concrete nail provides a highly economical alternative to more expensive mechanical anchoring systems. Project managers and contractors can maintain strict budget controls without sacrificing the holding power required for non-structural attachments, drywall track installations, and interior finishing work.
The electro-galvanized finish acts as a sacrificial anode, protecting the underlying carbon steel from oxidation. This smooth, uniform zinc coating prevents unsightly rust streaks from forming on finished walls, making the nail exceptionally suitable for outdoor applications, humid indoor environments, and areas exposed to seasonal moisture fluctuations.
To accommodate varying material thicknesses and load requirements, our concrete nail is available in multiple lengths (ranging from 1/2 to 3 inches) and specialized head/shank types (including black, blue, color, countersink, K-type, and T-type). This extensive selection ensures you have the exact fastener geometry needed to adapt to diverse project demands.
Specification Category | Details |
Material | 45#, 55#, 60# High Carbon Steel |
Surface Treatment | Electro-Galvanized (Zinc-Plated) |
Product Type | Concrete Nail, Masonry Nail, Cement Nail |
Available Types | Black concrete nail, Blue concrete nail, Color concrete nail, Countersink nail, K-type concrete nail, T-type concrete nail |
Shank Design | Slide, Straight, Twill, Spiral |
Manufacturing Process | Wire drawing, Annealing, Nailing, Quenching |
Key Features | Strong penetrability, High hardness, Excellent anti-bending, Anti-crack, Safe to use |
Size Range | 1/2 inch, 1 inch, 1.5 inches, 2 inches, 2.5 inches, 3 inches |
Trademark | Donghuang |
Place of Origin | China |
Our electro-galvanized concrete nail is widely utilized across multiple trades, providing secure anchoring for various materials:
Begin by thoroughly cleaning the concrete or masonry surface with a stiff wire brush. Removing gritty dust, dirt, and loose mortar particles is crucial, as accumulated debris can hinder the nail's penetration, cause deflection, and ultimately reduce the mechanical holding power of the fastener.
For older, extra-hard concrete or dense stone, pre-drilling a pilot hole is recommended. Use a masonry bit that is slightly smaller than the nail’s shank diameter. This relieves surface tension, eases penetration, and prevents the hardened steel from bending under extreme impact forces.
Firmly grip the concrete nail and align it perfectly perpendicular to the mounting surface (or directly over the pilot hole) at the desired location. Ensuring a strict 90-degree angle is vital to avoid eccentric loading, which can cause the nail to bend or glance off the surface during the initial strike.
Using a heavy framing hammer (or a specialized nail gun for volume work), drive the nail into the surface. Apply steady, moderate, and square strikes rather than wild, excessive impacts. You will hear a sharp, ringing sound as the hardened steel bites into the masonry. Maintain control to ensure proper penetration without damaging the zinc plating or cracking the surrounding substrate.
Monitor the nail’s depth as the head approaches the material being fastened. Ensure it is fully embedded, pulling the object tightly against the wall. Avoid overdriving the final blow, which can crush wooden furring strips, crack the concrete surface, or compromise the nail's structural grip.
Yes! Our masonry nail is specifically engineered for use on poured concrete, solid brick, natural stone, and other dense aggregate materials. The hardened carbon steel core provides the necessary rigidity to pierce these tough substrates without deforming.
Pre-drilling is entirely optional for most standard applications. For soft to medium-density concrete and mortar joints, a standard hammer is sufficient for direct driving. However, for aged, fully cured hard concrete, pre-drilling a small pilot hole significantly helps prevent the nail from bending and reduces the risk of concrete spalling.
As a general rule of thumb, choose a nail length that is at least 1 to 1.5 inches longer than the total thickness of the material you are attaching. This ensures sufficient embedment into the masonry for a secure hold. Our sizes range from 1/2 inch for light-duty sheet metal to 3 inches for heavy-duty lumber framing.
Yes! The electro-galvanized zinc-plated finish provides a robust shield that resists rust and oxidation. This makes them highly reliable for outdoor applications, such as securing wooden fence posts to concrete footings, installing exterior trim, or mounting outdoor lighting fixtures exposed to the elements.
Our 45# carbon steel concrete nail is designed primarily for light to medium-duty shear and pull-out loads. While they offer exceptional grip for framing and fixture attachment, for heavy-duty structural applications (such as load-bearing supports or overhead rigging), we strongly recommend utilizing heavy-duty expansion anchors or masonry bolts.
We operate with a flexible MOQ structure tailored to support both regional distributors and large-scale contractors. Please contact our sales team to discuss customized volume options. Substantial bulk discounts and tiered pricing are readily available for major construction projects and continuous supply contracts.
Free samples are available upon request to allow your engineering and procurement teams to conduct hands-on quality and penetration testing. Inquire today to request a sample batch of the electro-galvanized concrete nail to verify compatibility with your specific job site requirements.
We provide industrial-grade packaging options to ensure product integrity during transit. Choose from standard reinforced cartons, heavy-duty wooden pallets, bulk bins, or customized plastic bags tailored for retail display. Leveraging our strategic proximity to major shipping ports, we guarantee highly efficient logistics and seamless dispatch for large-volume container shipments.
Standard delivery schedules typically range from 15 to 30 days following the confirmation of your deposit, depending on order volume and packaging requirements. Expedited manufacturing and shipping options can be arranged for urgent project timelines.
Standard terms require a 30% deposit prior to the commencement of production, with the remaining 70% balance due against the copy of the shipping documents.
Accepted secure payment methods include T/T (Telegraphic Transfer) and L/C (Letter of Credit) at sight.
We operate under flexible Trade terms including FOB, CIF, and CNF, fully negotiable to align with your logistical preferences and regional requirements.
Donghuang stands firmly behind the structural integrity and performance of our concrete nails. Our commitment to excellence is reflected in every stage of our operation:
