Our bright zinc plated steel security breakaway shear nut serves as a highly engineered, permanent fastening solution designed to eliminate unauthorized access and tampering. Often referred to as a snap-off nut, it is manufactured with a specialized hexagonal upper section that shears away at a meticulously calibrated torque breaking point. Once this precise tension is achieved, the hex head snaps off with a distinct metallic click, leaving behind a smooth, impenetrable dome. This resulting conical shape offers zero leverage for pliers, wrenches, or extraction tools, securing your critical infrastructure permanently. Available in extensive sizing from 1/4''-3-1/2'' and M3-M72, and featuring M, UNC, and UNF thread standards, these fasteners integrate perfectly with our comprehensive range of anti-theft screws and hardened flat washers to create a complete, impenetrable security system. Crafted from premium carbon steel, alloy steel, or stainless steel, and meeting strict IFI-101 and SAE J995 standards, this component delivers exceptional holding power for public works, automotive assemblies, and heavy machinery.
| Diameter: | 1/4''-3-1/2''; M3-M72 |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel |
| Grade: | IFI-101,IFI-100/107 2007,SAE J995 Gr.2, 5,8; CL4, 5, 6, 8, 10, 12 |
| Thread: | M, UNC, UNF |
| Finish: | Plain,Black oxide, Zinc Plated(Clear/Blue/Yellow/Black), H.D.G, Nickel, Chrome,PTFE,Dacromet,Geomet,Magni,Zinc Nickel,Zinteck. |
| Packing: | bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
| Application: | Structural Steel; Metal Buliding; Oil&Gas;Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating |
| Equipments: | Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester, 3D detector, Projector, Magnetic flaw detecter |
| Supply Ability: | 1000 tons per month |
| MinimumOrder: | according to customer demand |
| Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |

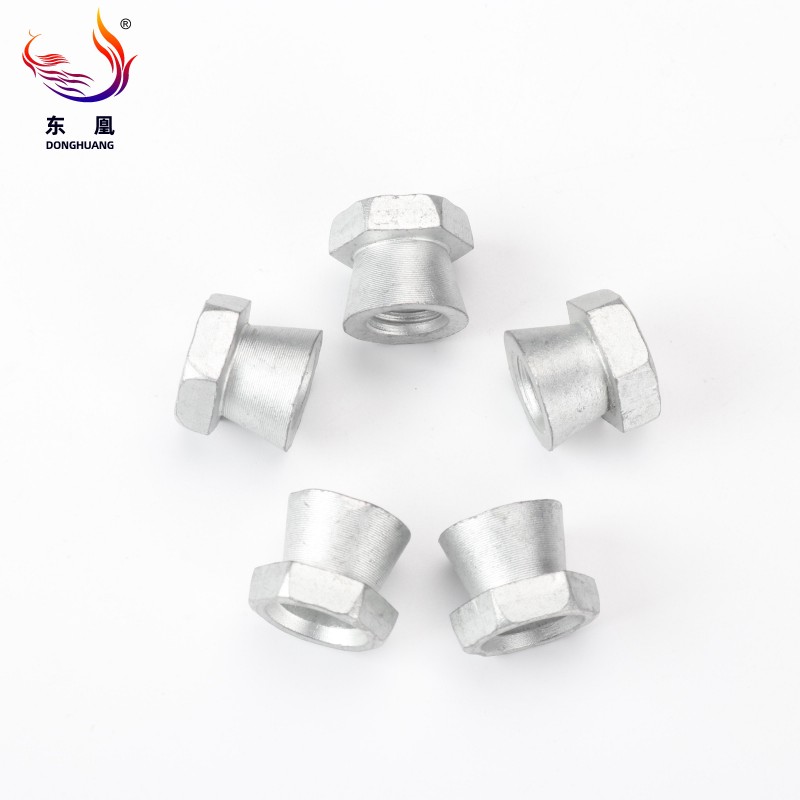

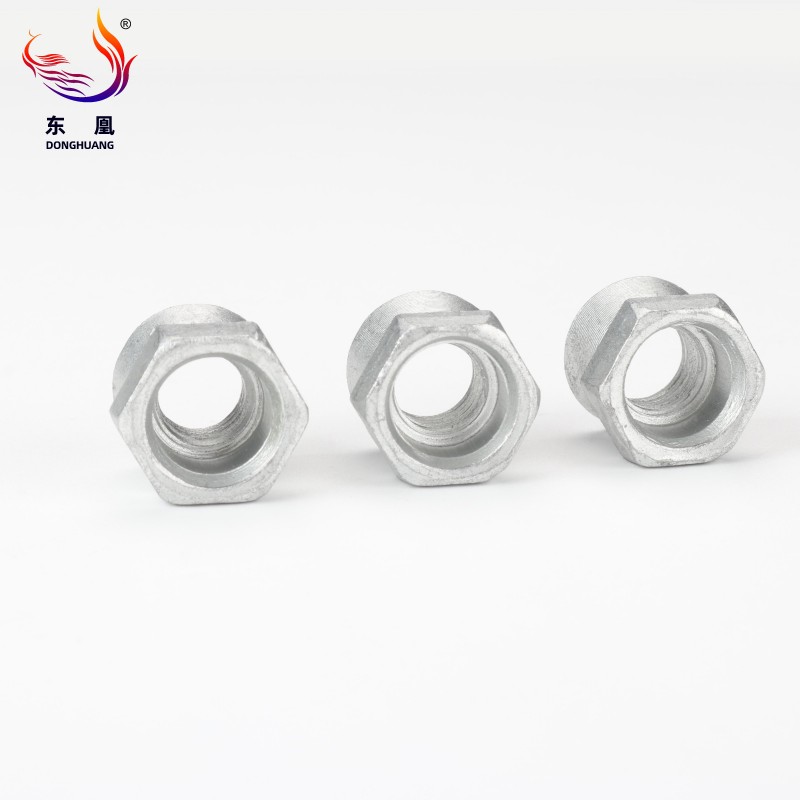

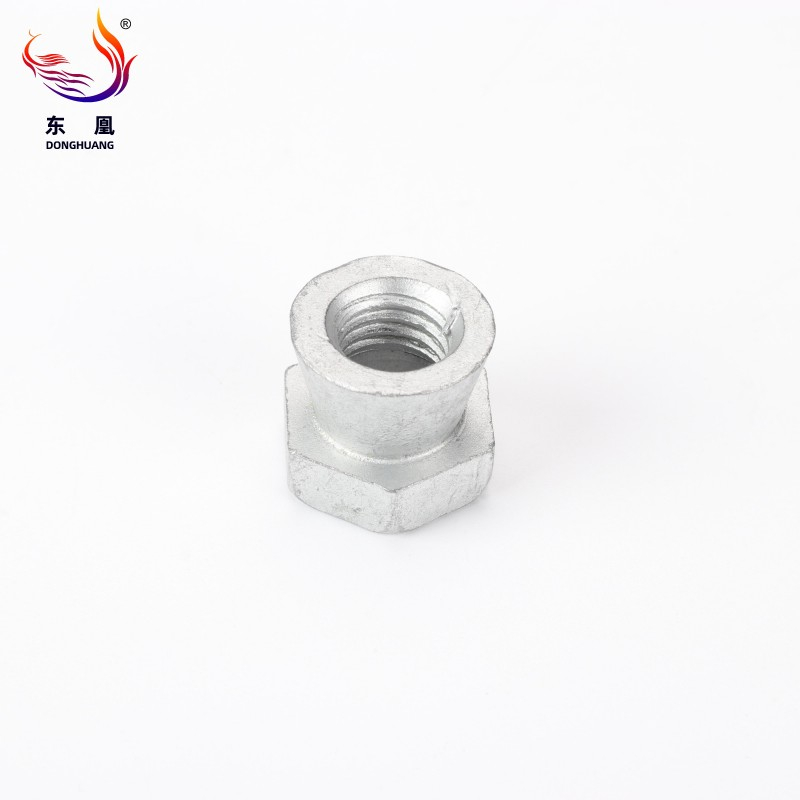

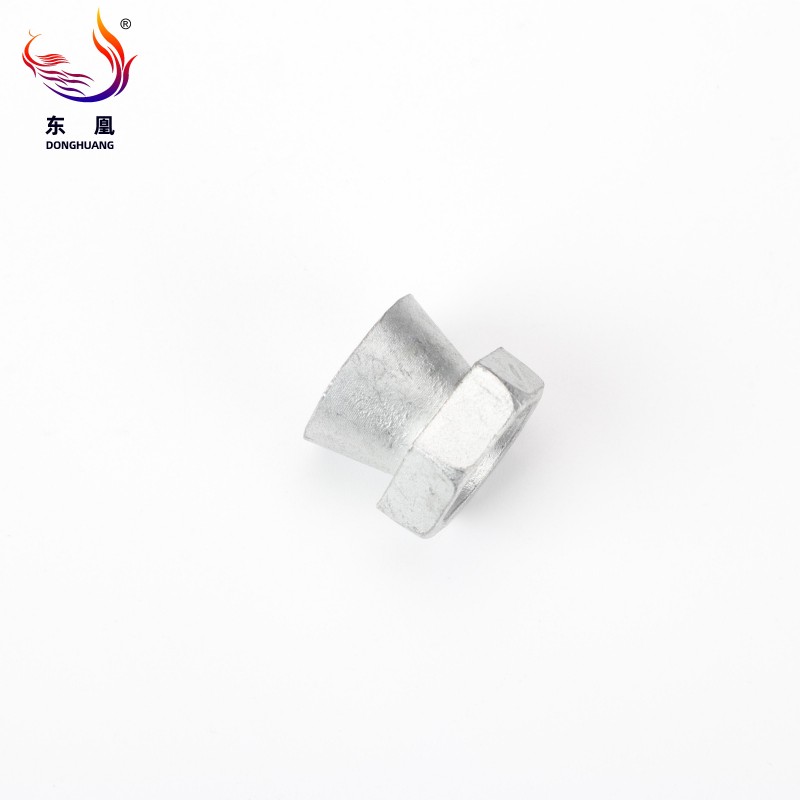

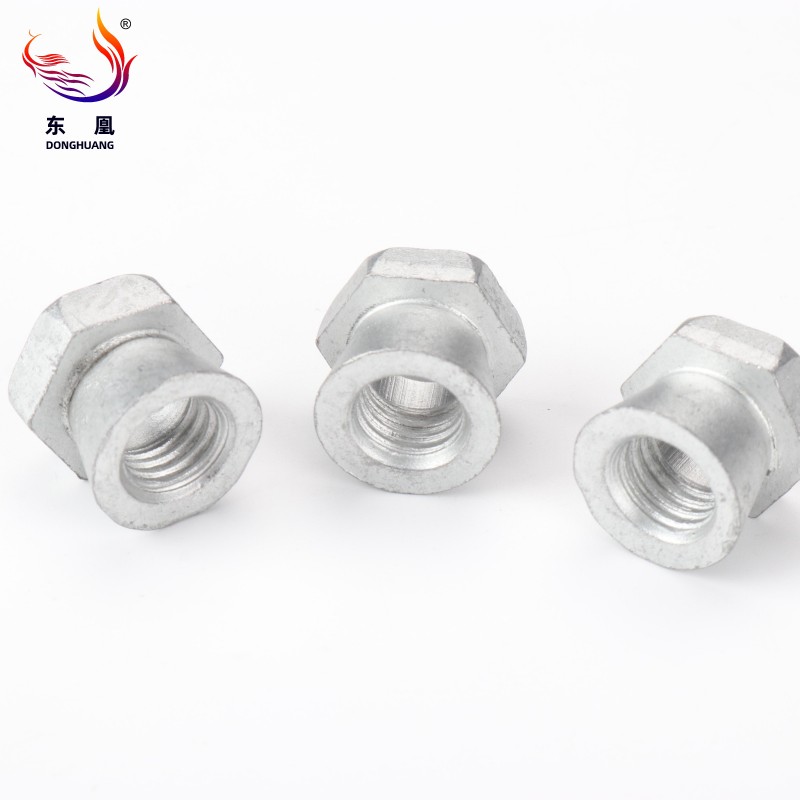

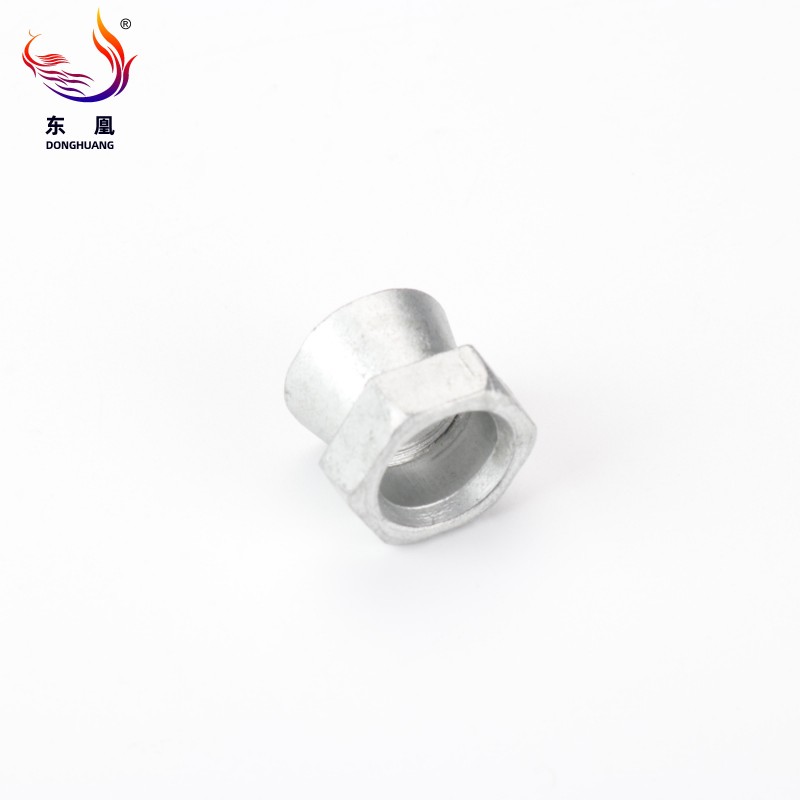

The visual and tactile profile of the bright zinc-plated shear nut reflects its precision engineering. Straight out of the packaging, the fastener exhibits a striking, mirror-like metallic sheen, a direct result of the advanced electro-galvanizing process. This uniform zinc layer feels exceptionally smooth to the touch while actively repelling moisture, preventing oxidation, and resisting abrasive environmental elements. Structurally, it presents a dual-geometry design: a sharply defined, standard hexagonal driving section on top, which merges fluidly into a tapered, conical base. The internal threads are machined with exacting tolerances, ensuring a glide-on fit that prevents galling during rapid assembly. Once the designated clamping force is reached and the hex head detaches, the remaining structural base presents a flawless, unblemished dome. This transformation not only fortifies the connection against physical tampering but also provides a clean, low-profile aesthetic that blends naturally into modern architectural frameworks and industrial machinery.
The defining advantage of our engineered security shear nut lies in its irreversible, one-way fastening mechanism. By utilizing a strictly controlled torque breaking point, the hexagonal drive head shears off precisely when the optimal clamping force is achieved. This leaves behind a hardened, smooth dome that offers absolutely no grip for standard or specialized removal tools. This permanent locking action effectively deters theft, vandalism, and unauthorized dismantling, making it the ultimate safeguard for exposed street signs, railway components, and sensitive perimeter fencing.
Engineered to support a vast array of industrial applications, this fastener is available across an extensive diameter range and can be forged from high-strength carbon steel, durable alloy steel, or corrosion-immune stainless steel. The bright zinc plating acts as a formidable sacrificial barrier, providing exceptional rust protection that dramatically extends the service life of the joint, even when exposed to harsh outdoor climates, marine environments, or heavy industrial pollution.
Despite its formidable security profile, the installation process requires zero specialized training or proprietary equipment. Field technicians can simply thread the nut onto any compatible bolt and tighten it using a standard socket or wrench. To further support your project planning and procurement teams, we provide downloadable 3D CAD models and detailed technical specification sheets. Our dedicated engineering staff is also on standby to offer complimentary selection guidance, ensuring you specify the exact torque rating and thread pitch required for your unique structural demands.
We enforce uncompromising quality control protocols throughout every phase of manufacturing, from raw steel wire inspection to final surface treatment. Each production batch of breakaway nuts is subjected to rigorous metallurgical testing. Our on-site laboratory is outfitted with precision instruments, including digital calipers, tensile strength machines, hardness testers, and salt spray chambers, verifying that every unit performs flawlessly under extreme stress and corrosive conditions.
We are a fully integrated, professional direct manufacturer operating our own international sales and engineering departments. By managing the entire lifecycle—from cold forging to final zinc plating—in-house, we eliminate third-party markups. This direct-source advantage allows us to offer highly transparent, tiered volume pricing and flexible minimum order quantities, significantly optimizing your procurement budget.
Yes, our engineering capabilities extend to comprehensive customization. We can tailor dimensions, thread profiles, base materials, surface finishes, and specific torque shearing points to align perfectly with your structural blueprints. Furthermore, to ensure complete confidence in your volume purchases, we back our fasteners with a defined one-year extended warranty and flexible replacement policies, safeguarding your project against any unforeseen material defects.
Our tamper-proof fasteners are trusted globally across highly demanding sectors. They are critical components in heavy structural steel frameworks, metal building construction, oil and gas pipeline securing, and wind energy turbine assembly. Additionally, they are widely specified in automotive manufacturing and public infrastructure projects, protecting vital assets like telecommunication towers and transit seating from unauthorized dismantling.
