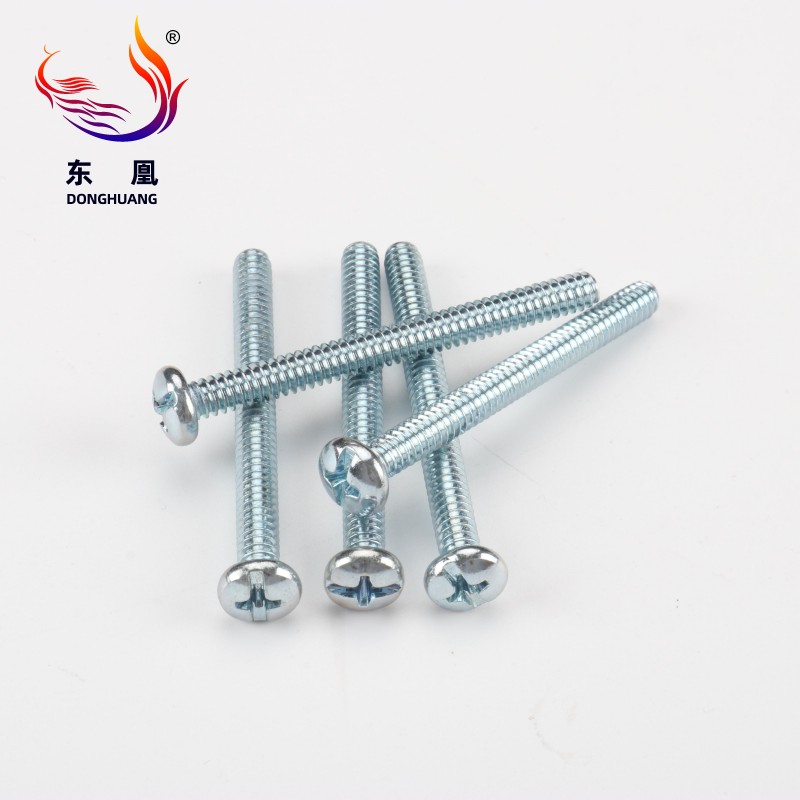

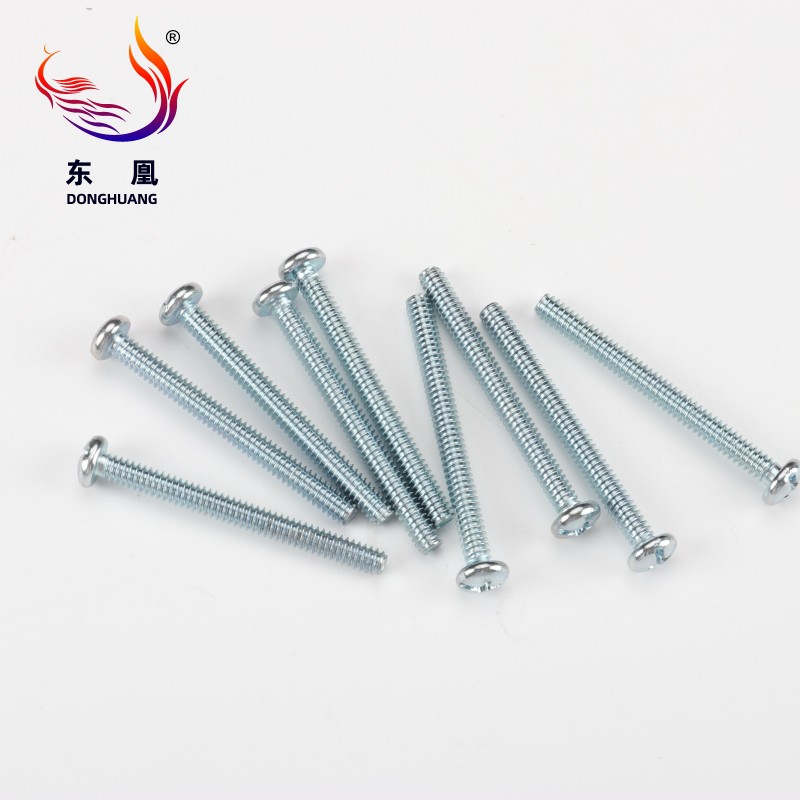

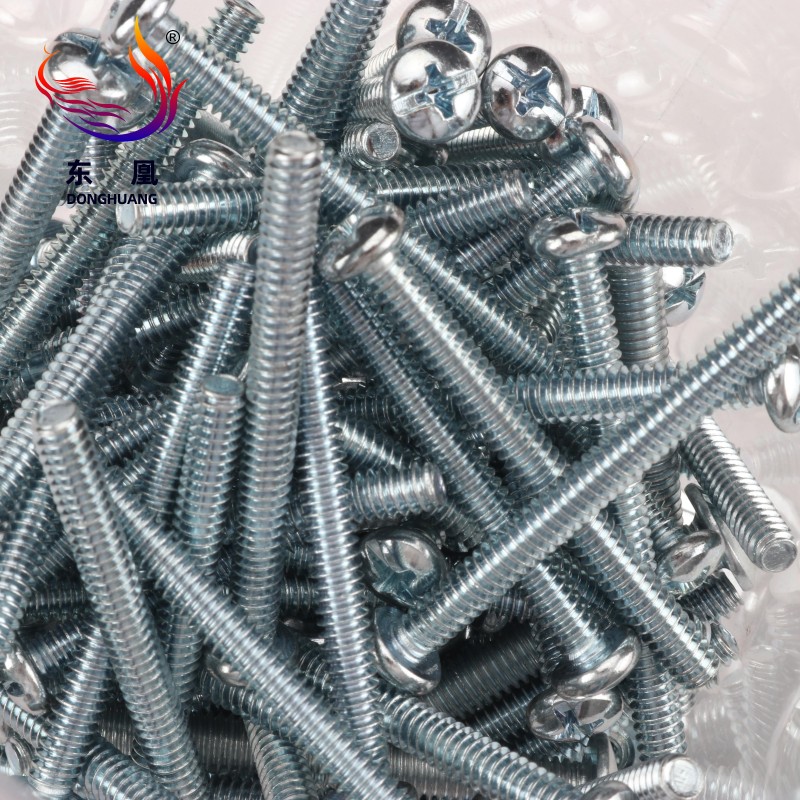

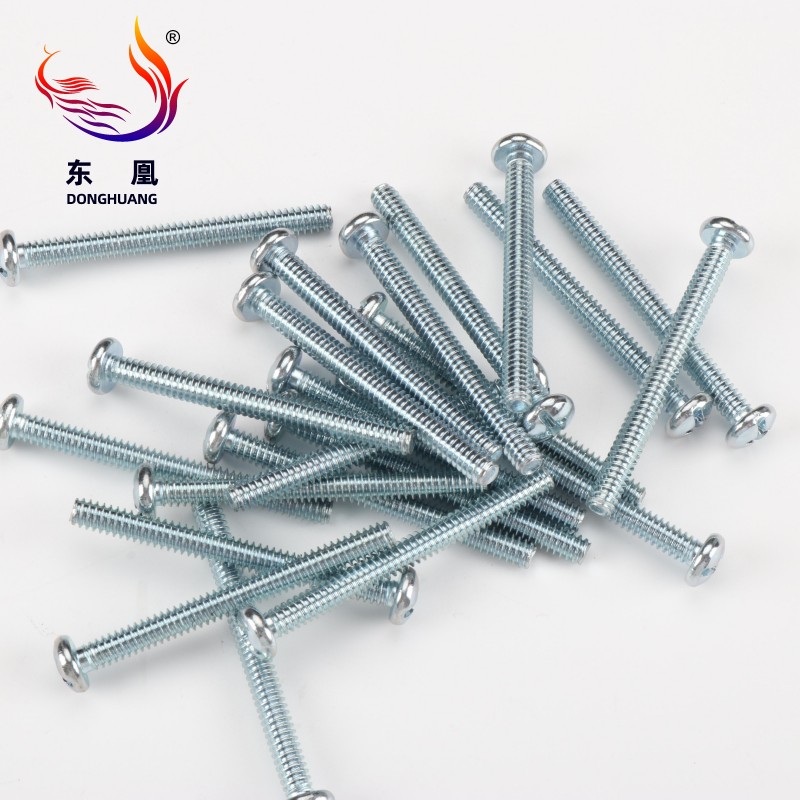

A pan head compound slot combo drive machine screw combines a pan head, a slotted drive, and a combo drive feature. The pan head is a rounded, flat-topped head that provides a larger bearing surface than a flat head. The slotted drive is a simple groove that accepts a flat-blade screwdriver. The combo drive means the screw head is designed to also accept a different type of drive, such as a Phillips head, offering more versatility in driving the screw.
The Custom Pan Head Combo Drive Machine Screw is an engineered fastening solution designed to streamline assembly while ensuring structural integrity. Featuring a gently rounded, flat-topped pan head, this fastener provides a generously sized bearing surface that sits flush against your components, evenly distributing clamping force without distorting softer materials. The distinctive compound slot combo drive—a precise amalgamation of a traditional slotted and a Phillips recess—delivers a satisfying, secure engagement with multiple tool types. Whether your technicians are using powered drivers on an assembly line or hand tools in the field, the bit seats firmly into the recess, minimizing cam-out and preserving the screw's metallic finish. Available in a diverse array of materials including durable carbon steel, corrosion-resistant stainless steel, and specialized alloy steel, these screws can be customized with zinc plating, nickel plating, or passivation to withstand demanding environmental conditions. Manufactured by Donghuang, these custom machine screws offer reliable performance for complex industrial applications, ensuring your projects remain securely bound together.
The engineered curvature of the pan head creates a broad, flat underside that makes direct, expansive contact with the mating surface. This geometry effectively disperses the tightening load across a wider area, preventing the screw from crushing or embedding into delicate substrates like engineered plastics, softwoods, or thin metal sheets.

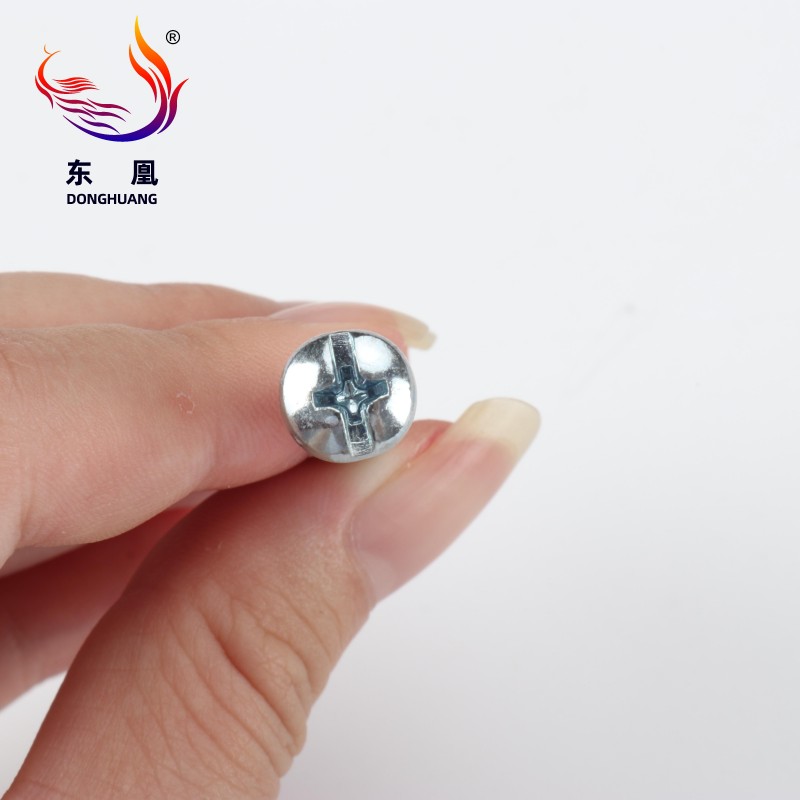

The compound drive recess eliminates tool-matching delays on the floor. By accommodating both flat-blade and Phillips screwdrivers with equal grip, it empowers maintenance teams to perform swift installations or extractions using whatever standard hand tool is immediately available in their pouch.
Once driven into place, the slightly domed top of the pan head offers a smooth, tactile finish that remains visually unobtrusive. This clean contour prevents snagging on clothing or wiring, making it an excellent choice for exposed joints on consumer-facing appliances, furniture, and electrical enclosures.

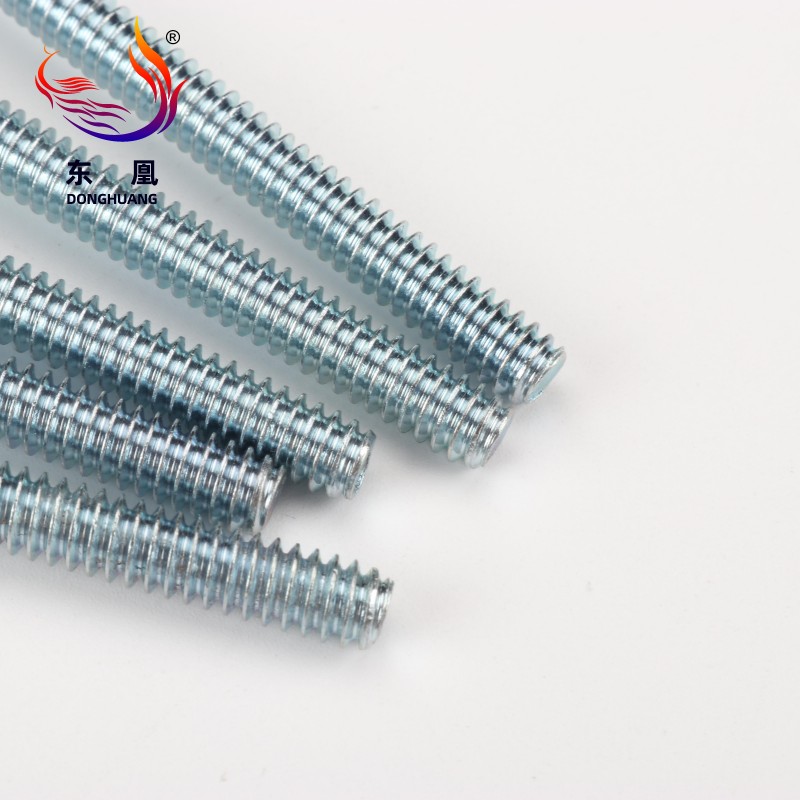

Precision-rolled machine threads ensure a fluid, consistent glide into pre-tapped holes or compatible hex nuts. This exact thread geometry reduces the physical effort required during manual assembly and prevents cross-threading, significantly accelerating production cycles and minimizing material waste.
Forged for structural resilience, these machine screws maintain a steadfast grip under constant vibration and thermal cycling. The dense grain structure of the metal ensures the fastener resists shear and tensile forces, providing enduring stability for critical connections in commercial and residential infrastructure.
Parameter | Details |
Groove Type | Compound Slot Combo Drive |
Head Style | Pan (Rounded, Flat-Top) |
Product Name | Compound Slot Combo Drive Pan Machine Screws |
Thread Type | Machine Thread |
Measurement System | Inch |
Customized Support | OEM, ODM |
Factory Type | Powerful Direct Manufacturer |
Transport Package | Bag/Box (customizable) |
Trademark | Donghuang |
Origin | Zhejiang, China |
Can Be Customized | Yes (length, thread, finish, etc.) |
To ensure perfect integration into your specific engineering projects, the parameters outlined in the table above reflect our standard production capabilities. The compound slot combo drive and precision-rolled machine threads are meticulously calibrated to meet stringent dimensional tolerances. Buyers can specify exact material grades and protective finishes to match the environmental demands of their applications. Whether you require standard inch measurements or tailored modifications, our manufacturing facility is equipped to translate these exact technical specifications into reliable, physical fasteners that align with your operational requirements.
In the electrical sector, these screws securely anchor junction boxes, wall plates, and heavy-duty switches, providing a flush fit that won't interfere with wiring. For plumbing, they reliably fasten pipe brackets and fixture mounts, where the pan head's broad surface prevents the cracking of plastic components under tension.
Assembly lines utilize these fasteners to join cabinet frames, attach heavy metal hinges, and secure drawer slides. The smooth, domed head offers a refined appearance on visible interior joints, while the reliable thread engagement ensures wardrobes and tables remain rigid despite frequent daily use.
A staple for multi-material integration, these screws effortlessly bind metal brackets to composite panels or secure acrylic sheets to aluminum frames. Their adaptability makes them indispensable for facility maintenance teams handling varied repair tasks across commercial properties.
When securing timber components to structural metal framing, the machine threads pair perfectly with threaded inserts or standard nuts. This creates a highly stable, vibration-resistant joint essential for commercial shelving units, custom architectural fixtures, and heavy-duty seating structures.
Integrated into the assembly of automated machinery, HVAC equipment, and sensitive electronic chassis, these screws deliver the precise clamping force required to protect internal components. The dual-drive head proves invaluable during routine mechanical servicing, allowing technicians to rapidly dismantle and reassemble equipment panels.
Evaluate your available hand tools and select either a standard flat-blade or a Phillips-head screwdriver. Ensure the bit size closely matches the compound slot recess to maximize torque transfer and prevent the tool from slipping during rotation.
Inspect the mating materials to confirm the pre-tapped hole is free of debris, metal shavings, or burrs. If using a through-hole application, position a compatible hex nut and washer on the opposing side, ensuring the thread pitch matches the machine screw perfectly.
Hold the fastener perpendicular to the mounting surface and guide the threaded tip into the opening. Seat the screwdriver firmly into the combo drive recess, applying gentle, downward pressure to initiate the threading process without forcing the angle.
Rotate the driver clockwise with smooth, consistent motions. You will feel the machine threads engage and pull the fastener inward. Continue driving until the flat underside of the pan head makes full, even contact with the surface material.
Once seated, visually confirm that the pan head sits flush without crushing the underlying substrate. Give the screw a final, gentle twist to verify tightness, being careful to stop before the drive recess deforms or the threads strip out from excessive torque.
While visually similar, machine screws are typically smaller in diameter and feature a uniform thread designed to be driven into pre-tapped holes or paired with nuts for precision assembly. Bolts are generally larger, unthreaded near the head, and explicitly engineered to bear heavy structural shear loads in construction or heavy machinery.
Accurate measurement involves three critical dimensions: the nominal thread diameter, the thread pitch (the distance between individual threads), and the overall length measured from the flat underside of the pan head to the blunt tip of the screw.
Absolutely. Our production facility accommodates extensive OEM and ODM requests. Buyers can specify exact shaft lengths, unique thread pitches, specialized head diameters, and specific metal alloys to ensure the fastener integrates flawlessly into proprietary product designs.
Bare carbon steel will oxidize if exposed to moisture. However, we mitigate this by offering robust surface treatments, including zinc plating, nickel plating, and passivation. For highly corrosive environments, we manufacture these screws from premium stainless steel grades to ensure long-lasting rust resistance.
Yes, they are highly reusable provided the threads remain sharp and the compound drive recess is free from distortion. For critical load-bearing applications, we advise inspecting the fastener for signs of metal fatigue before reinstallation to guarantee maximum holding power.
Customization Options: We fully support OEM and ODM manufacturing, allowing you to dictate exact lengths, thread specifications, and surface finishes. Choose from stainless steel, carbon steel, or alloy steel, paired with protective zinc, nickel, or passivation treatments to meet your specific environmental demands.
Packaging & Kitting Services: Beyond standard bulk bag and box configurations, we offer comprehensive custom packaging solutions. This includes small-batch bagging, private label printing, and specialized kitting services designed to streamline your assembly line processes and reduce secondary handling costs for distributors.
Origin & Supply Chain Management: Manufactured directly in our Zhejiang, China facility, we offer highly competitive factory-direct pricing. To further support your operations, we provide Vendor Managed Inventory (VMI) services, helping you optimize inventory turnover and maintain healthy cash flow throughout the fiscal year.
Availability & Production Capacity: Equipped with dozens of advanced cold heading machines, thread rolling equipment, and CNC machining centers, our daily output reaches millions of pieces. This massive scale guarantees the stable and rapid delivery of large-volume orders, regardless of market fluctuations.
Trade Terms: We offer highly flexible, negotiable trade terms including FOB, CIF, and CNF. Our logistics team works closely with your procurement department to align shipping schedules with your specific volume requirements and delivery deadlines.
Donghuang stands as a powerful, direct manufacturer with decades of specialized experience in engineering custom fastening solutions. Our commitment to excellence is anchored in a rigorous quality control infrastructure. Our testing laboratories are fully equipped with advanced optical sorting machines, salt spray chambers, hardness testers, and coating thickness analyzers. This ensures every single Pan Head Compound Slot Combo Drive Machine Screw strictly adheres to ISO and IATF international quality standards before leaving our facility. Furthermore, we prioritize sustainable manufacturing practices; our entire product line is fully compliant with RoHS and REACH environmental directives, guaranteeing barrier-free market access and safety compliance across global jurisdictions. Our responsive technical sales team provides end-to-end support, from initial material consultation to final delivery, ensuring that our massive production capabilities translate into reliable, consistent, and high-performing components for your assembly needs.
