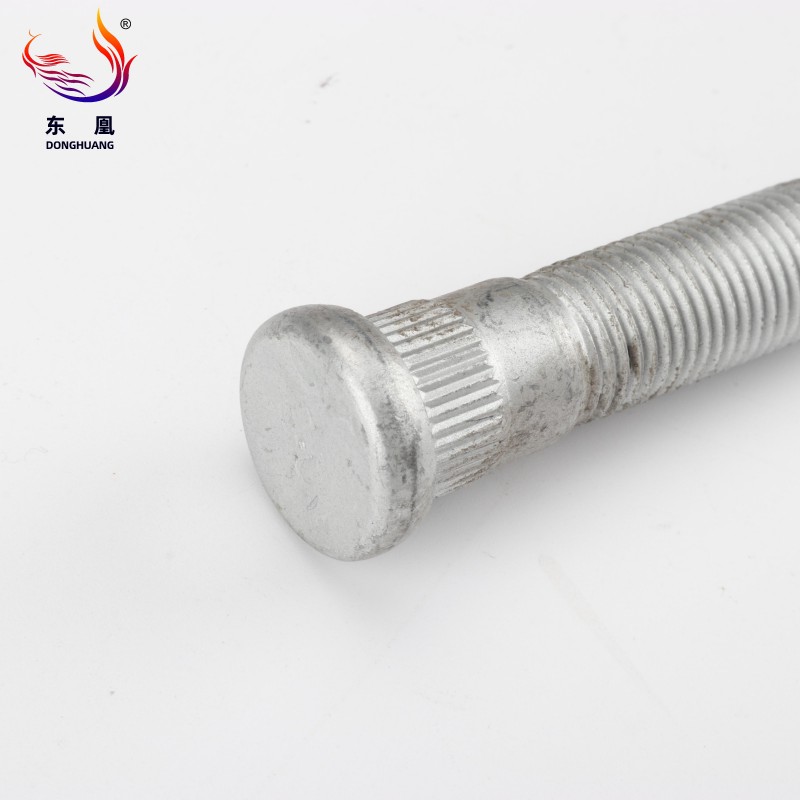

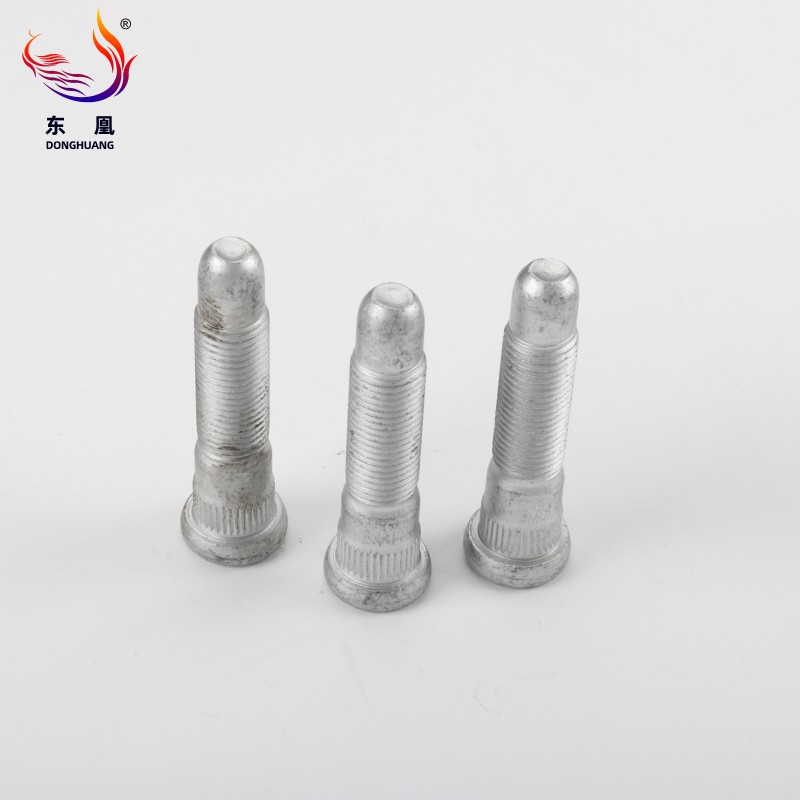

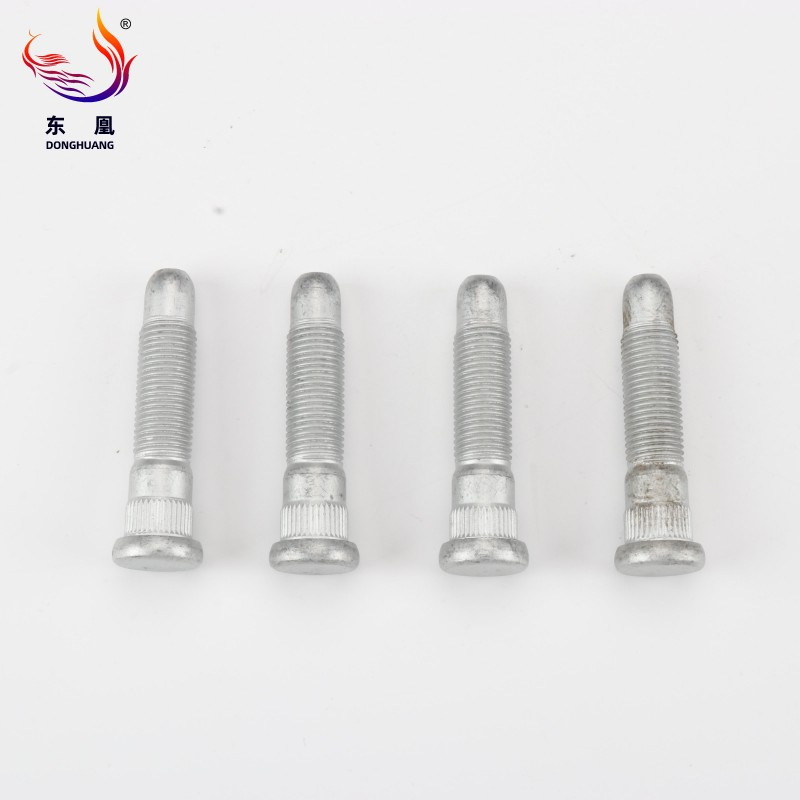

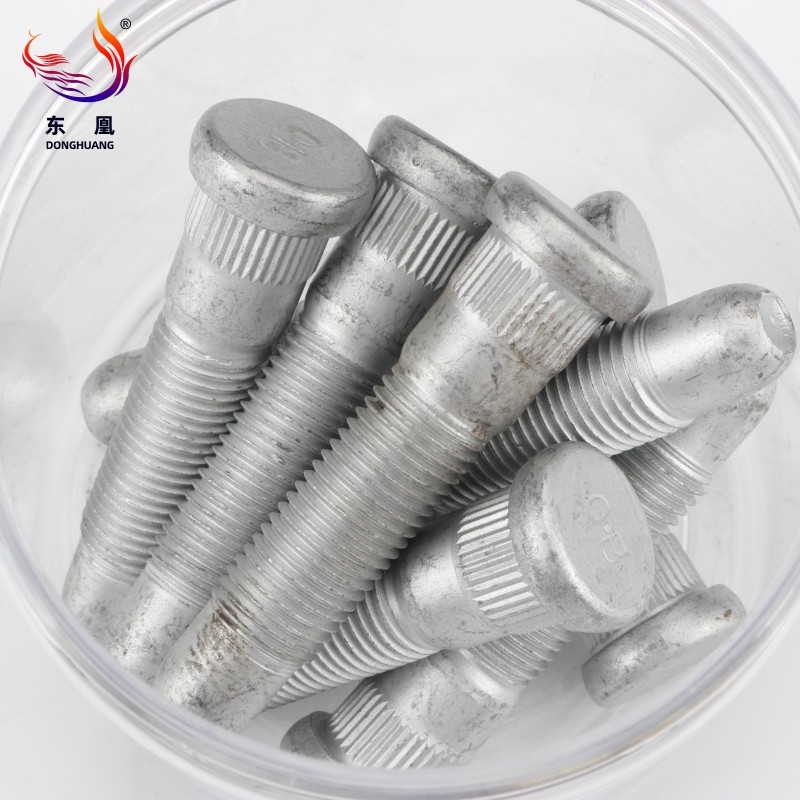

A universal knurl wheel lug stud bolt serves as the critical anchoring foundation permanently mounted to a vehicle's wheel hub. Protruding precisely through the brake rotor, it provides a highly reliable threaded post for lug nuts to engage, thereby securing the wheel and tire assembly to the vehicle with unwavering stability. Forged from premium high-strength carbon steel (such as Grade 8) and strictly adhering to rigorous automotive industry standards like SAE, these metal fasteners deliver exceptional tensile strength and surface hardness.

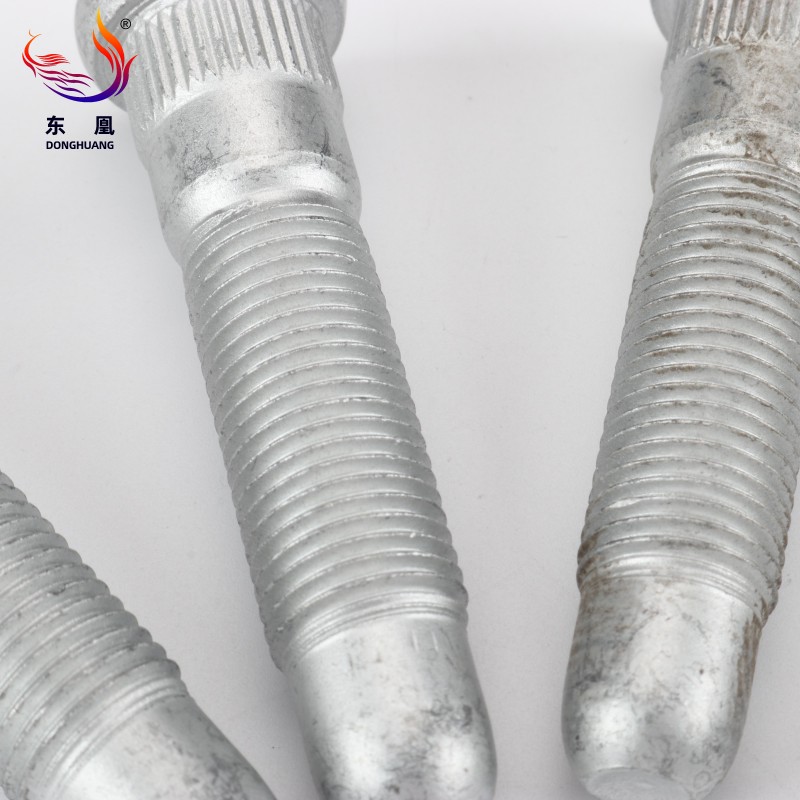

Unlike traditional wheel bolts that thread directly into the hub assembly, these fixed studs remain securely in place when the wheel is removed. This structural design offers a profound mechanical advantage for tire changes, routine maintenance, and complex wheel servicing. Every stud features meticulously engineered dimensional accuracy, encompassing precise knurl diameters, exact knurl lengths, and optimized shoulder dimensions. Available in both fine and coarse thread specifications (supporting left or right-hand configurations), the precisely machined threads offer a distinct tactile smoothness during nut engagement, while the heavy, solid metallic weight of the bolt instantly communicates its heavy-duty structural integrity and readiness for extreme operational environments.
With fixed wheel studs, technicians can simply lift the heavy wheel assembly onto the protruding posts, which immediately hold the wheel in perfect position. This eliminates the physically demanding and awkward process of supporting the wheel's weight while blindly attempting to align lug bolt holes, significantly reducing fatigue and maintenance time.
Backed by stringent quality control protocols, each batch undergoes comprehensive industry-standard tensile testing and proof load testing. These studs ensure optimal wheel-to-hub contact and absolutely prevent the wheel from shifting under extreme loads—a critical safety risk often associated with improperly seated or cross-threaded lug bolts.
The extended threaded profile of these wheel studs effortlessly accommodates varying thicknesses of wheel spacers. This built-in adaptability allows for precise track-width adjustments without the necessity of sourcing and purchasing entirely new sets of extended lug bolts for every minor modification.
Engineered for maximum endurance, these studs feature advanced surface treatments including hot-dip galvanizing, black oxide, chrome plating, or stainless steel options. Having passed brutal 72-hour salt spray tests, they provide long-lasting anti-corrosion performance, resisting road salt, moisture, and chemical grime. Furthermore, their superior material strength makes them highly resistant to thread stripping from over-tightening.
Acting as a replaceable safeguard, these studs protect the highly expensive hub assembly from the inevitable wear and tear of frequent wheel installations and removals. If threads ever become damaged, only the individual stud and nut require replacement, sparing the vehicle owner from a costly and labor-intensive complete hub overhaul.
The precisely calibrated knurls are designed for a perfect press-fit interference. During installation, the metal knurls bite deeply into the hub material, creating a satisfying, unyielding mechanical lock that prevents the stud from spinning out. This fixed alignment point makes putting the wheel back on a remarkably efficient and error-free process.
Our universal knurl wheel lug stud bolts are manufactured under strict dimensional and metallurgical tolerances. Adhering to global engineering standards, the following table details the precise specifications, material finishes, and operational capacities that guarantee seamless integration into your existing mechanical infrastructure.
| Model NO. | Wheel Stud |
| Connection | Common Bolt |
| Standard | DIN, ANSI, GB, JIS, GOST |
| Finish | Hot Galvanizing |
| Standard Name | DIN 74361 |
| Diameter Range | M18 - M22 |
| Inch Diameter Range | 5/8" to 7/8" |
| Production Capacity | 10000 Tons Per Year |
| Trademark | Donghuang |
| Transport Package | Box+Carton+Pallet |
| Origin | Zhejiang, China |
| HS Code | 7318160000 |
Wheel studs are precision-threaded bolts that fundamentally secure a wheel to a vehicle's hub. Their primary application is to provide an exceptionally safe, reliable, and mechanically sound mounting point for heavy-duty wheel and tire assemblies. They are extensively utilized across a broad spectrum of transportation equipment, widely adapting to heavy trucks, commercial trailers, and specialized vehicle axles.
By keeping the studs fixed tightly to the hub, they dramatically simplify routine tire changes and fleet maintenance. Mechanics can effortlessly lift the heavy wheel and tire, position it directly onto the protruding studs, and secure it with lug nuts. Furthermore, these studs support precise compatibility and non-destructive OEM replacement, seamlessly matching specific brand requirements and OEM part numbers (such as Dexter and Load-Rite) to ensure the vehicle retains its original factory safety tolerances without requiring hub modifications.
We are a direct manufacturer equipped with advanced production facilities. We also operate our own dedicated international sales department, meaning we oversee the entire process—from raw material forging to final global distribution—entirely by ourselves, ensuring strict quality control at every stage.
Our main product range is highly comprehensive, covering expansion screws, high-strength fasteners, architectural hardware, durable plastic parts, precision stamping parts, zinc die casting components, and highly specialized non-standard custom parts tailored to specific engineering blueprints.
Our fastening solutions comprehensively cover the entire construction industry and critical fields of mechanical equipment installation. This mainly includes the secure anchoring of outdoor large-scale mechanical equipment, structural home decoration, fixed installation of heavy goods, and commercial automotive hub assemblies.
Yes, we possess robust OEM and ODM capabilities. We can engineer and manufacture customized products based on your specific dimensional drawings, material requirements, and performance criteria.
Quality is our absolute priority. Firstly, we conduct rigorous inspections immediately after every single manufacturing process. For all finished products, we execute a 100% thorough inspection protocol strictly according to our customers' precise requirements and recognized international safety standards.
We offer highly flexible packaging configurations designed to accommodate various inventory management needs. Our solutions range from customized retail-ready small packaging (e.g., 5 pieces per sealed bag) to robust, large-scale bulk packaging utilizing heavy-duty cartons securely strapped to wooden pallets, ensuring safe transit and streamlined warehouse distribution.
When we provide a formal quotation, we will clearly confirm the preferred method of transaction with you, whether that is FOB, CIF, CNF, or other terms. For mass production orders, standard terms require a 30% deposit prior to manufacturing, with the remaining 70% balance cleared against the copy of shipping documents. The most common and efficient method is via T/T, though L/C is also fully acceptable for larger scale procurement.
