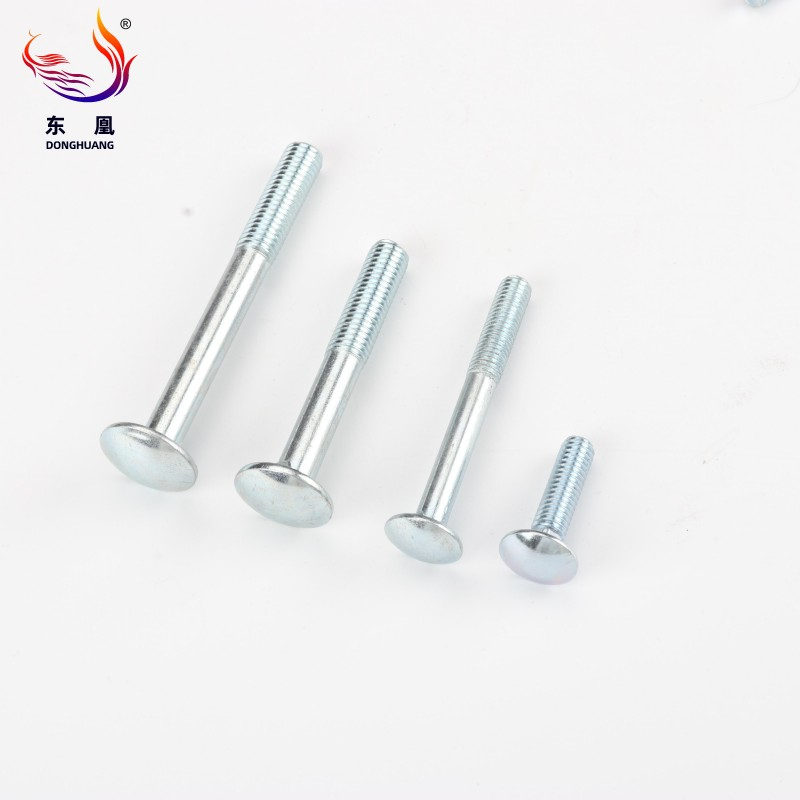

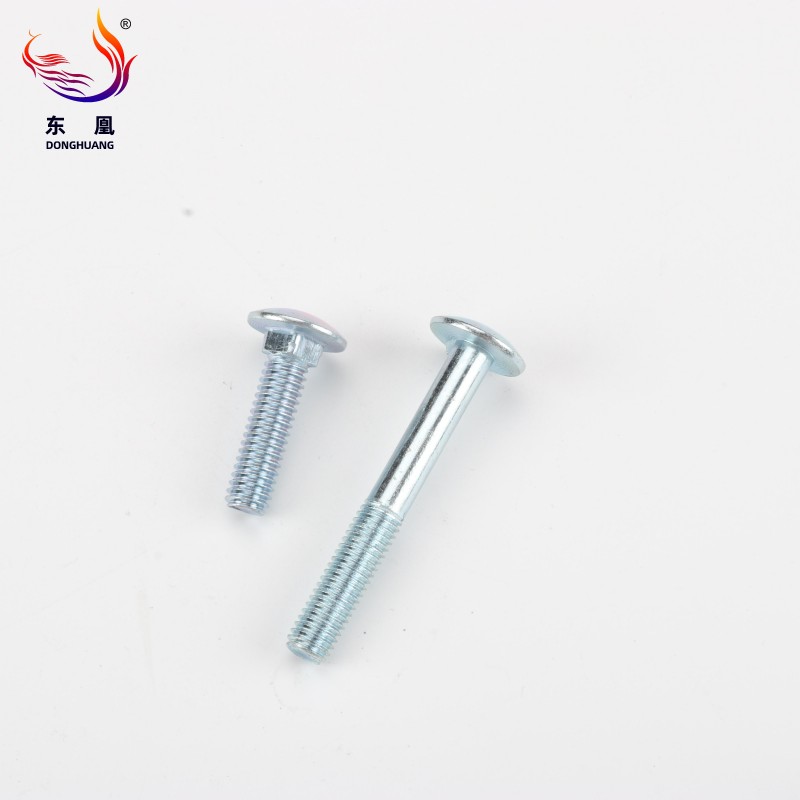

The Half-Thread Round Head Square Neck Carriage Bolt serves as a foundational fastening component engineered for structural integrity and visual cleanliness. Characterized by a smooth, dome-shaped top that is completely free of sharp edges, it offers a secure tactile feel and prevents snagging in high-traffic installations. Beneath this dome lies a precisely forged square neck that bites firmly into adjoining materials, eliminating the frustrating spinning often encountered during nut tightening. The shank transitions from a solid, unthreaded cylindrical upper half to a meticulously tapped lower thread, striking an optimal balance between maximum shear resistance and aggressive clamping force. Manufactured from strictly selected carbon steel and coated with a protective blue-white zinc plating, this fastener delivers a bright, uniform metallic finish while resisting environmental degradation. Fully compliant with DIN 603, ANSI, and GB dimensional tolerances, it stands as a dependable choice for heavy timber construction, modular furniture assembly, perimeter fencing systems, and mechanical frameworks.
| Model NO. | DIN603 |
| Connection | Common Bolt |
| Head Style | Round |
| Standard | DIN, ANSI, GB, JIS |
| Application | Machinery, Chemical Industry, Environmental, Building |
| Finish | Blue-White Zinc Plated |
| Certification | ISO, RoHS, CE |
| Delivery | Sea Freight, Air, Train, Express |
| Service | Support Customized Service |
| Samples | Free If It Is Available |
| Thread | Corase and Fine |
| Inspection | Optical Screening Instrument |
| Delivery Time | 30-45 Working Days |
| Transport Package | Plastic Bag, Boxes and Cartons, Pallets |
| Trademark | OEM, ODM, Donghuang |
| Origin | China |
| HS Code | 7318159090 |

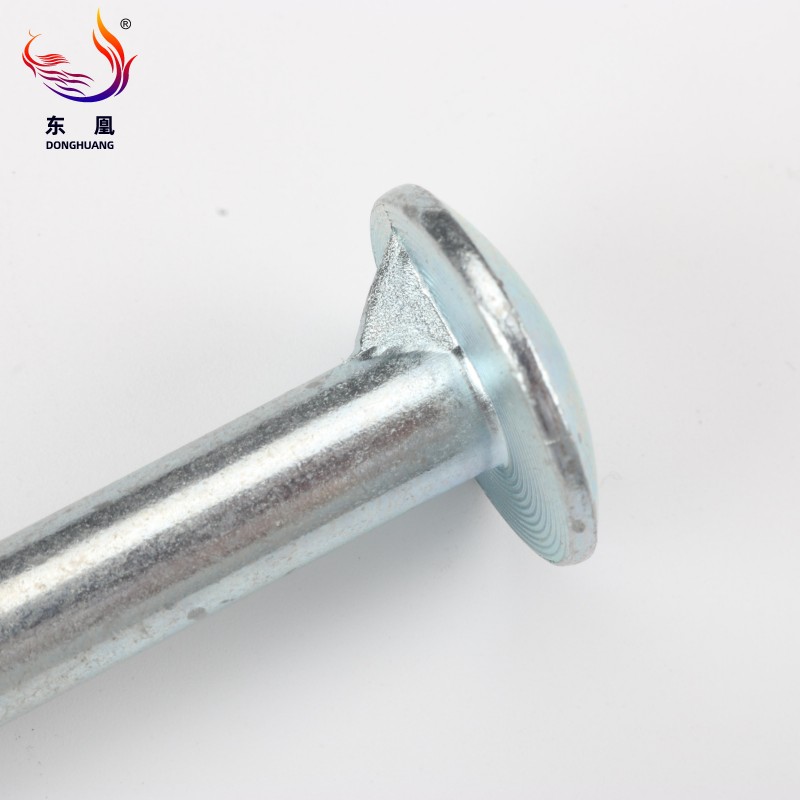

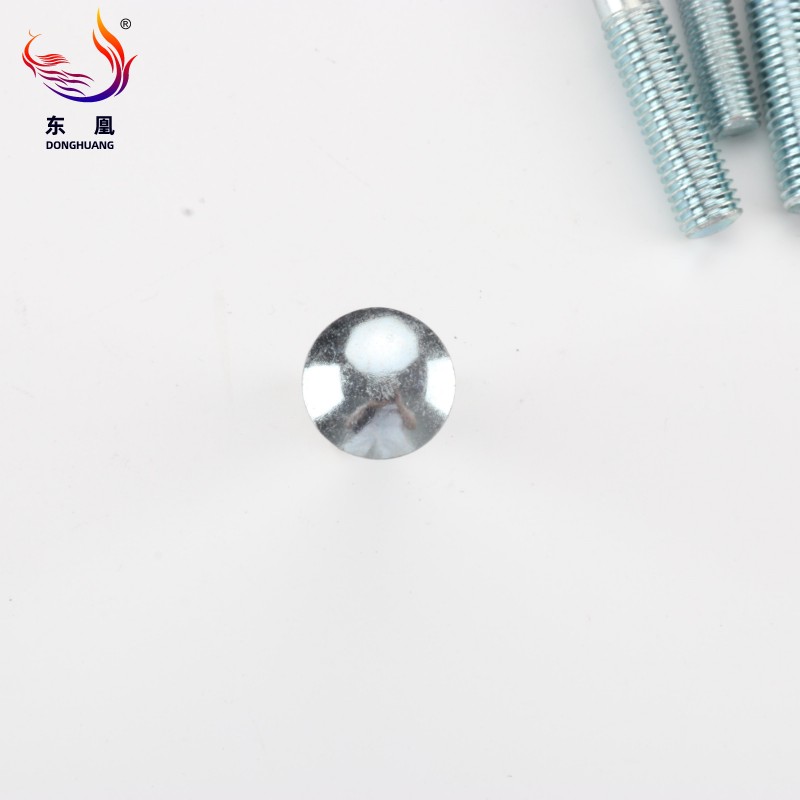

Head & Neck Design: The upper section features a completely smooth, dome-shaped Round Head that sits entirely flush against the mounting surface. This eliminates exposed sharp edges, offering a safe, snag-free tactile experience ideal for visible furniture or pedestrian-facing construction. Directly beneath this dome is a precisely angled Square Neck: this critical geometric component embeds deeply into timber or metal slots, physically locking the bolt in place to prevent any rotational movement during tightening.

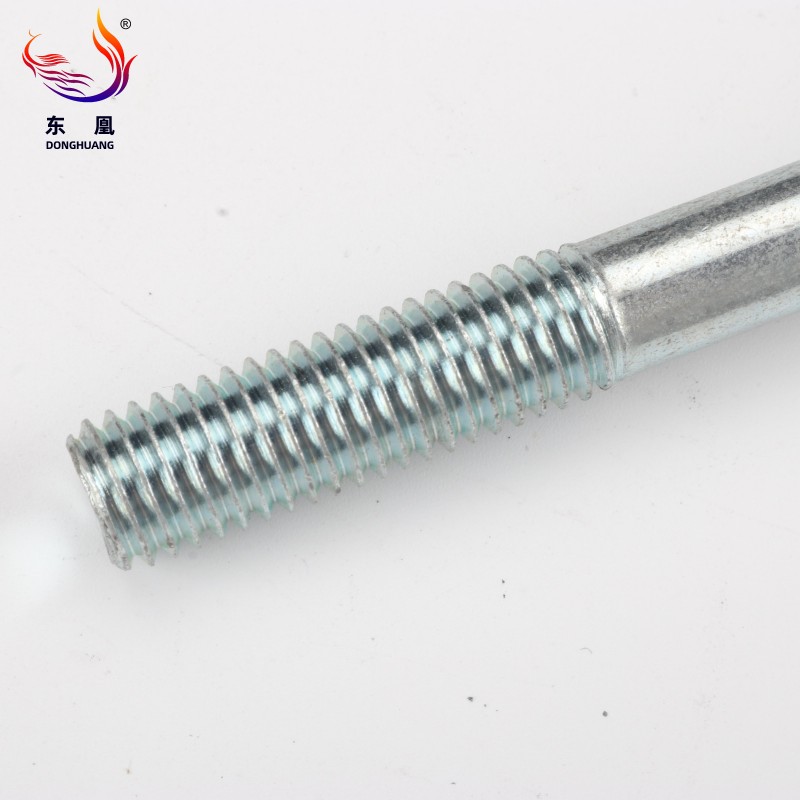

Shank & Thread: The main body is deliberately split into two distinct functional zones. The upper portion is a smooth, unthreaded solid steel cylinder designed to absorb intense lateral forces. The lower Half-Thread section features sharply cut grooves—available in both Coarse Thread for aggressive wood biting and Fine Thread for precise metal engagement—ensuring exceptionally tight clamping and full compatibility with standardized metric nuts.
Surface Coating: Every piece undergoes a comprehensive Blue-White Zinc Plated treatment, resulting in a bright, slightly iridescent metallic sheen. This uniform barrier actively repels moisture and oxidation, significantly extending the lifespan in demanding outdoor environments while adding a clean, professional aesthetic to the finished assembly.
The solid, unthreaded upper shank is specifically engineered to absorb heavy lateral loads without deformation. By keeping threads away from the primary shear plane, the Half-Thread Carriage Bolt delivers a 30% higher shear capacity compared to fully threaded alternatives. This structural advantage is essential for load-bearing frameworks like timber deck joists, where the connection must resist intense sideways pressure over decades of use.
The integrated Square Neck design fundamentally changes the assembly workflow. When inserted into a pre-punched or pre-drilled hole, the square corners embed securely into the base material. This creates a self-locking mechanism that requires only one person and a single wrench to tighten the nut from the opposite side. This single-sided fastening capability drastically reduces labor hours and lowers overall construction costs, especially for large-scale fencing or infrastructure projects.
The Half-Thread configuration ensures that the unthreaded portion spans the gap between the joined materials. This allows the two separate pieces (such as thick wooden beams or metal plates) to be pulled together tightly without the threads catching or binding inside the first material. The result is a highly secure, vibration-resistant bond that maintains its clamping force even in dynamic mechanical environments.
Beyond mechanical performance, the Round Head provides a visually pleasing, low-profile finish. The absence of protruding drive recesses (like Phillips or hex drives) means there are no cavities to collect dirt or water, and no sharp edges to cause injury on playgrounds, handrails, or public seating. The bright Blue-White Zinc Plated exterior further elevates the visual appeal, ensuring visible connections look clean and intentional.
This specific Carriage Bolt is engineered to perform across a wide spectrum of substrates. The square neck adapts intuitively to different material densities, sinking deeply into softwoods like pine, gripping firmly into hardwoods, and locking securely into pre-punched square holes in sheet metal. This adaptability makes it an essential fastener for mixed-material assemblies, such as securing wooden planks to steel machinery brackets.
Our Half-Thread Round Head Square Neck Carriage Bolt undergoes rigorous validation to guarantee consistent performance across every batch:
Standard Compliance & Technical Documentation: Every production run adheres strictly to DIN 603, ANSI, and GB specifications. We provide comprehensive technical support, including detailed product datasheets, material composition certificates, and compliance reports, ensuring a smooth approval process for your engineering and procurement teams.
Certifications: Backed by ISO, RoHS, and CE credentials, these fasteners meet stringent global environmental and safety directives. The Blue-White Zinc Plated finish is strictly formulated without harmful substances like hexavalent chromium.
Full-Process Quality Control: We implement a standardized inspection system from raw material intake to final packaging. Finished bolts are analyzed using an Optical Screening Instrument to identify microscopic imperfections—such as thread burrs or neck dimensional deviations—guaranteeing a 100% defect-free acceptance rate for critical projects.
Durability Testing: Representative samples from each lot undergo intensive 96-hour salt spray exposure to verify anti-corrosion barriers, alongside destructive shear testing to confirm Grade 5 and Grade 8 mechanical limits.
To support large-scale engineering and manufacturing demands, we offer a comprehensive suite of supply chain services designed for reliability and scale:
We supply Grade 5 (manufactured from medium-carbon steel) for general-purpose structural needs such as commercial furniture and perimeter fencing. For heavy-duty mechanical applications, we offer Grade 8 (forged from specialized alloy steel). Grade 8 variants deliver exceptional tensile strength exceeding 1500 MPa, making them the optimal choice for high-stress environments like automotive framework and industrial machinery.
Absolutely. The Blue-White Zinc Plated surface acts as a highly effective sacrificial barrier against rain, fluctuating humidity, and extreme temperature variations. This makes it highly suitable for outdoor decks, agricultural fencing, and exterior furniture. For installations in highly corrosive coastal regions exposed to continuous salt spray, we can also supply these bolts in marine-grade stainless steel.
Yes, we encourage physical evaluation. Free samples are readily available for standard metric dimensions (such as M6, M8, and M10) directly from our inventory. Once you share your specific project requirements with our technical sales team, we will dispatch the samples within 3 to 5 working days. For custom-engineered prototypes, a nominal setup fee applies, which is fully credited toward your initial volume order.
