A liner bolt is a specialized, high-strength fastener used in industrial machinery, especially in the mining and cement industries, to secure protective wear liners to the inner shell of grinding mills, crushers, and kilns. These heavy-duty bolts feature robust, hot-forged heads and long, threaded shafts made from high-strength alloy or stainless steel to endure intense vibration, dynamic loads, impact, and abrasion, preventing costly damage to the machinery's structural integrity and extending its lifespan.
The Grade 8.8 Black Oval Head Ball Mill Liner Bolt serves as a critical structural safeguard for heavy-duty industrial processing equipment. Engineered specifically to anchor protective wear liners against the internal shells of massive rotating machinery, this specialized fastener prevents liner displacement under extreme mechanical stress. In environments where equipment processes thousands of tons of raw materials daily, relying on standard fastening solutions often leads to premature shear failure. This liner bolt is purpose-built to absorb dynamic impact, resist intense multiaxial vibration, and withstand constant abrasive material contact, establishing a reliable barrier between sensitive internal components and harsh operational environments.
Manufactured from premium alloy steel and carbon steel formulations, the fastener delivers exceptional tensile strength and dependable wear resistance. It is meticulously designed for core application scenarios involving high-wear and high-impact conditions, such as mining crushing operations, cement kiln rotations, and heavy lifting mechanisms. By adhering strictly to ANSI dimensional standards, the bolt ensures precise compatibility with a vast array of global industrial equipment models. The dense, heavy feel of the forged steel reflects its structural integrity, directly addressing the common industry challenge of liner shifting—a primary culprit behind unplanned operational downtime, decreased processing productivity, and extensive machinery repair costs.
Connection | Common Bolt |
Standard | ANSI |
Grade | 8.8 |
Application | Machinery, Chemical Industry, Environmental, Building |
Finish | Black |
Transport Package | Plywood Case |
Trademark | Donghuang, Oem, Odm |
Origin | China |
HS Code | 8474209000 |
The visual and tactile characteristics of the Grade 8.8 Black Ball Mill Liner Bolt reflect its functional industrial design, optimized for long-term durability and precise fitment:

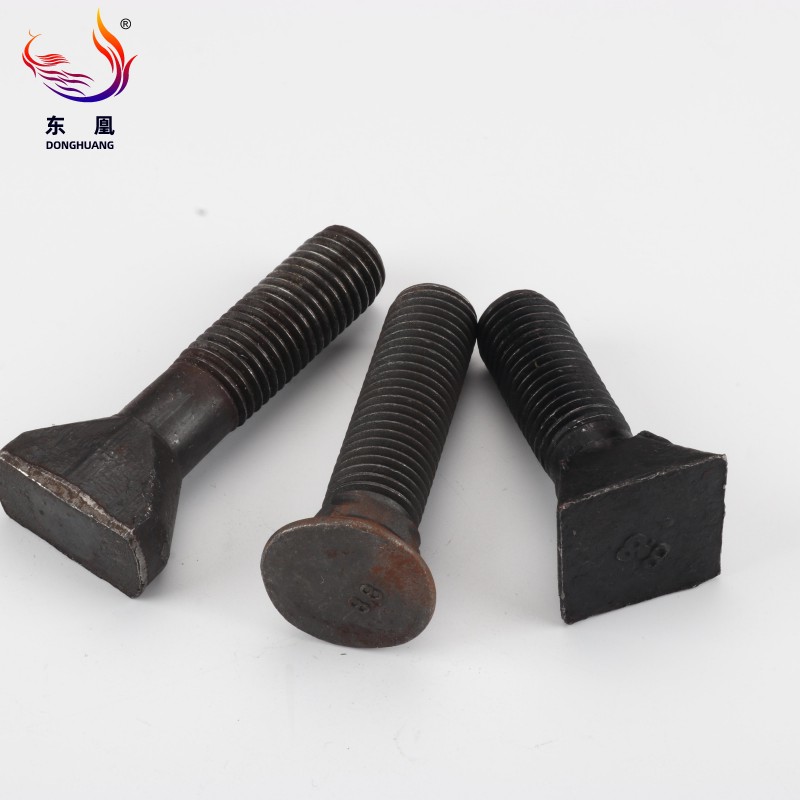

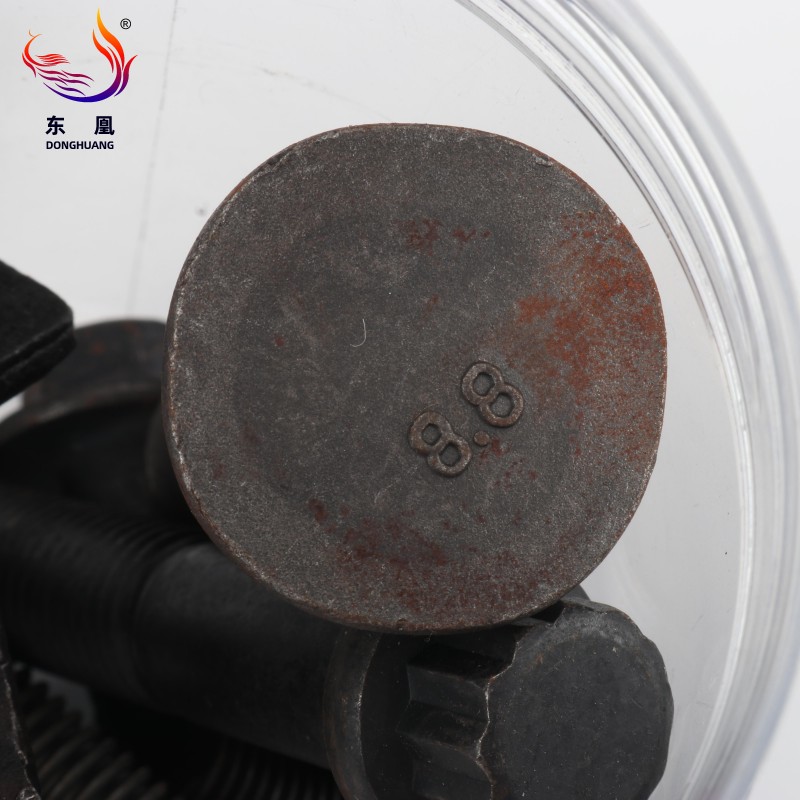

Hot-Forged Oval Head: Unlike standard round or hexagonal profiles, the distinct oval head is hot-forged to create a smooth, curved surface. This specific geometry sits flush against curved or flat liner plates, ensuring uniform pressure distribution. The smooth contour prevents abrasive materials from snagging on the bolt head, significantly reducing localized wear during mill rotation.
Advanced Surface Treatment: The standard finish features a matte black oxide coating that feels slightly textured to the touch. This electroplated or heat-treated layer acts as a primary shield against moisture, dust, and chemical exposure in damp mining or dusty cement plant environments. For extreme corrosive conditions, the surface treatment can be upgraded to Hot-Dip Galvanizing (HDG) or Dacromet coatings, providing superior rust prevention.

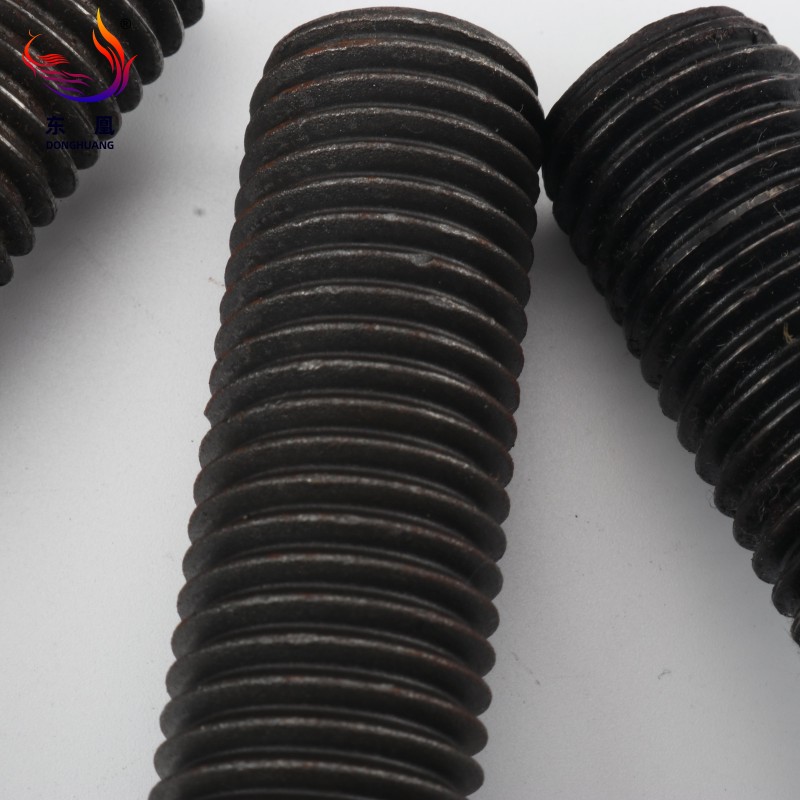

Precision Threaded Shaft: Engineered to strict ANSI and DIN manufacturing tolerances, the threaded shaft is available in both full-thread and half-thread configurations. The deep, sharp thread profile is cut to maximize grip strength within the machinery shell, offering exceptional anti-loosening performance even under high-frequency operational vibration.
Sealing Compatibility: The underside of the oval head is machined to accommodate optional industrial sealing rings. When compressed, these rings form an impenetrable barrier, preventing liquid ingress, abrasive dust penetration, or slurry leakage between the fastener and the machinery casing.
Maintaining heavy industrial machinery often involves significant risk, particularly when technicians must operate within confined, hazardous spaces. The Grade 8.8 Oval Head Liner Bolt is specifically designed to facilitate external installation. Maintenance crews can securely fasten, torque, or extract these bolts entirely from the exterior of the crusher or mill shell. By eliminating the need for personnel to enter the internal drum—where residual falling debris and heavy moving parts present constant dangers—this fastening system drastically improves workplace safety protocols and reduces the likelihood of maintenance-related accidents.

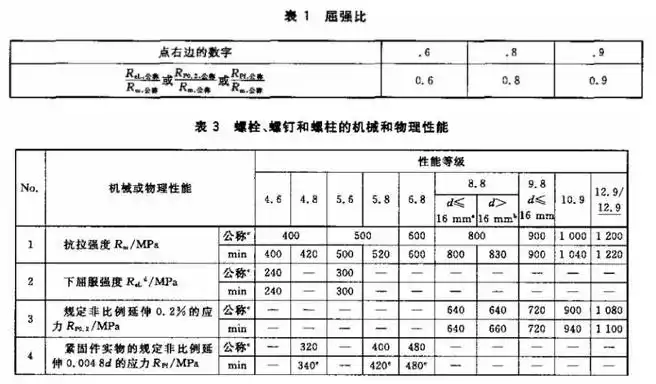

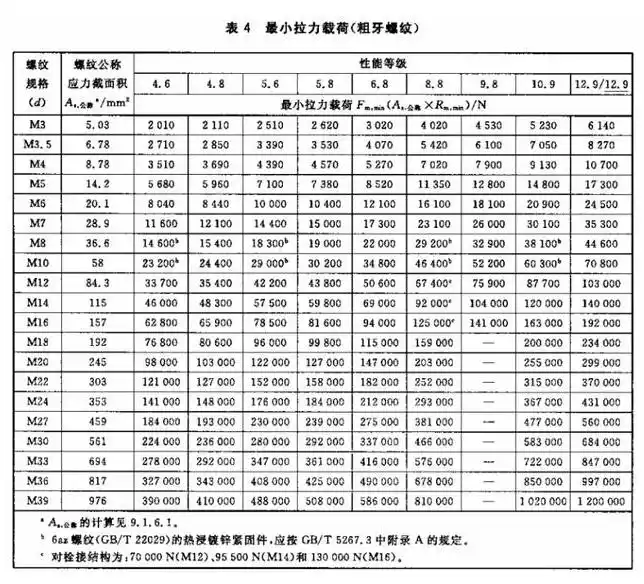

Through precise heat treatment processes, the alloy steel composition achieves a verified tensile strength of 800 MPa, strictly fulfilling Grade 8.8 mechanical property requirements. The fastener is engineered to absorb dynamic multi-directional loads up to 50 kN, providing a reliable structural safety barrier that far exceeds the capabilities of conventional commercial fasteners. For operations requiring even higher load-bearing capacities, the material and strength grades can be elevated to 10.9 or 12.9 upon request. The hot-forged head structure inherently resists micro-cracking and deformation under continuous heavy impact, maintaining its integrity when the milling equipment operates at maximum capacity.
Equipment downtime is one of the most significant cost factors in processing plants. By maintaining a relentless grip and preventing liner shifting, this specialized bolt effectively reduces unplanned maintenance interventions by up to 40%. The resilient black oxide finish delays the onset of environmental corrosion, extending the typical replacement cycle from a standard 6 months to up to 18 months in harsh, abrasive environments. This extended service life translates directly into uninterrupted production runs, optimized output yields, and a highly favorable total cost of ownership for the facility.
Every fastener leaving the production line is subjected to a rigorous, multi-stage quality control protocol to guarantee absolute reliability in the field. The inspection process ensures that each Grade 8.8 Black Ball Mill Liner Bolt performs exactly as specified:
Raw Material Inspection: Before any forging begins, incoming alloy and carbon steel batches undergo strict metallurgical analysis. We verify the precise chemical composition—specifically carbon and chromium levels—and conduct preliminary tensile strength tests to ensure the foundation of the bolt is uncompromised.
In-Process Testing: During the manufacturing phase, operators monitor the forging temperature and threading precision. Each batch produces a distinct metallic clink during Rockwell hardness testing, confirming the heat treatment has achieved the correct temper. Dimensional checks are performed using calibrated gauges to verify thread pitch accuracy and oval head curvature.
Finished Product Verification: Final inspection includes a 100% visual and tactile check of the black oxide coating. Adhesion is verified via standardized tape tests, while simulated vibration rigs apply intense mechanical stress to confirm load resistance and ANSI compliance.

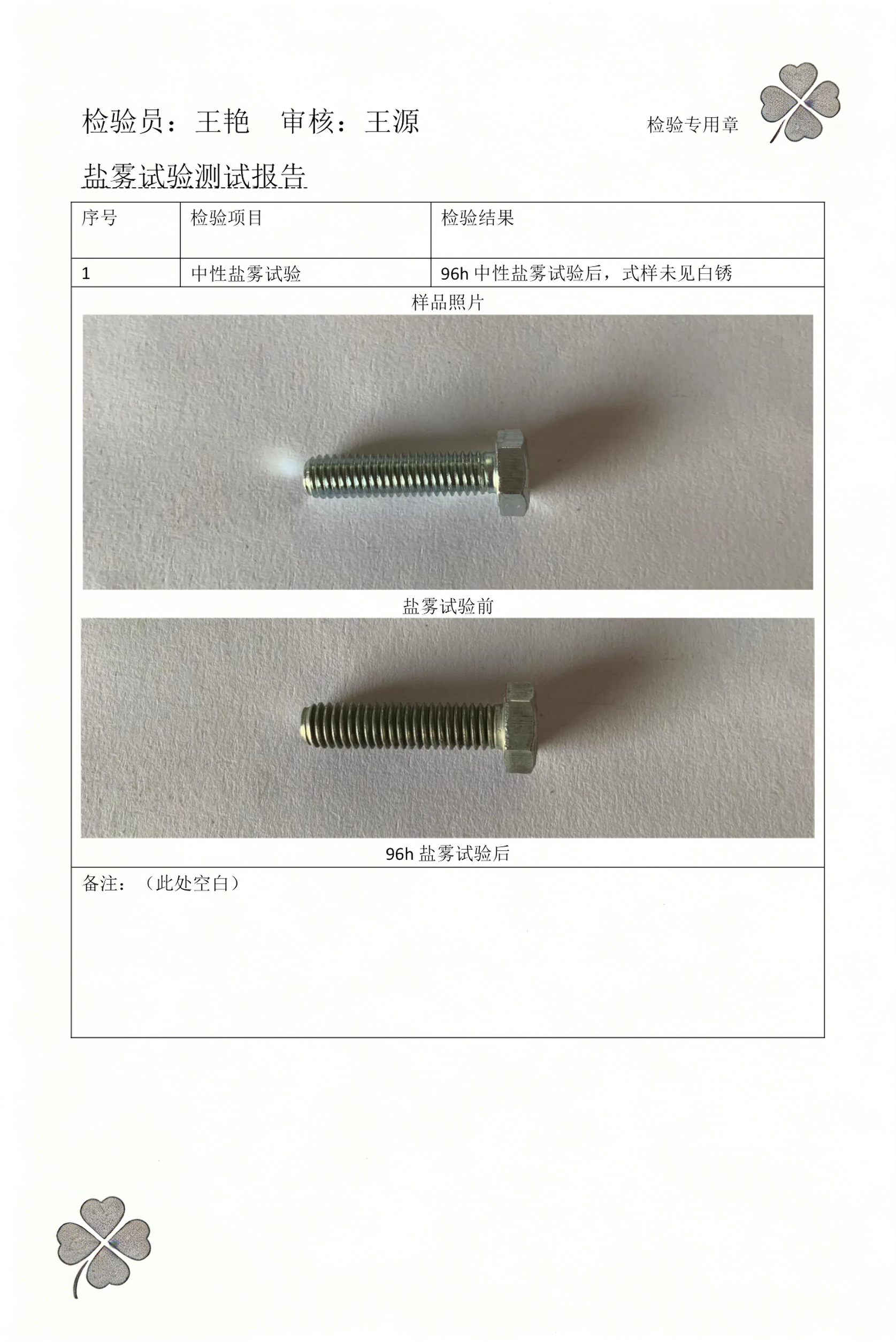

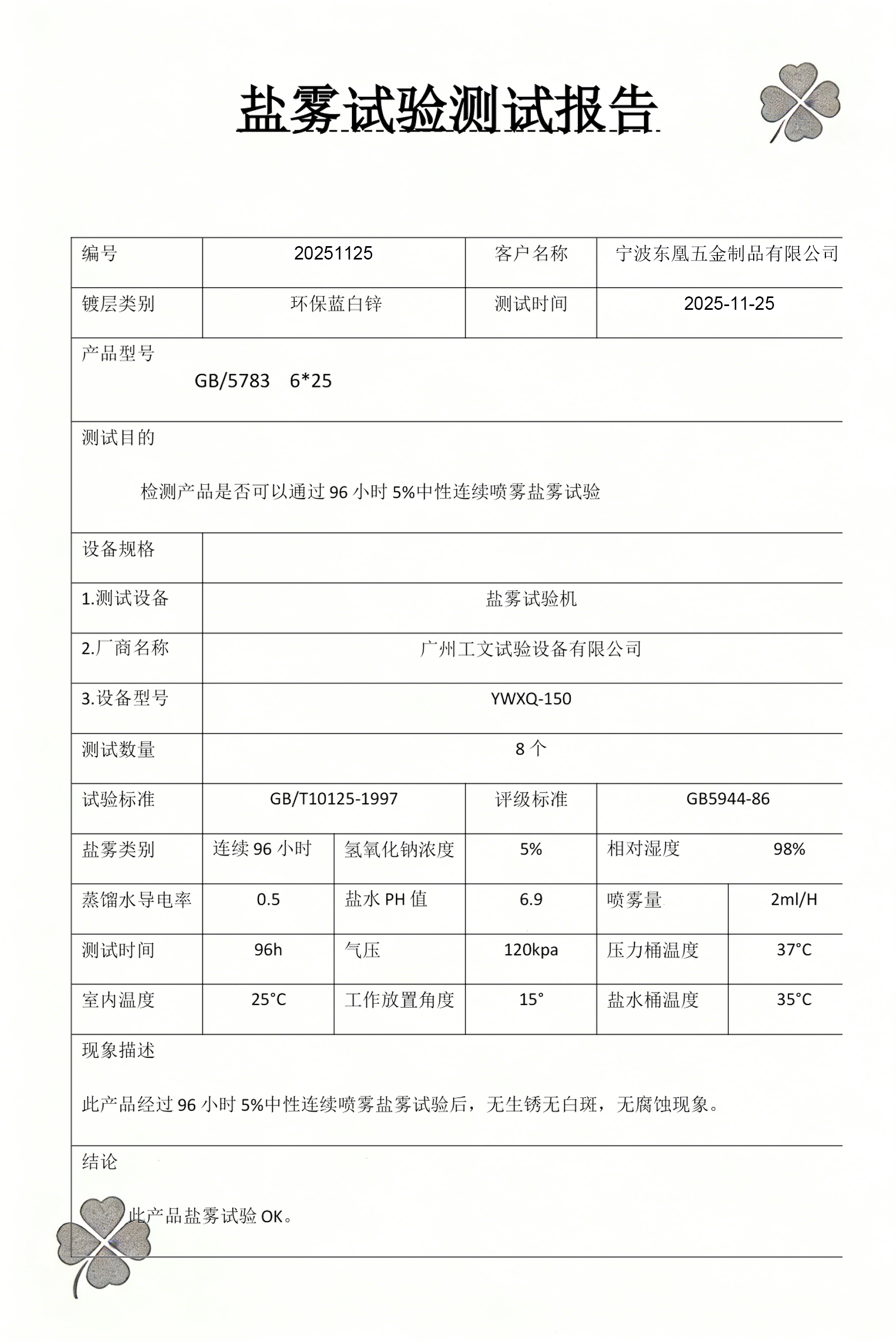

Certifications: Operating under a certified ISO 9001:2015 quality management system, our facility ensures complete traceability. Every shipment is accompanied by a detailed quality inspection report, providing procurement teams with documented proof of performance.
Understanding the rigors of long-distance maritime and overland freight, we implement industrial-grade packaging protocols to protect the structural and surface integrity of every order. Prior to packing, each bolt receives a thin, tactile protective film of premium anti-rust oil, sealing out ambient moisture. The fasteners are then securely arranged inside heavy-duty, fumigation-free plywood cases, specifically reinforced to handle extreme weight concentrations. This meticulous packaging strategy prevents metal-on-metal abrasion during transit, ensuring that large-scale cross-border shipments arrive at the facility in pristine, ready-to-install condition, completely free from transit-induced oxidation or thread damage.
Yes, we operate as a primary manufacturer with a fully equipped, proprietary production facility and a dedicated international sales division. By managing the entire manufacturing lifecycle internally—from raw material procurement and hot forging to final surface treatment and global logistics—we maintain strict quality oversight. This direct-from-factory approach ensures that procurement teams receive highly competitive pricing models and unvarying batch-to-batch quality for all ball mill liner fastening requirements.
Absolutely. Leveraging our comprehensive OEM and ODM capabilities, we excel in non-standard customization to match specific machinery requirements. We can modify overall shaft lengths (ranging from 100mm to 500mm), adapt thread specifications (metric or imperial pitches), and re-engineer the oval head geometry based on your precise technical drawings. This ensures a perfect fit for uniquely contoured mill liners. Custom manufacturing cycles are highly efficient, typically requiring only 15 to 20 days for completion, depending on the complexity of the requested specifications.
To accommodate various project scales, our standard Minimum Order Quantity (MOQ) for off-the-shelf ANSI specifications is set at 500 pieces. For specialized OEM/ODM custom designs that require unique tooling or forging molds, the MOQ is 1,000 pieces. We also recognize the importance of field testing before large-scale implementation, which is why we readily accept smaller trial orders of 200 to 300 pieces for new clients looking to verify the performance and durability of our fasteners in their specific operational environment.
