A roof rarely fails all at once due to a single catastrophic event. More often, the degradation starts with something entirely imperceptible: a microscopic pinhole pathway where moisture sneaks in, travels silently down a metal shank, and leaves a dark water stain that remains completely unnoticed until the seasons shift and the damage spreads. When maintenance crews finally arrive to diagnose the compromised decking, the weak link is frequently the fastener itself—especially when a standard, rigid washer hardens, splinters, or loses its natural rebound, causing the penetration hole to lose its protective seal permanently.
Umbrella Roofing Nails equipped with integrated EPDM Washers are engineered specifically to shut that moisture pathway down from the very first strike of the hammer. The exact moment the nail is driven into the substrate, the broad umbrella-shaped metal head presses down with a confident, evenly distributed clamping force. There is no sharp pressure ring cutting into the delicate roofing material, no localized tearing of the fibers—just solid, stable surface contact. Underneath this protective metal shield, the EPDM rubber washer compresses with a dense, tactile resistance. It retains its essential elasticity, ensuring the critical seal does not degrade or vanish after years of intense thermal cycling. You achieve a fastening point that looks impeccably tidy from the exterior, feels rock-solid under manual inspection, and remains completely silent during severe storms—drastically reducing wind lift, eliminating metal chatter, and preventing micro-movements that typically open up vulnerable gaps.
Whether your project involves securing corrugated roofing sheets in tropical rainy regions, fastening heavy-duty asphalt shingles, anchoring asbestos tiles, or attaching essential roofing felt and house wrap, this specific fastener ensures the entire roof behaves as one continuous, impenetrable barrier. It transforms a vulnerable surface into a resilient shield, rather than leaving a patchwork of exposed holes waiting for the next heavy rainfall to exploit.
Long-term leak resistance: The premium EPDM washer compresses dynamically and maintains constant outward pressure around the nail penetration point. This superior weather resistance blocks water ingress over time, even under extreme temperature fluctuations.
Stronger grip under wind load: The generously sized umbrella head creates a significantly wider contact area. This structural design distributes stress evenly, helping reduce pull-through risks and edge tearing during severe weather events.
More stable roof surface: Consistent, firm clamping reduces the micro-movements and vibrations that can gradually enlarge penetration holes and invite hidden seepage into the building envelope.
Jobsite-friendly verification: Proper washer seating is instantly visible to the naked eye. Installers can quickly confirm optimal compression and vertical alignment, ensuring strict quality control and zero rework on the site.

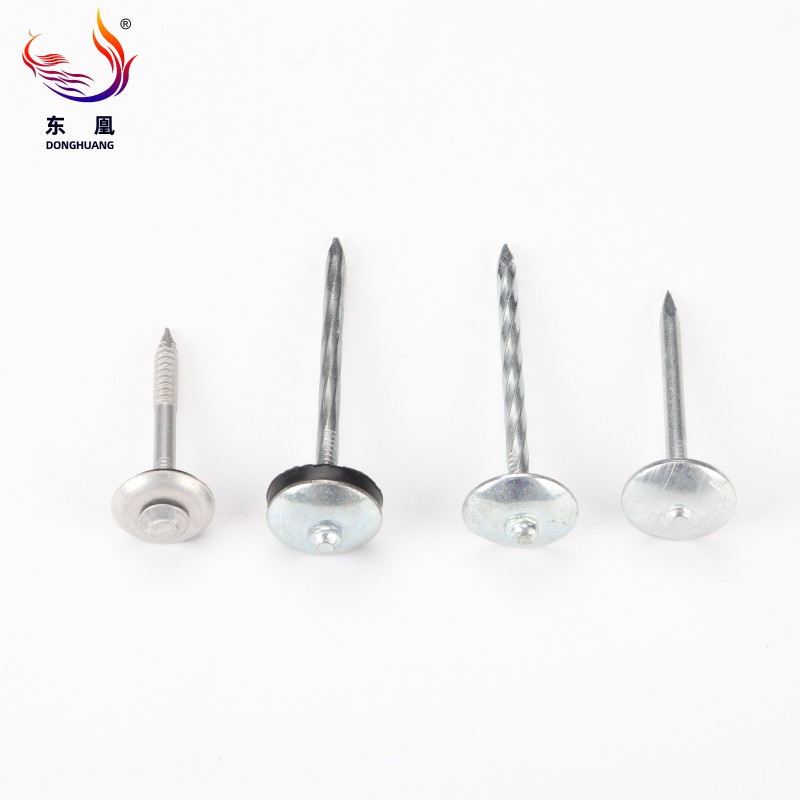

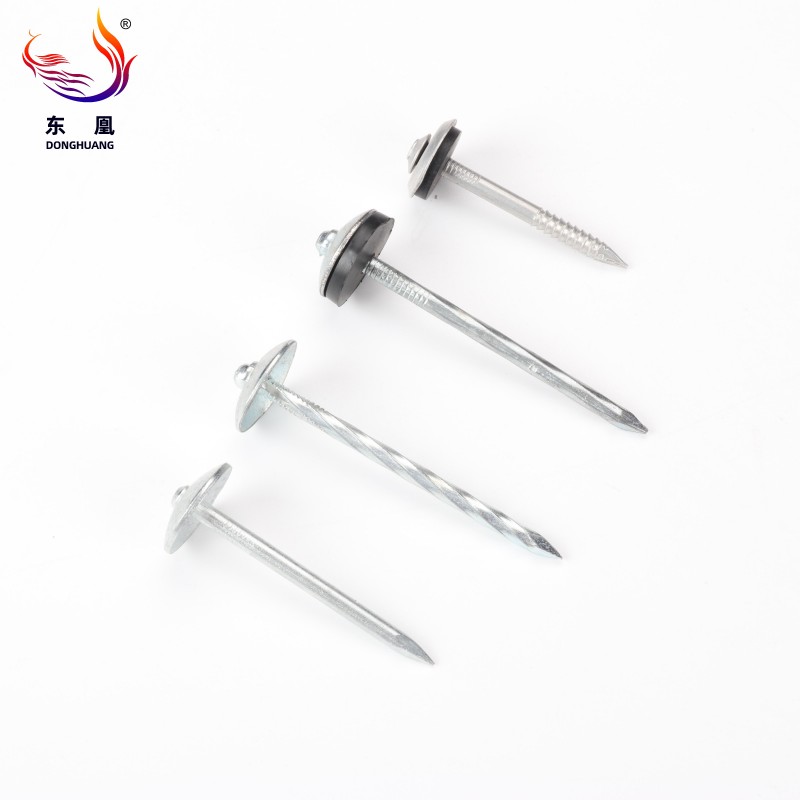

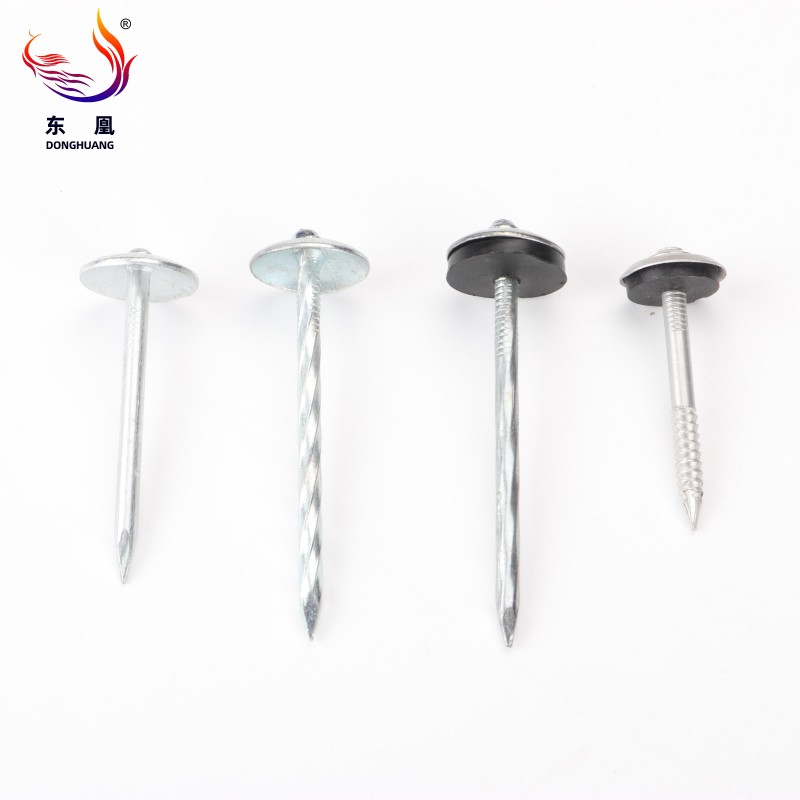

Flexible configuration: Select from Twisted Shank, Plain Shank, or Screw Shank variations. Each profile is crafted to provide extreme mechanical bite and withdrawal resistance tailored to specific structural substrates.
Adaptable packaging & branding: We provide highly flexible logistics solutions. Transport packages are arranged exactly as per customer’s option—including bulk cartons, heavy-duty pallets, or traditional gunny bags—complete with customizable trademarks for seamless project identification.
| Model NO. | roofing nail |
| Material | Steel |
| Place of Origin | Tianjin, China |
| Brand Name | Donghuang |
| MOQ | 1 Ton |
| Delivery Time | 20-30 Days |
| Head Diameter | 2mm-20mm |
| Types | Common Nail, Roofing Nail |
| Shank | Twisted Shank, Plain Shank, Screw Shank |
| Transport Package | as Per Customer′s Option |
| Origin | Zhejiang |
| Trademark | customizable |

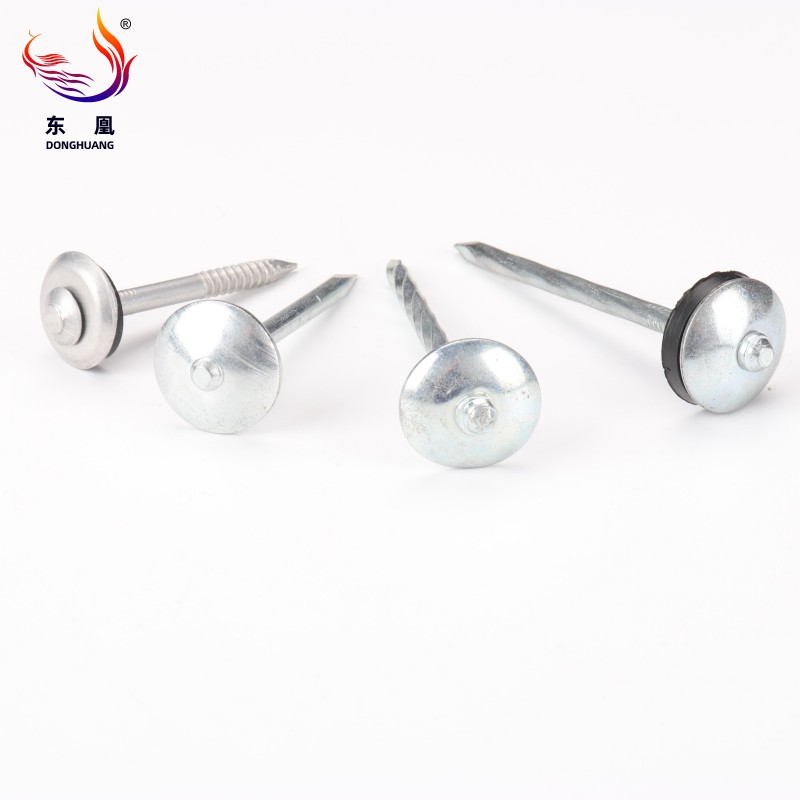

The umbrella head isn’t just visually larger; its real structural value lies in how it fundamentally changes the stress profile on delicate roofing materials. With standard, smaller heads, the downward pressure concentrates into a tight, aggressive ring that can easily slice into asphalt shingles or permanently deform the ridges of corrugated sheets. Under severe wind uplift, that highly stressed, pinched area becomes the exact starting point for tearing or hole enlargement.
With an umbrella head, the contact area spreads out smoothly, ensuring the material is firmly clamped rather than sharply pinched. In practical field applications, that translates to:
Significantly less chance of pull-through on thinner roofing sheets or brittle substrates
Superior hold on corrugation peaks and valleys, adapting naturally to your chosen fastening method
A much more finished surface appearance—neat, perfectly centered, and visually uniform across the entire roofline
When you press down on the installed point by hand, the surface feels exceptionally firm and locked into place. There is absolutely no “soft wobble” or shifting that hints the fastener might be working itself loose over time.
The integrated washers are exactly where many roofing fasteners quietly succeed—or disastrously fail. A standard plastic washer that turns brittle with intense UV sun exposure or loses its rebound in freezing winter temperatures will inevitably leave a hairline gap around the metal shank. Water doesn’t need a large opening; it only needs a microscopic path to begin rotting the deck below.
EPDM is highly valued in demanding roofing environments because it is specifically engineered to stay flexible across extreme temperature swings and actively resist outdoor aging. When properly compressed under the metal umbrella head, it behaves exactly like a persistent, heavy-duty gasket:
Compresses tightly to conform perfectly to slight surface irregularities on corrugated metal or textured shingles
Keeps structural “memory” so it continuously presses back against the nail head instead of permanently flattening out
Helps maintain a flawless, waterproof barrier even when the entire roof structure naturally expands and contracts
The ultimate result: the fastening point stays hermetically sealed longer, completely eliminating the risk of slow, hidden seepage that routinely damages structural decks and interior insulation.
Roof fasteners live permanently at the front line of severe weather. Constant moisture, abrasive salt air in coastal regions, and acidic runoff can rapidly accelerate corrosion. Once the steel shank degrades, the roof loses its holding power, and subsequent leaks become incredibly difficult to repair cleanly without replacing entire sections of material.
These umbrella roofing nails are manufactured from strictly selected premium carbon steel and are paired with robust protective surface treatments—available in both electro-galvanized and hot-dip galvanized finishes. This dedicated anti-corrosion process provides an outstanding rust-resistant lifespan of 10 to 15 years, even in the most punishing outdoor environments. More importantly, a long-lasting roof depends entirely on manufacturing consistency: uniform production standards, reliable washer assembly, exact dimensions, and stable surface treatment from batch to batch. That strict quality control helps prevent mixed performance on a job site—where one area holds up perfectly while another develops unsightly rust streaks or early loosening.
If your specific architectural projects demand long-term exposure performance, simply specify your precise zinc coating thickness requirements during your initial inquiry. We ensure the delivered fasteners perfectly match the local environmental demands and the expected lifespan of the building.

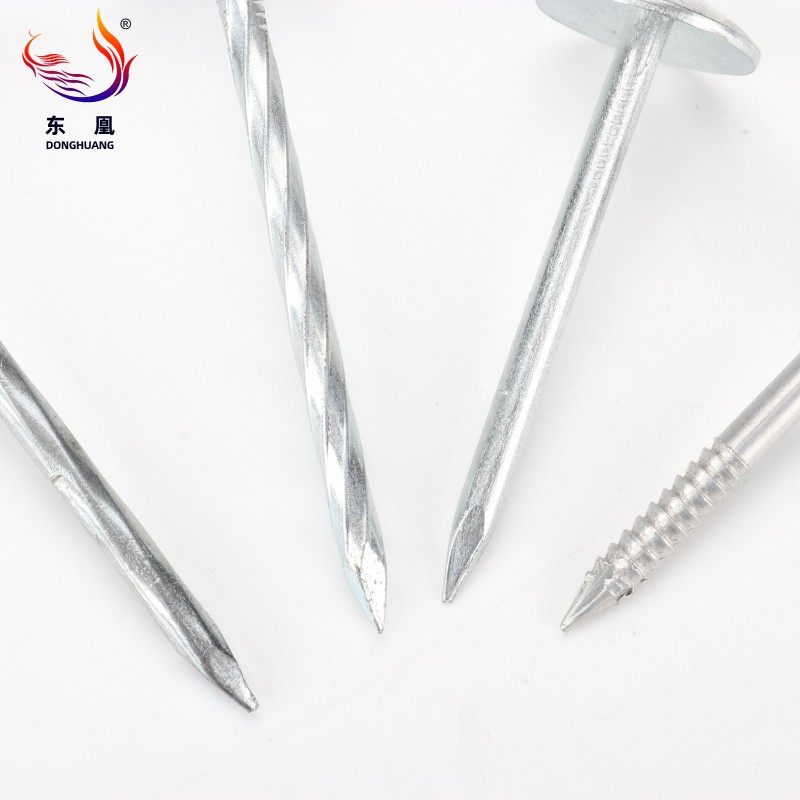

Different structural substrates and complex roofing assemblies behave differently under load. That’s precisely why this product supports multiple distinct shank choices, allowing you to match the fastener to the exact physical demands of the installation:
Plain Shank: Delivers smoother driving and highly efficient installation for basic applications where extreme withdrawal resistance isn’t the primary structural concern.
Twisted Shank: Provides a significantly increased mechanical “bite” into wooden purlins and trusses, helping actively resist backing out from heavy vibration and seasonal structural movement.

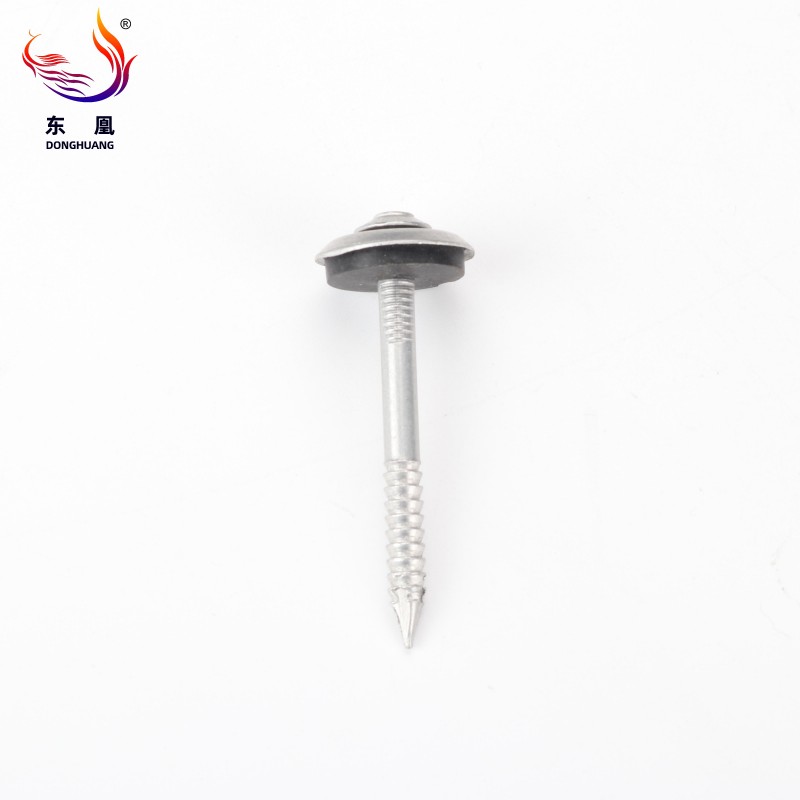

Screw Shank: Offers enhanced, aggressive withdrawal performance where maximum hold is desired, effectively preventing the roofing material from tearing away during severe updrafts.
Choosing the right shank profile is not a minor preference—it is a critical performance decision. A commercial or residential roof that experiences frequent wind events, intense temperature cycling, or natural structural settling greatly benefits from shank designs that actively resist gradual loosening. That translates directly to fewer raised fastener points, fewer micro-gaps at the rubber washer, and a roofline that stays visually clean and structurally sound.
Umbrella Roofing Nails with EPDM Washers are exceptionally versatile, proving suitable for a wide variety of common roofing, cladding, and wrap fastening tasks. They are heavily utilized in residential buildings, commercial facilities, and tropical rainy areas, including:
Asphalt shingles and fiberglass shingles
Wood shakes and other traditional wood roofing materials
Roofing felt, house wrap, and synthetic underlayments
Corrugated roofing sheets and heavy-duty metal panels
Plastic tiles, wooden tiles, and classic asbestos tiles
For asphalt shingles and roofing felt, the primary goal is fast, clean penetration and stable clamping without crushing or damaging the fragile material. For corrugated sheets and asbestos tiles, the wide umbrella head helps provide the exact surface area needed to keep the sheets firmly seated against the purlins. When paired with the resilient EPDM washer, the fastening point becomes a dual-purpose solution: providing both rigid mechanical hold-down strength and an impenetrable environmental seal.
Even a premium-grade fastener still requires correct, precise installation to perform exactly as designed. For the absolute best sealing and holding results on the job site:
Place nails on the recommended fastening line explicitly provided by the roofing material manufacturer to ensure optimal load distribution.
Keep consistent edge distance across every panel to completely avoid cracking, splintering, or tearing near the fragile margins of the sheet.
Drive straight, not angled. The hammer strike must be strictly perpendicular so the EPDM washer compresses evenly across its entire circumference.
Stop at proper compression: The rubber washer should look snug and evenly seated—visibly compressed to form a tight seal, but never crushed or bulging outward.
Follow spacing guidelines dictated for the specific roofing system to maximize resistance against wind uplift and prevent panel fluttering.
A simple, effective field check: run a bare finger across the installed fastening points. You should feel smooth, uniform seating—absolutely no sharp metal protrusions, and no loose “spin” of the washer that indicates dangerous under-driving.
Q1: Why choose EPDM washers instead of standard plastic washers?
EPDM is specifically formulated for harsh outdoor exposure. Unlike standard plastics that harden and crack, EPDM stays highly elastic through extreme hot and cold temperature swings. That enduring elasticity helps maintain a tighter, permanent seal over time, entirely eliminating the chance of slow, destructive seepage at the nail penetration point.
Q2: Which shank type should I choose for my project?
The plain shank offers highly efficient driving for standard applications; the twisted shank adds excellent mechanical bite into wood and helps resist backing out from structural vibration; the screw shank provides the absolute strongest withdrawal resistance for extreme wind zones. Share your specific substrate and roof type with our team, and we will recommend the most structurally sound option.
Q3: Can you provide customized packaging and OEM branding?
Yes, our logistics and production are highly adaptable. The transport package is arranged exactly as per the customer’s option—whether you require bulk cartons, heavy-duty wooden pallets, or traditional gunny bags. Furthermore, the trademark is fully customizable, and we support specific OEM requests including bespoke dimensions, shank types, and specific zinc coating thicknesses to meet your regional building codes.
Q4: What is the MOQ and expected lead time?
The Minimum Order Quantity (MOQ) is 1 Ton. Delivery time is typically 20–30 days, depending on your exact customization specifications, packaging requirements, and our current production schedule.
Q5: What payment terms do you support?
We commonly operate with a 30% deposit and the remaining 70% balance against the copy of shipping documents via T/T. L/C is also acceptable for larger project orders. Exact trade terms are clearly confirmed and documented during the formal quotation process.
