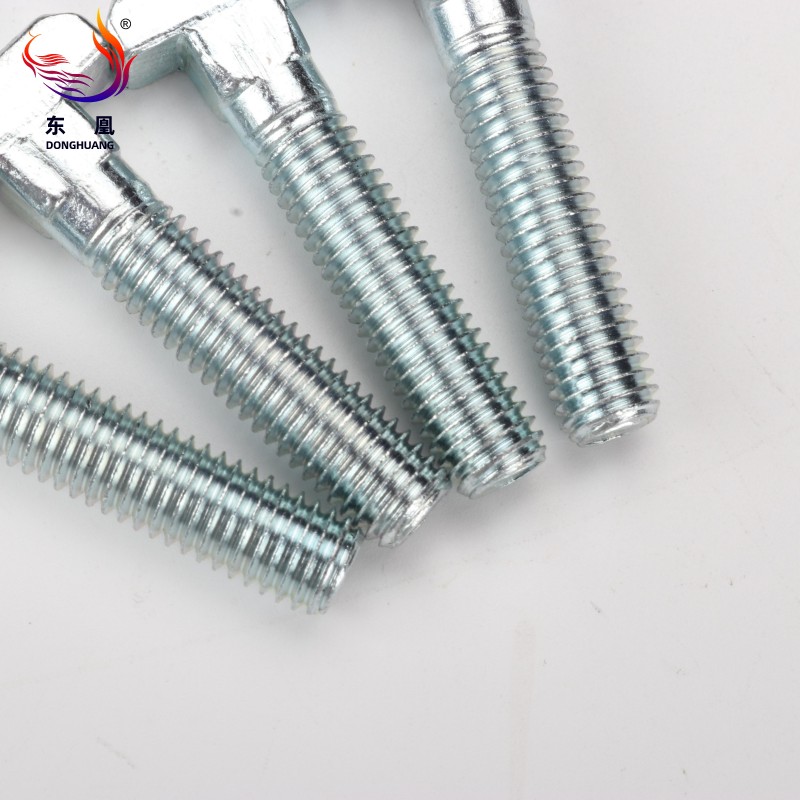

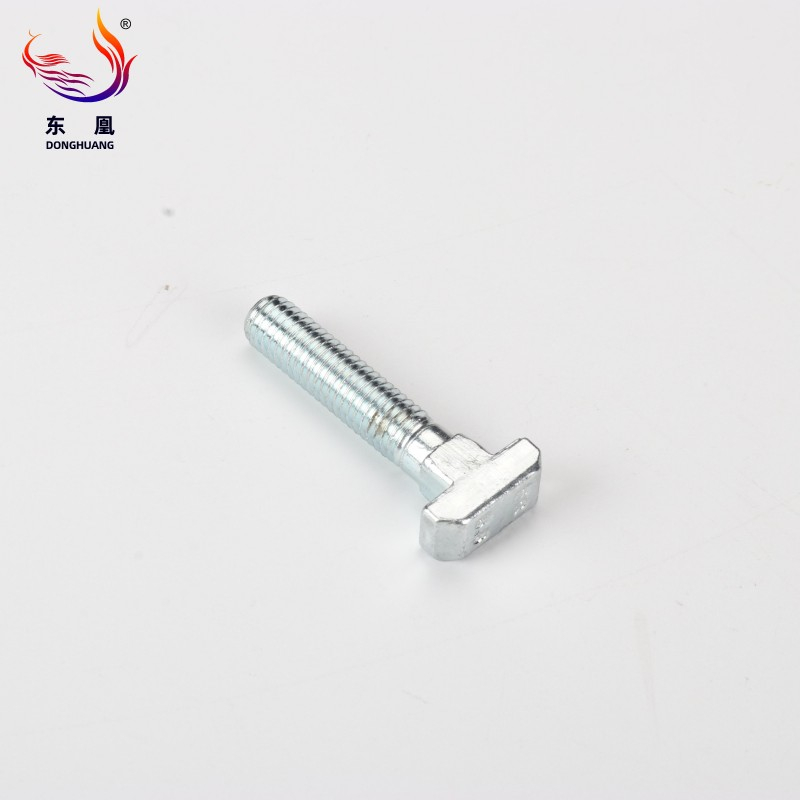

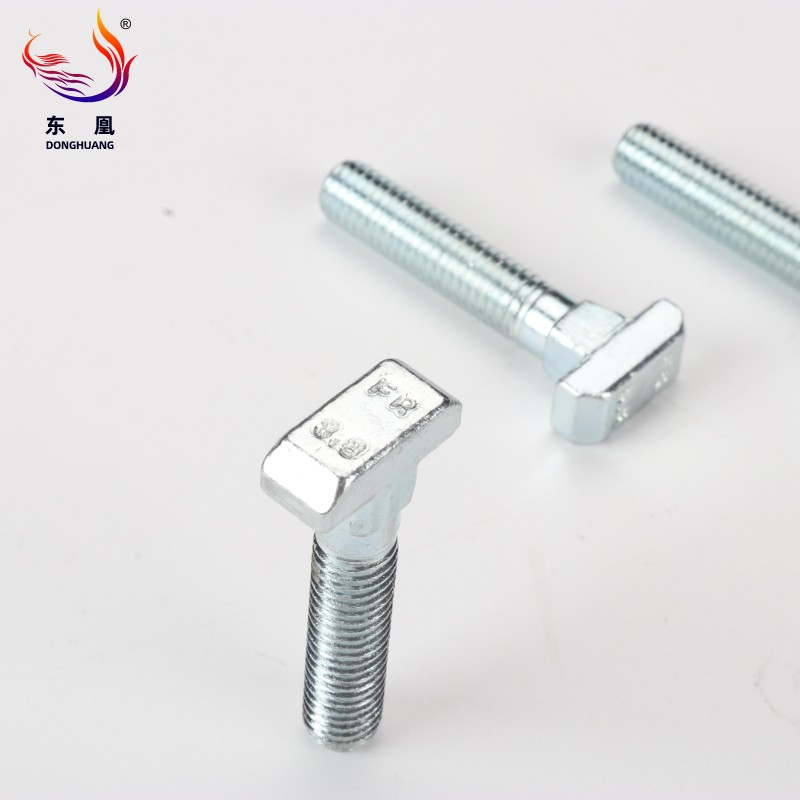

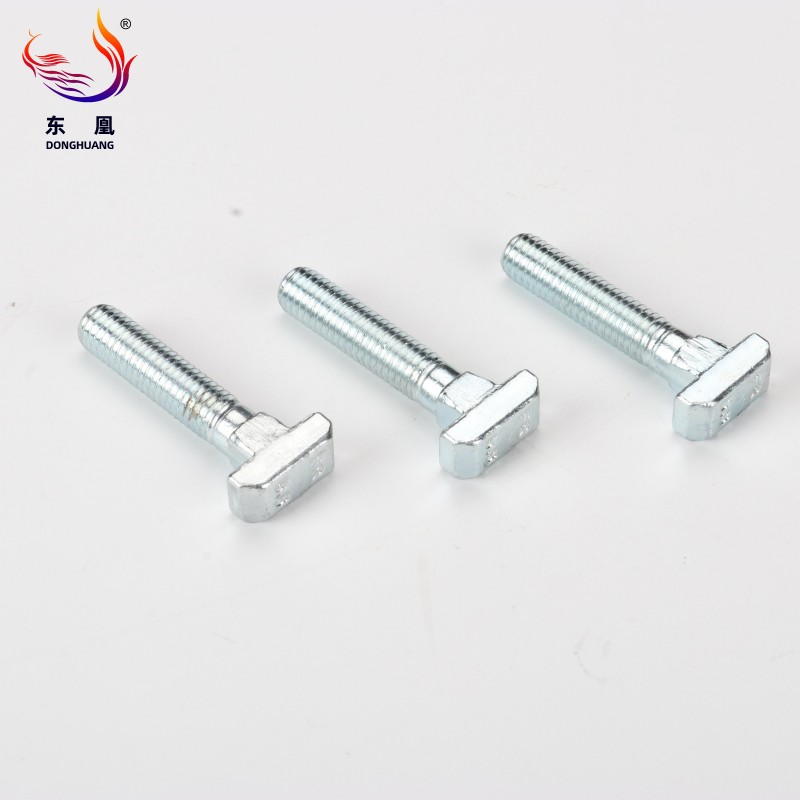

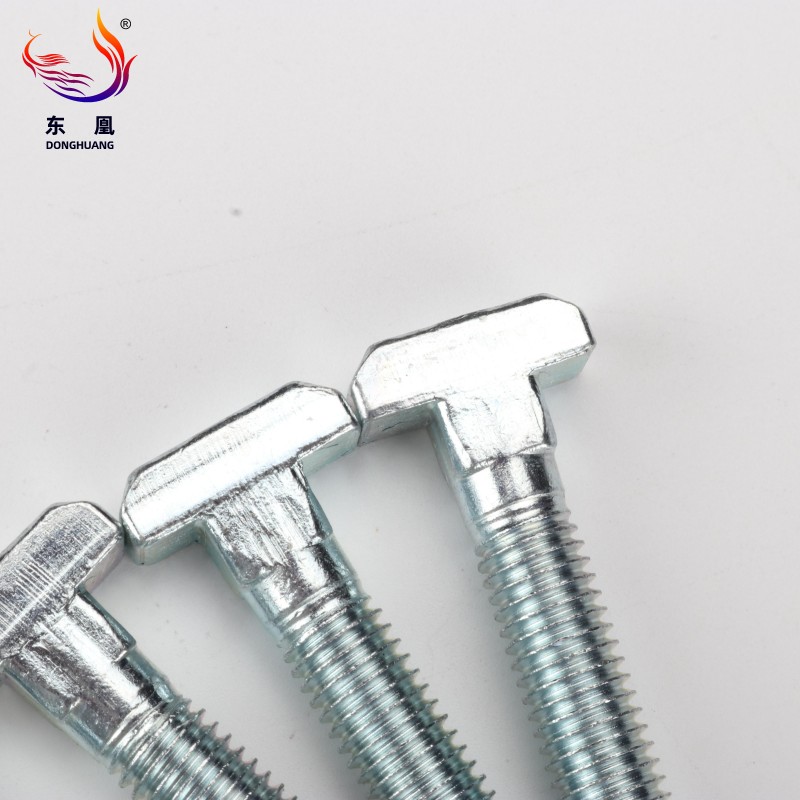

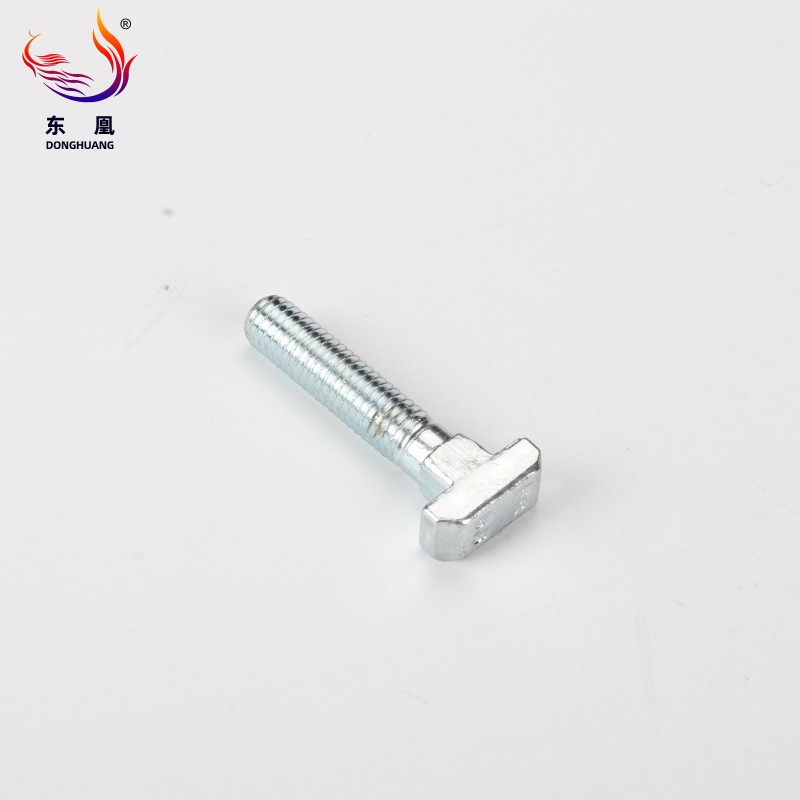

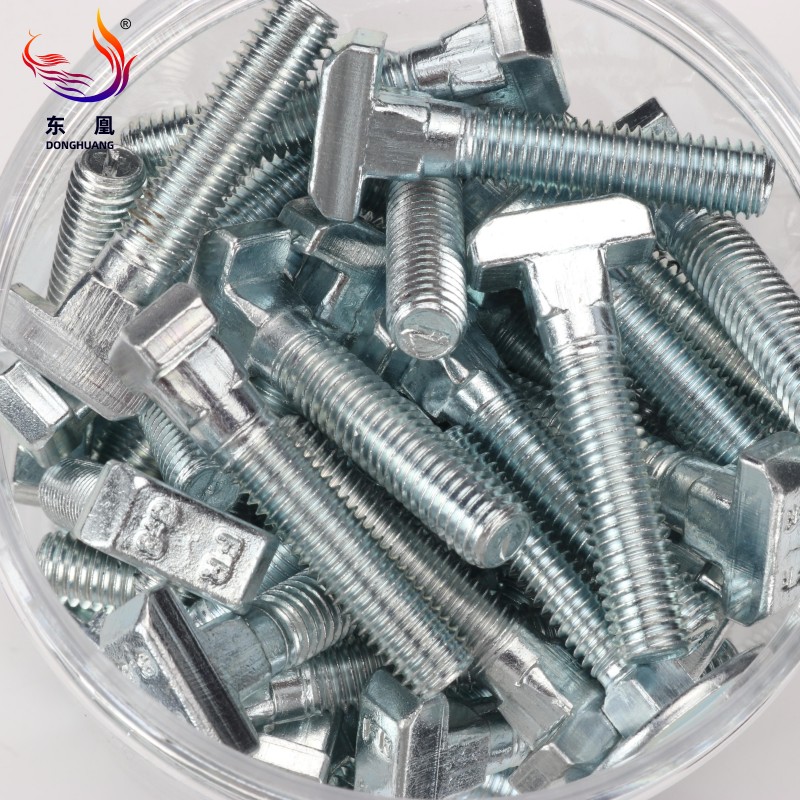

A T-slot bolt is a specialized fastener engineered with a distinct "T" shaped head, meticulously designed to slide smoothly into the channel of a T-slot extrusion. This mechanism allows for highly flexible, secure, and precise attachment of various structural components. Crafted from premium-grade carbon steel, these fasteners present a solid, heavy-duty metallic feel, complemented by a visually consistent zinc or nickel-plated finish that actively resists oxidation. They are widely implemented across industrial machinery setups, woodworking frames, and other demanding applications where adjustable, exceptionally strong connections are critical for operational stability. The smooth engagement of the threads and the secure locking action of the hammer head provide immediate tactile confirmation of a reliable joint, ensuring that complex frameworks remain structurally sound under continuous operational stress.
These fasteners offer unparalleled spatial adaptability. T-slot bolts can be effortlessly slid into the extrusion channel and precisely positioned exactly where needed. This fluid movement allows operators to make rapid adjustments and immediate modifications to the framework layout without dismantling the entire structure, significantly reducing downtime during layout changes.
By utilizing this specialized fastening method, structural builders completely eliminate the labor-intensive need for drilling, tapping, or welding. This streamlined approach simplifies the entire assembly process, drastically reducing the physical effort and time required to erect complex frames, thereby accelerating project completion rates.
Modular systems thrive on adaptability. T-slot systems facilitate the rapid disassembly and reassembly of connected components. This inherent reconfigurability makes it incredibly simple to adapt existing structures to changing operational needs, ensuring that your initial hardware investment continues to deliver value even as project requirements evolve.
When properly torqued, T-slot bolts distribute the clamping load evenly along the interior lips of the T-slot channel. This balanced distribution prevents localized stress concentrations, which fundamentally improves the overall structural strength, rigidity, and long-term stability of the connection under dynamic loads.
Beyond mechanical strength, these fasteners contribute to a professional visual finish. They create a clean, streamlined look because the functional head remains entirely hidden within the interior profile of the T-slot. This internal locking mechanism eliminates the need for bulky external brackets or unsightly clamps, keeping the exterior surfaces smooth and unobstructed.
Manufactured from high-strength carbon steel, the surface undergoes a meticulous zinc or nickel plating process. This protective layer provides an excellent barrier against moisture and chemical exposure, ensuring superior anti-corrosion and wear-resistant properties. The fasteners maintain their structural integrity and metallic luster even when deployed in harsh, demanding industrial environments.
The threads are machined with exacting precision, offering a smooth, frictionless rotation during installation. Coupled with the rounded T-head design that prevents jamming inside the channel, these bolts can withstand substantial tightening torque without stripping or slipping. This reliability directly enhances the efficiency of fast-paced assembly lines.
Engineered for precise compatibility, these hammer head bolts perfectly match standard 30, 40, and 45 series aluminum profiles. Whether utilizing a direct drop-in method or sliding them in from the profile ends, they provide a seamless fit for constructing 3D printer frames, CNC machine bases, and automated robotic enclosures.
Accurate specifications form the foundation of any reliable structural framework. The following technical parameters detail the exact physical and material attributes of our fasteners, ensuring they meet the strict tolerances required for heavy-duty fastening. From the dependable steel composition to the precise threading, every metric is strictly controlled to guarantee optimal performance.
| Item | T slot Bolt / Hammer Head bolt |
| Material | Steel |
| Slot | 8/10mm |
| Surface treatment | Nickel Plating |
| Thread | M6/M8 |
| Used for | 30/40/45 |
| Port | Ningbo |
| Payment terms | T/T,Paypal,Western Union |
T-slot bolts are frequently implemented in the construction and continuous assembly of heavy industrial machinery, including expansive conveyor systems, automated production lines, and ergonomic manufacturing workstations. They provide a robust, vibration-resistant method for securing critical components, ensuring that the entire setup maintains rigorous stability during active operation.
T-slot aluminum profiles are the industry standard for building modular structures, and these specialized bolts are the essential linking elements for connecting and securing these profiles together. This highly modular system allows for flexible, intuitive assembly of various architectural structures, ranging from simple protective frames to highly complex, multi-tiered workstations.
In the precision-driven fields of machining and manufacturing, these fasteners are routinely utilized to firmly clamp raw workpieces onto machine tables. This strong clamping force ensures absolute stability and dimensional precision during aggressive cutting, milling, or drilling operations, preventing any material shift that could compromise the final product.
These demanding industries utilize these specific fasteners extensively in the creation of custom assembly jigs and inspection fixtures. They are crucial for securely holding sensitive or heavy components in exact alignments during the complex phases of vehicle and aircraft manufacturing.
Beyond standard machinery, these versatile bolts are also applied within the broader construction sector. They serve as reliable anchoring points for securing large temporary structures, modular partition walls, and specialized structural supports where rapid deployment and secure fastening are equally prioritized.
Insert the T-nut: Depending on the specific type of T-nut selected for your project (whether it is a drop-in, roll-in, or pre-set variant), carefully insert it into the T-slot opening at the precise desired location along the extrusion.
Position the component: Align the external component or bracket you intend to attach directly over the inserted T-nut, ensuring the mounting holes are perfectly concentric.
Secure with the bolt: Pass the threaded end of the T-slot bolt through the mounting hole of the component and carefully thread it into the waiting T-nut, feeling for the smooth engagement of the machined threads.
Tighten the bolt: Utilize an appropriate torque wrench or hand tool to firmly tighten the bolt. As you apply rotational force, the mechanism will pull the T-nut upward against the inner retaining walls of the T-slot, creating a remarkably secure, friction-locked connection.
Review the visual demonstration below to observe the practical application and physical mechanics of these fasteners in real-time. The footage clearly illustrates the smooth insertion process, the immediate and secure engagement of the hammer head within the aluminum extrusion channel, and the final tightening phase that guarantees structural rigidity.
A: T-slot bolts are primarily utilized to attach external components, structural brackets, and various operational accessories securely to the T-slots found in modular aluminum extrusions or heavy-duty machine tables, forming the backbone of adjustable framework systems.
A: The most common types include sliding T-nuts (inserted from the end), drop-in T-nuts (inserted anywhere along the channel), and spring-loaded T-nuts (which hold their vertical position), each engineered with specific assembly applications in mind.
A: The selected bolt size must exactly correspond to the internal thread size of the T-slot nut being utilized. Additionally, the bolt length must be carefully calculated to pass completely through the mounted material and fully engage with the nut's threads without bottoming out against the extrusion floor or protruding excessively.
A: While standard hex bolts can occasionally be manually modified to fit (for instance, by grinding down the head profile), utilizing purpose-built T-slot specific nuts and bolts is heavily recommended to ensure optimal load-bearing performance, safety, and structural strength.
A: Typically, a standard hex (Allen) wrench or a specialized Torx screwdriver is employed to apply torque to the bolt head, often accessed through a designated clearance hole in the external component being mounted to the frame.
A: Washers are highly beneficial and can be strategically used to evenly distribute the downward clamping force, thereby preventing surface damage, galling, or indentation to the softer aluminum extrusion or the mounted component.
A: While there may be slight dimensional variations between different extrusion brands, many reputable manufacturers strictly adhere to common international standards, such as DIN 508 for T-slot nuts utilized on industrial machine tables, ensuring cross-compatibility.
A: To guarantee maximum joint integrity, always use the correct bolt thread size and appropriate length, select the matching T-slot nuts for your specific profile, and strongly consider incorporating hardened steel washers to properly distribute the applied clamping force across a wider surface area.
Understanding the complex demands of large-scale manufacturing and procurement, we offer a comprehensive suite of services designed to streamline your supply chain and meet exact engineering specifications.
Backed by robust engineering and manufacturing capabilities, we fully support non-standard dimension customization and new mold creation based on client-provided technical drawings or physical samples. This ensures that even the most unique structural engineering requirements are met with precision-crafted fastening solutions.
Risk mitigation is paramount in volume procurement. Every batch of fasteners undergoes rigorous dimensional and metallurgical testing prior to packaging. To further support your evaluation process, we provide complimentary samples for preliminary physical testing, allowing you to verify compatibility and performance firsthand.
To prevent material degradation or physical damage during extended transit, all products utilize a standardized, multi-layer packaging protocol consisting of sealed plastic bags, thickened corrugated cartons, and reinforced shipping pallets. We also accommodate requests for customized exterior labeling to integrate seamlessly with your internal inventory receiving systems.
Maintaining supply chain stability is our priority. We hold substantial inventory reserves of all standard specifications, enabling rapid dispatch within 3 to 5 days. For specialized, non-standard custom orders, we commit to a strict, predictable delivery window of 30 to 45 days, ensuring your production schedules remain entirely uninterrupted.
