SPLIT PINS COTTER LOCK RETAINING PINS DIN 94

Product Introduction

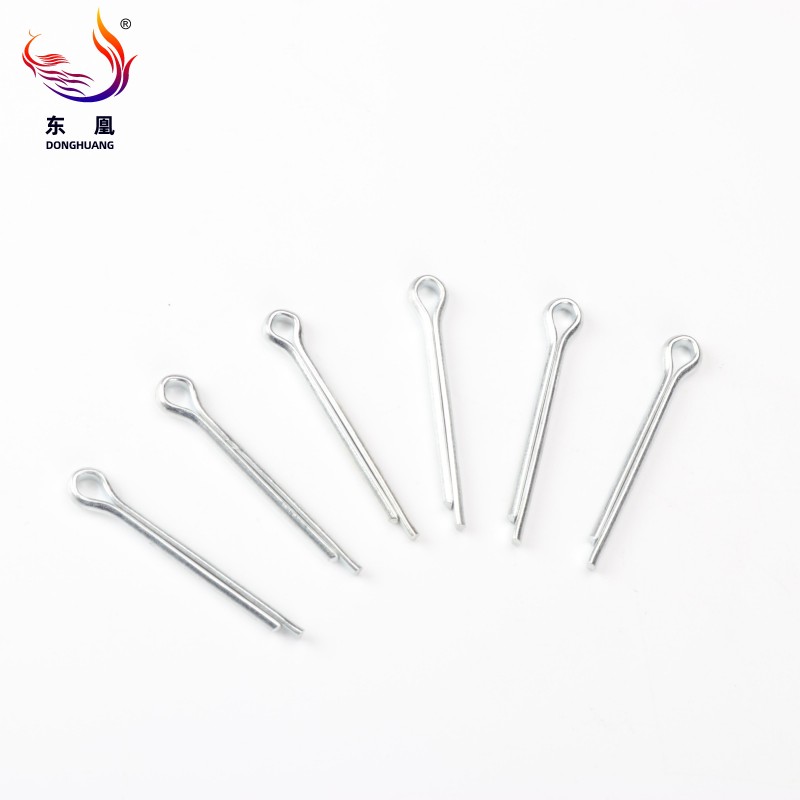

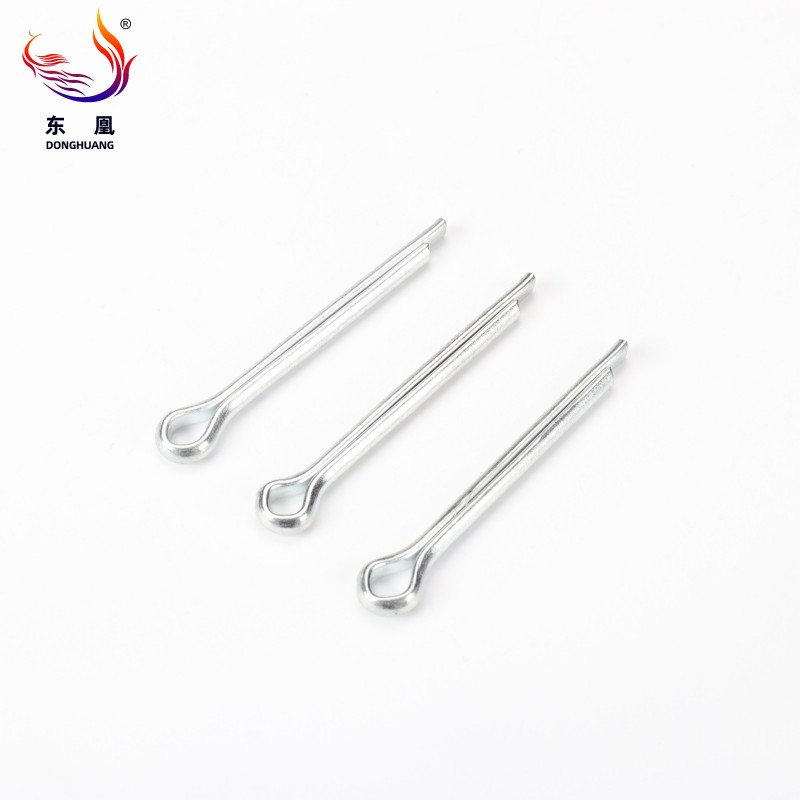

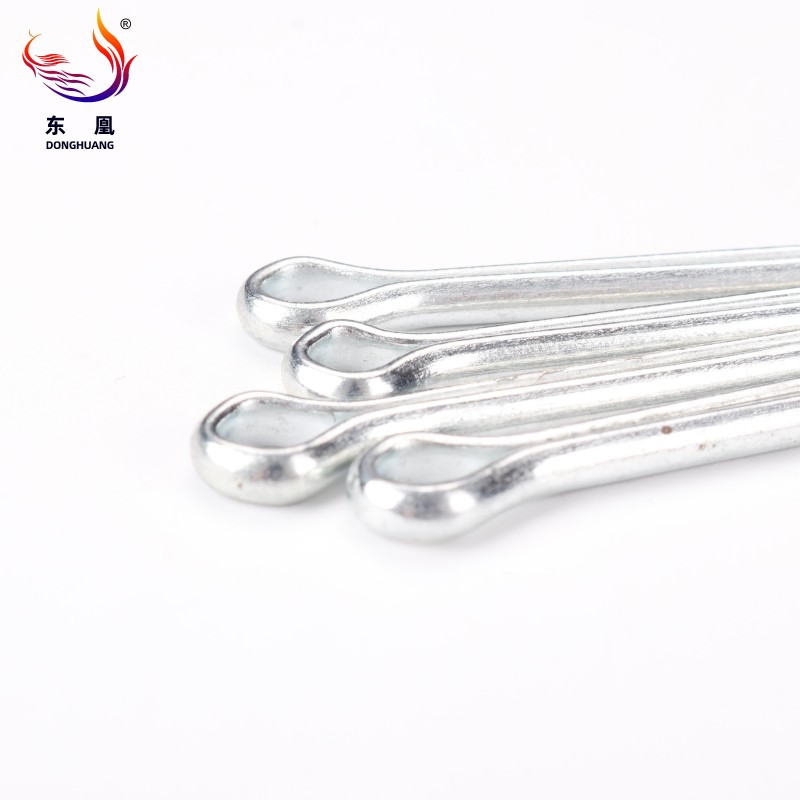

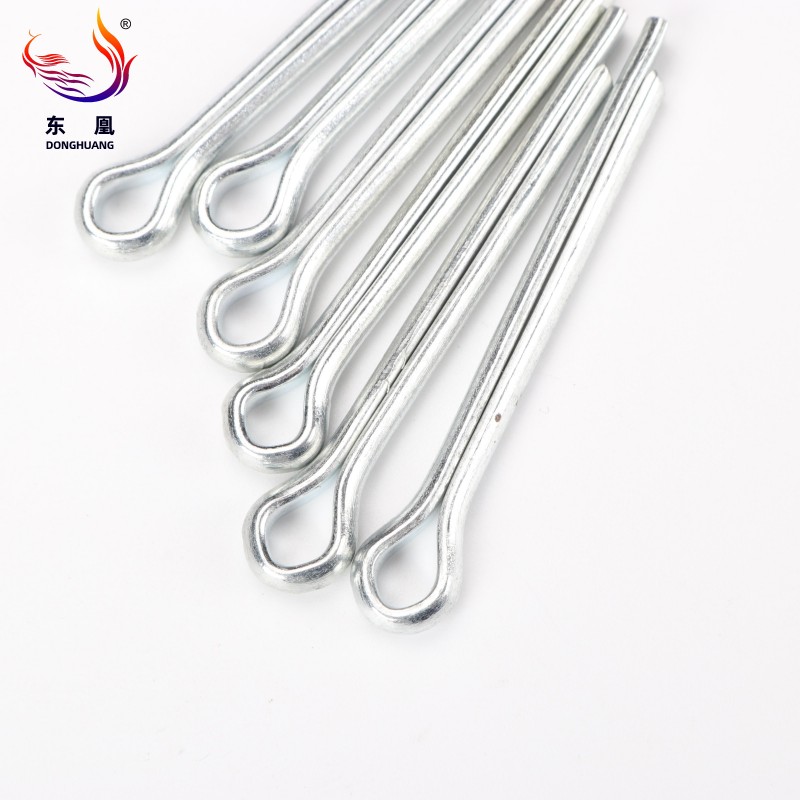

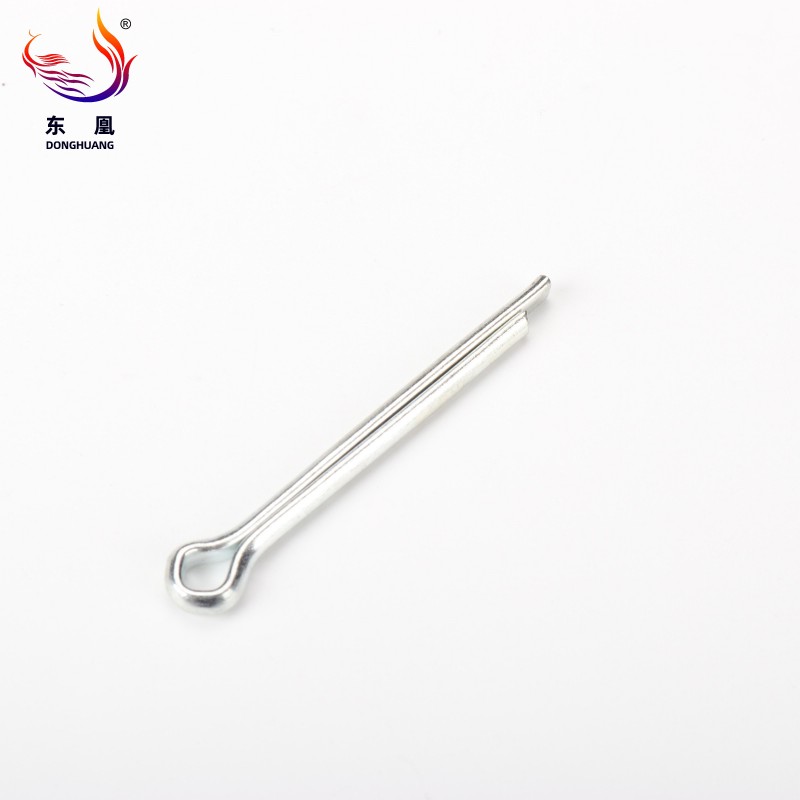

A DIN 94 split pin, universally recognized as a cotter pin, is a fundamental mechanical fastening component engineered from pliable, carefully drawn wire. Characterized by its distinct looped head and slotted body, it is designed to secure critical assemblies by passing through a pre-drilled hole and having its tines bent outward. Running your fingers along the fastener reveals a smooth, burr-free polished finish, ensuring it will not snag or cause friction damage during rapid assembly processes.

Beyond standard mild steel, these retaining pins are available in premium stainless steel grades, including A2/304 and A4/316, alongside various specialized alloy options. This material versatility delivers exceptional tensile strength and superior anti-corrosion performance, making them highly reliable for extreme environments such as marine engineering and heavy industrial operations. Functioning as a vital fail-safe mechanism, the pin prevents components like castle nuts and clevis pins from loosening under severe vibration. Due to the natural bending fatigue of the soft wire, it is strictly a single-use safety device, guaranteeing maximum structural integrity upon initial installation.

Product Advantage

Engineering Design Support

To streamline the early-stage research and development processes for engineering teams, we provide complimentary, full-scale 3D CAD model downloads and comprehensive technical specification sheets. This allows for seamless integration into complex structural blueprints and digital prototyping.

Certified Global Compliance

Every retaining pin strictly adheres to the dimensional and tolerance requirements of the DIN 94 standard. Furthermore, our production facilities maintain ISO9001 certification, and the products are fully compliant with RoHS and REACH directives. We provide Certificates of Conformity (CoC) with shipments to ensure 100% regulatory compliance for international procurement.

Advanced Surface Treatments

While standard polishing offers a clean, reflective finish, we also support specialized surface treatments such as zinc plating and black oxide coating. These treatments significantly enhance corrosion resistance while providing visual concealment for specific mechanical designs. We also welcome deep customization for non-standard dimensions tailored to unique operational scenarios.

Reliable Locking & Elasticity

The inherent elasticity of the wire design allows for a slight expansion once inserted, creating a firm, unyielding grip within the bore. The bent legs form a robust mechanical barrier that easily withstands high-vibration and heavy load-bearing conditions, preventing catastrophic fastener failure.

Cost-Effective Maintenance

Offering an economical solution for securing assemblies, these pins require minimal tooling for installation. They provide a non-permanent, easily removable locking method that drastically reduces equipment downtime during routine maintenance or component replacement.

• Automotive Assembly: Essential for securing wheel bearings, locking internal components within complex gearboxes, and ensuring suspension systems remain intact despite continuous road vibration and thermal shifts.
• Industrial Machinery: Relied upon for holding heavy rotating shafts in place, preventing dynamic parts from shifting in agricultural farm machinery, and securing critical structural assemblies in manufacturing systems prone to severe, sustained vibration.
• Marine Engineering: Deployed extensively in securing rigging fasteners, engine mounts, and underwater mechanical assemblies, particularly when utilizing our A4/316 stainless steel variants to combat aggressive saltwater corrosion.
• General Mechanical Fastening: Frequently paired with clevis pins and slotted castle nuts to establish a highly secure, yet intentionally removable locking system across a broad spectrum of commercial construction and equipment installations.

Product Operate Guide

1. Prepare the Assembly Hole: Verify that the pre-drilled hole is precisely the correct diameter for the selected split pin. The nominal diameter of the pin is typically designated by the hole size it is intended for, meaning the physical pin will be fractionally smaller to allow for smooth, frictionless insertion.
2. Insert the Fastener: Align the components and slide the cotter pin through the prepared bore in the shaft, bolt, or clevis pin assembly. The prominent closed loop at the head will naturally act as a physical stop, preventing the fastener from passing entirely through the hole.
3. Secure and Bend: Utilizing a standard pair of mechanical pliers, firmly grasp the protruding split ends. Deliberately spread the tines apart and bend them back against the outer surface of the nut or shaft to lock the entire assembly firmly in place.
4. Verify Stability: Conduct a visual and tactile inspection to ensure the pin remains securely anchored. Exercise caution to avoid over-bending or repeatedly adjusting the tines, as excessive metal fatigue can cause mechanical overload and compromise the structural integrity of the wire.

FAQ

1. Are you a direct manufacturer or a trading entity?

We are a fully integrated direct manufacturer with our own dedicated international sales and export department. We oversee the entire lifecycle of our products, from raw material sourcing and in-house production to global distribution, ensuring direct accountability and competitive pricing.

2. What is the scope of your product offerings?

Our primary manufacturing portfolio encompasses expansion screws, DIN 94 split pins, general hardware fasteners, precision plastic parts, metal stamping parts, and zinc die-casting components. We also specialize in engineering non-standard parts based on specific technical drawings.

3. Which industries and applications do your products serve?

Our fastening solutions are deeply embedded across the entire commercial construction sector and mechanical equipment installation fields. Key applications include the outdoor installation of large-scale heavy machinery, structural home decoration, and the secure, fixed installation of industrial goods.

4. Do you accommodate requests for customized products?

Yes, we offer comprehensive customization services. Beyond standard dimensions, we can adjust lengths, wire diameters, and apply bespoke surface treatments such as black oxide coating or specialized galvanizing to meet the exact environmental and mechanical demands of your project.

5. How do you guarantee the quality and traceability of your goods?

We implement a rigorous 100% dual-inspection protocol. First, in-process inspections occur after every single manufacturing stage. Second, finished products undergo a comprehensive final inspection aligned with international standards and specific client requirements. Furthermore, we maintain a complete batch traceability system and offer long-term warranty services to eliminate any concerns associated with large-scale procurement.

6. What are your standard payment terms and transaction methods?

During the quotation phase, we will align on the preferred transaction framework, offering flexible terms including FOB, CIF, or CNF based on your logistical preferences. For mass production orders, our standard term requires a 30% deposit prior to manufacturing, with the remaining 70% balance settled against the copy of the shipping documents. Telegraphic Transfer (T/T) is the most common method, though Letters of Credit (L/C) are also fully acceptable for qualified orders.
