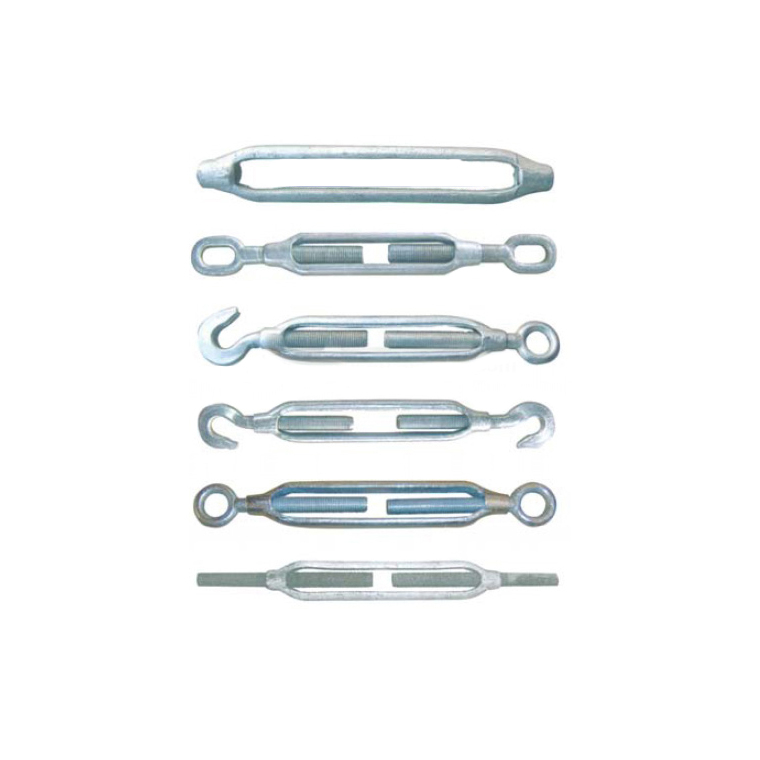

M8-M36 Galvanized Turnbuckle for Rigging

Product Overview

Crafted from hot-dip galvanized steel or Grade 304 stainless steel, this turnbuckle delivers exceptional durability, with 20% higher tensile strength than standard carbon steel models, ensuring reliable performance under continuous tension. Its defining left-right threaded design allows for precise tension adjustments with minimal effort—simply rotate the central body to shorten or lengthen the assembly—while the hexagonal body provides a secure grip for wrenches, enabling controlled torque application. Unlike lightweight aluminum turnbuckles prone to deformation under heavy loads, this steel construction maintains structural integrity in high-stress environments, making it indispensable for applications where load stability and adjustability are critical.

Product Specifications

Material: Available in hot-dip galvanized carbon steel for general use or Grade 304 stainless steel for extreme corrosion resistance

Size Range: Covers M8 to M36 diameters, accommodating tensioning needs from light-duty cable rails to heavy structural cables

Working Load Limit (WLL): Ranges from 1 ton to 50 tons, with clear markings for safe operation

Thread Type: Opposing left-hand and right-hand threads on end fittings, enabling length adjustment through body rotation

Corrosion Resistance: Galvanized models pass 1,000-hour salt spray test; stainless steel versions exceed 1,500-hour salt spray test

Temperature Range: Functions reliably from -50°C to 300°C, suitable for Arctic and industrial high-heat environments

Safety Factor: Adheres to a 5:1 safety ratio, meeting EN 13411-4 standards for rigging components

Features

Dual Thread Design: The opposing left and right threads on the end fittings (eye bolts, hooks, or jaws) allow for precise length adjustments—rotating the central body clockwise shortens the turnbuckle to increase tension, while counterclockwise rotation lengthens it to reduce tension. This enables fine-tuning of load paths in structural and rigging applications.

Galvanized Protection: Hot-dip galvanization coats the entire turnbuckle in a thick zinc layer, sealing out moisture and preventing rust in marine, coastal, and industrial environments. This treatment extends service life by up to 50% compared to painted alternatives.

Hexagonal Body: The hexagonal central body provides multiple flat surfaces for secure wrench engagement, allowing for controlled torque application and preventing slippage during tension adjustments—a critical feature when working with high-load cables.

Heavy-Duty Construction: Steel components undergo rigorous testing to ensure they withstand dynamic loads, vibrations, and environmental stressors. This makes the turnbuckle suitable for permanent structural applications like guy wires and temporary installations such as event rigging.

Customizable Options: Available with various end fittings (swivel eyes, fixed hooks, jaw ends) to adapt to different rigging configurations. Stainless steel versions offer enhanced corrosion resistance for offshore, food processing, and pharmaceutical environments.

Applications

Construction: Adjusts tension in steel cables for suspended ceilings, tensile membrane structures, and facade support systems, ensuring precise alignment and stability.

Marine: Tensions mooring lines for ships and offshore platforms, secures cargo nets, and stabilizes rigging systems on boats, withstanding saltwater exposure and constant movement.

Energy Sector: Secures guy wires for wind turbine towers, transmission line poles, and solar panel arrays, maintaining structural stability in high-wind conditions.

Transportation: Stabilizes cargo in trailers, container ships, and railway cars, preventing shifting during transit and ensuring safe delivery of goods.

Aviation: Aligns aircraft control cables, secures cargo hold dividers, and stabilizes ground support equipment, where precision tensioning is critical for safety and performance.
