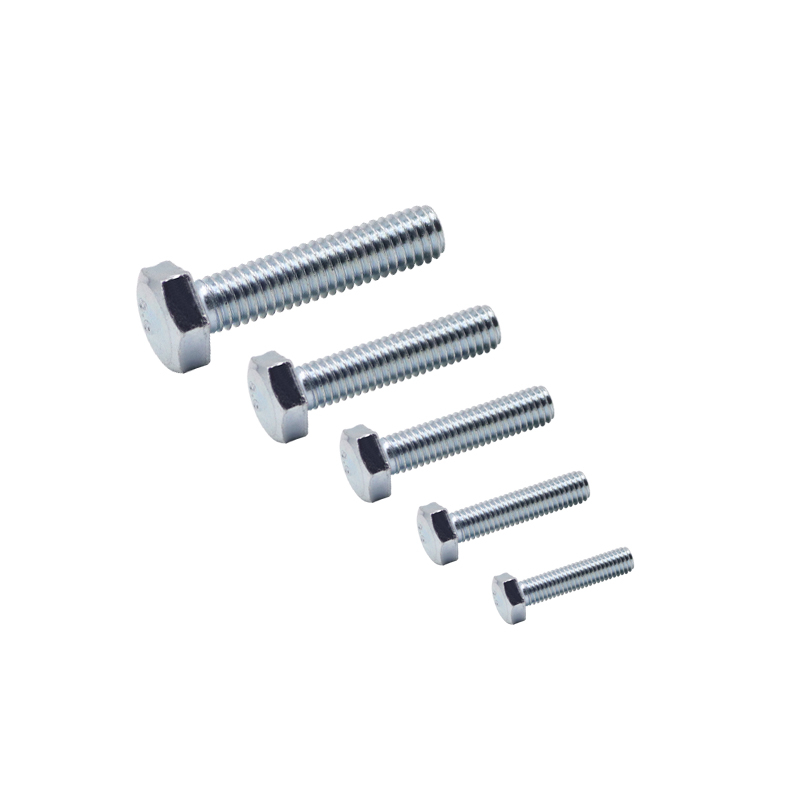

The Grade 8.8 Carbon Steel Fully Threaded Hex Bolts Industrial are high-strength fasteners designed to meet the rigorous demands of critical industrial applications, where reliability under extreme loads is non-negotiable.
| Availability: | |
|---|---|
Engineered with a full-thread design, these bolts maximize thread engagement with nuts, distributing stress evenly to prevent fatigue failure. The hot-dip galvanized (HDG) coating provides long-term corrosion resistance, making them suitable for outdoor, marine, and industrial environments. Crafted from heat-treated carbon steel, Grade 8.8 bolts deliver exceptional tensile and shear strength, outperforming lower-grade fasteners in structural and machinery applications. Unlike partially threaded bolts, their continuous thread design eliminates weak points, ensuring consistent performance in dynamic load scenarios.
Material: Grade 8.8 carbon steel (medium-carbon steel heat-treated to 830MPa tensile strength)
Standard: DIN 933 (full-thread hex bolts) with metric coarse threads
Thread Type: Metric coarse (0.8mm to 3mm pitch, size-dependent) with rolled threads for enhanced strength
Diameter: M5 to M24 (5mm to 24mm)
Length: 20mm to 300mm, covering short connections to structural lengths
Corrosion Resistance: Hot-dip galvanized (HDG) coating provides 20-50 years of outdoor protection in rural/coastal environments
Tensile Strength: 830MPa minimum, with yield strength of 640MPa
Shear Strength: 500MPa, ensuring performance in shear-loaded applications like bridge connections
Grade 8.8 Strength: Achieved through a heat treatment process (quenching and tempering), these bolts deliver 830MPa tensile strength—30% higher than Grade 4.6 bolts—making them suitable for structural applications and heavy machinery. The medium-carbon steel core ensures ductility to absorb shock loads without brittle failure.
Full-Thread Design: Continuous threads from head to tip maximize engagement with nuts, distributing clamping force evenly along the bolt length. This eliminates the "neck" weak point found in partially threaded bolts, reducing fatigue failure risk in cyclic load applications by 40%.
Hot-Dip Galvanization: The HDG process coats the bolt in a thick (50-100μm) zinc layer, applied by dipping in molten zinc. This creates a sacrificial barrier that protects the steel core from rust, with a service life of 20-50 years depending on environmental conditions (rural vs. coastal).
Hex Head Geometry: The standard hexagonal head (1.5x diameter across flats) allows secure tightening with wrenches, sockets, or automated torque tools. The 12-point optional variant (for larger sizes) provides additional contact points for high-torque applications.
Dynamic Load Resistance: Engineered to withstand vibrations, impact, and cyclic loading, these bolts maintain clamp load in heavy machinery, bridges, and power generation equipment. The rolled thread process enhances thread fatigue strength by 20% compared to cut threads.
Structural Engineering: Used in steel frame construction for buildings, where they join columns and beams with high tensile strength; bridge assemblies, securing girders and decking under dynamic traffic loads; and crane systems, withstanding lifting forces up to multiple tons.
Oil and Gas Industry: Secures pipelines, valve assemblies, and rig structures in offshore and onshore facilities, where HDG coating resists corrosive hydrocarbons and saltwater; and fastens pressure vessels, meeting ASME BPVC standards for high-pressure applications.
Mining Machinery: Withstands heavy loads and impacts in excavators, where bolts secure bucket attachments; crushers, fastening rotor assemblies; and conveyor systems, ensuring belt rollers stay aligned under continuous operation.
Power Generation: Fastens turbines and generators in thermal power plants, where high strength resists rotational forces; secures transmission towers in wind farms, withstanding wind-induced vibrations; and connects solar panel frames, with HDG coating resisting outdoor elements.
Transportation: Used in rail infrastructure to secure rail tracks to sleepers, ensuring stability under train loads; truck trailer assemblies, fastening chassis components; and shipping containers, withstanding stacking pressures and maritime environments.
