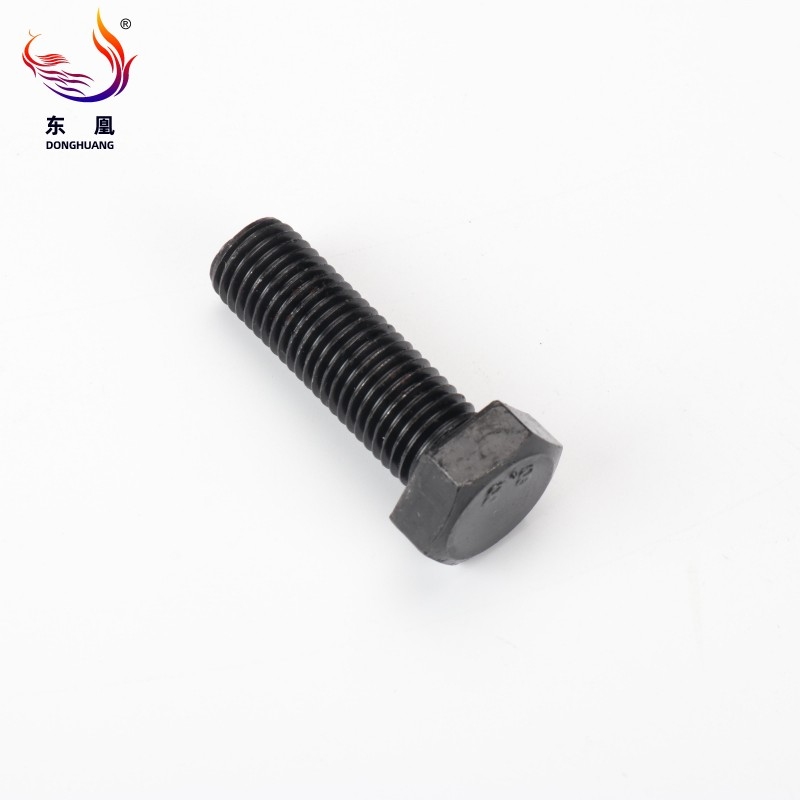

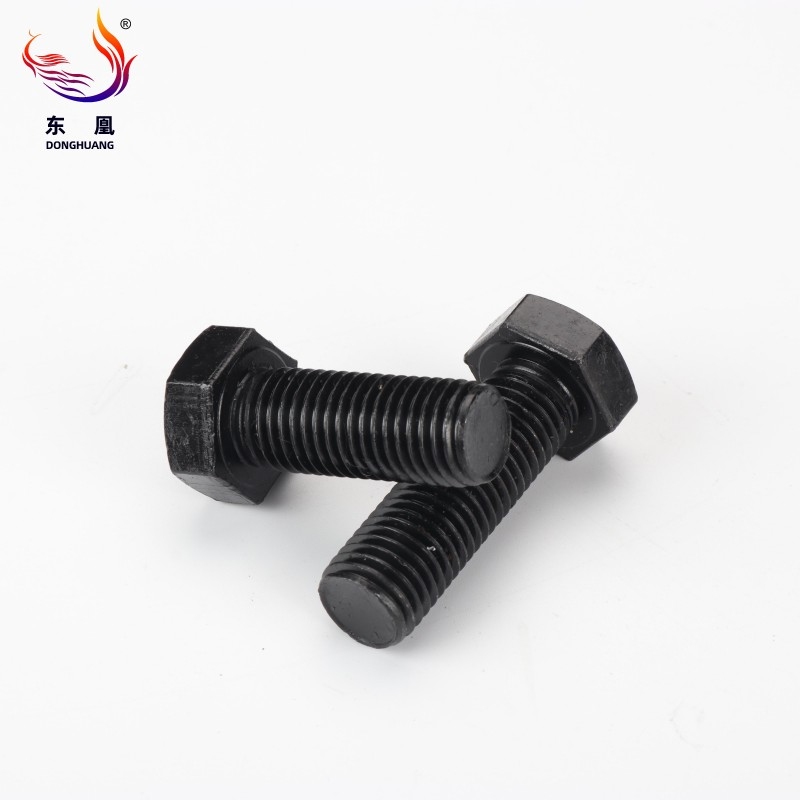

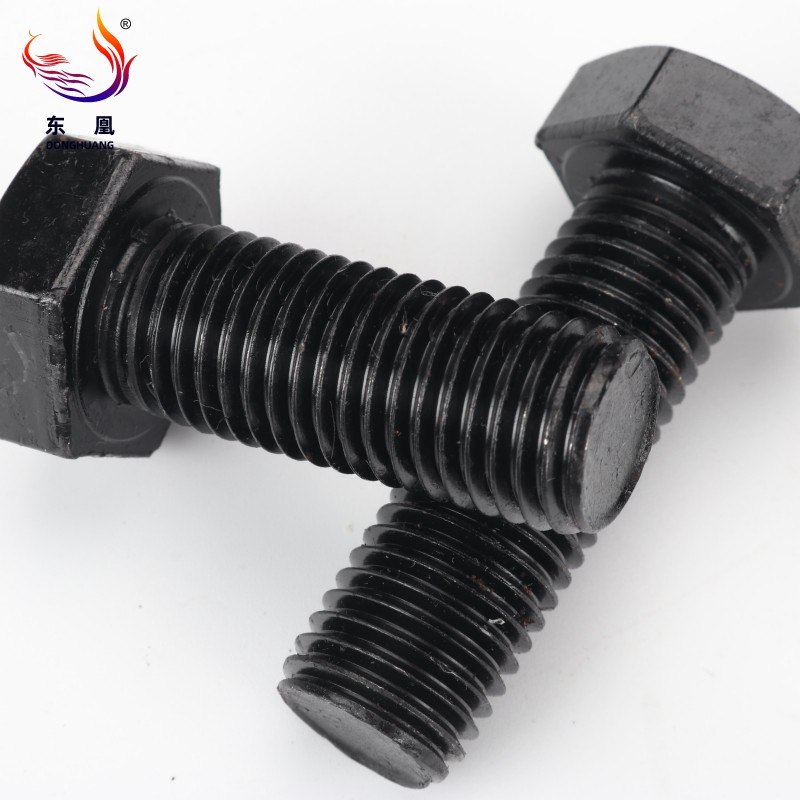

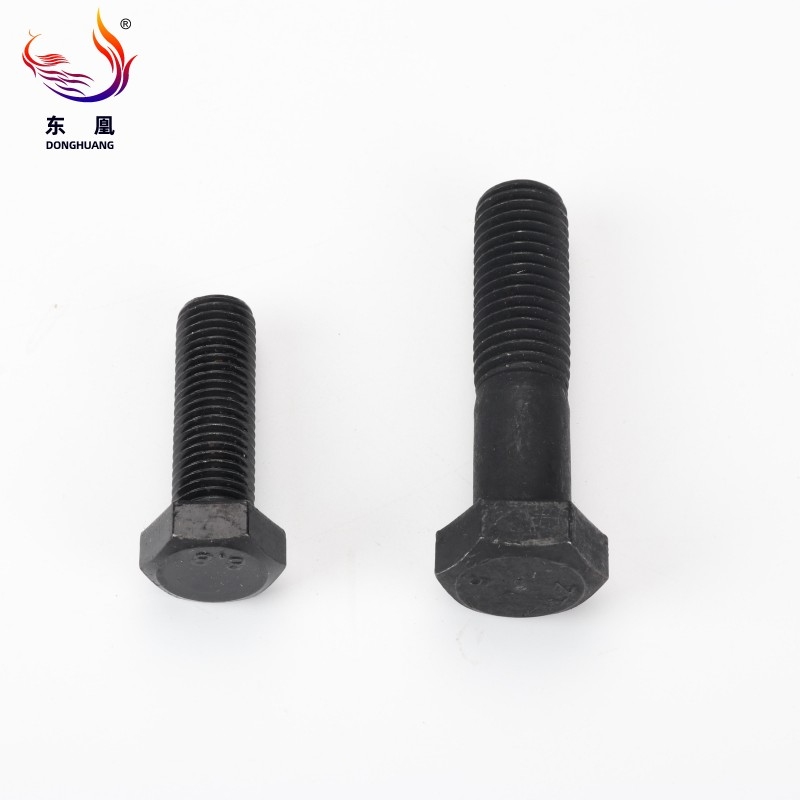

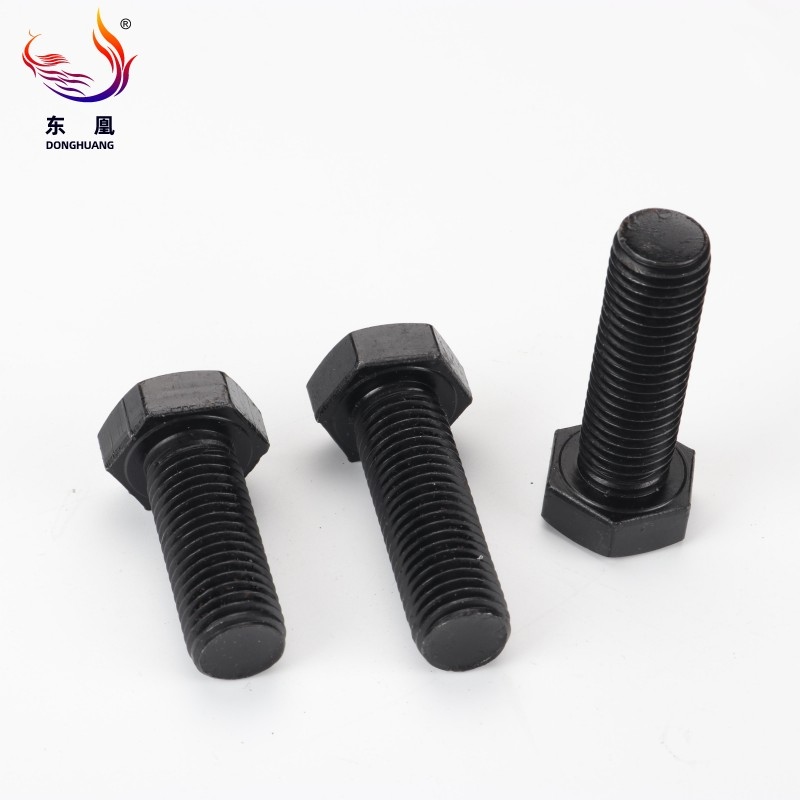

Engineered for extreme heavy-duty applications and high-torque environments, our fully threaded hex head bolts are forged from industrial-grade alloy steel to achieve an exceptional Grade 12.9 rating. These high-performance fasteners deliver an outstanding tensile strength of up to 1220 MPa and a Rockwell hardness ranging from 39 to 44 HRC, ensuring structural integrity under the most demanding mechanical stresses. The distinct black oxide finish, applied through a highly controlled chemical conversion process, not only imparts a sleek, dark appearance but also provides a crucial layer of surface protection. This thermal blackening process alters the outer layer of the ferrous metal, which is then sealed with specialized anti-rust oil or wax to optimize corrosion resistance without compromising the fastener's precise dimensional tolerances.
Furthermore, our Grade 12.9 black oxide hex bolts are manufactured in strict accordance with international fastener standards, including DIN, ISO, and GB specifications. Every batch is produced in facilities certified by ISO9001 and IATF16949 quality management systems, guaranteeing consistent performance for critical engineering projects. Committed to environmental responsibility and safety, these fasteners are fully compliant with REACH and RoHS directives, making them a reliable choice for global assembly lines and complex industrial machinery.
Utilizing an advanced thermal black oxide process paired with a rust-preventative oil seal, these alloy steel bolts offer a formidable defense against environmental degradation. This synergistic coating effectively repels moisture and mild industrial chemicals, significantly extending the lifespan of the fastener in non-highly corrosive environments while maintaining a dry-to-the-touch feel.
The deep, matte black finish delivers a sleek, professional, and non-reflective appearance. This dark visual profile minimizes glare and light reflection, which is particularly beneficial in stage lighting equipment, stealth automotive assemblies, and architectural applications where fasteners must integrate naturally into dark backgrounds without drawing unwanted visual attention.
The combination of the chemical conversion coating and the oil seal inherently improves the surface lubricity of the threaded shaft. This smooth tactile quality reduces friction and the risk of thread galling during installation, allowing for accurate torque application and facilitating a smoother, more efficient assembly process on the production floor.
Unlike thicker plating methods such as galvanizing, the black oxide layer is microscopic, ensuring that the intricate thread geometry and tight engineering tolerances remain completely unaltered. To guarantee this precision, our manufacturing process incorporates a rigorous inspection system. We utilize automated optical screening machines, digital hardness testers, salt spray chambers, and torque testing equipment to ensure every bolt meets exact specifications. Material Test Reports (MTR) are readily available upon request, ensuring zero-defect delivery for your critical projects.
When compared to alternative high-strength, corrosion-resistant materials like specialized stainless steel alloys, Grade 12.9 bolts with a black oxide finish present a highly economical solution. They provide the extreme mechanical strength required for heavy structural loads at a fraction of the cost, optimizing procurement budgets without sacrificing operational reliability.
Understanding the precise specifications of your fastening components is crucial for ensuring structural stability and operational safety in demanding engineering environments. The table below outlines the exact technical data, material grades, and logistical details for our fully threaded hex head bolts. Ranging from M6 to M24 in diameter and 10mm to 160mm in length, these fasteners are engineered to accommodate a wide spectrum of industrial applications. Our streamlined logistics and flexible packaging options—ranging from standard cartons to customized plastic woven bags—ensure that your inventory requirements are met with efficiency and precision. Review the detailed parameters below to confirm complete mechanical compatibility with your specific project requirements before initiating the procurement process.
| Material | Carbon steel/Stainless steel |
| Material Grade | 4.8/8.8/10.9/12.9 |
| Size | M6-M24 |
| Length | 10mm-160mm |
| Payment Terms | L/C,T/T |
| Packaging | Plastic woven bag, carton or according to customer requirements |
| Shipping | Container shipping |
| Port of Loading | Ningbo/Tianjin |
Our Grade 12.9 alloy steel hex bolts are engineered to perform reliably across a diverse range of demanding industrial sectors. They are the fastener of choice for applications where mechanical failure is not an option.
1. Heavy-Duty Equipment Manufacturing & Maintenance: Ideal for the assembly, repair, and ongoing maintenance of heavy industrial machinery, earth-moving equipment, and large-scale manufacturing presses that generate intense mechanical vibrations and require exceptional joint stability.
2. High-Load & High-Torque Applications: Specifically designed for structural connections that demand maximum tensile strength. These bolts excel in environments where the fasteners must withstand extreme shearing forces and heavy dynamic loads without stretching or deforming.
3. Precision Automotive & Aerospace Assemblies: Deployed in critical sectors such as automotive chassis construction and aerospace engineering, where mitigating assembly errors is paramount. The strict dimensional tolerances of these bolts ensure a perfect fit, preventing misalignment in complex, high-stakes structural frameworks.
4. Controlled Humidity Environments: While not intended for continuous marine submersion, the oil-sealed black oxide finish provides adequate protection for internal machinery components and equipment that may be intermittently exposed to humid atmospheric conditions during operation or transit.
Achieving the maximum structural integrity of a bolted joint relies heavily on proper installation techniques. When integrating our fully threaded hexagonal bolts into your assembly, it is critical to first calculate the correct bolt length and diameter. This selection must account for the total grip length (the combined thickness of the connected materials), the precise clearance of the pre-drilled holes, and the specific clamping force demanded by the engineering design.
Always utilize calibrated fastening tools, such as high-precision torque wrenches or pneumatic drivers with torque-control capabilities, to apply the exact specified torque. Because these are Grade 12.9 high-strength fasteners, applying the correct initial preload is essential to prevent fatigue failure under dynamic loads. Furthermore, when assembling multi-bolt joints like flanges or engine cylinder heads, strict adherence to a star or crisscross tightening sequence is mandatory. This practice ensures an even distribution of clamping pressure across the mating surfaces, effectively eliminating localized stress concentrations, joint distortion, and the risk of premature loosening during operation.
Watch the video below to gain a closer look at the exceptional craftsmanship and rigorous manufacturing standards behind our Grade 12.9 alloy steel hex bolts. This visual demonstration highlights the deep, consistent matte black oxide finish that not only enhances the aesthetic appeal but also provides essential surface protection. You will also get a glimpse into the precision engineering that ensures every fully threaded shaft meets exacting international tolerances. By viewing our production and quality assurance processes in action, you can better understand the structural reliability, tactile lubricity, and superior finish that these heavy-duty fasteners bring to your most demanding assembly and construction projects.
A: The hexagonal head design is universally adopted primarily for its mechanical efficiency and ergonomic practicality. A six-sided hexagon offers the optimal geometric balance, providing a substantial, flat surface area for wrenches or sockets to grip securely. This configuration allows for maximum torque transfer while significantly reducing the likelihood of tool slippage and subsequent rounding of the bolt head during intense tightening or loosening cycles.
A: Fully threaded hex bolts, particularly when paired with matching high-strength nuts, are the definitive choice for robust structural fastening. Their primary advantage lies in their exceptional versatility and the ability to deliver immense clamping force. The external head design allows them to be easily manipulated with a wrench perpendicular to the threaded shaft, making them indispensable in tight clearances where top-down tool access is restricted.
A: Installation typically requires standard hand tools such as an adjustable wrench, a combination spanner, or a specialized socket set. For high-stakes engineering applications utilizing our Grade 12.9 bolts, a calibrated torque wrench is highly recommended to ensure the exact preload is achieved. The tool size corresponds directly to the hex head dimensions, which range from 4mm to 55mm across our extensive product catalog.
A: To identify the precise size of a hex bolt, you must measure two critical dimensions using digital calipers: the outer diameter of the threaded shaft and the total length of the shaft (measured from directly under the head to the flat tip). Additionally, measuring the width across the flats of the hexagonal head will determine your required wrench size. In metric sizing, such as an M12 bolt, the "M" designation indicates a 12mm nominal thread diameter.
Beyond our standard inventory, we offer highly flexible customization and comprehensive bespoke manufacturing services tailored to your exact specifications. Utilizing advanced CNC machining and specialized cold heading equipment, we can produce non-standard dimensions, specialized head designs, and unique drive recesses. Our flexible processing extends to customized kitting solutions and bespoke barcode label packaging to streamline your internal inventory management. Backed by an expansive standard parts inventory and highly automated production lines, our robust supply chain guarantees rapid response times and punctual delivery schedules—whether you require a small-batch prototyping run or a large-scale, high-volume procurement order.
