Zinc Alloy Lag Shield Expansion Anchors Lag Screw Expansion Shield

Feel the immediate difference when the carbide tip of your drill bites into aged concrete or dense cinder block. The dust clears from the cavity, leaving a stark, rigid hole that demands a precise anchoring solution. Relying solely on thread friction in masonry often leads to crumbling edges, spinning screws, and loose fixtures. This is exactly where a dedicated expansion mechanism becomes essential. You need an anchoring point that forcefully expands into the wall, rather than one that merely hopes tight tolerances will do the job.

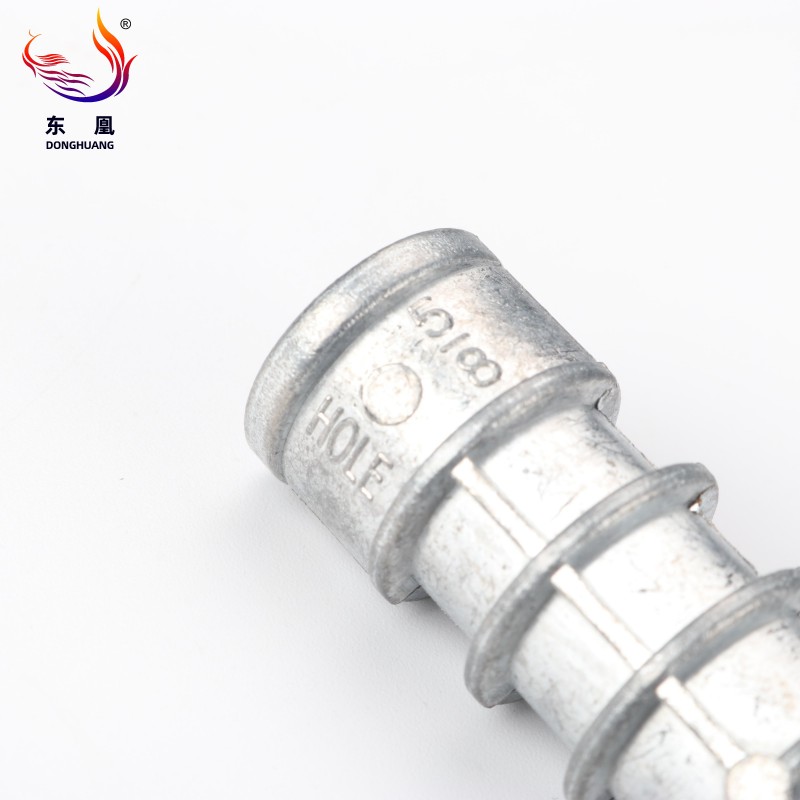

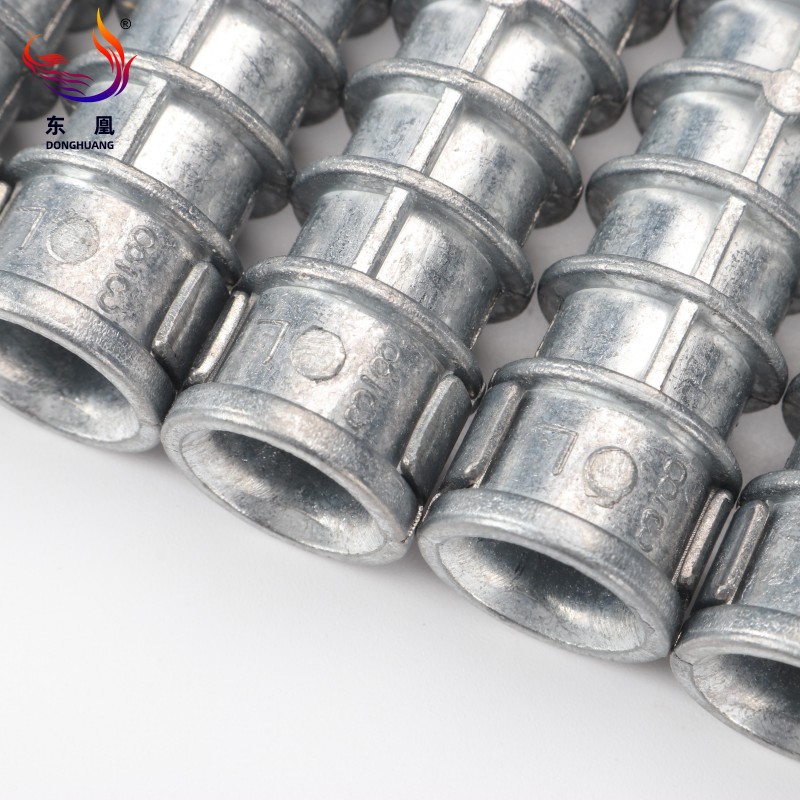

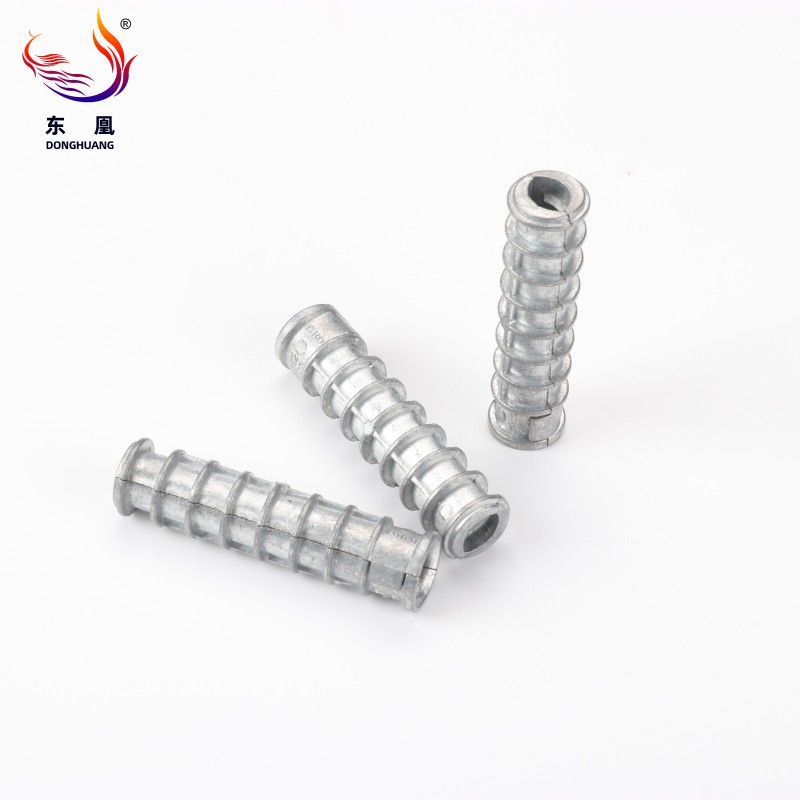

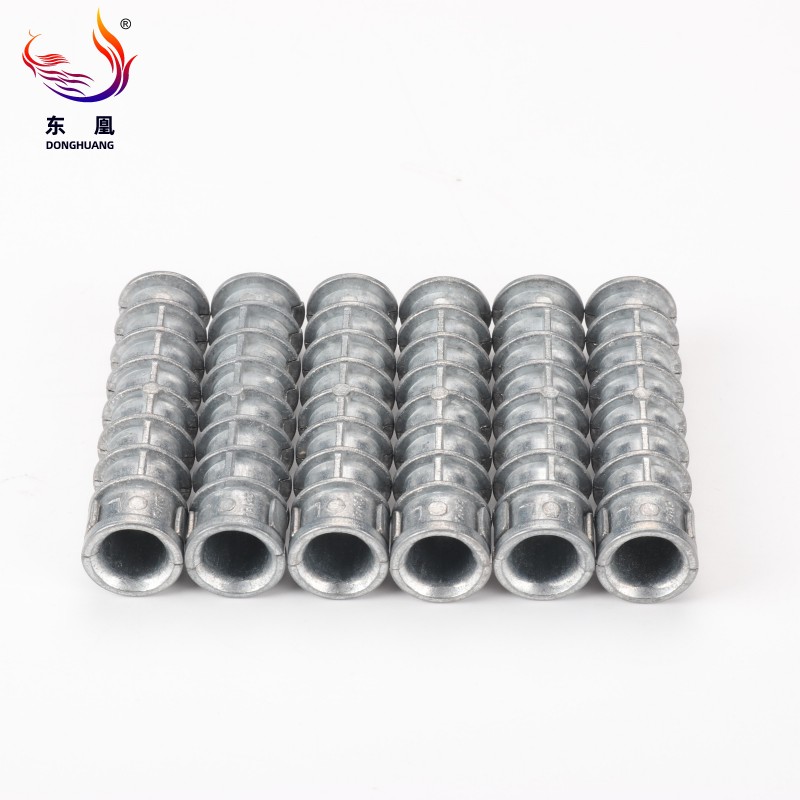

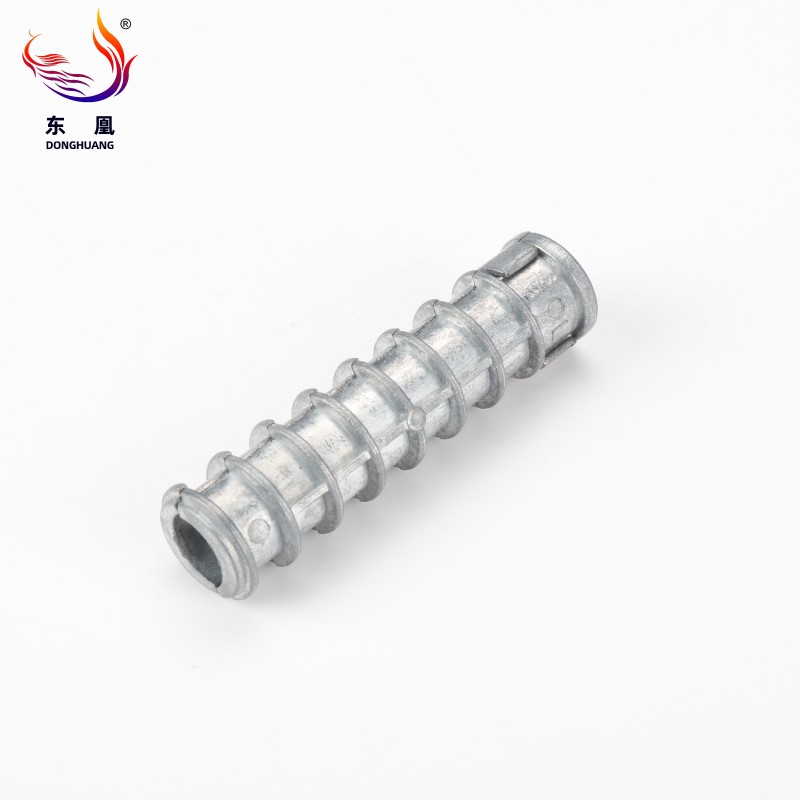

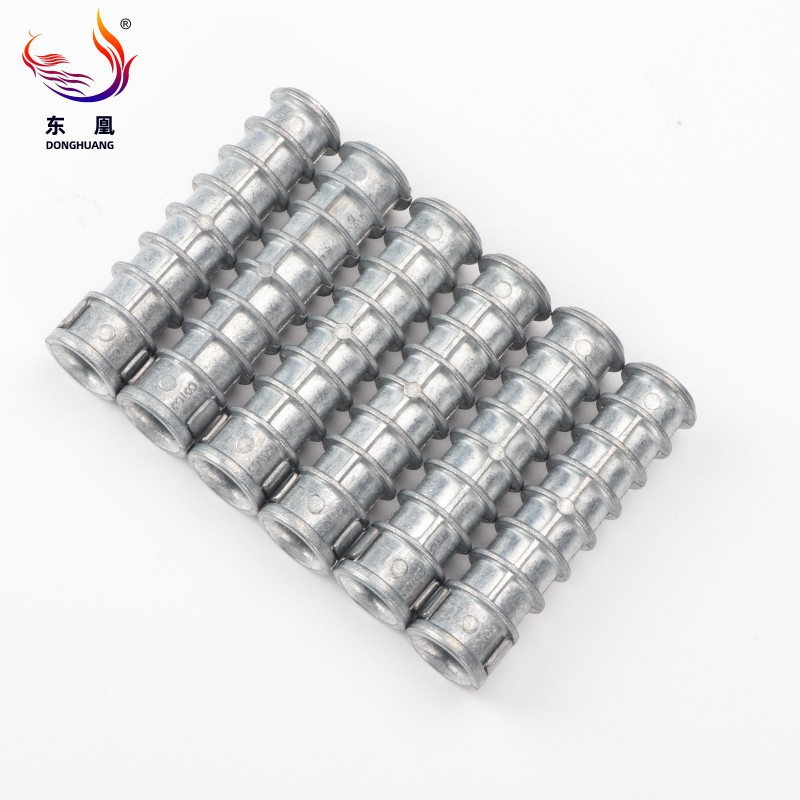

Donghuang Zinc Alloy Lag Shield Expansion Anchors are engineered specifically for these demanding structural environments. The anchor features a precision-cast, two-piece internally threaded sleeve that sits completely flush within your pre-drilled cavity. As the corresponding lag screw drives downward, the tactile feedback in your hands shifts from a smooth turn to a solid, unyielding resistance. This occurs because the internal shield is expanding aggressively outward, pressing its ribbed exterior deeply into the surrounding base material. This controlled expansion effectively disperses the load weight across a significantly wider surface area, drastically mitigating the risk of hairline fractures or catastrophic blowouts in fragile substrates like vintage brickwork, aerated block, or mortar joints.

The installation workflow remains highly efficient and straightforward: drill to the designated depth, clear out the debris, tap the shield in until flush, and drive the fastener. Weighing solid and substantial in the hand, the dense zinc-alloy body resists deformation under heavy torque, ensuring the expansion wings open symmetrically every single time. The resulting hold provides dependable stability for heavy-duty shelving racks, structural framing, industrial brackets, and safety handrails. It delivers the predictable performance required by site managers and the verifiable consistency demanded by procurement teams.

Key Features & Highlights

• Mechanical Grip Over Friction: The dynamic expansion creates a positive mechanical interlock against the inner walls of the masonry cavity, offering vastly superior holding power compared to standard plastic plugs that rely merely on surface friction.

• Substrate-Protecting Load Distribution: The ribbed shield geometry intelligently spreads the radial expansion force over a broader area. This critical feature minimizes localized stress points, preventing edge chipping in brittle brick or the crumbling of hollow block webs.

• Damp-Environment Corrosion Defense: Manufactured from premium zinc alloy, these anchors naturally resist rapid oxidation. This structural integrity slows down degradation in damp basements, exposed exterior walls, and environments where rust-induced staining is unacceptable.

• Service-Friendly Removability: The internal thread design allows the lag screw to be backed out effortlessly without disturbing the embedded shield. This provides a distinct advantage during facility remodels, routine maintenance checks, or periodic fixture replacements.

• Standardized Compatibility: Engineered to precisely accommodate standard lag screw diameters ranging from 1/4" to 1/2", simplifying your inventory management and ensuring compatibility with commonly stocked fasteners.

• Verifiable Production Standards: Fabricated by a direct manufacturing facility equipped with rigorous process controls. We offer comprehensive documentation, including in-process dimensional checks and 100% finished inspection available per your specific project requirements.




Applications & Recommended Uses

Deploy these lag shield anchors when your project demands the familiar driving mechanics of a lag-screw-style fastening, but the structural base consists of solid or hollow masonry rather than timber. They provide a reliable interface for transferring heavy shear and tension loads into rigid walls:

• Solid Concrete, Vintage Brick, and Cinder Block Walls

• Structural Mortar Joints (Requires strict adherence to edge distance and spacing protocols to prevent joint blowout; see safety notes below)

• Mounting and securing operations:

• Heavy-duty shelving standards, industrial racking, and cantilever brackets

• Window frames, door jambs, lighting fixtures, and architectural hardware

• Safety handrails, guardrails, and ADA-compliant grab bars to masonry surfaces

• General construction attachments necessitating a robust lag screw interface

Application Warnings & Safety Limits

Please note that these anchors rely heavily on the integrity of the base material. They are strictly not recommended for overhead suspension applications, nor should they be subjected to high-frequency vibratory loads (such as heavy machinery mounts) without secondary retention systems.

Transitioning between mixed building materials—like fastening a ledger board to brick on one side of a facility and concrete block on the other—is streamlined. These shields allow installation crews to maintain a consistent lag screw workflow across varying substrates while achieving optimal masonry expansion performance, reducing the need to stock multiple disparate anchor systems.

Product Operate Guide

1. Drilling the Hole

Determine the exact carbide-tipped drill bit size dictated by the anchor's outer diameter. The cavity must be drilled to a minimum depth equal to the shield's length plus the thickness of the fixture being mounted, adding an extra 1/2 inch at the bottom to accommodate dust and allow for unimpeded expansion. Thoroughly evacuate all concrete dust and debris using a blowout pump or wire brush before proceeding to ensure maximum grip.

2. Inserting the Lag Shield

Press the zinc alloy shield into the prepared cavity. Tap it gently with a mallet if necessary, ensuring the top rim sits perfectly flush with, or slightly below, the surface of the base masonry. A protruding anchor will prevent the mounting bracket from seating tightly against the wall.

3. Installing the Lag Screw

Align the mounting hole of your bracket or fixture directly over the embedded shield. Pass the appropriate lag screw through the fixture and thread it manually into the top opening of the anchor to establish initial thread engagement.

4. Expanding the Shield

Drive the lag screw clockwise using a wrench or impact driver on a low torque setting. As the threads bite into the internal ribs, the two halves of the shield will aggressively expand outward against the concrete walls. Ensure the screw penetrates the entire length of the anchor body to achieve the required embedment depth and maximum mechanical grip.

5. Spacing and Load

To prevent the overlapping of internal expansion forces, which can fracture the masonry, maintain a minimum center-to-center spacing of 10 anchor diameters between adjacent shields. Additionally, keep a minimum distance of 5 anchor diameters from any unsupported concrete edge. Increase these margins significantly if the installation will be subjected to mild impact loads.

Material & Durability (Zinc alloy advantages)

The primary anchor body is die-cast from premium industrial-grade zinc-alloy (specifically formulated to meet Zamac 3 / ASTM AG40A standards). When deployed in real-world construction environments, this precise metallurgical composition delivers two distinct operational advantages:

1. Corrosion resistance: These specific zinc-alloy anchors are the preferred choice for environments where ambient moisture, daily condensation, or seasonal outdoor weather cycles cause plain carbon steel to rust prematurely. By resisting rapid oxidation, this material prevents unsightly rust weeping down masonry facades, keeping the fixing point visually clean and drastically reducing costly call-backs on exposed architectural hardware installations.

2. Dimensional stability for consistent expansion: An effective expansion shield must open predictably under torque. Our Zamac 3 cast components are highly valued for their exceptional dimensional stability and structural density. Unlike thin stamped metals, the thick walls of this alloy maintain their geometry under pressure, ensuring the sleeve expands symmetrically and evenly as the tapered lag screw engages the internal threads.

This product is explicitly engineered for demanding building applications, where achieving a consistent, verifiable installation behavior across hundreds of fastening points matters just as much as the ultimate tensile strength.

Sizes & Selection Guide (1/4"–1/2")

Available specification range: 1/4" to 1/2"

Selecting the correct anchoring configuration is critical for structural integrity. Follow these practical, field-oriented principles to ensure optimal performance:

• Match anchor diameter to lag screw diameter: The internal geometry of the anchor is precisely calibrated to expand only when driven by its corresponding, correctly sized lag screw. Undersized screws will fail to trigger expansion, while oversized ones may bind prematurely.

• Choose based on load and substrate quality: We offer specialized variations to match your exact base material. Select the "Short" version for hard, dense substrates like poured concrete or solid brick, where shallow embedment provides sufficient grip. Opt for the "Long" version when working with softer, porous masonry or hollow block, as the extended length distributes the expansion load deeper and more effectively. Always verify holding capacity via an on-site pull test when dealing with unknown substrates.

• Drill bit selection: Choose the appropriate masonry drill bit size based on the specific lag shield's outer dimensions (the exact bit diameter is strictly tied to the selected anchor size to prevent spinning in the hole).

If you share your target project sizes or regional market standards (such as North American imperial vs. European metric equivalencies), our engineering team can map out the most common size assortments, helping you stock faster-moving inventory and eliminate dead items.
