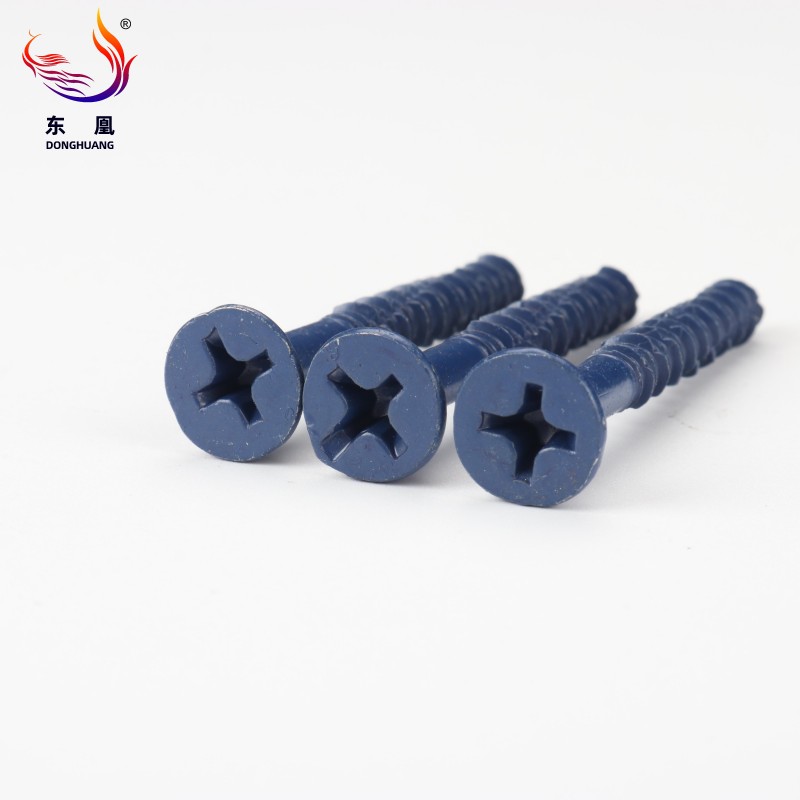

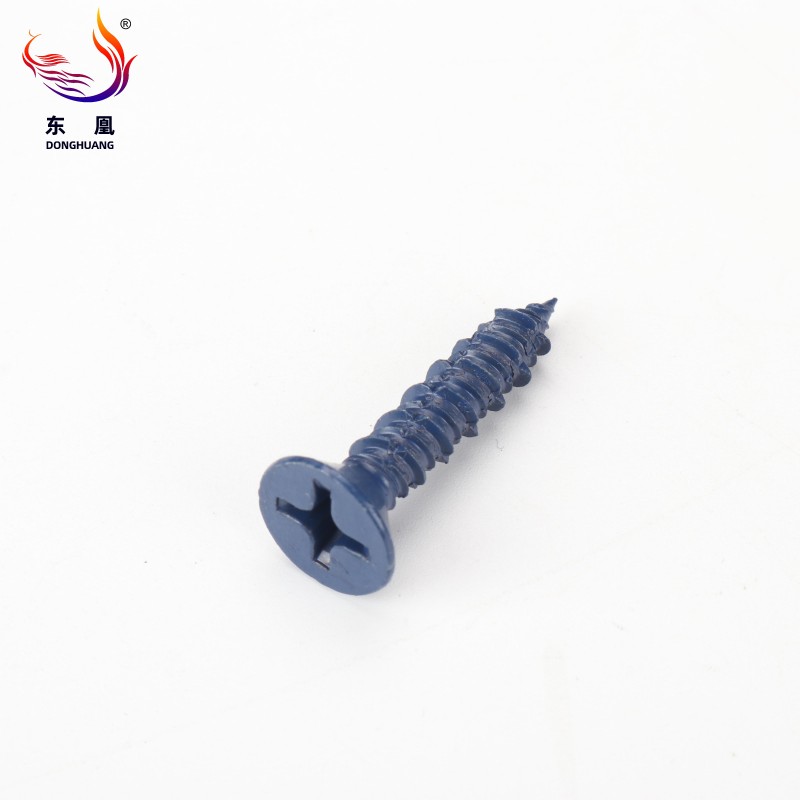

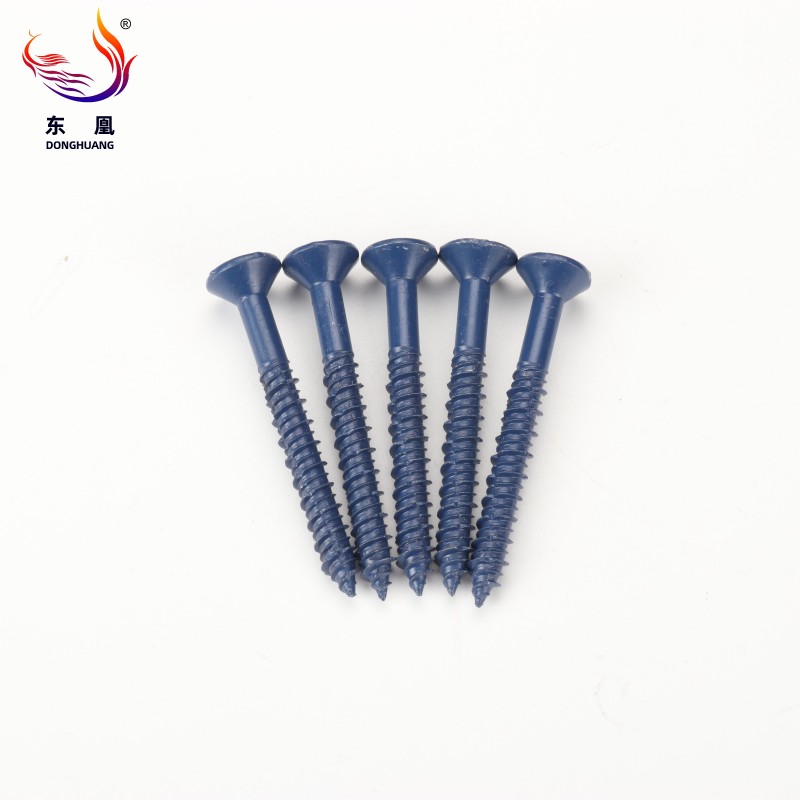

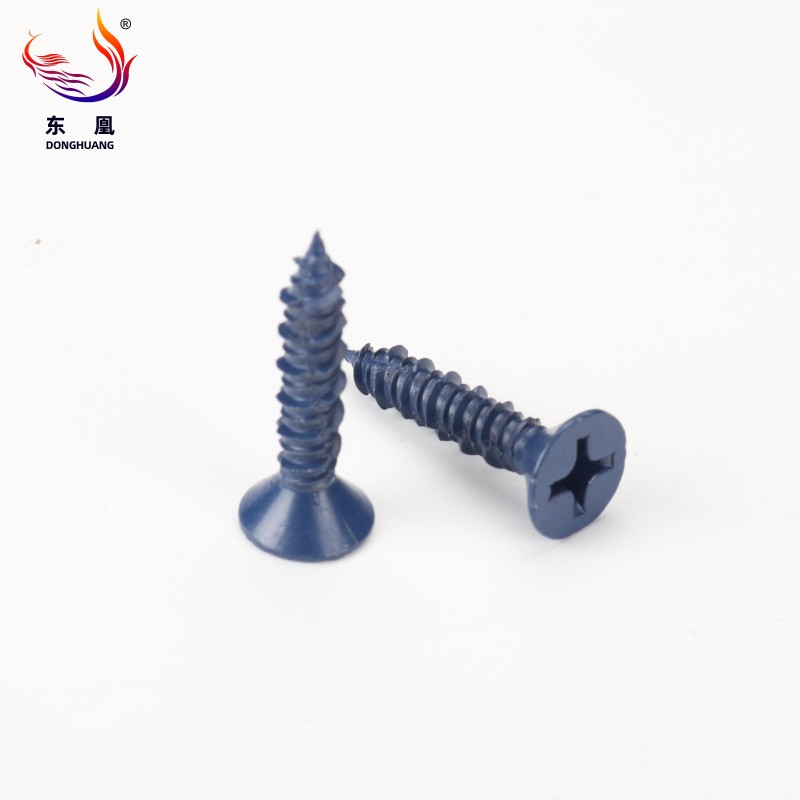

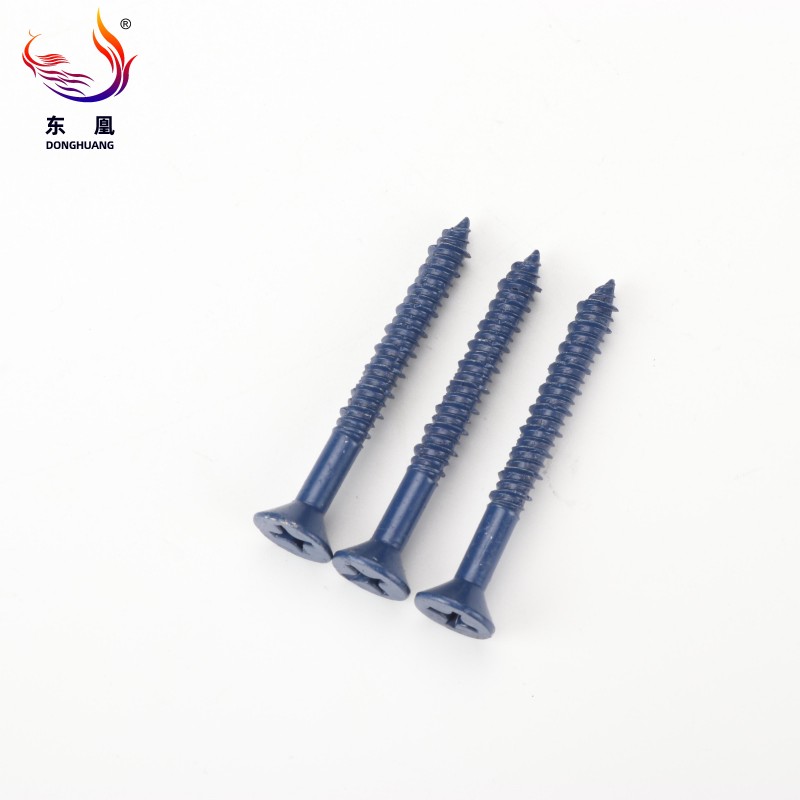

Phillips Flat Head Diamond Tip Concrete Anchor Screws represent a pinnacle in masonry fastening technology, engineered to deliver a flawless, flush finish across a multitude of hard substrates. Manufactured from premium heat-treated carbon steel, these fasteners feel substantial in hand, reflecting their industrial-grade strength. The countersunk flat head design ensures that once driven into concrete, brick, or block, the screw sits perfectly level with the surface, eliminating protrusions that could interfere with subsequent construction phases or aesthetic requirements.
Featuring an advanced self-tapping mechanism, these masonry screws aggressively carve their own internal threads into the substrate, bypassing the traditional, time-consuming need for secondary expansion anchors or shields. The smooth, zinc-plated or Magni-coated surface offers a distinct, clean metallic sheen while providing a tactile smoothness that speaks to the precision manufacturing process. Whether utilized in commercial framing or intricate architectural detailing, these screws provide a steadfast, vibration-resistant hold that project managers can trust.

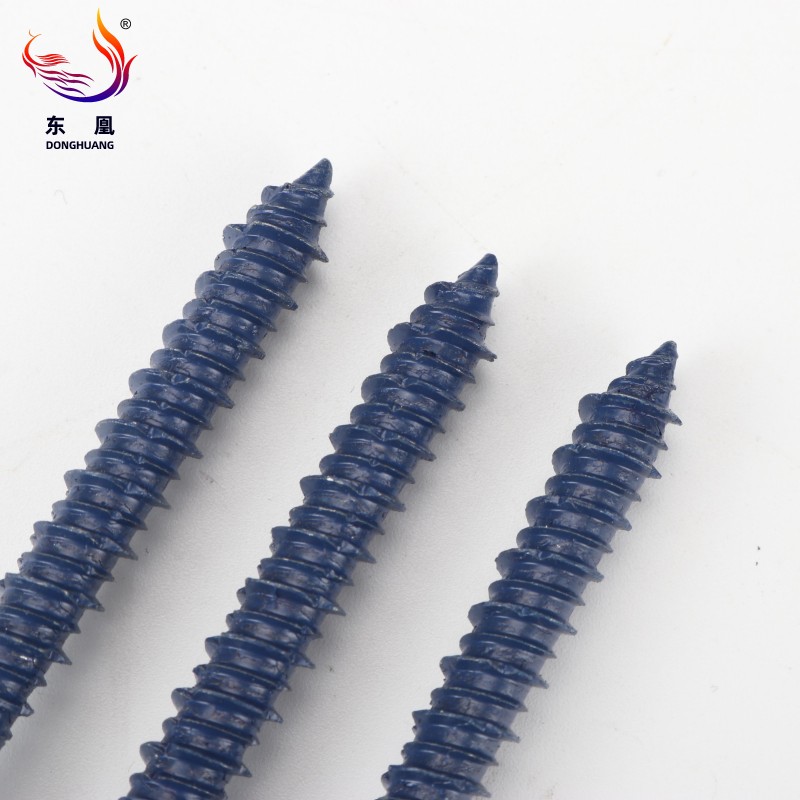

The unique diamond-shaped tail tip, paired with a specialized high-low dual thread configuration featuring three distinct notches, rapidly channels concrete dust and debris out of the hole. This aggressive cutting action allows the screw to bite into hard base materials instantly, preventing head stripping and delivering exceptional pull-out resistance under heavy loads.
Treated with premium, environmentally conscious surface finishes—including Zinc Plating, Blue Rusper, or Magni coatings—these masonry screws offer outstanding defense against oxidation. They maintain structural integrity and a clean appearance even when exposed to harsh outdoor elements, high humidity, or corrosive industrial environments, significantly extending the fastener's lifespan.
The precision-engineered flat countersunk head is designed to sit completely flush with the fastened material. This provides a smooth, unobstructed surface that is critical for applications requiring strict aesthetic standards or where protruding screw heads could cause mechanical interference or tripping hazards.
Forged from high-grade, heat-treated carbon steel, these anchor screws withstand immense shear and tensile loads. The serrated threads lock firmly into the masonry, ensuring a permanent, vibration-resistant hold that contractors can rely on for critical structural attachments.
Our Phillips flat head masonry screws are manufactured to strict dimensional tolerances, ensuring consistent performance across all your fastening projects. Below is the detailed specification data sheet outlining our standard configurations, available sizes, and surface treatments. Every parameter is strictly monitored to guarantee optimal thread engagement and shear strength.
| Standard | Concrete Screw |
| Head Type | Flat head, Hex washer head, Countersunk head, etc. |
| Drive type | Phillips, Torx, Slot etc |
| Thread Size | 3/16",1/4",M7.5 |
| Length | Min 1/4", Min52mm-202mm |
| Thread Type | High-low threaded with 3 Notches |
| Point | Cone, Diamond |
| Surface treatment | Zinc Plated, Blue Rusper, Magni |
| Packaging Details | bulk packing in cartons, then put on pallets, or as per your requests. |
| Customer design | OEM is available according to customer's drawing or samples |
These concrete anchor screws are engineered to perform flawlessly across a wide spectrum of challenging base materials. Beyond standard poured concrete, they deliver consistent, secure anchoring in solid brick, hollow concrete masonry units (CMUs), and dense mortar joints, providing dependable versatility for complex job sites.
Optimized for rapid installation, these masonry screws eliminate the tedious process of setting traditional expansion shields. By streamlining the workflow, construction teams can drastically reduce labor time. For extensive procurement orders, we can supply dedicated industrial-grade carbide-tipped masonry drill bits matched perfectly to your volume, ensuring maximum construction efficiency on site.
Q: Can you drive these fasteners directly into concrete surfaces?
A: Absolutely. These advanced concrete screws are specifically engineered to tap their own internal threads directly into hard masonry. Once a properly sized pilot hole is established, the high-low threads slice into the concrete, creating a secure mechanical interlock without any secondary hardware.
Q: Do these concrete screws require additional plastic or metal anchors?
A: No, they do not. The self-tapping nature of the diamond-tipped design completely eliminates the need for separate wall anchors, expansion shields, or plugs. This direct-fastening method significantly speeds up the installation process and reduces overall material costs.
Q: What size drill bit is required for optimal installation?
A: The pilot hole must be drilled with a carbide-tipped bit that is slightly smaller than the outer diameter of the screw's threads. Precise sizing is critical to ensure the threads can grip the base material securely, maximizing the pull-out resistance of the fastener.
Q: Are these flat head screws suitable for hollow block or brick applications?
A: Yes, they perform exceptionally well in hollow concrete masonry units (CMUs) and standard brick. While they are highly adaptable, it is crucial to ensure that the embedment depth allows the threads to engage fully with the solid web of the block or the densest part of the brick for maximum structural integrity.
Understanding the rigorous demands of large-scale construction projects and expansive distribution networks, we offer comprehensive industrial-grade packaging and manufacturing solutions tailored to your operational needs.
Designed to facilitate efficient logistics and warehousing, our packaging options range from heavy-duty bulk cartons to fully stretch-wrapped standard pallets. This ensures that massive quantities of fasteners remain secure, highly organized, and fully protected against moisture during long-haul transit, arriving at your facility ready for immediate deployment.
Backed by decades of expertise in heat-treated carbon steel forging, we provide extensive customization services. Whether you require specific head dimensions, proprietary thread pitches, or specialized anti-corrosion surface treatments, our engineering team can manufacture strictly according to your technical drawings or physical samples. Every batch undergoes rigorous quality control testing to meet and exceed the stringent building codes and safety regulations of international markets.
