| Availability: | |
|---|---|

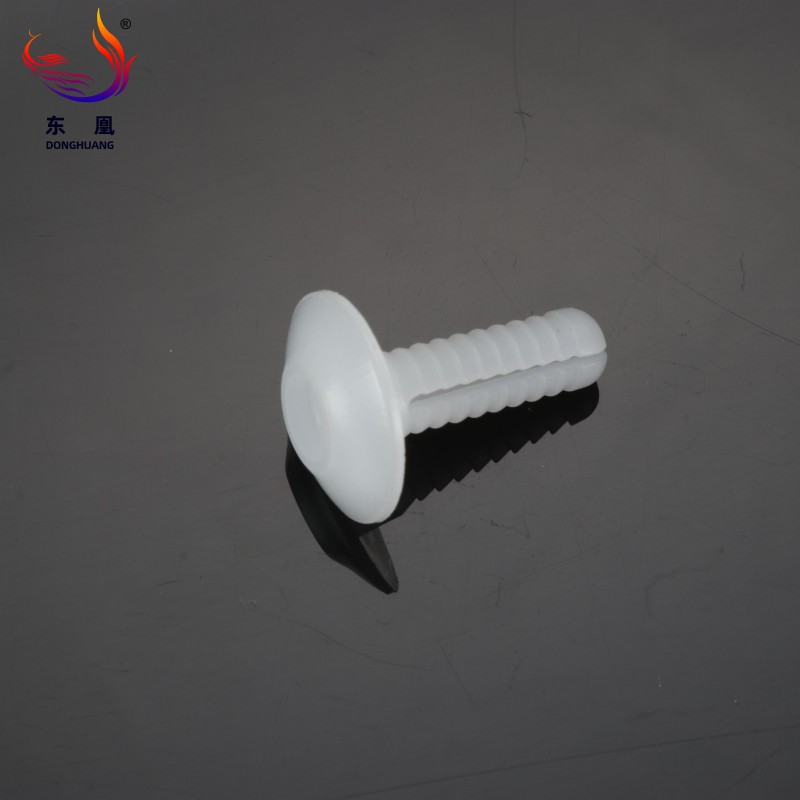

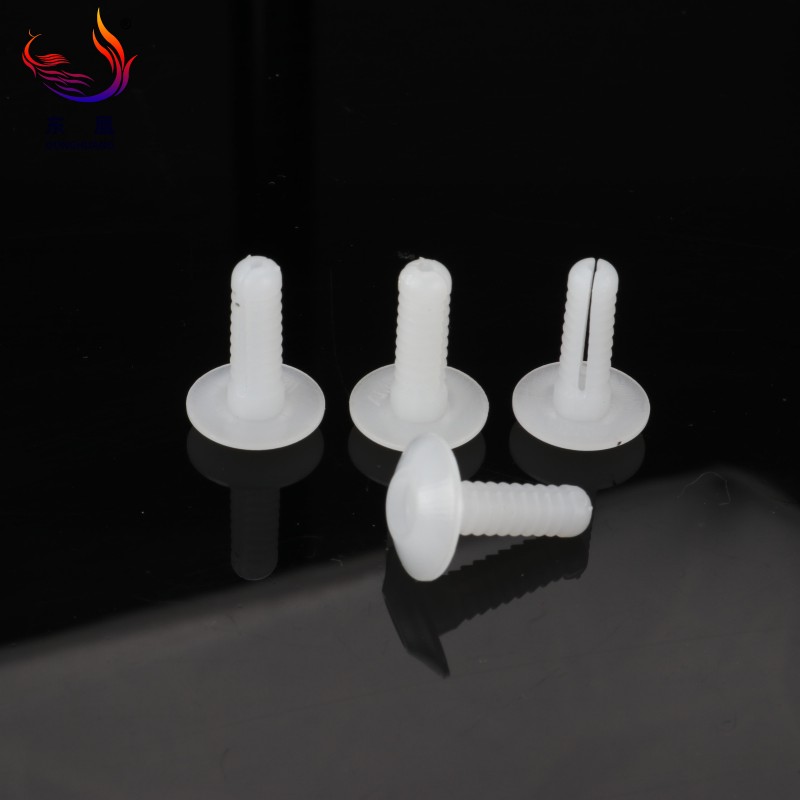

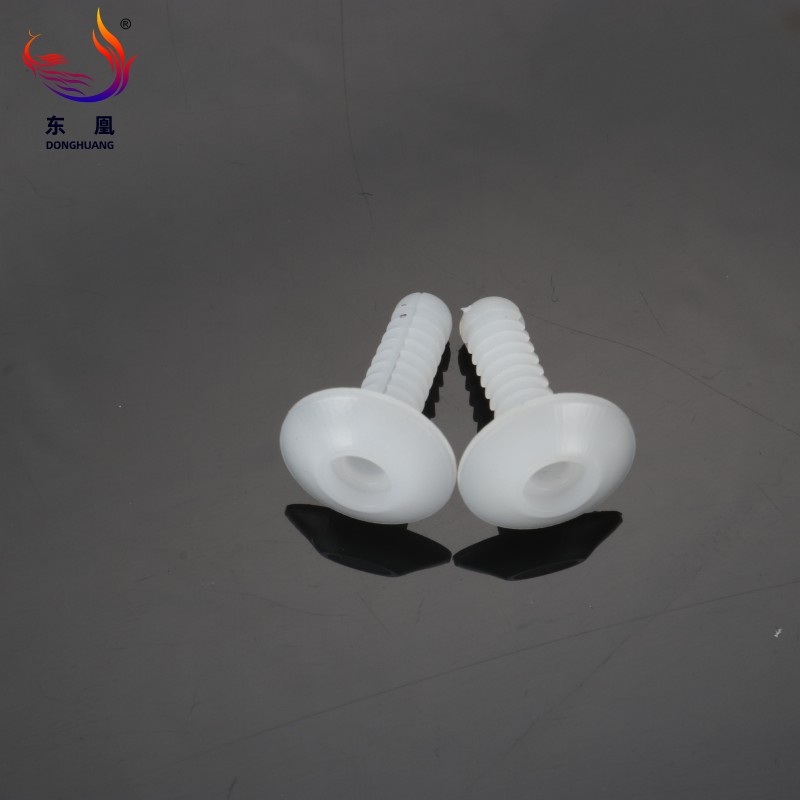

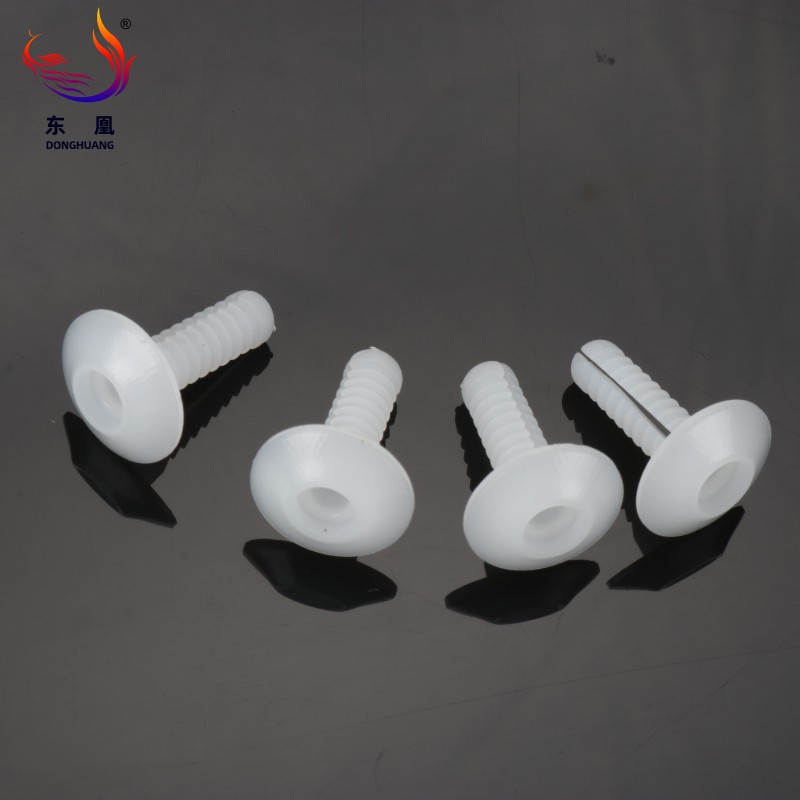

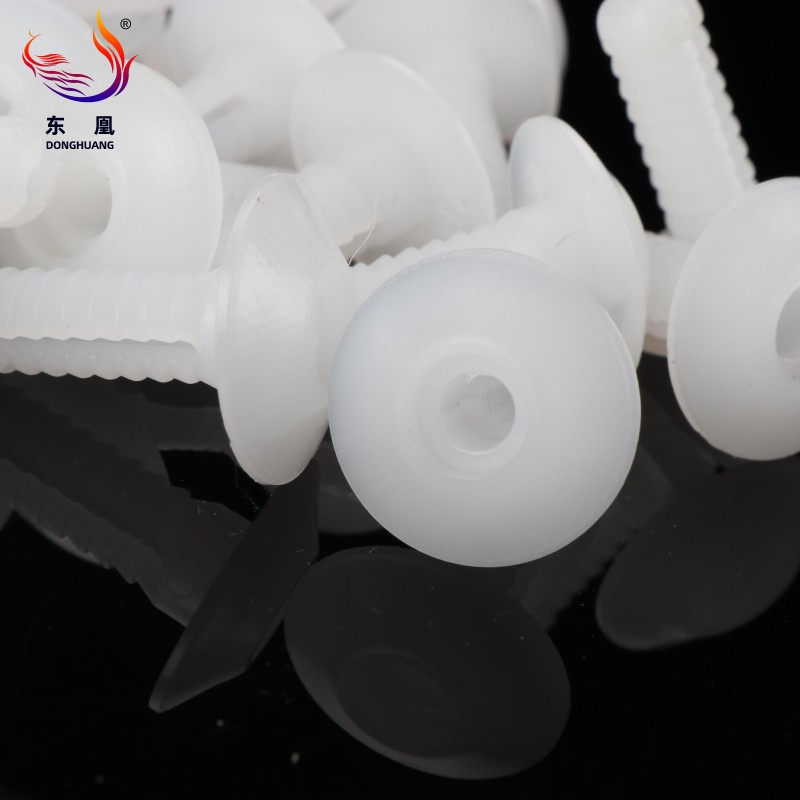

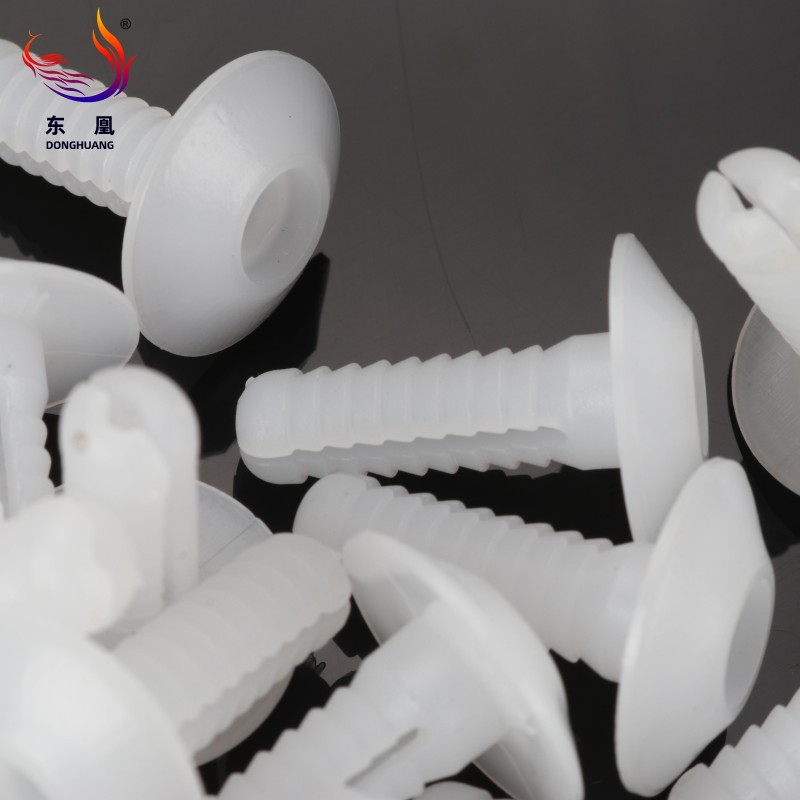

The Nylon Plastic Hammer Drive Anchor with a Mushroom Head, frequently referred to as a nail-in or drive pin anchor, is an essential fastening solution engineered for securing fixtures to solid base materials such as concrete, solid brick, and masonry blocks. Visually, it presents a clean white, high-toughness nylon sleeve paired with a corrosion-resistant metal drive pin. When handled, the nylon sleeve feels smooth yet rigidly structured to resist premature expansion before installation.
By simply striking the pin, the sleeve expands forcefully against the walls of the drilled hole, creating an immediate, vibration-resistant mechanical interlock. This system is designed for light to medium-duty anchoring tasks, providing a flush, aesthetically pleasing finish thanks to its low-profile mushroom head design that securely clamps materials without surface distortion.
Constructed from high-toughness nylon paired with a robust metal drive pin (available in carbon steel, stainless steel, or galvanized alloy configurations), these anchors offer exceptional weatherability. The nylon body inherently resists rust, while the treated metal core withstands demanding indoor and outdoor environments, ensuring long-term structural integrity without degrading or snapping under environmental stress.
The pre-assembled nature of this fastener eliminates the need for complex torque wrenches or specialized setting tools. A standard hammer is the only requirement. The precise hammering action drives the central pin downward, forcing the nylon sleeve to expand outward uniformly. This rapid deployment significantly reduces labor time on large-scale project sites, allowing assembly teams to move swiftly from one fixing point to the next.
Unlike standard plastics that become brittle in freezing conditions or soft in high heat, the engineered nylon construction maintains its physical properties across extreme temperature fluctuations. This thermal stability guarantees that the anchor will not loosen or fail when exposed to seasonal climate shifts in unconditioned spaces or exterior facades.
Once expanded, the nylon material compresses tightly against the microscopic crevices of the substrate. This not only creates a formidable pull-out resistance for light-duty loads but also acts as a natural dampener against minor vibrations, keeping attached fixtures securely mounted over decades of continuous use.
When specifying fastening components for critical projects, understanding the exact dimensions and material properties is vital for ensuring optimal performance. Our nylon hammer drive anchors are manufactured to strict metric standards, ensuring consistent sleeve diameters and lengths for precise hole matching. For successful deployment, engineers must adhere to the recommended minimum anchoring depths specific to the chosen anchor length, ensuring the expansion zone fully engages with the solid substrate rather than resting in plaster or drywall layers. Below is the comprehensive data sheet detailing the foundational specifications, material origin, and standard packaging configurations for our mushroom head anchors.
| Type | Anchor |
| Payment Term | 30% Advance Payment |
| Sample | Free |
| Color | White |
| Product Name | Plastic Hammer Drive Anchor Mushroom Head |
| Material | Nylon |
| System of Measurement | Metric |
| Quality Control | 100% Inspection |
| Package | Standard Package (Plastic Bag+Carton Box) |
| Trademark | Donghuang |
| Origin | Ningbo, China |
Note on Customization: While the standard package includes a protective plastic bag within a durable carton box, we fully support custom packaging requests. This includes specific kitting arrangements, bulk loose packing for large assembly lines, and bespoke labeling to streamline your internal inventory management and reduce overall procurement costs.
The versatile design of the mushroom head drive anchor makes it a primary choice for a multitude of mounting applications across diverse substrates, including solid concrete, hollow brick, masonry blocks, and natural stone. Its adaptability ensures reliable performance across various trades.
Perfectly suited for securing lightweight electrical conduit, cable clips, junction boxes, and low-profile signage to solid concrete or masonry. The flush mushroom head ensures cables and wires are not snagged or damaged post-installation.
Frequently utilized in flooring projects to anchor plywood subfloors or wooden battens directly to concrete slabs. The strong shear resistance of the metal pin prevents lateral movement, ensuring a squeak-free and stable foundation for top-layer flooring materials.
Engineered to hold drywall tracks and metal studs firmly against concrete perimeters. Additionally, specialized longer variants are employed to affix rigid foam insulation boards to exterior building envelopes, providing a secure hold that resists wind loads and thermal expansion.
An indispensable component for facility maintenance teams requiring quick, reliable fastening for lightweight shelving, brackets, guttering, and downspouts. Its adaptability to both solid and semi-solid base materials makes it a universal solution for unpredictable renovation environments.
Select a masonry drill bit that exactly matches the metric diameter of the nylon anchor sleeve. Drill the pilot hole into the concrete or brick substrate, ensuring the depth exceeds the total length of the anchor by at least 5mm to 10mm. This extra space accommodates any residual dust and allows for unobstructed expansion.
Thoroughly clean the newly drilled hole using a wire brush and a blowout bulb or compressed air. Removing the gritty concrete dust is crucial; a clean cavity ensures the nylon sleeve makes direct, high-friction contact with the solid base material rather than slipping against loose debris.
Push the pre-assembled anchor body directly into the clean hole. You should feel slight resistance as the ribbed nylon sleeve grips the sides. Continue inserting until the flat underside of the mushroom head rests completely flush against the surface of the fixture being attached.
Using a standard hammer, strike the head of the protruding metal pin with firm, controlled blows. As the pin is driven downward, you will hear a solid, resonant sound indicating the sleeve is expanding and locking into the surrounding masonry. Cease hammering once the pin is flush with the anchor head to avoid crushing the nylon flange.
Apply a moderate manual pull or lateral force to the attached fixture. A properly installed hammer drive anchor will exhibit zero play or wobble, confirming a rigid, secure mechanical bond capable of supporting its designated load class.
A: While our featured product is white, nylon wall plugs (including grey variants) are universally utilized for mounting lightweight to moderately heavy fixtures such as shelving units, curtain rails, electrical housings, and signage securely onto rigid wall surfaces.
A: Nylon drive anchors exhibit remarkable versatility. They are engineered for optimal performance in solid concrete, natural stone, solid brick, hollow masonry blocks, and lightweight aerated concrete, adapting their expansion to the density of the substrate.
A: Proper sizing is dictated by the weight of the fixture and the required load capacity. You must select an anchor diameter and length that corresponds with the recommended minimum anchoring depth for your specific base material to ensure structural safety.
A: Absolutely. The engineered nylon material is inherently resistant to moisture, UV degradation, and temperature fluctuations, making them highly reliable for both climate-controlled indoor environments and exposed outdoor installations.
A: Yes. When installed correctly in solid substrates, the expansive force of the driven pin creates immense friction against the hole walls, yielding excellent pull-out resistance specifically tailored for light to medium-duty static loads.
A: Removal is straightforward. By partially threading a standard screw into the nylon sleeve, you can use a claw hammer or heavy-duty pliers to grip the screw head and leverage the entire plug out of the cavity without excessively damaging the surrounding masonry.
A: Yes. The smooth, non-rotational expansion mechanism allows them to be used safely through pre-drilled ceramic or porcelain tiles. The mushroom head design also helps distribute the clamping force evenly, preventing localized stress fractures on delicate tile surfaces.
Securing a reliable pipeline of critical fastening components is paramount for maintaining uninterrupted project schedules and assembly lines. Our manufacturing facilities operate under stringent ISO 9001:2015 quality control systems, ensuring that every batch of nylon hammer drive anchors undergoes a rigorous 100% factory inspection before dispatch. This uncompromising approach to quality guarantees dimensional accuracy, material integrity, and consistent expansion behavior in the field.
Furthermore, we maintain robust inventory management protocols and extensive warehouse stock to support high-volume procurement demands. Whether you require standard boxed packaging, bulk loose shipments for manufacturing floors, or customized kitting solutions, our agile supply chain is structured to accommodate your exact specifications. With expedited order processing and direct ship capabilities, we ensure that your critical hardware arrives on-site exactly when required, optimizing your operational efficiency and reducing overhead costs.
