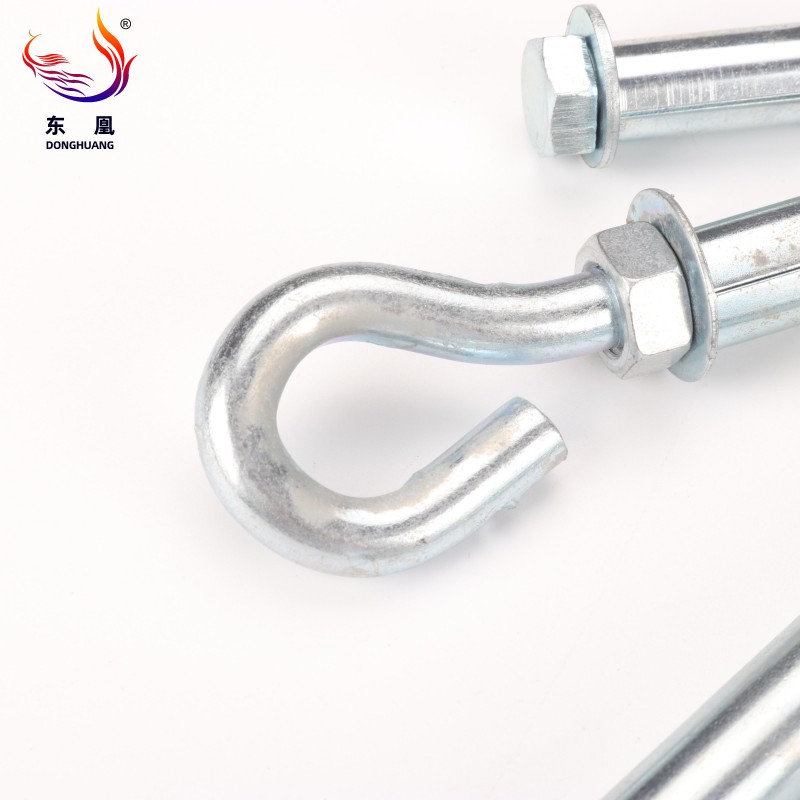

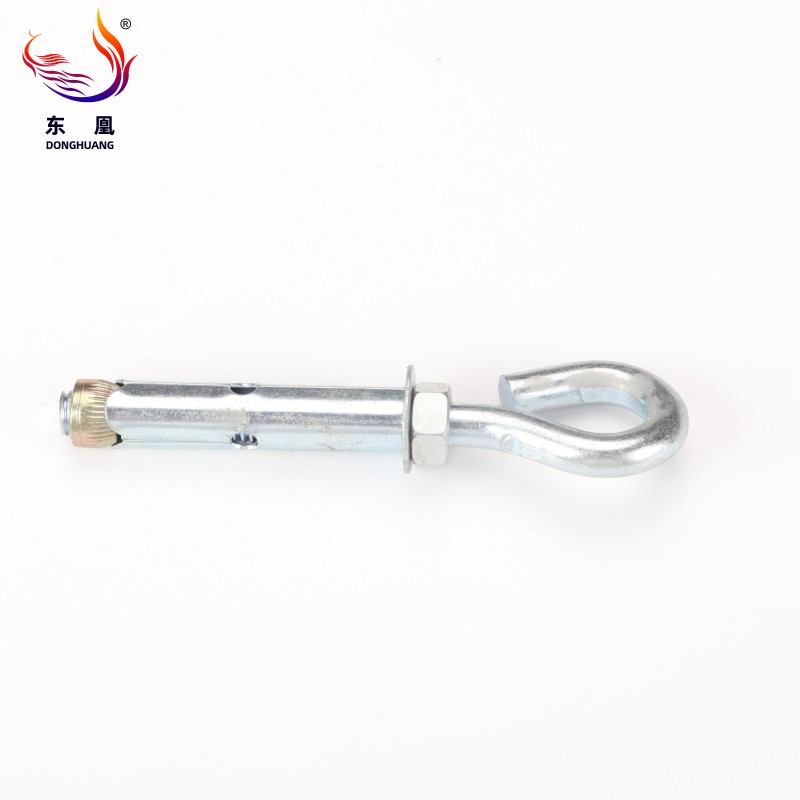

A sleeve anchor with an open hook operates as a highly dependable expansion fastening device, specifically engineered for solid concrete or dense masonry substrates. It features a precisely formed hook-shaped end, serving as a critical tie-down point. This design is engineered for structural applications requiring an immediate, accessible attachment zone for tensioned cables, heavy-duty wire routing, or suspended chain systems, eliminating the need for secondary mounting hardware.
On active project sites, the margin between a predictable installation schedule and a costly series of callbacks frequently depends on the reliability of the chosen fasteners. A C Type Hook Bolt Sleeve Anchor is manufactured for those exact moments when project managers require an unyielding connection point. It is a component you can drive into the substrate rapidly, torque down with absolute certainty, and trust entirely long after the initial installation phase is complete.
The physical installation process provides immediate tactile feedback. You bore the hole, clear the concrete dust, and slide the cold, zinc-plated anchor into position. As you turn the nut, you can physically feel the internal cone drawing tight, forcing the metal sleeve to flare outward against the abrasive walls of the masonry. This unmistakable, solid mechanical resistance signals that the anchor has engaged with maximum friction. Above the surface, the C-hook remains perfectly positioned, offering a ready-made point to hang or restrain heavy components without forcing crews to improvise with shackles or bent rods.
Procurement teams and site engineers frequently specify this product for extensive cable management runs, overhead mechanical attachments, and repetitive fastening tasks where an open-hook geometry proves far more practical than a standard hex bolt head. The uniformly applied zinc-plated surface adds a bright, tidy metallic finish that maintains a deliberate, professional appearance even in highly visible architectural installations, ensuring the finished work looks intentional and meticulously planned.
Behind this specific geometry is a straightforward operational philosophy: reduce assembly steps, eliminate connection uncertainty, and make the attachment point instantly usable. When maintenance teams return to the site months or years later, the hook remains exactly where it was placed—clearly visible, free of excessive oxidation, and structurally prepared to hold the specified load.
Hook head that saves time during assembly
Eliminates the need for separate eyes, shackles, or improvised bends, stripping wasted minutes from every single fixing point.
Makes attachment intuitive for heavy cables or wire loops—highly beneficial for repetitive maintenance and rapid changeovers.
Expansion sleeve grip you can rely on

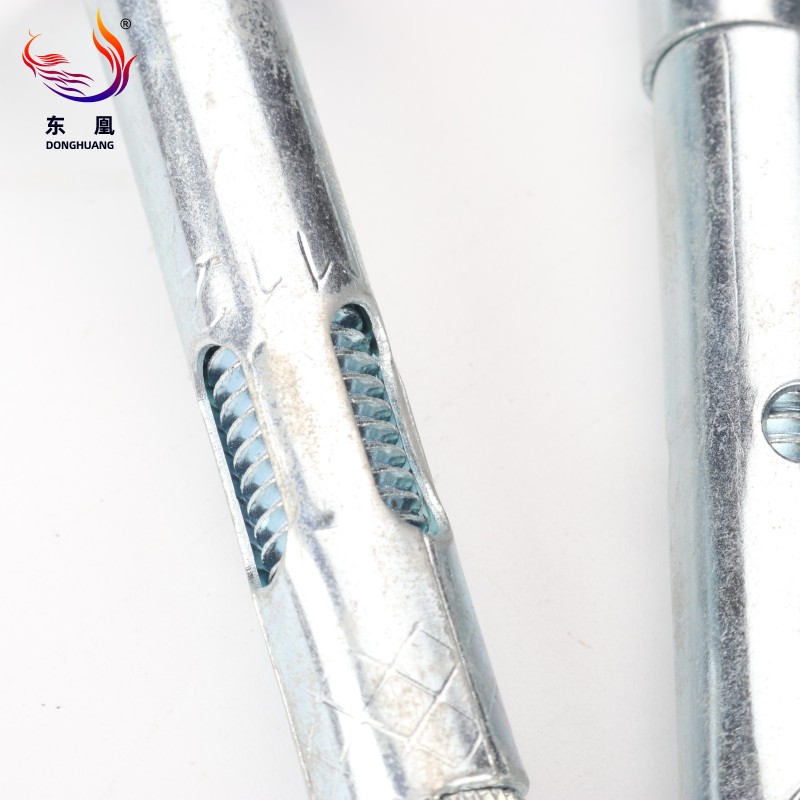

The expanding sleeve maximizes the physical contact area with the abrasive base material, drastically reducing the risk of loosening under vibrational loads when installed correctly.
Suitable for many typical building materials encountered during large-scale renovation, facility upgrades, and structural installation work.
Cleaner-looking finished work
Zinc plating provides a uniform metallic sheen that helps the installation look consistent across hundreds of consecutive anchor points.
Highly helpful when anchors remain exposed to daily view, such as in suspended signage, exposed cable routes, or retail ceiling accessories.
Wide diameter range for standardization
With M6–M24 options, engineering teams can specify the exact anchor size for varying load requirements while keeping the overall procurement catalog simplified.
Lower risk of avoidable failures
Clear, repeatable installation steps (correct drilling, proper cleaning, controlled tightening) reduce common site issues like anchor spinning, shallow embedment, and weak holding capacity.
| Standard | GB /T 22795 |
| Diameter | M6-M24 |
| sample service | Free sample but freight cost is paid by customers(when sample is in stock) sample fee(when samples need to be customized) |
| Surface treatment | Zinc Plated |
| Package | Plastic bag, Boxes and cartons, Pallets, Customized |
| Price terms | EXW, FOB, CIF, etc. |
| Payment terms | T/T, Paypal, L/C, Western union, etc. |
| Certifications | ISO 9001 |
| Note | Free Samples could be provided for standard fastener |
| Trademark | Donghuang |
Zinc Plated finish (standard on this product)
Adds a protective barrier that slows rust formation in many everyday indoor or sheltered conditions.
Keeps a clean, bright surface that doesn’t immediately look dull or oxidized after handling with work gloves.
Why finish choice matters
Anchors often live where concrete dust, atmospheric moisture, and seasonal temperature swings are present. A plated surface helps maintain appearance and serviceability, especially when the hook must remain usable for future tie-offs.
Advanced Material Alternatives
Beyond standard zinc plating, these expansion anchors can be manufactured in 304 and 316 stainless steel grades. For extreme outdoor exposure, high-humidity zones, or coastal salt-spray environments, specialized anti-corrosion coatings can be applied to ensure the anchor's structural integrity over decades of service.
Practical note
For harsher environments (persistent chemical exposure in industrial plants), projects often specify alternative corrosion strategies. If you share the target environment, we can advise on material selection and provide the necessary compliance documentation.
Choosing the right sleeve anchor is rarely about simply assuming “bigger is better.” It’s about precisely matching the anchor's expansion mechanics to the fixture weight, the density of the base material, and the specific installation method utilized on site.
Every anchor diameter is engineered to deliver specific pull-out resistance and shear strength metrics. By relying on strict mechanical performance data rather than guesswork, installation teams can ensure absolute safety redundancies in high-load suspension scenarios. The expansion sleeve is designed to distribute the compressive force evenly, preventing localized substrate failure even under constant tension.
Recommended selection approach
Start with the load and fixture geometry: larger diameter typically supports higher tensile loads and reduces metal deformation under continuous tension.
Check base material condition: cracked, porous, or aged masonry may require a more conservative selection approach and stricter torque control during installation.
Match drill bit diameter precisely: the anchor depends entirely on the correct hole size to expand outward and grip the concrete properly.
Plan embedment depth and clearance: ensure enough drilled depth for full sleeve expansion, plus extra space at the bottom for unavoidable drilling debris.
Available diameter range (kept from your parameters): M6–M24
These hook bolts have proven instrumental across multiple demanding vertical sectors. In electromechanical installations, they secure heavy overhead cable trays, emitting a reassuring metallic lock when tension is applied. In commercial construction, they act as the primary suspension points for HVAC ducting guides. For heavy-duty cable management in industrial facilities, the open C-shape allows technicians to rapidly drop in thick power lines without threading them through closed eyes, accelerating layout times significantly.
Common applications
Cable and heavy wire tie-down points routed along concrete walls and structural ceilings
Hanging industrial light fixtures, heavy architectural signage elements, and suspended ceiling accessories
Securing structural brackets, piping guides, and general-purpose tension attachments
Organizing complex service lines in manufacturing workshops, utility areas, and power distribution facilities
Typical base materials
Solid Concrete
Solid Brick
Block masonry
(Project-dependent) some hollow masonry conditions, strictly when assessed by an engineer and installed appropriately
What customers gain
Fewer improvised, non-compliant attachment methods on the job site
Measurably faster installation cycles per room or corridor
A much cleaner visual layout and easier future maintenance due to an instantly recognizable, visible hook point
Step-by-step
Drill the hole
Use a masonry drill bit exactly matching the sleeve anchor diameter. You will hear the distinct grind of the bit cutting into the aggregate.
Drill to the required depth for full embedment plus a small allowance for the dust and debris that inevitably settles at the bottom.
Clean the hole thoroughly
Brush, vacuum, or use compressed air to aggressively remove the fine concrete dust.
A perfectly clean hole ensures the metal sleeve expands evenly against raw concrete, gripping consistently rather than slipping on a layer of powder.
Insert and position
Insert the anchor (passing it through the fixture bracket if required). It should require a light tap with a hammer to seat properly.
Carefully align the C hook orientation to match the intended pulling or hanging direction before tightening.
Tighten to expand

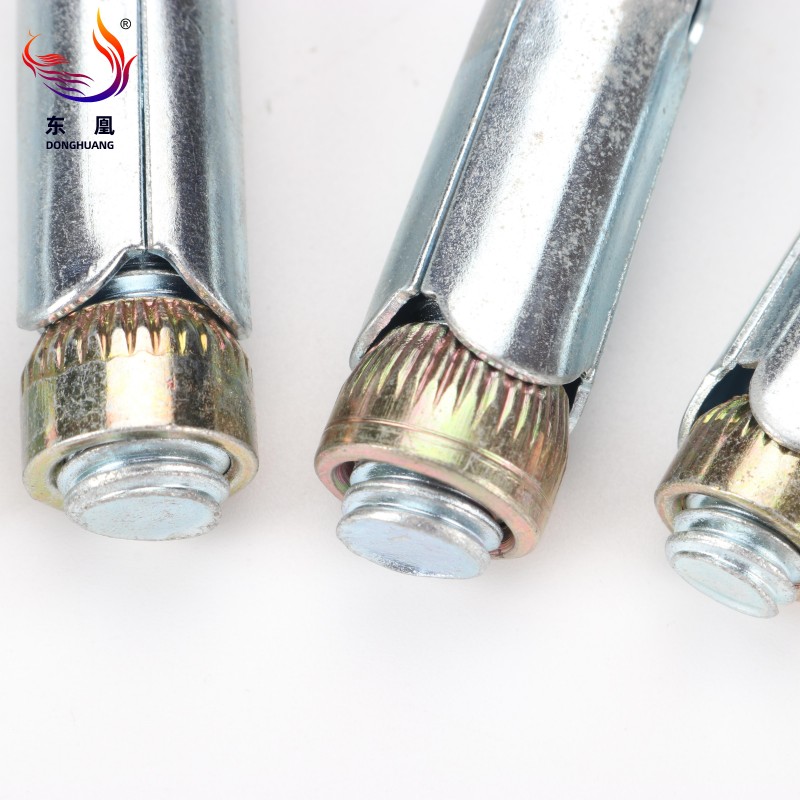

Tighten the nut; as you turn the wrench, the internal threaded cone draws upward into the sleeve, forcefully expanding it against the unyielding hole wall.
Continue until the fixture is firmly seated and physically secure.
Final tightening
Always use a calibrated torque wrench when specified by project guidelines to avoid dangerous under-tightening or thread-stripping over-tightening.
Practical tips
Don’t skip hole cleaning—trapped concrete dust behaves exactly like a mechanical lubricant and will drastically reduce the effective grip of the sleeve.
If the anchor spins freely inside the masonry, immediately re-check the drill bit size and verify the embedment depth.
For long, repeated tie-down applications (like a 50-meter cable run), orient all hooks in the exact same direction for a highly professional, easily inspectable layout.
Operating with advanced automated production lines, the manufacturing facility produces a rhythmic output of precision-threaded components, ensuring an immense monthly capacity scale. This deep manufacturing strength means that even the most demanding, large-volume orders are fulfilled without compromising the exacting tolerances required for expansion anchors.
Manufacturing & process control
Rigorous inspection is performed after every process—from wire drawing to thread rolling—helping catch micro-deviations long before surface finishing and final packing.
Finished goods verification
100% inspection protocols can be conducted according to specific customer requirements and applicable international expectations for structural acceptance.
Standard reference (kept from your parameters)
GB /T 22795
Quality system (kept from your parameters)
ISO 9001 certified quality management supports total material traceability, dimensional consistency, and continuous operational improvement.
What this means for your procurement operations: steadier incoming material quality, far fewer site installation issues, and much smoother documentation handovers when you need to qualify suppliers for major bids.
When anchor points act as a critical part of a larger proprietary system, even small dimensional changes can remove a massive amount of friction in final assembly. Customization can help perfectly align the anchor's geometry with your specific fixtures and installation tooling.
The transition from a non-standard requirement to a physical product follows a highly standardized OEM/ODM pathway. Starting with thorough engineering drawing evaluations, moving through rapid mold development, and culminating in fast-turnaround physical prototyping, this structured process significantly lowers the communication barriers and costs typically associated with sourcing non-standard fasteners.
Predictability in supply is just as vital as the steel itself. Clear, committed lead times are established for both initial sample approvals and subsequent mass production runs. Furthermore, Vendor Managed Inventory (VMI) services can be structured to guarantee continuous, uninterrupted supply lines for large-scale, multi-phase construction projects, eliminating the threat of stockouts.
Possible customization directions
Custom packaging artwork, specialized barcodes, compliance labeling, and heavy-duty carton marking
Specific pack counts designed for assembly kitting or phased project-based deliveries
Dedicated sample development when non-standard thread lengths or hook diameters apply
Sampling policy (kept from your parameters)
Free sample available when in stock (freight paid by customer)
Customized samples may require a sample fee depending on tooling requirements
Note: Free samples can be provided for standard fasteners
1) What base materials are sleeve anchors with C hook bolts suitable for?
They are commonly and effectively used in solid concrete and dense masonry formats such as solid brick and block. Ultimate load performance depends heavily on the internal condition of the substrate and adhering to correct drilling and cleaning protocols. If you share your exact base material type and structural thickness, our engineering support can recommend a safer, more precise selection approach.
2) How do I reduce the risk of the anchor loosening over time?
Most holding issues stem directly from an incorrect hole diameter, insufficient embedment depth, or residual concrete dust left trapped in the hole. Drill to the exact specified size and depth, clean the cavity thoroughly with air or a wire brush, and tighten the nut to the appropriate torque value when required by the project specifications.
3) Can I get samples before ordering?
Yes. Free samples are readily available for standard catalog items when currently in stock (freight costs are paid by the customer). Customized samples requiring new dimensions or specific coatings may involve a development fee depending on the complexity of the requirements.
4) What sizes do you supply?
This specific product line covers diameters from M6–M24, allowing precise selection based on your fixture design constraints and the calculated tension load needs of the installation.
5) What packaging options are available for shipment and storage?
Heavy-duty plastic bags, reinforced boxes/cartons, export-grade pallet packing, and fully customized packaging layouts are supported. Tell us your preferred pack count per box and specific labeling needs to ensure easier receiving, inventory scanning, and site handling.
6) What are your payment and trade terms?
When we prepare a formal quote for you, we will confirm the preferred method of transaction, including FOB, CIF, CNF, etc., based on your logistical preferences.
For mass production goods, the standard structure requires a 30% deposit before initializing production and a 70% balance paid against the copy of the shipping documents. The most common and efficient way is by T/T. L/C is also entirely acceptable for qualifying orders.
