Installing overhead systems demands absolute precision and reliable hardware. Spring Nuts (or strut nuts) serve as the foundational fastening components for metal framing and strut channel systems like Unistrut and Superstrut. They secure heavy infrastructure in place, preventing costly misalignments.
Securing overhead conduit, HVAC systems, or pipe routing introduces significant operational challenges. Installers need fasteners they can position single-handedly while maintaining stability during alignment. Without proper grip and upward tension, components slip during assembly, creating massive safety hazards for the team.
This guide provides a clear, evidence-based breakdown of strut nut mechanics, type variations, and material compliance standards. You will discover load-rating considerations to support accurate procurement and safe installation practices. We will equip you with the exact technical knowledge necessary to select the right framing hardware for your next project.
Traditional nut and bolt assemblies present a major physical limitation. Securing them requires two hands: one holding the bolt head, the other tightening the nut from behind. In closed-back strut channels, rear access is completely impossible. Installers simply cannot reach behind the metal profile to hold a standard hex nut. Furthermore, adjusting the position of a standard nut inside a track often requires sliding it awkwardly from the very end of the rail. This process slows down structural builds and drastically increases physical fatigue during overhead work.
To overcome this exact accessibility barrier, engineers developed a specialized three-part anatomy. Each element serves a distinct structural purpose:
This intelligent geometry radically transforms the installation workflow. It reduces total labor hours by enabling one-handed, drop-in installations for complex overhead and vertical structural supports. You simply push the fastener into the open face of the channel and twist. The tension holds it precisely where you want it. Consequently, installers can safely handle heavy pipes, threaded rods, and bulky fixtures using their free hand, accelerating the entire mechanical alignment process.
Selecting the correct profile depends heavily on the specific metal framing system you intend to deploy. Using incompatible hardware leads to immediate installation failure. Below, we break down the four primary categories.
Regular variations represent the industry default for most mechanical, electrical, and plumbing (MEP) runs. They pair exclusively with standard 1-5/8" x 1-5/8" deep strut channels. The long coil compresses perfectly within this deeper cavity, providing maximum holding force. When building heavy-duty trapeze hangers or supporting large HVAC ductwork, you will primarily rely on this standard format.
Installations often require a lower profile to save space. Shallow 13/16" or 1" strut channels fulfill this need but demand customized hardware. Short Spring Nuts feature a significantly truncated coil. This abbreviated length prevents the coil from bottoming out against the shallow back wall. If you attempt to force a regular long coil into a shallow channel, the compressed metal creates a physical block, obstructing the threaded rod from passing through the nut body.
Some applications eliminate the need for tension entirely. No-spring (or flat) strut nuts work best for floor-level tracks or horizontal applications. In these setups, gravity naturally keeps the nut resting firmly against the channel lips. They offer a more cost-effective manufacturing profile. However, deploying them in vertical or overhead orientations increases installation time and crew frustration, as the nut will constantly fall out before the bolt engages.
While less common, top configurations serve highly specific niche applications. These variations feature the flexible coil sitting above the grooved body rather than below it. They accommodate specialized framing assemblies demanding unique entry angles or temporary positioning outside standard enclosed channels.
| Nut Type | Target Application | Evaluation Criteria |
|---|---|---|
| Regular | Standard 1-5/8" deep strut channels | Industry default; maximizes holding force for heavy-duty MEP runs. |
| Short | Shallow 13/16" or 1" strut channels | Prevents bottoming out; ensures unobstructed bolt threading. |
| No-Spring | Floor-level tracks or horizontal runs | Cost-effective; relies on gravity; unsuitable for overhead builds. |
| Top Spring | Niche angle framing | Coil sits above the nut; used for specialized track entry. |
Procuring the exact thread diameter dictates the ultimate weight your framing system can support safely. Standardized sizing categories dominate the construction landscape. You must evaluate the exact load requirements before choosing a diameter.
Beyond thread diameter, the physical thickness of the metal body dictates structural resilience. Thicker bodies generally offer deeper thread engagement. When a bolt passes through more internal threads, the assembly distributes sheer and pull forces across a wider surface area. This physical reality directly correlates to significantly increased pull-out strength. Always verify the thickness parameters when reviewing submittal documents for high-load zones.
Field errors frequently occur during the hardware matching phase. Always match the thread pitch of the fastening body exactly with the corresponding threaded rod or hex bolt. Forcing a mismatched metric bolt into standard imperial threads—or vice versa—strips the internal grooves instantly. Cross-threading under heavy load guarantees catastrophic pull-out failure. Supervisors should conduct strict visual checks during the hardware sorting phase to prevent incompatible parts from reaching the installation floor.
Ignoring environmental chemistry destroys metal framing systems rapidly. Galvanic corrosion and atmospheric rusting compromise structural integrity within months if you select the wrong finish. Procurement teams must view material selection strictly through an environmental compliance lens.
Electro-Galvanized (Zinc Plated): This finish represents the baseline standard for indoor commercial use. Manufacturers apply a thin layer of zinc using electrical currents. It offers low upfront costs but minimal corrosion resistance. Reserve it strictly for climate-controlled, dry environments like interior office ceilings or retail spaces.
Hot-Dip Galvanized (HDG): Heavy-duty outdoor projects demand superior protection. The HDG process submerges the steel directly into molten zinc, creating a much thicker, metallurgically bonded coating. This robust barrier protects against harsh weather, high humidity, and moderate industrial chemicals. We recommend it for rooftop HVAC supports and exterior piping runs.
Stainless Steel (304 & 316): Aggressive environments require total immunity to oxidation. Food processing facilities, marine environments, and highly corrosive industrial plants mandate stainless steel. While 304 offers excellent general protection, grade 316 contains molybdenum, specifically resisting chloride and salt exposure. Stainless options carry the highest upfront cost but deliver the lowest lifecycle replacement risk.
Engineering plans designate strict load capacities for all overhead assemblies. You must evaluate two distinct mechanical thresholds to ensure compliance.
Slip Resistance: This metric defines the exact lateral force required to drag the tightened fastener down the metal track. High slip resistance prevents pipes from migrating during thermal expansion or water hammer events.
Pull-Out Strength: This measurement defines the vertical force required to physically rip the fastener straight out of the metal lips. It represents the ultimate failure point of the connection.
Note on Authority: Novice installers often mistakenly believe the nut alone determines the weight limit. In reality, load capacities depend strictly on the gauge (thickness) of the strut channel holding the hardware. A heavy-duty 1/2" fastener will easily rip through thin 14-gauge metal under high stress. Always consult the specific manufacturer’s load tables for the combined assembly. Furthermore, engineers mandate applying standard safety factors (typically a 3:1 ratio) to these published limits to account for dynamic shifts.

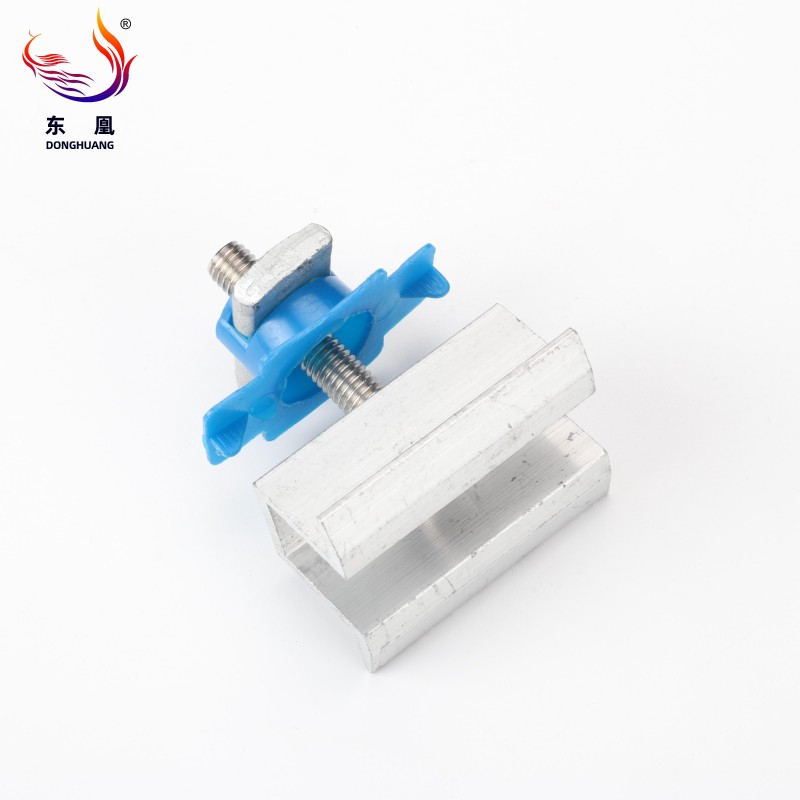

Correct field execution determines the lifespan of the support frame. Insert the hardware parallel to the channel opening. Push it firmly down into the track, compressing the coil against the back wall. Once inserted fully, twist the body exactly 90 degrees clockwise. The grooved serrations must align perfectly parallel to the inturned lips. If they sit at an angle, the teeth cannot bite into the steel, drastically reducing structural holding power.
Wrench management causes more system failures than defective parts. Crews must respect strict torque guidelines.
Over-torquing presents a severe danger. Applying excessive force warps and bends the channel lips outward. Once the steel deforms, it permanently compromises the structural integrity of the entire strut run. The track loses its ability to grip future fittings securely.
Conversely, under-torquing leads to vibrational loosening. Insufficient clamping force allows the grooved teeth to float above the metal lip. Over time, ambient building vibrations will vibrate the assembly loose, leading to eventual slip failure.
Recommendation: Utilize calibrated torque wrenches during installation. Supervisors should conduct random torque audits to ensure strict adherence to manufacturer spec sheets.
High-vibration environments demand extra precautions. Areas located near heavy HVAC chillers, large industrial motors, or stamping presses experience constant micro-movements. For these zones, specify options featuring highly aggressive, deep-cut serrations. Additionally, we strongly advise combining the mechanical connection with chemical thread-locking compounds. Applying a medium-strength liquid thread-locker to the rod prevents the hex bolt from backing out during prolonged vibration exposure.
Selecting the optimal framing hardware requires balancing mechanical strength against environmental realities. Making arbitrary choices leads to compromised safety and failed inspections. Follow these finalized principles to ensure project success:
A: No. The longer spring will compress fully before the nut engages the channel lips, making it impossible to insert or thread the bolt properly. Attempting this usually damages the coil and obstructs the pathway for your threaded rod.
A: "Channel nut" or "strut nut" serves as the broad, overarching category for these fasteners. A spring nut represents a specific type of channel nut featuring an attached metal coil for easier, hands-free positioning inside the track.
A: Yes, but the limit acts as a combined system rating. The total allowable load depends on the thread size of the fastener, the material finish, and the gauge thickness of the metal strut channel holding it. Never rely on the nut's strength alone.
A: Generally, yes, if they remain free from over-torquing, structural deformation, or excessive rust. However, for critical load-bearing infrastructure or overhead seismic bracing, using brand-new hardware remains the absolute standard safety practice.
