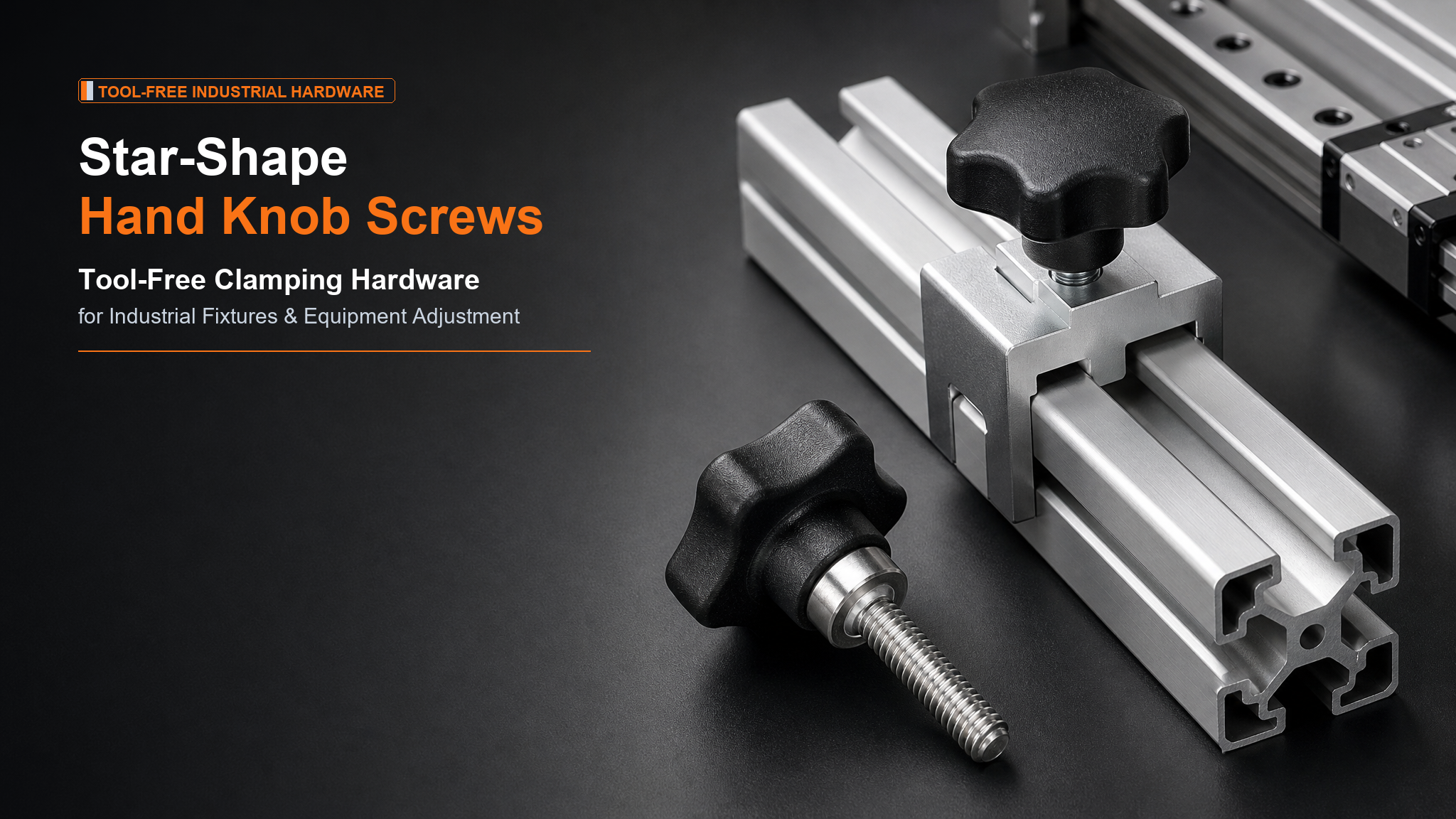

Modern machine design prioritizes ergonomic human-machine interfaces and rapid setup changeovers:
Tool-Free Adjustments: Eliminates machine downtime caused by searching for allen keys or wrenches during routine fixture adjustments.
Ergonomic Torque Application: Multi-lobed (5-star or 7-star) contoured heads provide high frictional leverage, allowing operators to exert sufficient holding force manually.
Non-Marring Aesthetic Design: Durable matte black polymer heads resist industrial oils, grease, and mild chemical splashing while providing an attractive finished appearance.
┌─────────────────────────┐ ( Ergonomic 5/7-Star Head ) <--- High-impact thermoset/thermoplastic polymer └───────────┬─────────────┘ │ [Knurled Base] <--- High-torque knurled metal insert anchor │ [Precision Threaded Stud] <--- Zinc-plated carbon steel or brass male stud
High-Impact Polymer Head: Molded from tough polypropylene (PP) or phenolic resin, engineered with smooth, rounded contours to eliminate sharp pinch points.
Heavy-Duty Anchored Stud: The male threaded stud features an enlarged, knurled or hexagonal head that is insert-molded directly into the polymer body. This mechanical interlock prevents the stud from stripping out of the plastic under heavy manual torque.
Threaded Stud Options: Available in zinc-plated carbon steel, passivated 304 stainless steel, or brass to accommodate various environmental conditions.
| Star Head Diameter | Thread Sizes (Metric / Imperial) | Stud Length Options | Core Material Composition | Typical Industrial Use Case |
|---|---|---|---|---|
| Ø 25mm – Ø 32mm | M5 / M6 / 1/4"-20 | 10mm – 35mm | Polypropylene Head + Zinc Plated Stud | Laboratory bench fixtures, camera rigs, 3D printer bed leveling |
| Ø 40mm – Ø 50mm | M8 / M10 / 5/16"-18, 3/8"-16 | 15mm – 60mm | High-Impact PP Head + Grade 4.8 / 8.8 Steel | Conveyor side-rail guides, woodworking fence locks, packaging machinery |
| Ø 60mm – Ø 80mm | M10 / M12 / 1/2"-13 | 20mm – 80mm+ | Heavy Phenolic/Nylon Head + Stainless Stud | Industrial drill press table locks, fitness equipment adjustments |
Answer: Our manufacturing process utilizes precision-knurled and hexagonal-headed metal studs specifically designed for insert molding. When the molten resin cures around the knurled metal base, it forms a mechanical interlock that delivers high torsional shear resistance, preventing separation during hand tightening.
Answer: Standard polypropylene knobs can degrade under extended UV exposure. For outdoor agricultural machinery, solar trackers, or marine fixtures, Donghuang supplies UV-stabilized nylon (PA6) or phenolic plastic knobs paired with 304/316 stainless steel studs for long-term outdoor durability.
Donghuang Hardware manufactures male star-knob screws, female threaded star knobs, and through-hole clamping hardware with custom stud lengths and private labeling.
Product Catalog: View star-knob screws and fasteners at dh-hardware.com/Screw-pl49811397.html.
Direct Technical Inquiries: Contact tony@wf-fastener.com / Call +86-13355841616.
