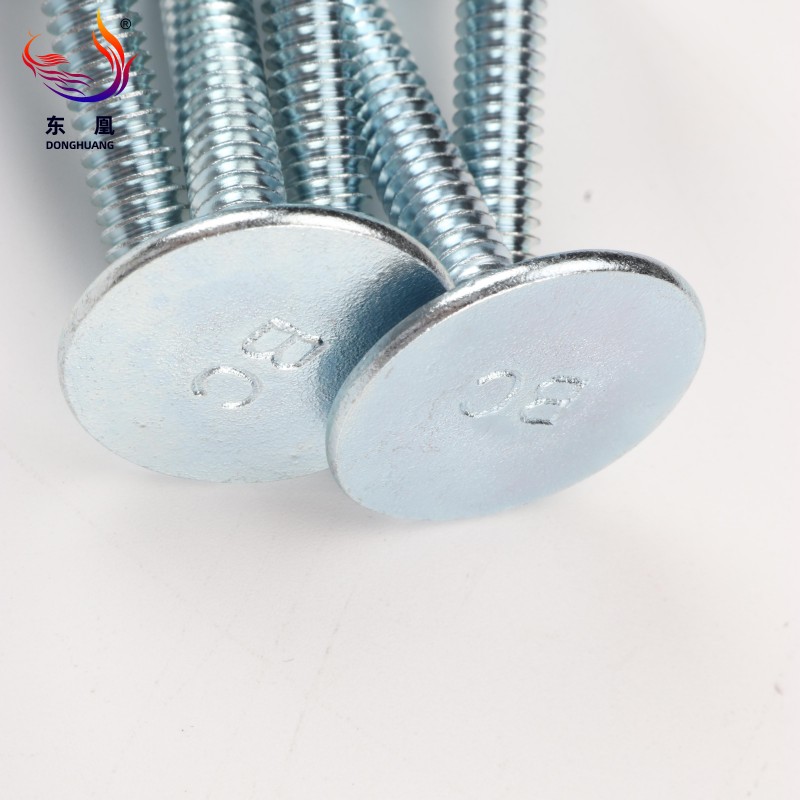

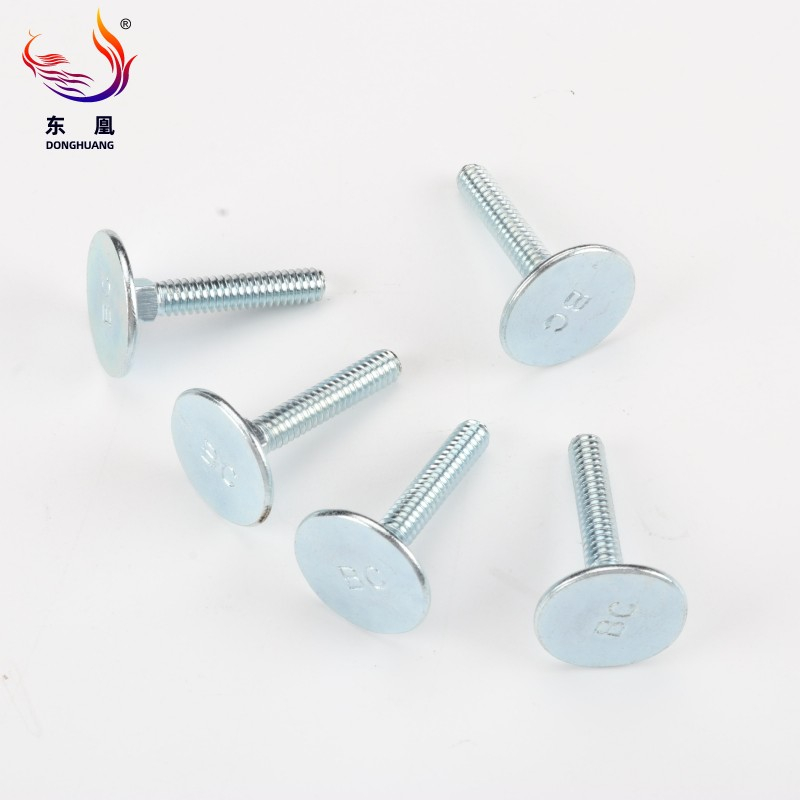

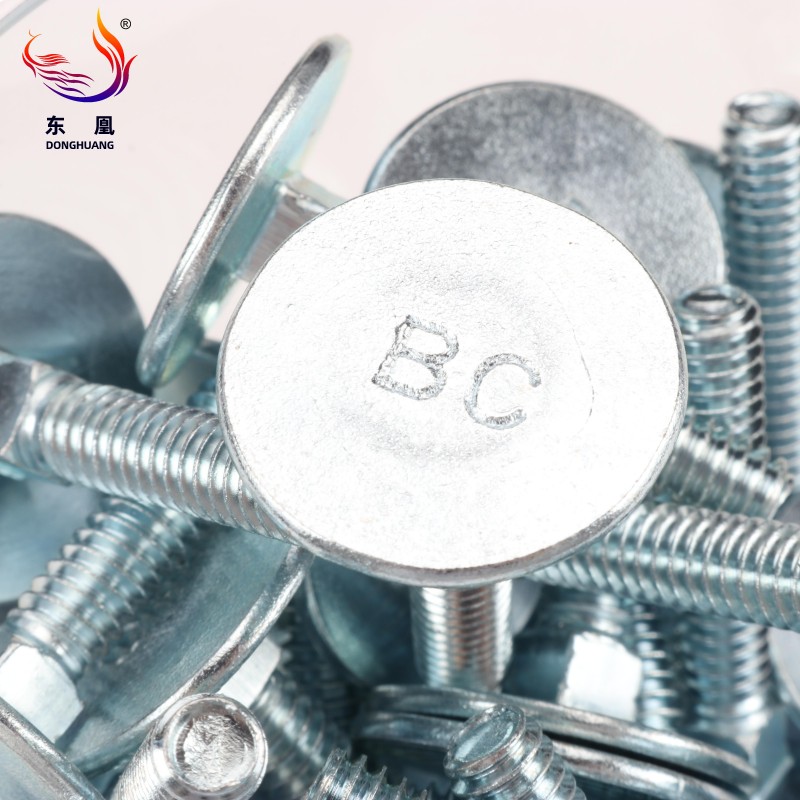

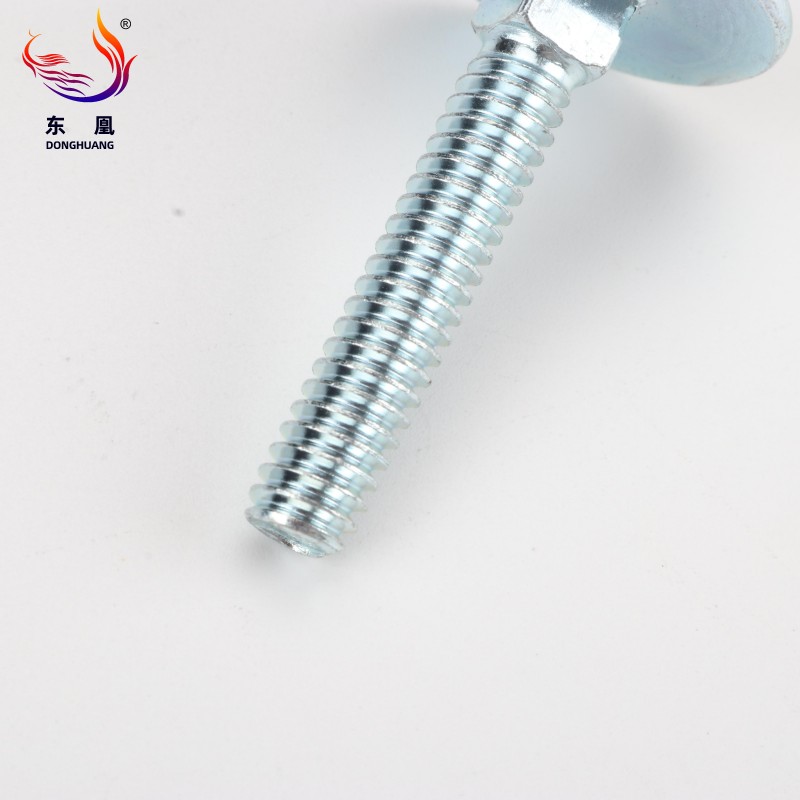

The Square Neck Elevator Bolt, widely recognized across industries as a bucket bolt or Norway bolt, is a highly specialized threaded fastener engineered specifically for extreme load-bearing environments. Characterized by its expansive, ultra-thin flat head and a partially threaded shank integrated with a precision-forged square neck, this component delivers exceptional fastening stability. The cold, smooth zinc-plated surface not only provides a tactile sense of industrial-grade resilience but also ensures prolonged resistance against corrosive elements in demanding operational facilities. Originally developed to secure heavy canvas and rubber belts within vertical elevator and horizontal conveyor systems, its flush-fitting profile prevents material snagging and minimizes friction-induced wear, ensuring continuous mechanical flow.
Beyond standard configurations, our production facilities accommodate extensive OEM capabilities, offering tailored dimensions, alternative steel grades, and specialized surface treatments to align perfectly with unique assembly requirements. Procurement managers will benefit from our transparent tiered pricing models and adaptable minimum order quantities, designed to optimize facility inventory costs while guaranteeing a steady supply of critical fastening hardware.
The engineered flat head sits entirely flush against belt surfaces, creating a seamless, unobtrusive finish. This critical design element eliminates the risk of snags, catches, or abrasive wear patterns on expensive conveyor materials passing over the joint, significantly extending the lifespan of your mechanical infrastructure.
Featuring an oversized head surface area, these bolts distribute intense mechanical stress evenly across the fastening zone. This prevents the fastener from pulling through soft, thin, or pliable materials under heavy operational tension, ensuring absolute structural integrity in high-capacity lifting operations.

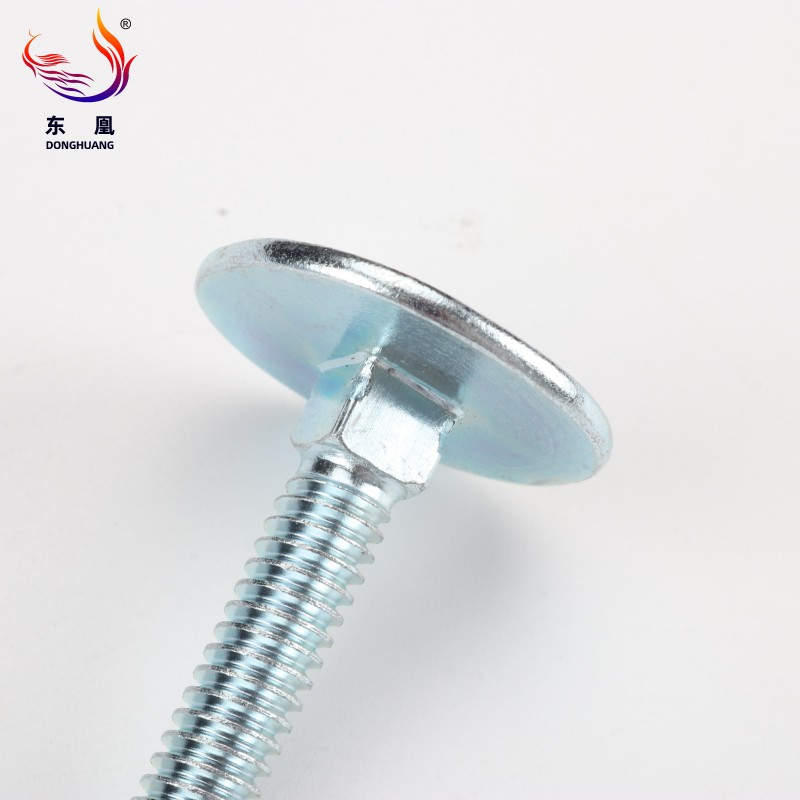

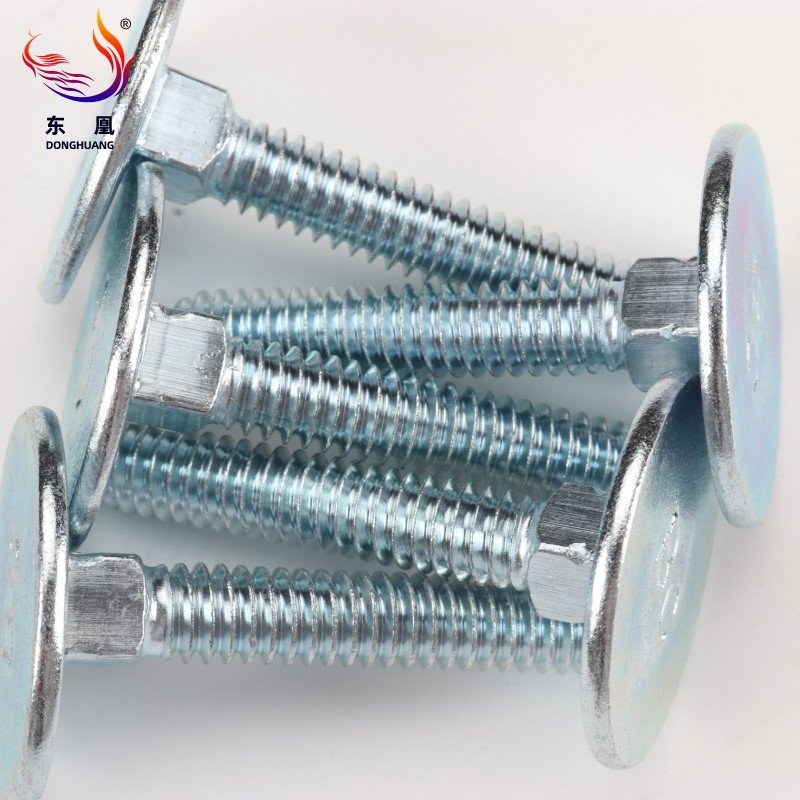

The precision-stamped square neck lodges firmly into the mating material. When the corresponding nut is tightened, this anti-rotation feature locks the bolt solidly in place, eliminating slippage and reducing the time required for complex assembly and maintenance processes.
Manufactured for rigorous industrial environments, these bolts exhibit exceptional mechanical properties, including high tensile strength (reaching up to 70,000 psi) and verified hardness metrics. This guarantees absolute safety and structural reliability even when subjected to the intense dynamic loads of heavy-duty bucket elevators.
Every batch undergoes stringent quality assurance protocols, including raw material metallurgical analysis, heat treatment verification, and comprehensive salt spray and torque testing. This ensures consistent performance across large procurement volumes. Furthermore, their standardized threading allows for rapid, hassle-free installation through pre-drilled holes, minimizing facility downtime.
When sourcing critical fastening components, exact specifications and strict adherence to international standards are paramount. The following data sheet outlines the precise technical parameters of our zinc-plated square neck elevator bolts. Each fastener is manufactured to comply with stringent environmental directives, including RoHS and REACH, while our production facilities operate under IATF16949 certified quality management systems. This mitigates compliance risks for your procurement operations. Furthermore, we provide industrial-grade packaging solutions, utilizing moisture-resistant standard cartons and reinforced pallets to prevent transit damage, ensuring your inventory arrives in pristine condition via our efficient global logistics network.
| Product name | Carbon Steel ASTM Flat Head Elevator Bolt |
| Brand Name | Donghuang |
| Color | Blue WHITE |
| Surface treatment | ZINC |
| Packing | Customers' Requirements |
| Type | ISO |
| Material | Steel |
| Certificate | ISO9001:2015 |
These fasteners are essential for securely splicing and joining thick canvas, polymer, or reinforced rubber conveyor belts. The flush head design ensures that transported materials glide effortlessly over the joints without snagging, preventing product damage and maintaining continuous material flow in mining, packaging, and manufacturing facilities.
In traditional and modern vertical lifting mechanisms, these components provide the critical connection between the lifting buckets and the main driving belt. The flat profile guarantees smooth mechanical movement within tight elevator shafts, eliminating the risk of protruding hardware catching on internal guide rails or housings.
Widely deployed in agricultural silos and grain elevators, these bolts reliably secure bucket attachments used for transporting wheat, corn, and other bulk agricultural commodities. Their precisely applied zinc-plated finish actively resists the abrasive dust and ambient moisture typically found in large-scale farming and storage environments.
Beyond belting applications, these versatile fasteners are frequently specified for securing heavy-duty plywood or composite flooring in commercial transport vehicles, trailers, and general construction projects. They deliver a perfectly smooth, flush surface required for safe, unobstructed loading and unloading operations.
Specifying the correct fastener requires careful consideration of the operational environment. Evaluate the specific belt material, thickness, and ambient facility conditions. Depending on temperature fluctuations and mechanical vibration levels, select the appropriate bolt configuration (such as fanged or standard square neck) and pair it with the optimal retaining nut—whether a standard hex nut, a load-spreading flange nut, or a vibration-resistant nylock nut.
Begin by precisely positioning the bolt head against the inner, material-facing surface of the elevator belt. The threaded shank should protrude outward, allowing the nuts and specialized washers to be secured on the interior side of the bucket attachment. Utilize calibrated torque tools to prevent the hardware from rotating during the final tightening phase. Ensure the flat head compresses slightly, fitting snugly just below the belt's top layer to maintain a frictionless surface.
Implement a proactive maintenance schedule involving periodic visual and physical inspections to identify any loose, vibrating, or mechanically damaged components. It is crucial to re-torque all fasteners after an initial run-in period (typically 4 to 8 hours of active operation) to account for material settling. Routinely monitor the hardware for signs of abrasive wear or structural deterioration that could compromise system reliability.
Facility managers must understand that improperly torqued or incorrectly specified fastening hardware can lead to catastrophic mechanical failures within high-speed bucket elevator systems. Strict adherence to installation guidelines ensures the protection of both personnel and valuable industrial machinery.
Watch the comprehensive demonstration video below to gain a deeper understanding of the precise engineering and application of our square neck elevator bolts. This visual guide illustrates the seamless installation process, highlighting how the flat head integrates perfectly with heavy-duty belting materials. You will also observe the anti-rotation function of the square neck in action, providing a secure, vibration-resistant hold. For procurement specialists and facility engineers, this footage offers valuable insights into the structural integrity, surface finish quality, and operational reliability that our fastening solutions bring to demanding industrial conveying and lifting environments.
Q: What is an elevator bolt?
A: An elevator bolt is a highly specialized industrial fastener distinguished by its uniquely large, flat, and slightly domed head, combined with a partially threaded shaft. Immediately beneath the head lies a precision-formed square or fanged neck. The expansive head is purposefully engineered to distribute mechanical weight and clamping force evenly, preventing the hardware from pulling through pliable belting materials under extreme tension. Meanwhile, the square neck embeds itself into the substrate, locking the fastener in place and preventing it from spinning while the securing nut is torqued to specification.
Q: Where are they used?
A: These robust components are primarily specified for heavy-duty material handling infrastructure. They are the industry standard for bucket elevator systems and horizontal conveyor belts, where their primary function is to securely fasten lifting buckets, cleats, and other attachments to the moving belt without creating surface obstructions that could damage the system or the transported goods.
Q: How is it installed?
A: Proper installation involves a precise sequence. First, for positioning, insert the bolt through the pre-punched holes in both the elevator belt and the bucket attachment, ensuring the large flat head rests flush against the inside surface of the belt. Next, for tightening, apply the appropriate heavy-duty washers and locking nuts on the interior side of the bucket, torquing them to the specified rating. The ideal fit is achieved when the domed head is drawn snugly into the belting material, sitting just below the surface to guarantee a completely smooth, unobstructed operational profile.
Q: What is the maintenance for an elevator bolt?
A: Effective maintenance is critical for system longevity. The most vital step is the initial run and re-tightening phase. Following the primary installation, operators must run the elevator system under a normal load for approximately four hours. After this break-in period, the system must be halted, and every nut must be systematically re-tightened to compensate for any initial seating or material compression, ensuring no components have vibrated loose during operation.
