Wire rope systems, whether used in heavy architectural rigging, perimeter fencing, or structural support, face a universal physical challenge: they stretch. Over time, new cables settle, loads fluctuate, and environmental factors cause materials to expand or contract. Without a reliable mechanical method to apply and maintain precise tension, a wire rope system becomes slack, structurally compromised, and potentially dangerous. While some might attempt to solve this with static fasteners or makeshift bolts, these solutions lack the adjustability required for long-term safety.
The industry-standard solution is the turnbuckle. These devices provide a controlled, linear method for drawing tension into a line and adjusting it over the lifespan of the installation. However, selecting the wrong hardware or installing it incorrectly can lead to catastrophic failure, including thread stripping or "galling." This guide covers the complete engineering workflow, from selecting the correct Working Load Limit (WLL) and end fittings to the step-by-step tensioning process that ensures your rigging remains secure and compliant.
Selection Matters: Match the turnbuckle’s WLL to the wire rope’s breaking strength; drop-forged steel offers superior reliability over formed/welded options.
The "Take-Up" Rule: Turnbuckles have limited travel range; effective tensioning requires precise pre-tensioning of the wire before the turnbuckle is engaged.
Preventing Seizure: Stainless steel turnbuckles require lubrication to prevent "galling" (cold welding) during high-tension adjustments.
Safety Critical: Never use hook-style fittings in applications where tension release or vibration could dislodge the connection.
To use these devices effectively, you must understand the mechanical principles behind them. A turnbuckle is not just a screw; it is a mechanism designed to contract length without twisting the attached cable. The body of the hardware features opposing screw threads—left-hand threads on one end and right-hand threads on the other. When you rotate the body, both end fittings are drawn inward simultaneously. If standard threads were used on both ends, rotating the body would simply screw one side in while unscrewing the other, resulting in zero net tension.
Physics dictates that these devices function correctly only under linear tension. They are designed exclusively for straight-line (in-line) pulls. The force must travel directly through the center axis of the threaded rods and the body. A common point of failure in rigging is "side loading." This occurs when the hardware is installed against a bending edge or at an angle where the body rests against a post.
Side loading introduces shear forces that the hardware is not rated to withstand. It causes the threaded rods to bend, which significantly reduces the Working Load Limit (WLL). In severe cases, deformation prevents the threads from turning, locking the system in a compromised state. Always ensure the assembly floats freely between its anchor points.
It is common in home improvement forums to see DIY advice suggesting "washer and nut" assemblies as a cheaper alternative to proper rigging hardware. These makeshift methods often involve passing a threaded rod through a post and tightening a nut to pull the cable tight. While this creates initial tension, it is fraught with engineering flaws.
Most standard threaded rods found in hardware stores are not rated for dynamic structural loads. Furthermore, tightening a nut against a washer often creates sharp edges or thread stripping issues. Common Reddit threads on "fail" compilations often feature these DIY attempts where the cable snaps due to abrasion against sharp washers or the rod yields under load. Professional rigging hardware offers rated safety factors, fatigue resistance, and the specific adjustability required for safe turnbuckle use.
Safety begins with selection. You cannot simply grab the cheapest option from the shelf and expect it to hold a structural load. The selection process involves three critical decision points: Load, Material, and Fittings.
The "Golden Rule" of rigging is that the turnbuckle must meet or exceed the WLL of the wire rope it tensions. Never rely solely on thread diameter comparisons. A 1/2-inch generic hardware store hook might snap at 500 lbs, whereas a 1/2-inch forged steel jaw might hold 2,200 lbs. Always verify the manufacturer's stamped WLL. Note that smaller diameter turnbuckles often have lower break strengths than the cable they are attached to, making the hardware the weak link in your chain.
The environment determines the material you need.
Galvanized Steel: This is the workhorse of industrial rigging. It offers high strength and is cost-effective. The zinc coating provides reasonable rust protection for outdoor static loads. It is best for utility poles, heavy fencing, and structural guys where aesthetics are secondary to performance.
Stainless Steel (304/316): Essential for marine environments, coastal architecture, or corrosive industrial settings. While beautiful and rust-resistant, stainless steel is softer and prone to thread galling, requiring careful installation.
Drop Forged vs. Malleable Iron: For overhead lifting or critical structural tensioning, you must use drop-forged steel. Forging aligns the metal grain structure, providing superior impact resistance and fatigue strength. Malleable iron or welded eyes are brittle and can snap suddenly under shock loads.
Choosing the right end fitting prevents disconnection and simplifies installation. Use the matrix below to guide your decision.

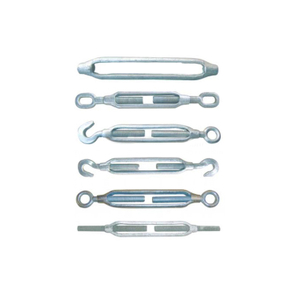

| Fitting Type | Best Application | Safety Note |
|---|---|---|
| Jaw (Clevis) | Connecting to fixed eyes, lugs, or post plates. | Includes a removable bolt or pin. Most secure for permanent installs. |
| Eye | Permanent connection to shackles or quick links. | No opening mechanism; requires a separate connector (like a shackle). |
| Hook | Temporary usage where quick detachment is needed. | High Risk: Do not use in permanent rigging. Vibration or slack can cause the hook to dislodge. |
| Toggle Jaw | Angled installations, such as stair railings. | Articulates to align with the cable angle, preventing bending stress on the rod. |
A common frustration during installation occurs when the turnbuckle runs out of threads before the wire is tight. This happens because the installer failed to manage the "take-up" capability of the hardware. Most standard units offer only 3 to 12 inches of travel. If your wire rope has 15 inches of slack, the turnbuckle cannot tighten it.
Before attaching anything, you must fully extend the device. Unscrew both end fittings until the threads are just visible, flush with the inside of the body frame. This maximizes your travel distance. A common mistake is starting with the body partially closed, which leaves you with insufficient room to tighten the line later. By starting fully open, you utilize the entire "take-up" range.
Professional riggers know that the turnbuckle is for the final 5% of tensioning, not for pulling out gross slack. You must pull the wire taut mechanically before making the final connection.
To achieve this, riggers often use a "Chicago Grip" (also known as a strand grip). This tool clamps onto the wire rope without damaging it. You can then attach a Come-Along (lever hoist) to the grip and pull the wire tight against the anchor point. Once the wire is taut, you measure, cut, and install your permanent termination hardware (like clips or swage sleeves). This process ensures that when you finally attach the turnbuckle, it only needs to rotate a few inches to achieve the perfect tension.
Once you have selected the right hardware and pre-tensioned your wire, the installation process is straightforward but precise.
If you are using stainless steel hardware, this step is mandatory. Stainless steel threads are prone to "galling," a form of cold welding where high friction causes the oxide layer to strip, making the metals fuse together. Once galled, the hardware is destroyed. Apply a molybdenum-based lubricant or specialized nickel anti-seize to the threads before assembly. This ensures smooth rotation and allows for future adjustments.
Attach your anchor points. If using a Jaw end, remove the cotter pin and bolt, slide the jaw over the anchor lug, and re-secure the bolt. Ensure the body of the device is free-floating. It should not rest against fence posts or structural beams. If the body hits an obstruction, it will suffer from side loading as you tighten it.
Use the correct tools to rotate the body. For bodies with a central pipe or solid frame, use a wrench or a sturdy screwdriver inserted into the body gap. Avoid using pliers or pipe wrenches on the threaded rods themselves, as teeth marks can damage the galvanization and invite rust.
As you turn the body, you must hold the end fittings stationary. Do not let the end fittings rotate with the body, as this will twist the wire rope. Twisted wire rope seeks to unwind, creating torque that can loosen the connection over time. Rotate until the wire meets your deflection criteria—tight enough to reduce sag, but not so tight that it stresses the anchor posts.
Vibration and wind will eventually loosen any threaded connection unless it is locked. There are three primary methods to secure the system:
Lock Nuts (Jam Nuts): These are threaded onto the rods before the body is installed. Once tension is set, tighten the nuts firmly against the body to prevent it from backing off.
Safety Wiring (Mouse Wire): This is the standard in aviation and marine rigging. Use a pliable stainless wire to loop through the turnbuckle body and the end fitting, physically preventing rotation.
Cotter Pins: For jaw ends, ensure the cotter pins through the clevis bolts are spread fully (at least 20 degrees) to prevent the bolt from vibrating out.
Even a perfectly installed system requires monitoring. Environmental changes and physical settling can alter tension levels.
If a stainless steel unit locks up halfway through installation, stop immediately. Do not force it with a larger wrench; you will snap the bolt. Apply penetrating oil and attempt to back it off slightly. If it remains stuck, the threads have likely cold-welded, and the unit must be cut off and replaced. This underscores the importance of lubrication during step one.
Watch for signs of stress. "Necking" on the wire rope (where the diameter shrinks) indicates imminent failure. Deformed eyes or bent clevis pins suggest the tension exceeds the hardware's rating. If you see threads stretching or looking exposed, the load is too high.
Surface rust on galvanized gear is common and often cosmetic. However, "bleeding" rust—dark streaks coming from inside the thread interface—indicates internal corrosion that compromises thread strength. Replace any hardware showing deep pitting or thread degradation.
New wire rope is constructed of multiple strands twisted together. Under the first load, these strands settle into a tighter configuration, causing the wire to physically lengthen slightly. This is called "construction stretch." You must inspect the system 24 to 48 hours after installation. It is almost certain you will need to tighten the turnbuckle use slightly to compensate for this initial relaxation.
Successful rigging relies on a strict hierarchy of safety: correct WLL selection, proper pre-tensioning to manage slack, and secure locking mechanisms to prevent loosening. By treating the turnbuckle as a precision instrument rather than a simple fastener, you ensure the longevity and safety of your structure. For permanent outdoor installations, schedule inspections every six months to check for corrosion and tension loss. A well-maintained system will hold its line for years, while a neglected one is a liability waiting to snap.
A: Only if it is explicitly rated for overhead lifting. Most hardware-store grade items are made of malleable iron and are strictly for static pulls (like fences). For lifting, you must use drop-forged steel hardware that carries a stamped load rating and traceability codes.
A: You must mechanically lock the threads. The most common method is using jam nuts (lock nuts) tightened against the body. For high-vibration environments, use safety wire (mousing) to tie the body to the end fittings, physically preventing rotation.
A: This is likely "galling," common with stainless steel. Friction causes the threads to weld together. To prevent this, always apply anti-seize lubricant before installation. If it is already seized, do not force it; you may need to cut it off and replace it.
A: Do not guess based on size. Check the manufacturer’s Working Load Limit (WLL) stamped on the body. A 1/2-inch forged steel unit is much stronger than a 1/2-inch aluminum or malleable iron unit. Always match the WLL to your specific application requirements.
