The Universal Grey Nylon Expansion Anchor for Walls emerges as a versatile solution in the realm of wall fasteners, engineered to secure fixtures with unwavering reliability across diverse substrates—from concrete and brick to drywall and mortar.
| Availability: | |
|---|---|

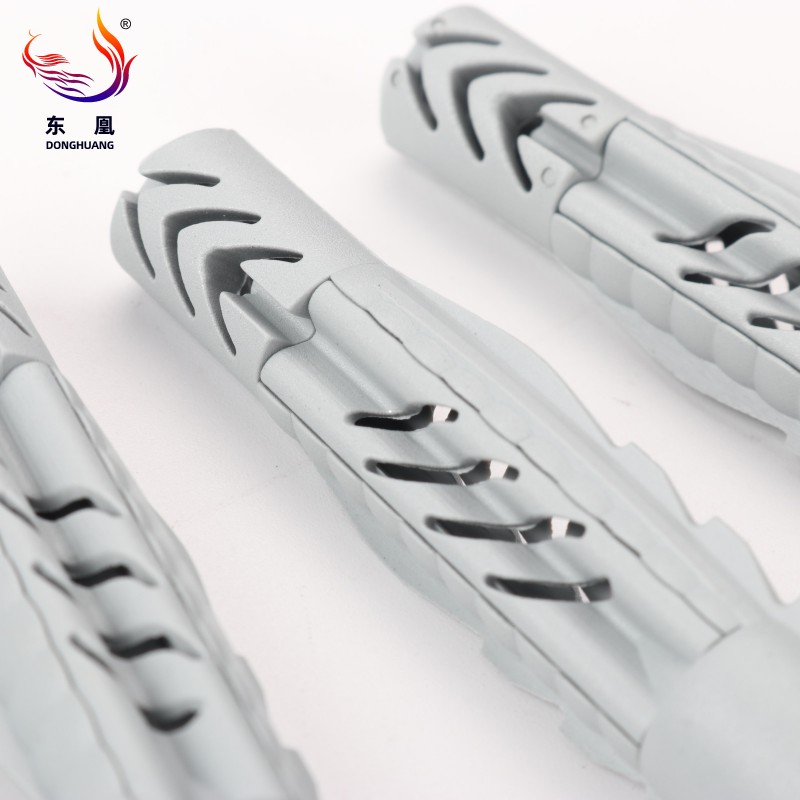

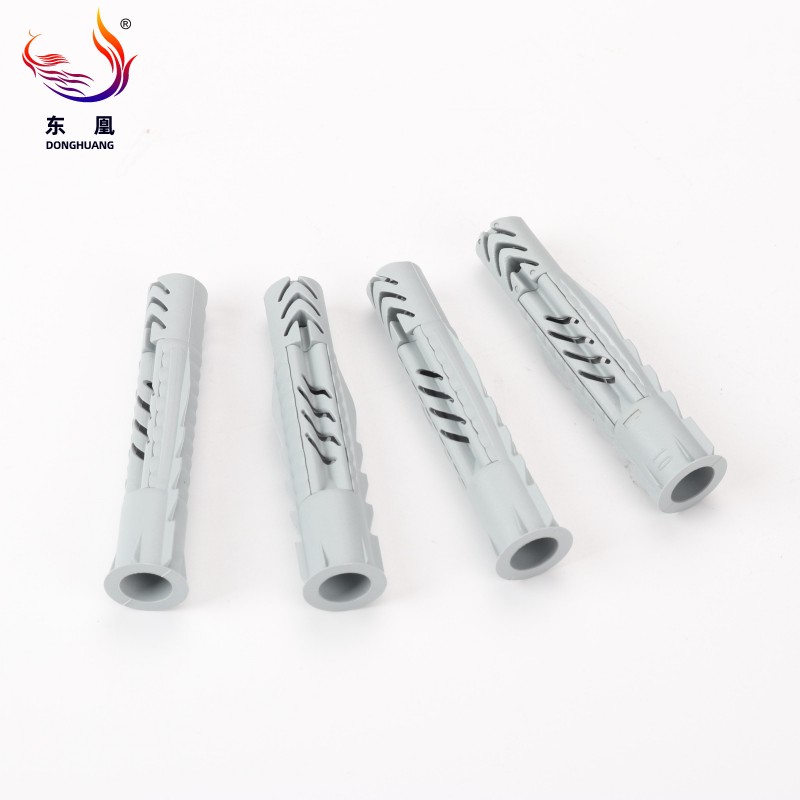

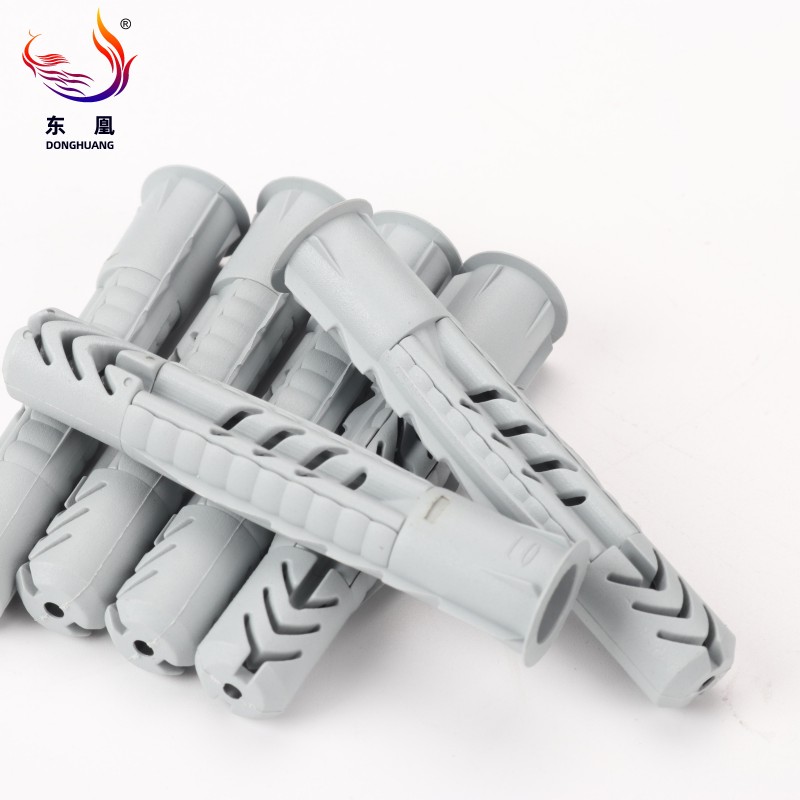

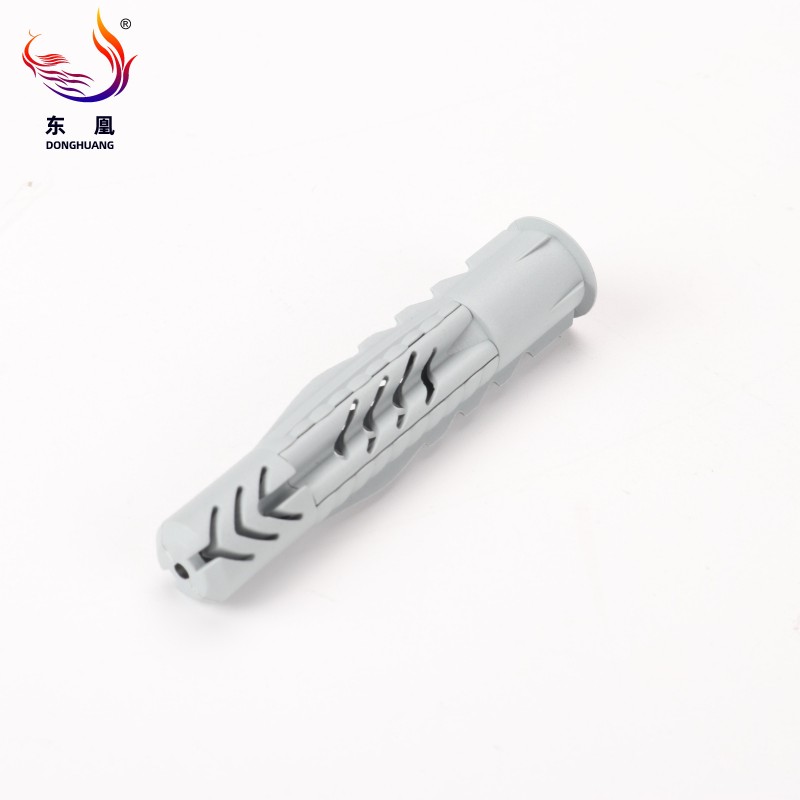

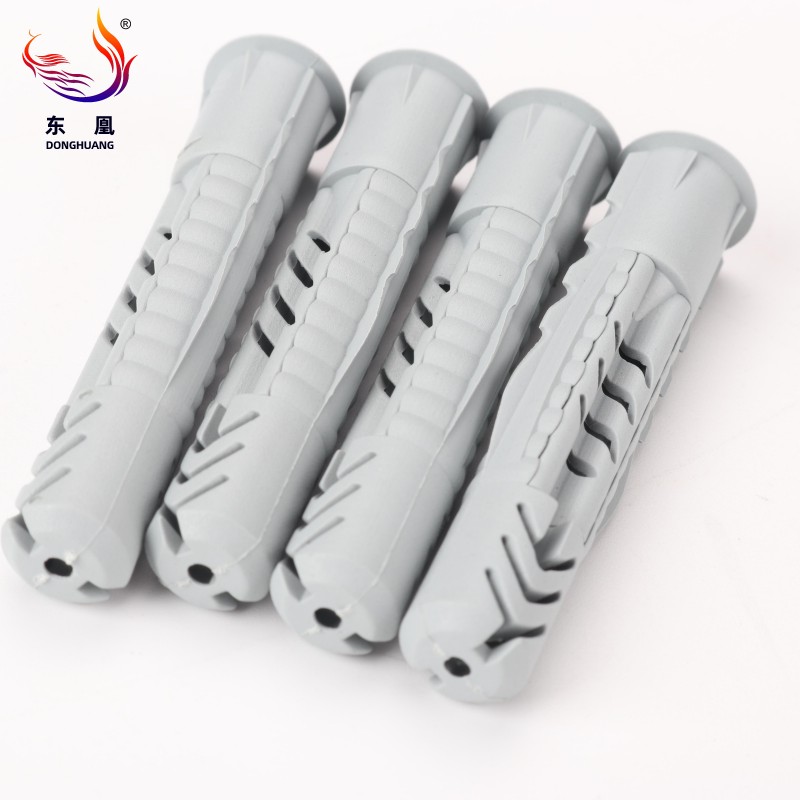

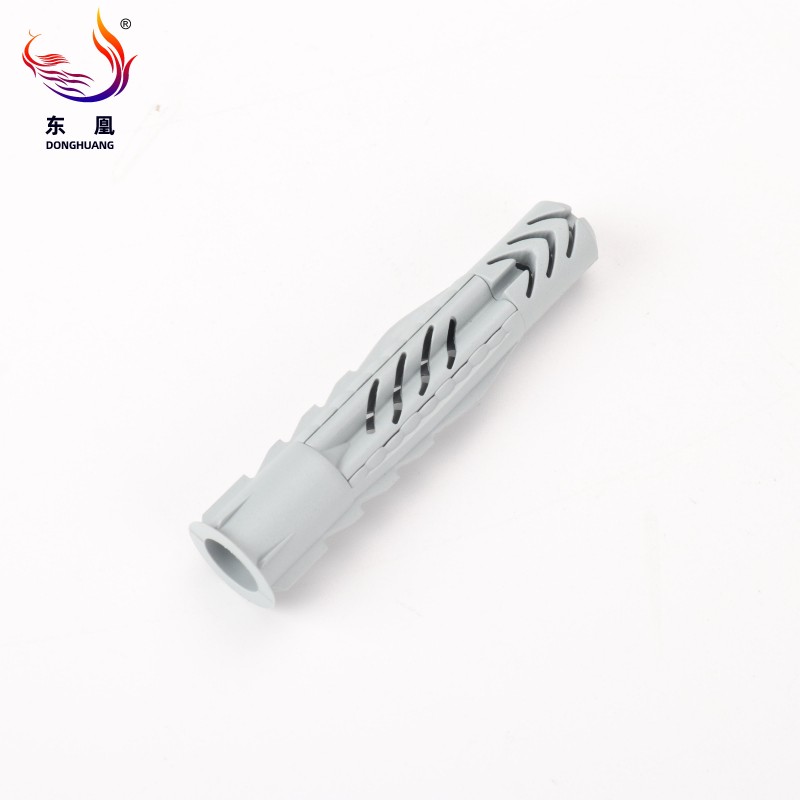

The Universal Grey Nylon Expansion Anchor is precision-engineered for professional-grade fastening tasks across diverse wall substrates. Manufactured under strict ISO 9001 quality management protocols, these anchors are crafted from premium virgin nylon, offering a distinct tactile resilience that prevents snapping or deformation during installation. The subtle grey finish is deliberately chosen to maintain visual discretion against concrete and masonry backdrops, ensuring the hardware does not distract from the mounted fixtures. Featuring an advanced mechanical structure, the anchor body is equipped with specialized anti-slip serrations and lateral guide wings. This specific geometry ensures pinpoint positioning and actively resists rotation within the drill hole, whether you are working with solid concrete or hollow block. By activating a highly responsive expansion mechanism upon screw insertion, it delivers a customized, rock-solid grip that installers can physically feel locking into place, eliminating the guesswork from complex mounting projects and reducing the need to stock multiple anchor variations.
Material: Virgin nylon 6/6, a premium, RoHS and REACH compliant polymer recognized for its exceptional impact resistance, chemical stability, and ability to resist creep under prolonged mechanical stress, ensuring eco-friendly construction practices.
Diameter: 6mm to 8mm, precisely molded to accommodate standard screw profiles, providing a highly adaptable foundation for a wide array of fixture installations.
Length: 38mm to 50mm, guaranteeing sufficient embedment depth to achieve maximum stability and pull-out resistance across varying wall thicknesses.
Load Capacity:
Concrete: Supports a 1,500N static load, making it the definitive choice for securing heavy-duty fixtures, industrial shelving units, or large display monitors.
Solid Brick: Delivers 26kg tensile strength, perfectly suited for medium-weight installations like cabinetry, heavy mirrors, or architectural panels.
Hollow Wall: Provides a 7kg maximum load, offering a secure, evenly distributed hold for lightweight decorative elements, picture frames, and small shelving.
Temperature Range: Functions reliably in extreme environments from -20°C to +80°C, maintaining its structural integrity and flexibility whether installed in freezing basements or high-temperature industrial attics.
Fire Rating: Class B1 (EN 13501-1), meeting stringent safety regulations for deployment in commercial and residential developments requiring documented fire resistance.
Designed to integrate flawlessly with screw diameters ranging from 4mm to 6mm, these anchors remove the friction of constantly matching specific fastener profiles to different substrates. This inherent versatility streamlines inventory management for procurement teams and ensures that installation crews always have the right component on hand, whether they are securing electrical conduit boxes or mounting delicate architectural hardware.
As the screw is driven into the anchor, the uniquely flared wings expand radially, generating a firm, tactile resistance that confirms a secure hold. This intelligent mechanism distributes radial pressure evenly across the surrounding substrate. By mitigating localized stress points, it actively prevents the cracking of dense concrete or the tearing of fragile drywall, preserving the structural integrity of the wall while delivering uncompromising holding power.
Leveraging the natural properties of premium nylon, these anchors are entirely immune to rust and degradation, making them an exceptional choice for moisture-rich environments like commercial kitchens, bathrooms, and exterior facades. Furthermore, this non-metallic build prevents galvanic corrosion—a frequent point of failure when metal screws interact with dissimilar metal fixtures—thereby maximizing the lifecycle of the entire installation system.
Engineered for maximum operational efficiency, the installation process requires zero specialized setting tools. Installers simply drill the pilot hole to the recommended diameter, tap the anchor flush with a satisfying click, and drive the screw. The automatic expansion mechanism engages instantly, significantly reducing labor time and minimizing the margin for human error across large-scale deployment sites, even for newly trained personnel.
Far surpassing the limitations of single-use anchors, this model performs with unwavering reliability across concrete, solid brick, aerated mortar, and drywall. Every production batch undergoes rigorous standardized pull-out force and anti-fatigue testing to guarantee consistent industrial-grade performance. This adaptability proves invaluable during complex structural renovations where wall compositions frequently shift, consolidating the need for multiple fastening systems into one dependable solution.
Indispensable for securing heavy, high-value items within residential spaces. They provide the critical holding power required for mounting large mirrors in bedrooms, ensuring absolute safety. In bathrooms, their moisture-resistant properties make them the standard for towel racks and grab bars, while in living areas, their even load distribution guarantees that floating shelves remain perfectly level and securely attached over decades of daily use.
Highly trusted by facility managers for outfitting office buildings and retail environments. These anchors effortlessly secure heavy directional signage that must withstand the constant vibrational stress of heavy foot traffic. They are equally critical for anchoring partition walls in modern open-plan offices to ensure structural privacy, and for safely suspending HVAC ducting components where a loose fixture could result in disruptive noise or safety hazards.
The ultimate problem-solver for contractors working in older structures where wall compositions are unpredictable. When retrofitting fixtures across a mixture of aging plaster, solid brick, and modern drywall, the adaptive expansion of these anchors eliminates the guesswork. Installers can proceed with confidence, knowing a single anchor type will adapt perfectly to the varying densities of the host material.
An essential component for electricians tasked with routing and securing infrastructure. They are routinely deployed to mount heavy junction boxes in damp basement environments, where their non-conductive and moisture-resistant nature prevents potential electrical hazards. Additionally, they provide a rigid, long-lasting hold for conduit brackets in garages and industrial corridors, keeping critical wiring meticulously organized and protected from accidental impacts.
Built to endure the demanding conditions of factories and warehousing operations. These nylon anchors are frequently utilized to fasten machinery mounting plates that are subjected to continuous operational vibration. By securing equipment installations along fast-paced production lines, their uncompromising reliability helps facility operators minimize costly downtime caused by loosening fixtures or structural fatigue.
Understanding the demanding operational requirements of large-scale distributors and hardware brands, we offer a comprehensive suite of supply chain solutions designed to optimize procurement workflows. Our manufacturing facilities boast exceptional mass-production capabilities, ensuring stable lead times and consistent availability even during peak demand cycles. We facilitate highly efficient global transactions with flexible payment terms, including standard T/T arrangements, and provide expedited port dispatch services to accelerate your inventory replenishment.
