Industrial infrastructure relies entirely on secure framing systems to function safely. Many engineers view strut hardware as basic, interchangeable commodities. However, they actually represent the most critical structural nodes in your facility. If these connections fail, massive HVAC units, heavy piping, or high-voltage electrical runs will collapse. Using subpar components creates severe business risks immediately. Incorrect material specifications guarantee early structural fatigue and joint degradation. This leads directly to unpredictable facility downtime. You also face serious compliance liabilities and severe safety violations. You simply cannot afford arbitrary procurement choices in high-stress environments. This guide provides a rigorous, evidence-based evaluation framework. We will help you specify Strut Channel Fittings for the most demanding applications. You will learn how to match components strictly to their structural functions. We will explore material selection based heavily on environmental stressors. We also unpack crucial industry compliance standards. By applying these engineering principles, you eliminate guesswork entirely. You ensure absolute long-term structural integrity across your entire operation.
Every industrial connection serves a highly specific structural purpose. You must match the hardware exactly to the intended load path. Using the wrong bracket type forces the load into unnatural stress points. Let us examine the core categories and their specific implementation rules.
Engineers use flat plates to join standard channel sections continuously. Evaluation requires strict attention to metal thickness. A splice plate must match or exceed the gauge of the channel it connects. Hole alignment precision also dictates absolute joint integrity.
Common Mistake: Poorly punched holes force installers to modify parts on-site. Crews often ream out misaligned holes using drills. This removes the protective zinc coating and introduces immediate rust risks. It also severely weakens the intended load path. You need precise splice plates to maintain continuous structural strength safely.
You will rely heavily on angle brackets for 90-degree framing configurations. They also excel at diagonal bracing and multi-tier support structures. Your selection logic depends heavily on anticipated shear and tensile forces.
Standard non-gusseted L-brackets handle light, static loads perfectly well. However, dynamic applications require gusseted alternatives. The added steel gusset prevents the 90-degree angle from bending under heavy stress. U-shaped brackets encapsulate the channel entirely. This encapsulation prevents dangerous torsional twisting when supporting asymmetric loads.
Every vertical structure needs a perfectly secure foundation. Post bases anchor your framing runs directly to concrete floors. Implementation realities demand careful spatial planning here.
High-traffic industrial zones expose floor mounts to constant accidental impacts. Forklifts and pallet jacks routinely strike exposed bases. Furthermore, you must manage severe vibration transfer from the floor into the framing. Securing base stability prevents the entire structural grid from tipping over. Heavy-duty bases often require four massive anchor bolts to distribute these forces.

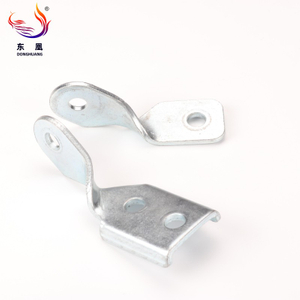

Standard 90-degree brackets often fail completely in complex conduit layering. Specialty shapes solve these awkward spatial intersection points easily. Z-shapes help you bridge offset channels without stacking unnecessary hardware. Wing shapes offer exceptional multi-directional bracing nodes for complex joints.
Trolley assemblies allow for dynamic, moving loads along the internal channel track. You see these often in pneumatic tool lines or rolling curtain setups. Specifying these specialty pieces correctly ensures immediate success when facing unorthodox spatial constraints.
Materials dictate exactly how long your framing survives in the field. Environmental stressors destroy weak coatings incredibly quickly. You must engineer your material choices based strictly on physical realities, not just availability.
Decision frameworks usually start by evaluating zinc coatings. Pre-galvanized steel offers fantastic efficiency for dry, indoor applications. Manufacturers coat the steel sheet before cutting and punching the actual part. This process leaves exposed bare metal edges, which perform perfectly fine indoors.
However, outdoor or highly humid applications demand hot-dip galvanized steel. Manufacturers dip the entirely finished part into molten zinc. This creates a remarkably thick, protective layer over all cut edges and punched holes. It provides essential, heavy-duty defense against harsh weather and continuous condensation.
Certain manufacturing environments degrade standard metals incredibly rapidly. Chemical processing plants and coastal marine facilities expose framing to intense chlorides. Wash-down environments in food processing facilities also mandate harsh, daily cleaning agents.
In these scenarios, you must justify the premium for stainless steel hardware. Type 304 handles general corrosive environments very well. However, Type 316 contains a critical addition of molybdenum. This specific addition dramatically increases overall resistance to chloride exposure. Choosing Type 316 guarantees scalability and complete structural security in extreme conditions.
Mixing dissimilar metals creates dangerous galvanic corrosion rapidly. Installation teams sometimes mix carbon steel channels with stainless hardware purely for convenience. Moisture acts as an active electrolyte between the two different metals.
The weaker metal begins rusting almost immediately upon exposure. This hidden degradation destroys structural integrity from the inside out. You must specify dielectric barriers when mixing any metals. Neoprene washers or specialized isolation tape prevent direct metal-to-metal contact safely.
Material Specification Comparison Chart
| Material / Coating Type | Primary Industrial Environment | Corrosion Resistance Level |
|---|---|---|
| Pre-Galvanized Steel | Dry, indoor, climate-controlled | Low to Moderate |
| Hot-Dip Galvanized Steel | Outdoor, high-humidity, unprotected | High |
| Stainless Steel (Type 304) | Wash-down areas, general chemical | Very High |
| Stainless Steel (Type 316) | Marine, high-chloride, heavy chemical | Maximum |
Guessing load capacities invites catastrophic facility failures. You must rely purely on verifiable engineering data to protect your infrastructure.
Identifying trustworthy load charts marks true engineering expertise. Many buyers fall for undocumented "maximum weight" marketing claims. You should remain highly skeptical of these arbitrary numbers. They rarely account for real-world stress factors.
Instead, look strictly for Allowable Working Loads (AWL). Reputable manufacturers calculate AWL by factoring in a strict mathematical safety margin. This margin ensures the hardware never approaches its ultimate physical failure point. Always request verifiable engineering data before specifying structural components.
Authoritative procurement relies entirely on established industry guidelines. The Metal Framing Manufacturers Association (MFMA) sets strict baseline rules for hardware performance. They test pull-out strength, slip resistance, and extreme bending moments.
You must evaluate all framing components against these specific MFMA standards. Additionally, check for relevant ASTM material specifications on the data sheets. These certifications prove the steel composition exactly matches your requirements. Bypassing these established standards invites unacceptable safety risks and massive legal liabilities.
Implementation realities rarely match perfect, isolated laboratory conditions. Standard load charts usually assume perfectly static, motionless weights. Common examples include static electrical conduits or dormant data cables.
You must actively adjust your evaluations for dynamic loads. Heavy HVAC units, massive exhaust fans, or industrial pumps vibrate constantly. This intense vibration multiplies the effective physical stress on every single connection point. Always apply significantly higher safety factors when supporting vibrating machinery.
Even perfectly specified materials fail if installed incorrectly. You must manage the physical realities of on-site assembly to guarantee success.
Rollout lessons consistently highlight the critical importance of exact torque. Installation crews often over-torque bolts using heavy impact drivers. This extreme force distorts the strut channel profile permanently. The structural lips bend inward, ruining the vital mechanical grip entirely.
Conversely, under-torquing leads directly to dangerous vertical slippage. Heavy pipes will eventually slide down vertical channel runs. You must enforce strict torque specifications across all installation teams. Using properly graded spring nuts ensures the metal teeth bite securely into the channel lips.
Industrial builds face constant operational movement day and night. This vibration slowly loosens standard nuts and bolts over time. Adoption risks run extremely high if you ignore this physical phenomenon.
Best Practice: You must mandate vibration-resistant hardware proactively. Require heavy-duty lock washers on all critical overhead supports. Nylon-insert nuts prevent threads from backing out during continuous machinery vibration. Some heavy-duty builds also require specific liquid thread-locking compounds for maximum security.
Post-installation oversight prevents future disasters effectively. You should establish strict baseline criteria for all routine visual inspections. Maintenance teams must look closely for any structural deflection.
Any visible bending indicates an overloaded bracket immediately. Inspectors should also check for orange rust weeping around bolted joints. Rust signifies compromised coatings or active galvanic corrosion. Finally, verify no bolts have backed out from their original seated positions using a calibrated torque wrench.
Your structural integrity relies heavily on your manufacturing partner. You must vet suppliers systematically to avoid massive supply chain failures.
You need to evaluate your manufacturing partners carefully before ordering. Does the supplier provide verifiable material test reports (MTRs)? These exact reports trace the chemical composition of the original steel batch. They prove the metal meets expected industrial grades.
Consistent dimensional tolerances serve as another crucial evaluation dimension. Bulk orders often reveal massive inconsistencies in cheap commodity products. A single one-millimeter variance in hole placement ruins installation efficiency completely. It forces crews to waste hours forcing mismatched parts together.
Industrial projects often face highly demanding scheduling conflicts. This creates a major business problem for procurement teams. You must balance off-the-shelf availability against future custom fabrication needs.
Standard flat plates and L-brackets should ship immediately from inventory. However, niche applications might suddenly require specialized angles or heavy epoxy coatings. Ensure your supplier handles both bulk standard orders and complex custom engineering requests smoothly.
Follow this actionable checklist to finalize your procurement strategy confidently:
By applying this systematic checklist, you verify your Strut Channel Fittings supplier meets all technical and operational demands flawlessly.
Specifying industrial framing connections requires rigorous attention to detail. You must maintain a strict balance between structural engineering needs and environmental foresight. Selecting the right brackets prevents catastrophic load failures. Choosing the proper protective finish stops corrosive degradation before it starts. Furthermore, demanding verifiable load data protects your facility from compliance liabilities. Do not leave your structural integrity to chance or arbitrary commodity purchasing. We encourage you to consult directly with technical sales teams for precise load calculations. Request a comprehensive engineering catalog to review verified specifications, or submit a detailed bulk procurement RFQ to start your next project securely.
A: While dimensions are largely standardized (e.g., 1-5/8" framing), mixing brands voids manufacturer load warranties and can introduce tolerance stacking issues. Sticking to a single verified system is recommended for liability management.
A: Typically 50 ft-lbs, but specify that this depends on the bolt grade, nut type, and strut wall thickness. Always defer to the specific manufacturer's engineering data.
A: Visually intact fittings can often be repurposed for lighter duties, but hardware (like spring nuts and bolts) that has been torqued to yield or subjected to high dynamic stress should be replaced to ensure safety.
